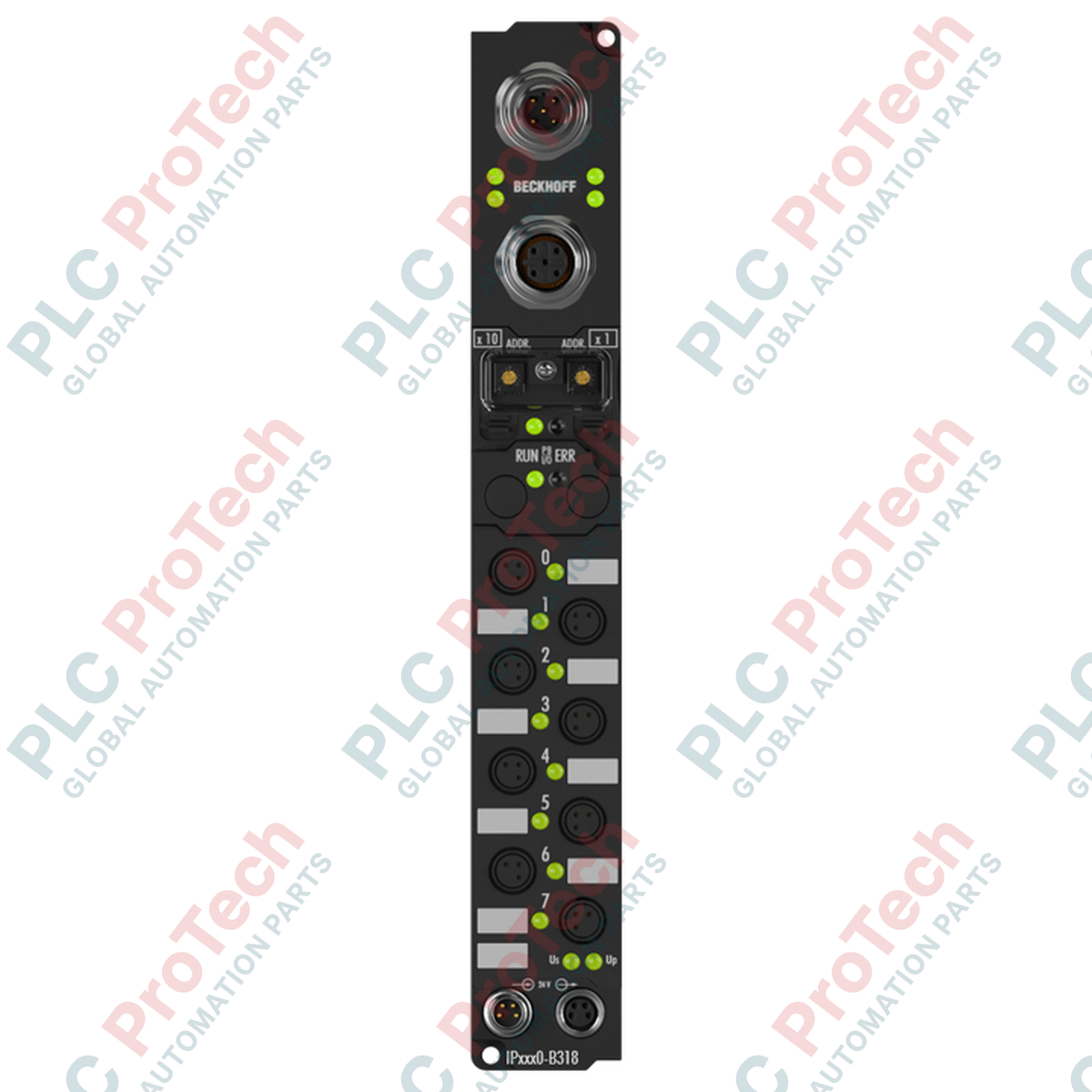

For direct installation in the field without protective enclosures, the Beckhoff IP2330-B310 serves as a robust PROFIBUS DP interface block featuring integrated digital I/O channels. By combining 4 digital inputs and 4 digital outputs in a single, high-protection module, this decentralized station minimizes wiring overhead and optimizes signal routing on modern automated production floors. The device communicates directly with the host PLC via a high-speed PROFIBUS DP connection, executing commands with minimal latency and high operational reliability.
| Specification Parameter | Technical Value |
|---|---|
| Manufacturer | Beckhoff Automation |
| Model Designation | IP2330-B310 |
| Protocol / Interface | PROFIBUS DP |
| Data Transfer Rates | Automatic detection up to 12 Mbaud |
| Digital Inputs | 4 channels (24 V DC, filter time 0.2 ms) |
| Digital Outputs | 4 channels (24 V DC, 2 A maximum, short-circuit protected) |
| Field Connection Type | M8 (diameter 8 mm) snap-on connectors |
| Power Supply Voltage | 24 V DC (-15% / +20%) |
| Operating Temperature Range | 0 degC to 55 degC |
| Storage Temperature Range | -25 degC to 85 degC |
| IP Rating | IP65 / IP66 / IP67 (when fully connected and sealed) |
| Shipping Weight (Calculated) | 2.0 kg |
| Package Dimensions (Calculated) | 175 mm x 45 mm x 35 mm |
| Connection Pin (M8 Signal) | Function / Signal Assignment |
|---|---|
| Pin 1 | Sensor / Actuator Supply (+24 V DC) |
| Pin 3 | Reference Ground (0 V) |
| Pin 4 | Input Signal (Channels 1-4) / Output Signal (Channels 1-4) |
The IP2330-B310 operates as an integrated IP67 equivalent to the coupling of a Beckhoff BK3120/BK3150 PROFIBUS Coupler with KL1404 and KL2404 Bus Terminals. When executing drop-in replacements, ensure that the GSD file installed on the master PROFIBUS controller matches the correct revision level. Older revisions of this Fieldbus Box may have different parameter mappings in hardware configurations; verify whether the GSD file supports the diagnostic structures of newer hardware variants.
While individual digital outputs can supply up to 2 A, the cumulative load across all outputs is restricted by the absolute power distribution limit of the module's power feed-in line (typically up to 4 A in series-connected topologies). If driving heavy inductive loads like high-current solenoid valves continuously, mount the module on a metallic plate to aid thermal dissipation and prevent localized thermal shut-down.
The PROFIBUS DP address is configured manually via the two rotary switches located behind the screw-down protection cap. Note that the station address cannot be changed dynamically; address modifications only become active upon cycling the system control power (24 V DC). Always ensure the protective screw cap is fully tightened to a minimum of 0.5 Nm after address configuration to maintain the module's IP67 ingress protection rating.
Before mounting or servicing this Fieldbus Box, isolate and lock out all 24 V DC control and load power supplies. Ingress of moisture or conductive debris into open, unsealed M8/M12 connectors during installation will cause internal short-circuiting and permanent bus interface failure.
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: IP2330-B310
Country of origin:Germany
Product Type: Fieldbus Box Modules
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 175 mm x 45 mm x 35 mm
Shipping port: Xiamen
Warranty: 12 months
