Product Overview

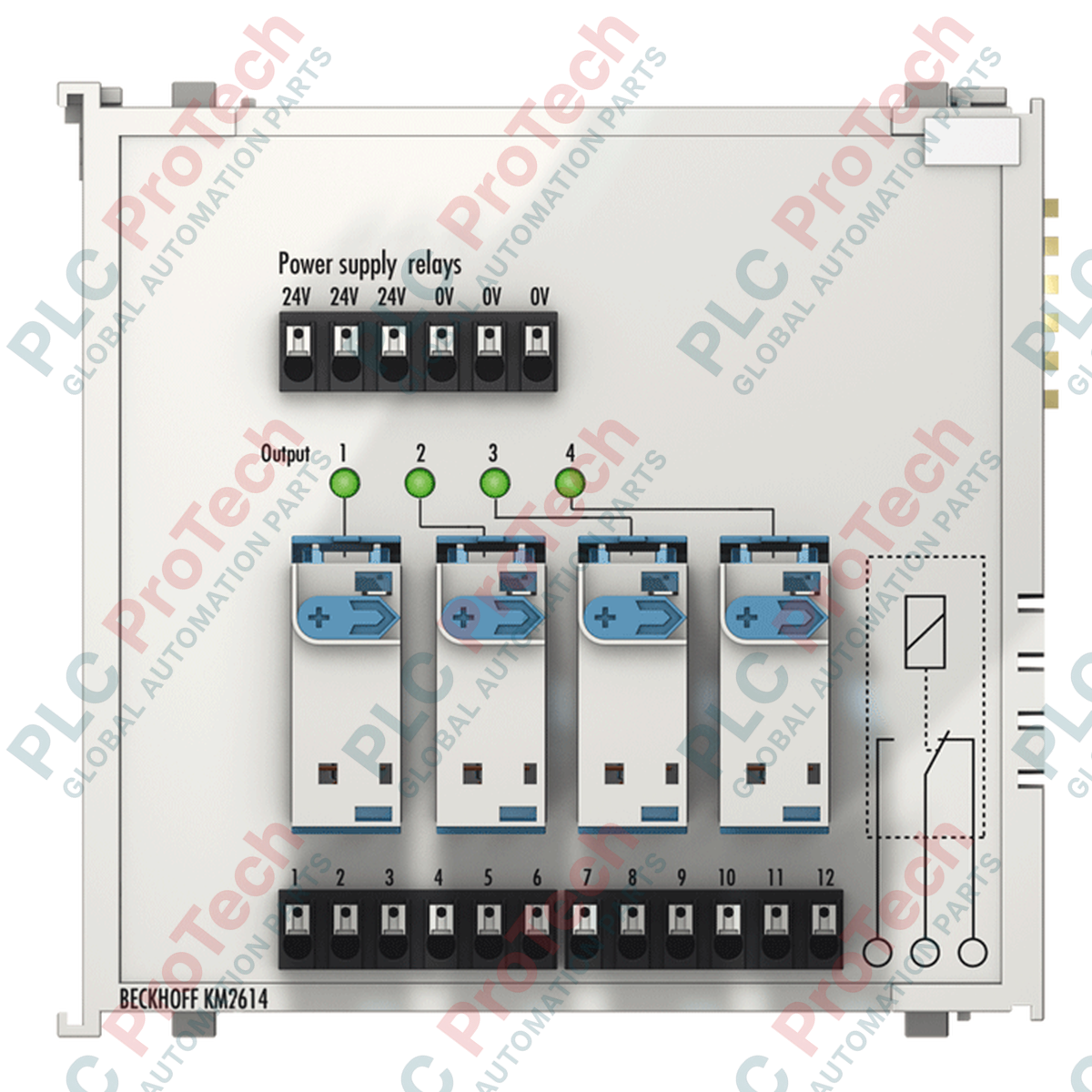

The Beckhoff KM2614 is a high-power, 4-channel relay output terminal from the K-bus series, specifically engineered for direct load switching in building automation and heavy industrial applications. Unlike standard signal relays, the KM2614 features change-over (SPDT) contacts capable of handling 16 A at 250 V AC. A standout feature of this module is the integrated manual/automatic override switch on each relay, allowing maintenance personnel to manually toggle outputs during system testing or commissioning without needing to engage the PLC software.

Technical Configuration

The KM2614 combines high switching capacity with the flexibility of manual control, making it an essential tool for local machine overrides.

• High-Current Relay Control: Each of the four channels supports up to 16 A, allowing the direct switching of lighting circuits, pumps, or HVAC contactors.
• Manual Override: Each relay has a physical switch for manual/automatic operation. This is invaluable during field installation, enabling technicians to verify electrical connections or force an output "on" for testing without active communication from the central controller.
• Robust Switching: Designed to handle significant inrush currents, including lamp loads with electronic ballasts (starting currents up to 25 A).
• Galvanic Isolation: Offers 1.5 kV isolation between the K-bus logic and field potential, providing a high degree of protection against electrical noise and transient spikes from the AC supply.

Technical Specifications

Frequently Asked Questions

What are the primary applications for the manual/automatic switch?

The manual override is primarily used during system commissioning and maintenance. It allows an operator to manually test a lighting zone or a motor contactor while the PLC is off-line or under service. It is also an essential safety fallback for testing if a communication error is suspected in the fieldbus network.

Can I switch inductive loads like motors with this terminal?

Yes, but you must respect the current de-rating for inductive loads. While the relay handles 16 A for ohmic loads, ensure your inductive load's surge/inrush current does not exceed the relay’s contact capability. For large motors, this terminal should be used to control the coil of an external, larger contactor.

How does the PLC know if the relay is in manual mode?

The KM2614 is a standard output terminal. The PLC will continue to send its commanded state to the module. If an operator switches a relay to "Manual," the relay will ignore the PLC's signal. It is a best practice to monitor the state of the system via feedback sensors if verifying that a manual override has occurred is critical to your safety logic.

Engineering Integration and Operational Best Practices

• Inrush Current Management: When controlling large banks of LEDs or fluorescent lamps with electronic ballasts, the starting current can be significantly higher than the running current. The KM2614 is rated for a 25 A starting current, which accommodates most standard commercial lighting circuits.
• Wiring Separation: Because this terminal switches 250 V AC, ensure strict physical separation between the 230 V power cabling and the low-voltage K-bus/signal wiring inside your control cabinet to prevent EMI.
• Thermal Considerations: At 16 A per channel, the terminal may generate heat during sustained high-load operation. Ensure the cabinet has proper airflow and avoid mounting the KM2614 directly against other heat-generating modules if possible.
• Contact Maintenance: While the relay is rated for $1 \times 10^6$ electrical cycles, mechanical loads like heavy motors will wear out contacts faster. If you are switching a load more than a few times per minute, consider using an external solid-state relay (SSR) driven by the KM2614.
