BECKHOFF KS3044 Bus Terminal

SKU KS3044

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: KS3044
Origin Germany
Product Type: Bus Terminals
Payment: T/T, Western Union
Weight: 0.07 kg
Dimensions: 6.8 cm x 1.2 cm x 10.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

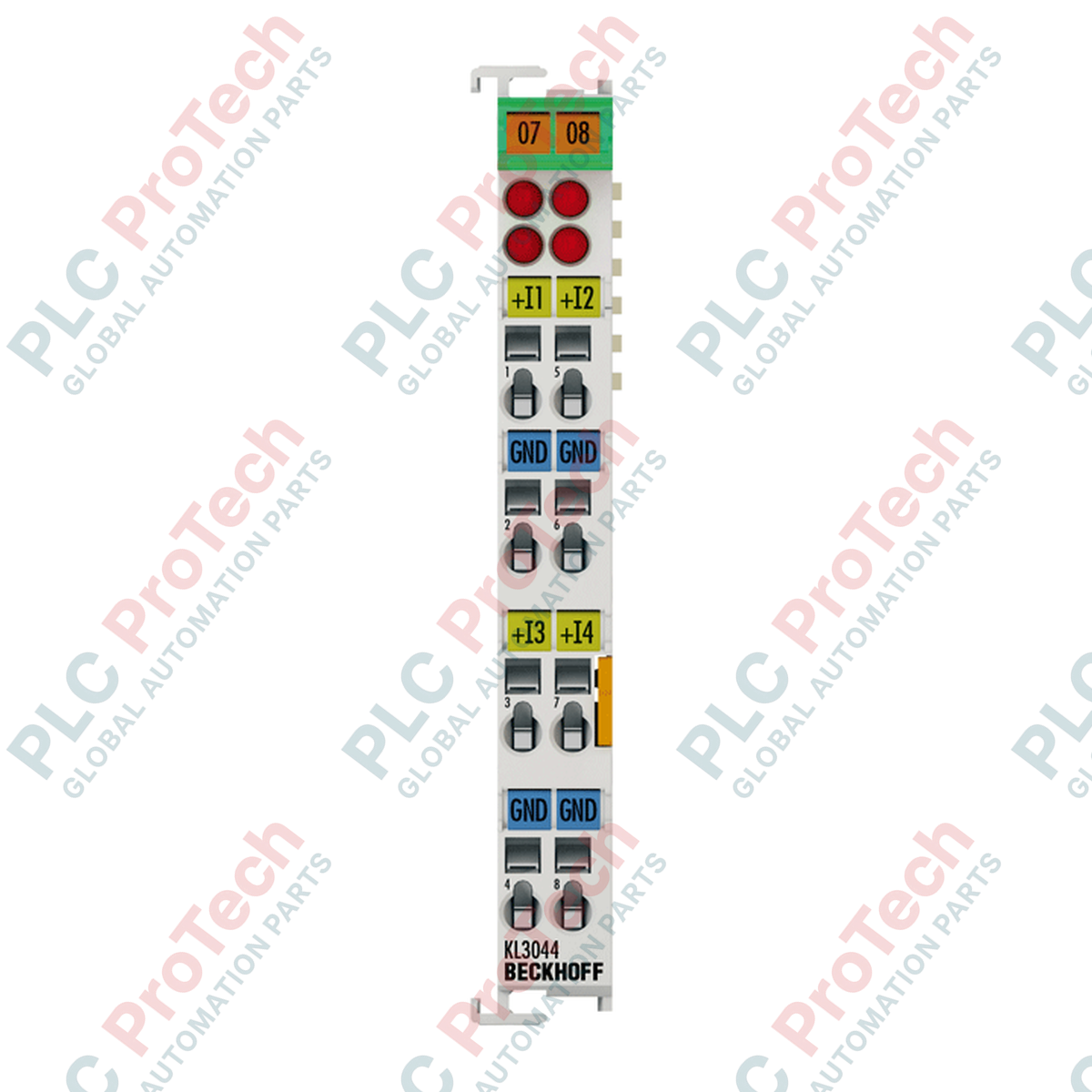

The BECKHOFF KS3044 is a 4-channel analog input Bus Terminal designed for processing 0 to 20 mA process signals in industrial automation architectures. Operating as part of the established BECKHOFF Bus Terminal system, this unit features pluggable wiring technology to facilitate efficient installation and maintenance without disrupting field cabling. It interfaces directly with compatible bus couplers via the internal K-bus, transmitting digitized process values to the higher-level control system.

Engineered for single-ended signal acquisition, the KS3044 delivers 12-bit resolution across its four independent channels. The terminal is housed in a compact polycarbonate enclosure designed for standard 35 mm DIN rail mounting, incorporating electrical isolation between the field-side signals and the K-bus logic. It is suited for process measurement tasks requiring standard current loop monitoring within machine control cabinets.

Features

Four analog input channels supporting 0 to 20 mA signal current ranges
Single-ended measurement technology with internal resistance and series diode drop
12-bit analog-to-digital resolution for precise process data representation
Pluggable wiring level for simplified installation and pre-wired connector replacement
K-bus interface for communication and power distribution within the Bus Terminal segment
DIN rail mounting design utilizing standard 35 mm mounting rails conforming to EN 60715

Applications

Acquisition of analog sensor signals in industrial machinery and factory automation systems
Process monitoring of 0 to 20 mA current loops in control cabinet installations
Distributed data acquisition across modular machine architectures using BECKHOFF Bus Terminals

Technical Specifications

General

Parameter	Specification
Manufacturer	BECKHOFF
Exact Model	KS3044
Product Type	Bus Terminal
Design form	Terminal housing with pluggable wiring level
Material	Polycarbonate
Dimensions (L x W x H)	6.8 cm x 1.2 cm x 10.0 cm
Weight	0.07 kg

Signal and I/O

Parameter	Specification
Number of inputs	4
Signal current	0 to 20 mA
Technology	Single-ended
Internal resistance	80 ohms + diode voltage 0.7 V
Resolution	12 bit
Measuring error	< ±0.3 % (relative to full scale value)
Conversion time	~ 4 ms
Surge voltage resistance	Max. 35 V
Bit width in the process image	Input: 4 x 16 bit data (4 x 8 bit control/status optional)

Electrical

Parameter	Specification
Electrical isolation	500 V (K-bus/signal voltage)
Current consumption K-bus	Typ. 65 mA
Current consumption power contacts	No power contacts
Current load power contacts	Imax: 10 A
Configuration	No address or configuration setting

Connection Technology

Parameter	Specification
Wiring	Spring actuation by screwdriver
Connection cross-section solid (s)	0.08 to 1.5 mm²
Connection cross-section stranded (st)	0.08 to 1.5 mm²
Connection cross-section fine-stranded (f)	0.14 to 1.5 mm²
Connection cross-section AWG	AWG 28 to 16 (s, st), AWG 26 to 16 (f)
Stripping length	9 to 10 mm

Environmental and Compliance

Parameter	Specification
Operating temperature	0 to +55 degC
Storage temperature	-25 to +85 degC
Relative humidity	95 %, no condensation
Vibration/shock resistance	Conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Protection rating	IP20
Installation position	Variable
Approvals/markings	CE, UL, ATEX, DNVGL
Ex marking	II 3 G Ex nA IIC T4 Gc

Installation Guidelines

Ensure the entire control system and local power supplies are completely de-energized before beginning installation or wiring work.
Inspect the terminal housing and pluggable wiring connector for any signs of transport damage or contamination.
Mount the BECKHOFF KS3044 onto a standard 35 mm DIN rail (conforming to EN 60715) by snapping it into place, utilizing the built-in locking mechanism.
Connect adjacent terminals securely using the double slot and key connection system to maintain proper K-bus alignment.
Strip field conductors to the specified length (9 to 10 mm) and insert them into the spring-actuated connection points using a suitable screwdriver.
Verify all signal wiring against system schematics, ensuring correct polarity for the 0 to 20 mA current loop inputs.
Power on the system and verify operational status via the bus coupler and control environment diagnostics.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the BECKHOFF KS3044?

The BECKHOFF KS3044 is a 4-channel analog input Bus Terminal engineered to acquire and process 0 to 20 mA current signals within a BECKHOFF I/O system.

How many channels does the BECKHOFF KS3044 support?

The BECKHOFF KS3044 features four independent single-ended input channels with 12-bit resolution for analog measurements.

What connection technology does the BECKHOFF KS3044 use?

The BECKHOFF KS3044 utilizes pluggable wiring with spring-actuated connection points operated via a screwdriver for secure conductor termination.

Does the BECKHOFF KS3044 require external address configuration?

No, the BECKHOFF KS3044 operates without requiring manual address or configuration settings, integrating automatically into the K-bus structure.
