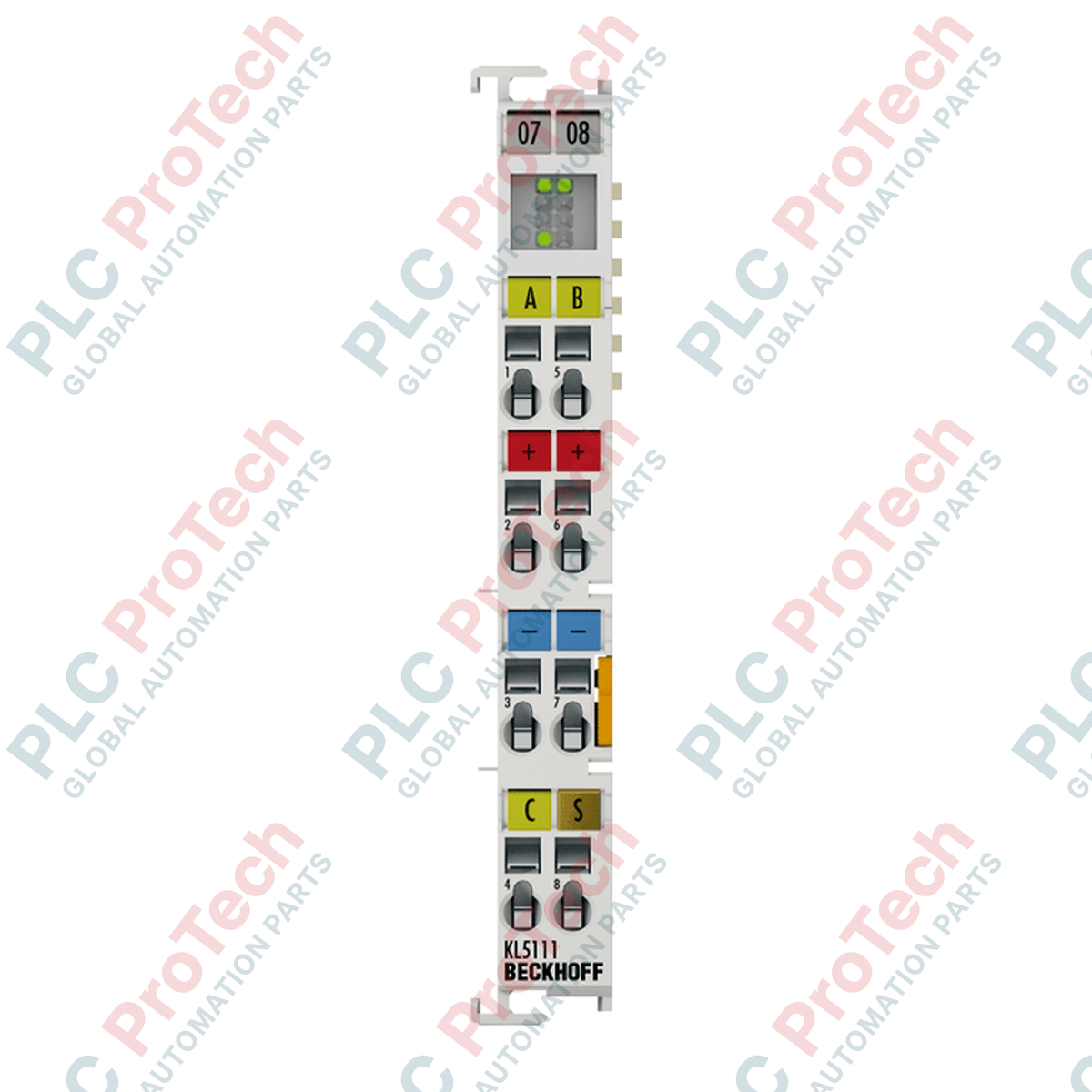

Position and velocity evaluation within automated systems is streamlined using the Beckhoff KS5111 Bus Terminal. This module serves as a physical interface for the direct connection of 24 V DC incremental encoders conforming to EN 61131-2 Type 1 standards. By processing quadrature signals from industrial encoders, this terminal integrates high-speed mechanical motion feedback directly into the K-bus process image of your PLC or DCS architecture.
The unit features a 16-bit binary counter that can be read, set, or enabled via control bytes. A built-in zero-pulse latch allows the 16-bit register to lock on the zero-pulse (C track) signal, enabling highly repeatable homing sequences and precise registration-mark detection. Utilizing the pluggable connection level characteristic of the KS-series, the module facilitates swift field replacement without requiring the disconnection of individual terminal wires, keeping system downtime to a minimum.
| System Identification | Manufacturer | Beckhoff |
| Part Number / Model | KS5111 | |
| Module Type | Bus Terminal (K-bus) | |
| Wiring Level Design | Pluggable connection level | |
| Electrical Interface | Number of Channels | 1 incremental encoder channel |
| Encoder Connection Signals | A, B, C, 24 V DC | |
| Input Specification | EN 61131-2, Type 1 | |
| Signal Voltage Level | "0": < 5 V DC, "1": > 15 V DC (typ. 5 mA) | |
| Encoder Operating Voltage | 24 V DC (-15% / +20%) | |
| Maximum Limit Frequency | 1,000,000 increments/s (with 4-fold evaluation) | |
| Processing & Data | Internal Counter | 16-bit binary |
| Quadrature Decoder Mode | 4-fold evaluation | |
| Process Image Bit Width | Input/Output: 2 x 16-bit data, 2 x 8-bit control/status | |
| Power Requirements | K-bus Current Consumption | typ. 40 mA |
| Max. Power Contact Current Load | 10 A | |
| Mechanical & Wiring | Connection Technology | Pluggable spring-clamp system |
| Conductor Cross-section (Solid/Stranded) | 0.08 to 1.5 mm² (AWG 28 to 16) | |
| Conductor Cross-section (Flexible) | 0.14 to 1.5 mm² (AWG 26 to 16) | |
| Wire Stripping Length | 9 to 10 mm | |
| Mounting Method | 35 mm DIN rail (EN 60715) with interlocking mechanism | |
| Environmental Specs | Operating Temperature Range | 0 to 55 degC |
| Storage Temperature Range | -25 to 85 degC | |
| Relative Humidity Limits | 95%, non-condensing | |
| Ingress Protection Rating | IP20 | |
| Vibration & Shock Standards | Conforms to EN 60068-2-6 / EN 60068-2-27 | |
| Physical Attributes | Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Net Weight | 0.06 kg | |
| Housing Material | Polycarbonate |
| Signal Designation | Function Description |
|---|---|
| A | Encoder channel A input (quadrature signal) |
| B | Encoder channel B input (90 degree phase-shifted signal) |
| C | Encoder channel C input (zero-pulse / index marker) |
| 24 V | Encoder power supply feed output |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: KS5111
Country of origin:Germany
Product Type: Bus Terminals
Payment: T/T, Western Union
Weight: 60g
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months
