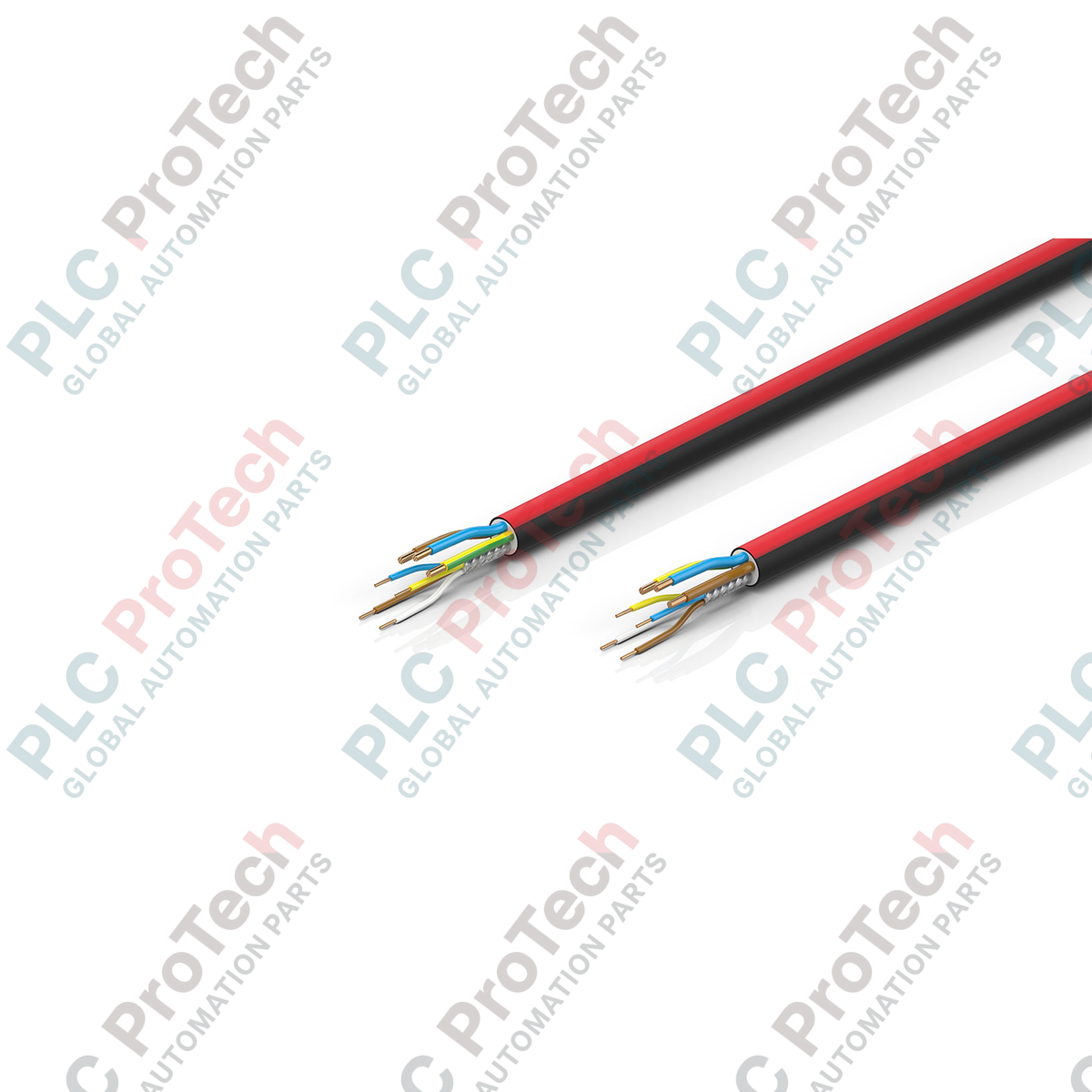

Designed to transmit both EtherCAT communication and electrical power through a single integrated line, the Beckhoff ZB7210-0250 establishes secure physical layer connections in dynamic industrial networks. This high-flexibility cable contains a dedicated 4-core Ethernet element alongside three heavy-gauge power conductors, eliminating the need for separate data and power lines. Built with a rugged polyurethane jacket, the ZB7210-0250 maintains signal integrity and power transmission under continuous mechanical stress.
| Manufacturer | Beckhoff |
|---|---|
| Article Number | ZB7210-0250 |
| Cable Type | EtherCAT P (Data and Power Combined) |
| Overall Shielding | No overall shield |
| Ethernet Cross-Section | 1 x 4 x 0.34 mm2 (AWG 22) |
| Power Cross-Section | 3 x 2.5 mm2 (AWG 14 equivalent) |
| Outer Cable Diameter | 11.1 mm (+/- 0.2 mm) |
| Jacket Material | PUR (Polyurethane) |
| Jacket Color | Black (RAL 9005) with red stripe (RAL 3020) |
| Dynamic Suitability | Drag-chain rated |
| Shipping Weight (Calculated) | 2.0 kg |
This cable is purpose-built for the EtherCAT P standard (combining US and UP voltages on the signal lines). It must not be confused with standard green-jacketed EtherCAT cabling. When terminating or connecting this cable, always pair it with authorized EtherCAT P connectors (such as M8 or B23 sizes) designed to separate power and communication paths properly.
Because this specific variant is unshielded overall, installers must avoid laying this cable parallel to heavy-duty, high-voltage motor or variable frequency drive (VFD) output lines inside the same drag chain. High-frequency noise from unshielded VFD lines can couple into the unshielded data pairs, leading to CRC errors and lost EtherCAT packets.
When stripping the outer PUR jacket, take extreme care not to nick the insulation of the inner 4-core Ethernet star-quad or the three 2.5 mm2 power wires. For dynamic applications, always observe the minimum bending radius specified for dynamic operation to prevent premature conductor fatigue.
Always isolate all system power sources (both communication logic power and field load power) before routing, cutting, or terminating the cable. Failure to de-energize the lines before connection can result in short circuits across the EtherCAT P power pins, damaging sensitive downstream bus couplers and terminal modules.
