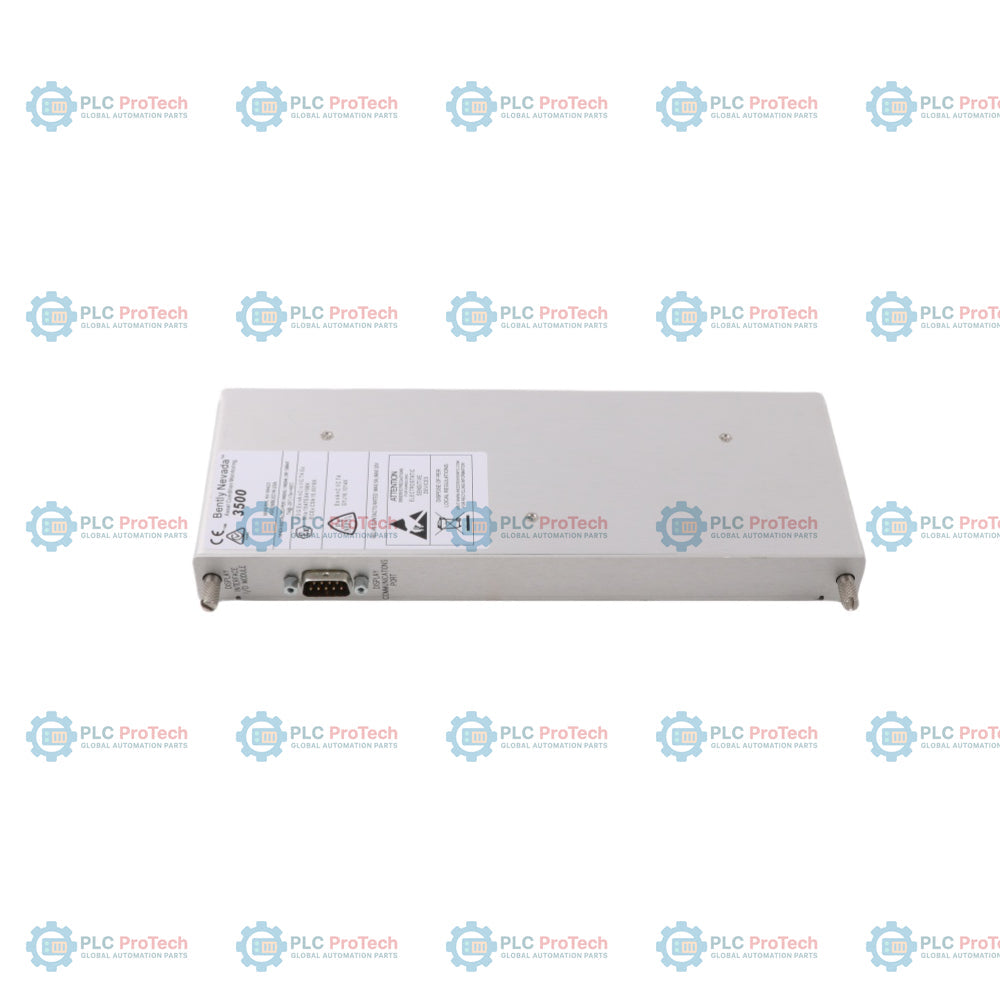

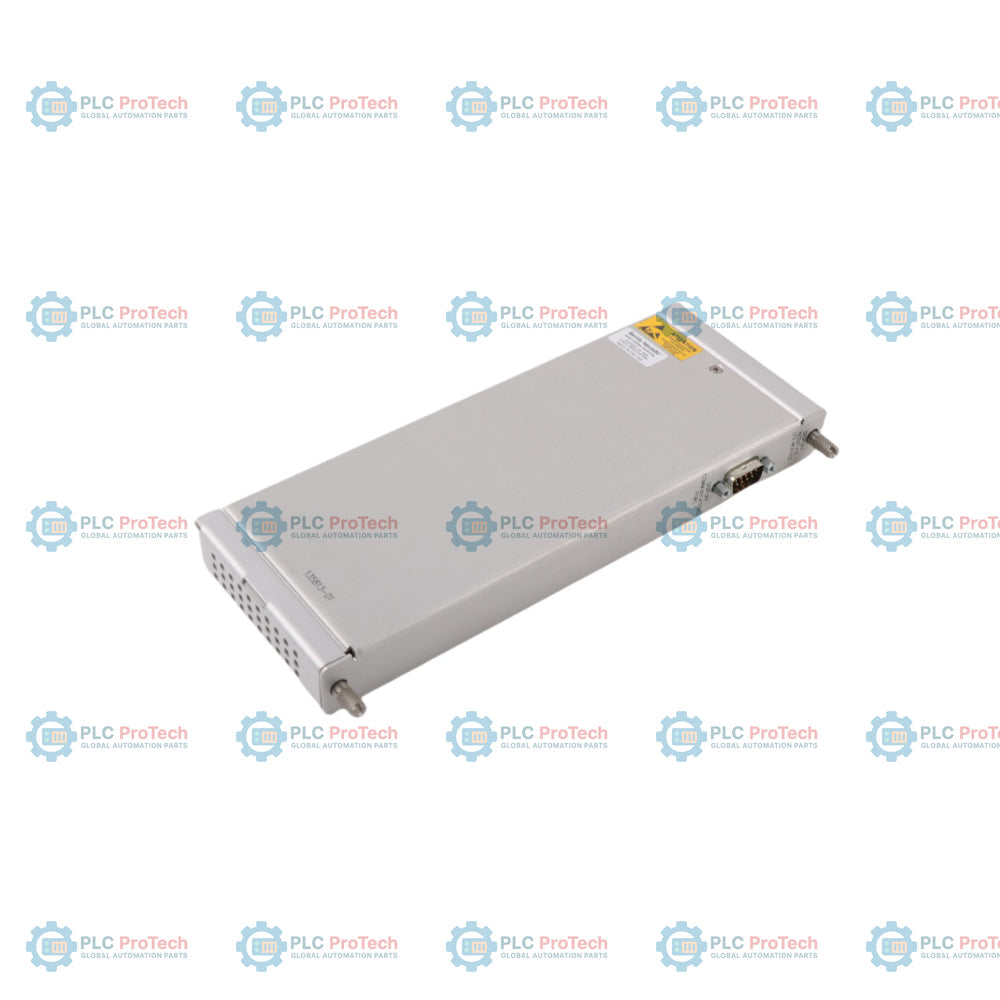

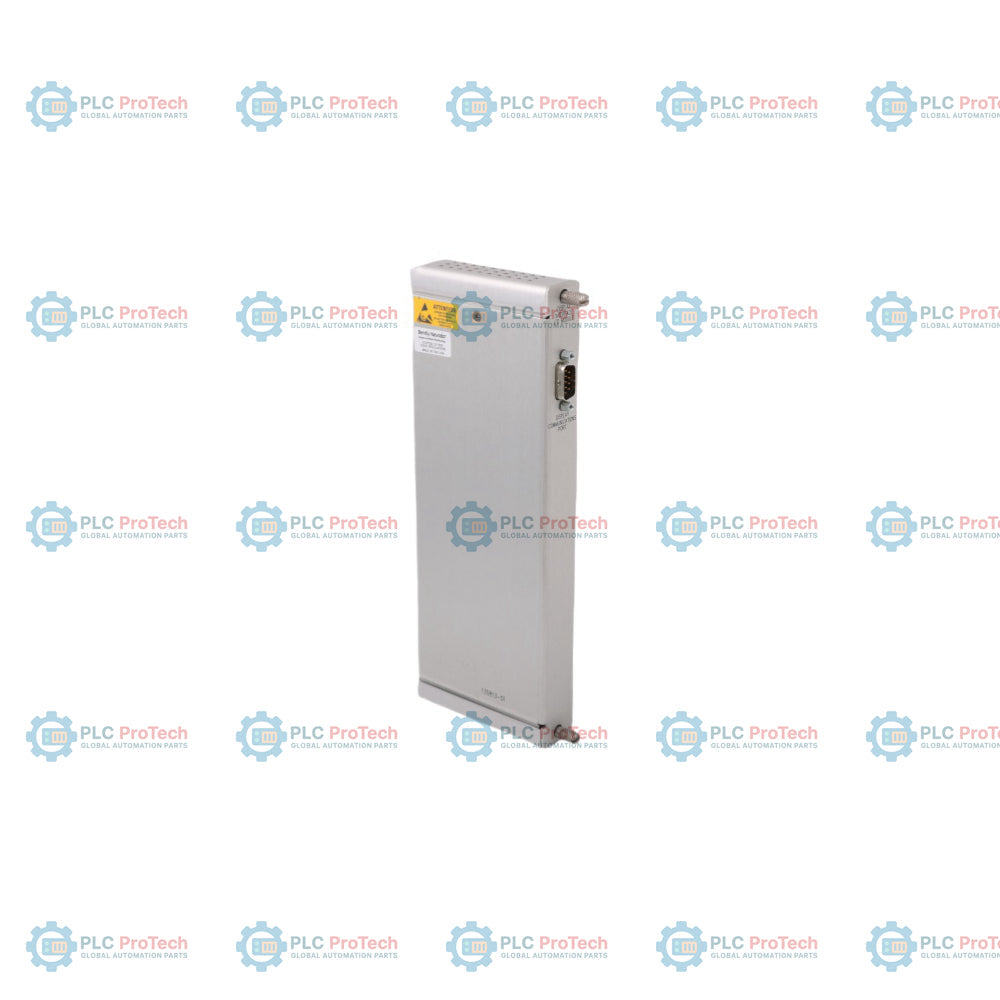

The Bently Nevada 135813-01 is a Display Interface I/O Module designed for local or remote visual indication of all 3500 Machinery Protection System information residing in the rack. The 135813-01 interacts with the 3500 backplane network to collect current values, System Event Lists, Alarm Event Lists, and status data across all channel, monitor, relay, Keyphasor, or tachometer modules. The module provides hardware interface output connectivity for communication with the 3500/93 Display Unit via an RS422 physical layer supporting Bently Nevada proprietary protocol and Modbus protocol.
| Part Number | Description |
|---|---|
| 135813-01 | 3500/93 Display Interface I/O Module |
| 135799-01 | 3500/93 Display Interface Module |
| 135799-02 | 3500/93 Display Interface Module (use with A05 thru A08 options) |
| 135785-01 | 3500/93 Display Unit, non back-lighted |
| 135785-02 | 3500/93 Display Unit, back-lighted |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 135813-01 |
| Module Type | Display Interface I/O Module |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| Weight | 0.38 kg (0.84 lb) |
| Rack Space Requirements | 1 full-height rear slot |
| Operating Temperature | -30 degC to +65 degC (-22 degF to +150 degF) |
| Storage Temperature | -40 degC to +85 degC (-40 degF to +185 degF) |
| Humidity | 95%, noncondensing |
| Communication Hardware | RS422 Interface |
| Protocols | GE Bently Nevada proprietary protocol, Modbus protocol (based on AEG PI-MBUS-300 Rev. E Reference Manual) |
| Channel Update Rate | 1 second, typical |
| Connector / Port | Function |
|---|---|
| Display Communications Port | RS422 interface for connecting to the 3500/93 Display Unit |
| Standard / Directive | Detail |
|---|---|
| EMC Standards | EN 61000-6-2 Immunity for Industrial Environments, EN 55011/CISPR 11 ISM Equipment, EN 61000-6-4 Emissions for Industrial Environments |
| European Community Directives | EMC Directive 2004/108/EC |
| Electrical Safety | EN 61010-1, 2006/95/EC Low Voltage Directive |
| CSA/NRTL/C | Option (01): AEx nA IIC: Class I, Zone 2, Div 2 Groups A, B, C, D; T4 @ Ta = -30 degC to +65 degC (-22 degF to +150 degF) |
| ATEX | Option (02): II 3/ (1) G Ex nC[nL Gc] IIC T4 Gc; T4 @ Ta = -20 degC to +65 degC (-4 degF to +150 degF) |
| Brazil | Option (02): BR-Ex nC [nL] IIC T4; T4 @ Ta = -20 degC to +65 degC (-4 degF to +150 degF) |
| South Africa | Option (02): Ex nCAL [ia] IIC T4, Ex nCAL [L] IIC T4; T4 @ Ta = -20 degC to +65 degC (-4 degF to +150 degF) |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 135813-01
Country of origin:United States
Product Type: Display Interface I/O Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 380g
Dimensions: 24.4 mm x 241.3 mm x 99.1 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months
