Bently Nevada

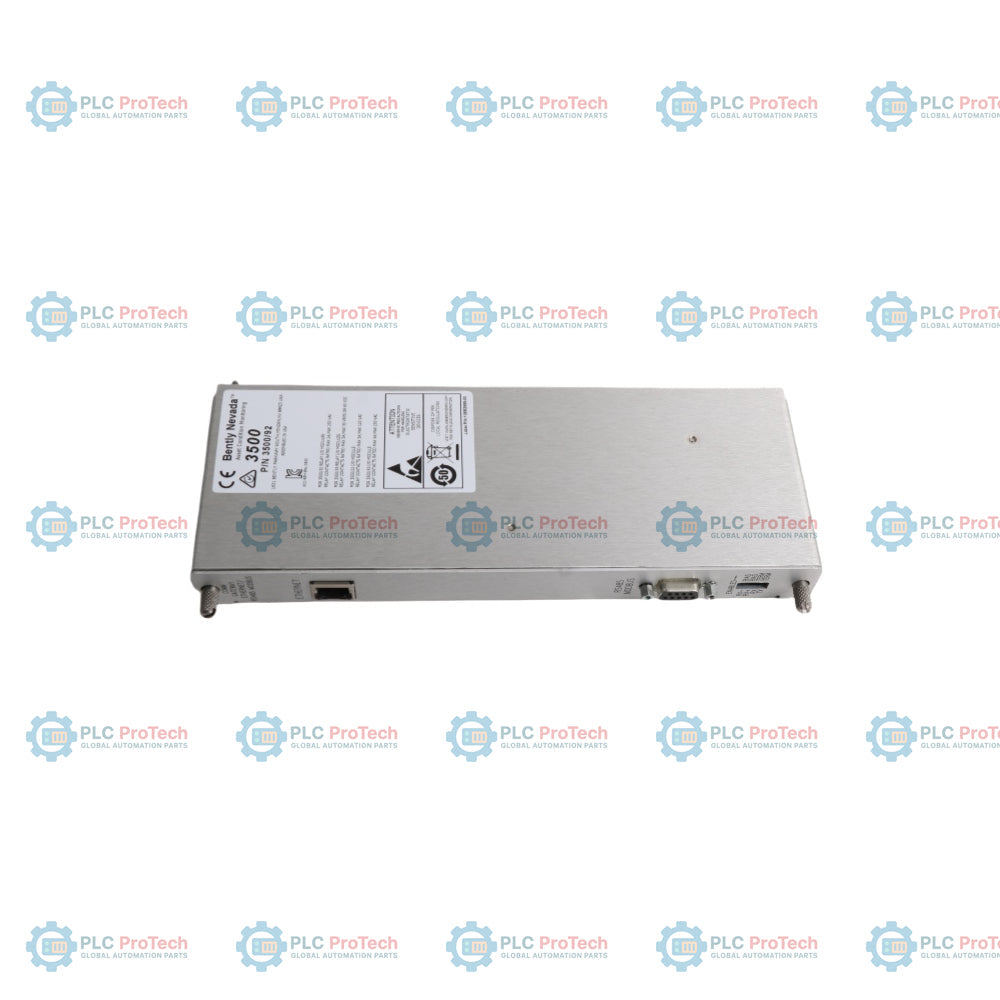

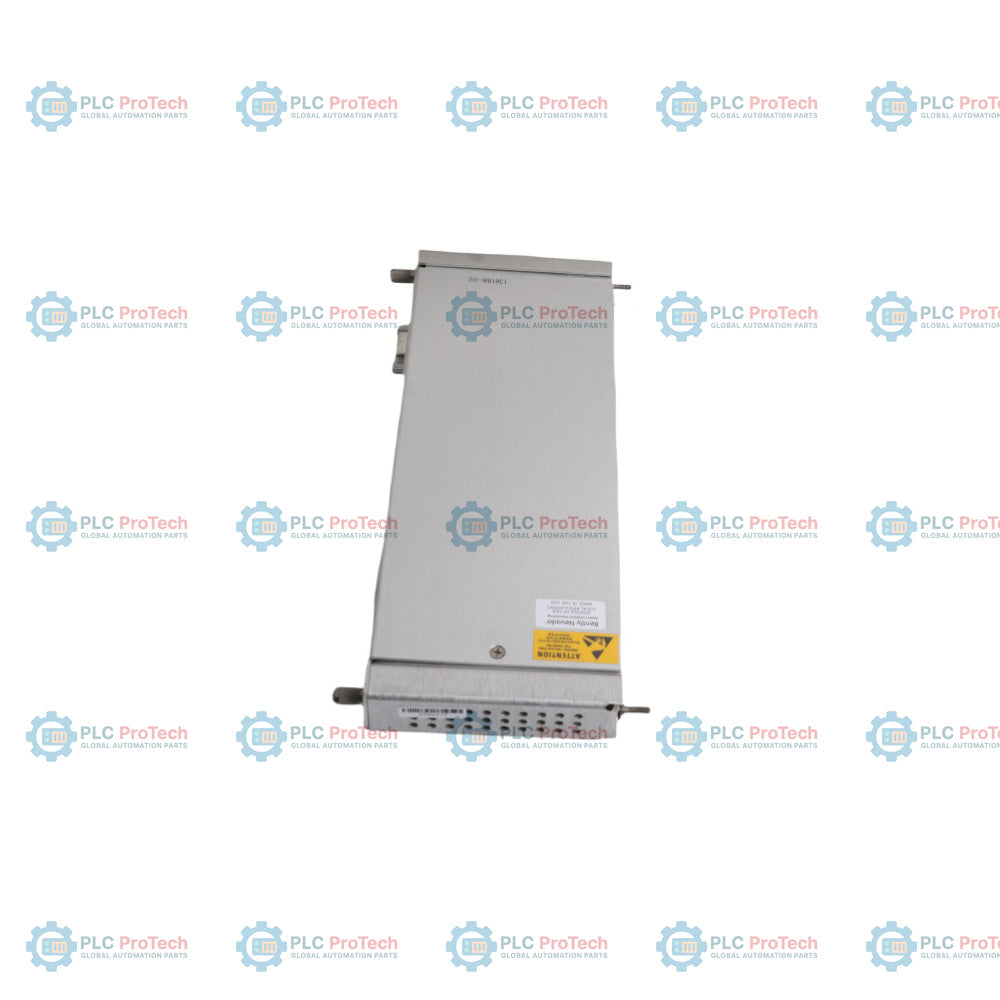

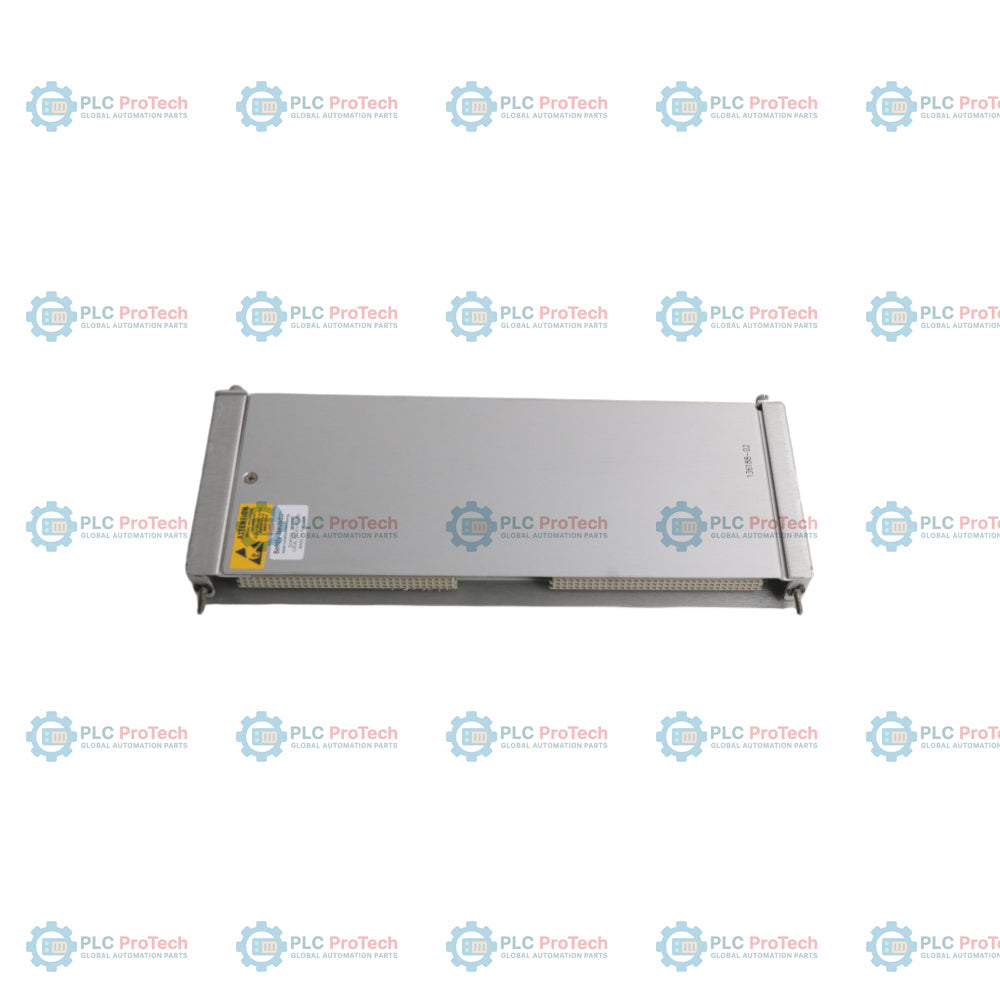

Bently Nevada 136188-02 3500/92 Ethernet/RS485 Modbus I/O Module

SKU 136188-02

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 136188-02
  • Origin United States
  • Product Type: Ethernet/RS485 Modbus I/O Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.44 kg
  • Dimensions: 241 mm x 24.4 mm x 99.1 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3500/92 I/O Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 136188-02 3500/92 Ethernet/RS485 Modbus I/O Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Bently Nevada 136188-02 is an Ethernet/RS485 Modbus I/O Module designed for use with the 3500/92 Communication Gateway in the 3500 Series machinery protection system. Installed in the rear slot of the 3500 rack, it provides both Ethernet TCP/IP and serial RS485 communication interfaces to transmit rack-monitored values, module statuses, and current alarm statuses to process control and automation systems. This module supports Modbus/TCP, serial Modbus RTU, and proprietary Bently Nevada protocols, enabling integration with DCS/PLC platforms as well as 3500 Rack Configuration and Data Acquisition Software. This spare module package includes the Firmware Upgrade Kit (126M4118-01).

Features

  • Provides Ethernet TCP/IP and serial RS485 communication interfaces for the 3500/92 Communication Gateway.
  • Supports Modbus/TCP, Modbus RTU, and Bently Nevada host protocol communication.
  • Enables data transmission of measured values, time stamps, module statuses, and alarm statuses across process automation systems.
  • Features an RJ-45 connection for 10BASE-T Ethernet networks.
  • Includes the 126M4118-01 Firmware Upgrade Kit.

Applications

  • Machinery protection system integration with Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).
  • Turbomachinery and rotating equipment monitoring in oil and gas, power generation, and chemical processing facilities.
  • Remote rack configuration and data collection via 3500 Configuration and Data Acquisition Software.

Ordering Information

Part Number Description
3500/92-AA-BB-CC 3500/92 Communication Gateway
A: I/O Module Type - 04 Ethernet/RS485 Modbus I/O Module
Spares: 136188-02 Ethernet/RS485 Modbus I/O Module (Includes Firmware Upgrade Kit 126M4118-01)
Accessory: 126M4118-01 Firmware Upgrade Kit

Technical Specifications

Parameter Specification
Manufacturer Bently Nevada
Part Number 136188-02
Module Type Ethernet/RS485 Modbus I/O Module
Compatibility Bently Nevada 3500/92 Communication Gateway
Ethernet Interface 10Mbps, conforms to IEEE802.3 Ethernet TCP/IP frame and Modbus/TCP
Ethernet Connection RJ-45 (telephone jack style) for 10BASE-T Ethernet cabling
Serial Interface RS485 Modbus
Operating Temperature -30 degC to +65 degC (-22 degF to +149 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Humidity 95%, non-condensing
I/O Module Dimensions (H x W x D) 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
I/O Module Weight 0.44 kg (0.96 lb.)
Rack Space Requirements 1 full-height rear slot

Installation Guidelines

  • Slot Placement: Install the Ethernet/RS485 Modbus I/O Module into a full-height rear slot directly behind the 3500/92 Communication Gateway main module.
  • Ethernet Cabling: Use standard 10BASE-T shielded Category 5 cable with RJ-45 connectors for Ethernet communication.
  • Serial Cabling: Follow proper RS485 polarity and shield grounding guidelines. Total RS485 cable runs can be up to 4000 feet (1220 meters).
  • Firmware Upgrade: Ensure proper installation of the included Firmware Upgrade Kit (126M4118-01) if upgrading older 3500/92 Communication Gateway modules to ensure hardware compatibility.

Compliance and Certifications

  • EMC: European Community Directive 2014/30/EU; EN 61000-6-2, EN 61000-6-4
  • Electrical Safety: European Community Directive 2014/35/EU; EN 61010-1
  • RoHS: European Community Directive 2011/65/EU
  • FCC: Complies with part 15 of the FCC Rules
  • Hazardous Area Approvals:
    • cNRTLus: Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Zone 2: AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D; T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF)
    • ATEX/IECEx: Ex II 3 G, Ex nA nC ic IIC T4 Gc, Ex ec nC ic IIC T4 Gc, T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF)
  • Maritime: DNV GL rules for classification; ABS Rules for Condition of Classification, Part 1
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Che cosa è incluso nel modulo I/O di ricambio 136188-02?
Il modulo di ricambio 136188-02 include il modulo I/O Ethernet/RS485 Modbus e il kit di aggiornamento del firmware (numero di parte 126M4118-01).
Dove viene installato il modulo 136188-02 nel rack 3500?
Il modulo viene installato in uno slot posteriore a tutta altezza, direttamente dietro il modulo principale Gateway di comunicazione 3500/92.
Quali sono i limiti della temperatura di esercizio del modulo?
L’intervallo della temperatura di esercizio va da -30 °C a +65 °C (da -22 °F a +149 °F).
Quale tipo di connettore viene utilizzato per l’interfaccia Ethernet?
Il modulo utilizza un connettore in stile presa telefonica RJ-45 per il cablaggio Ethernet 10BASE-T.
