Description

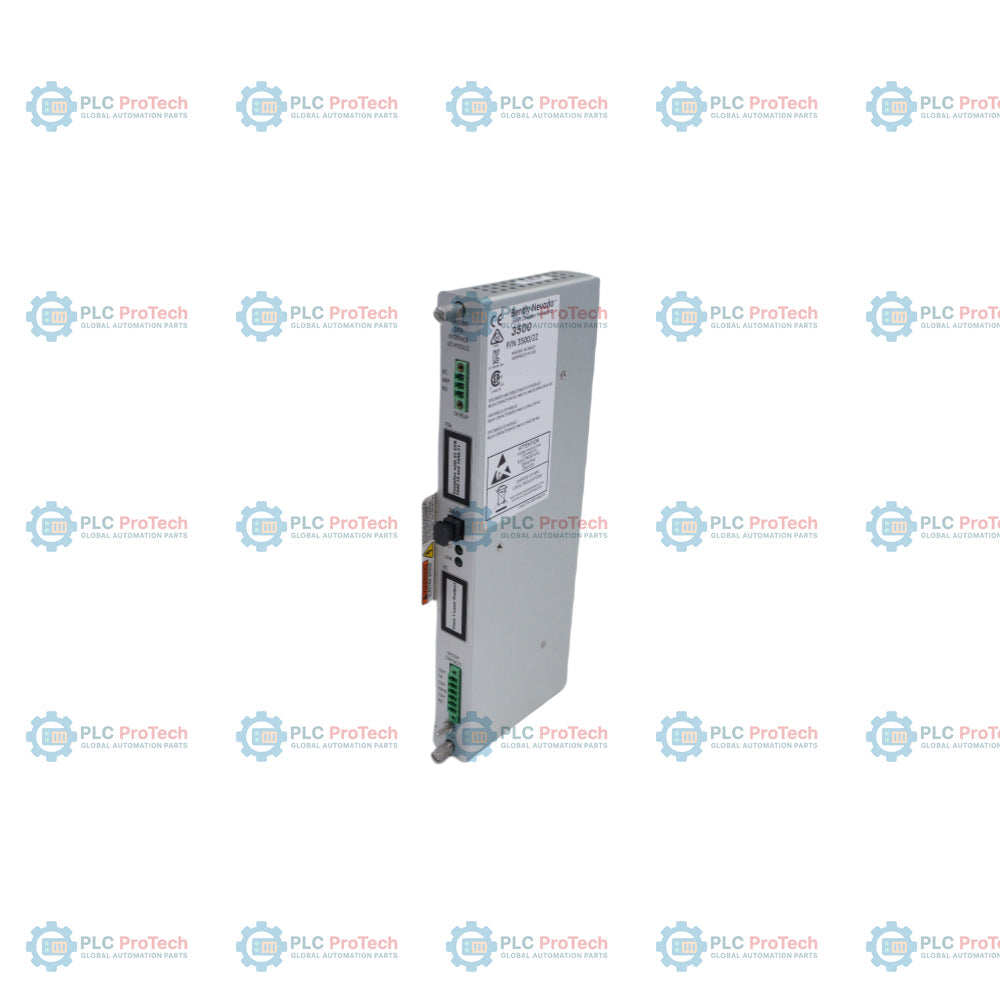

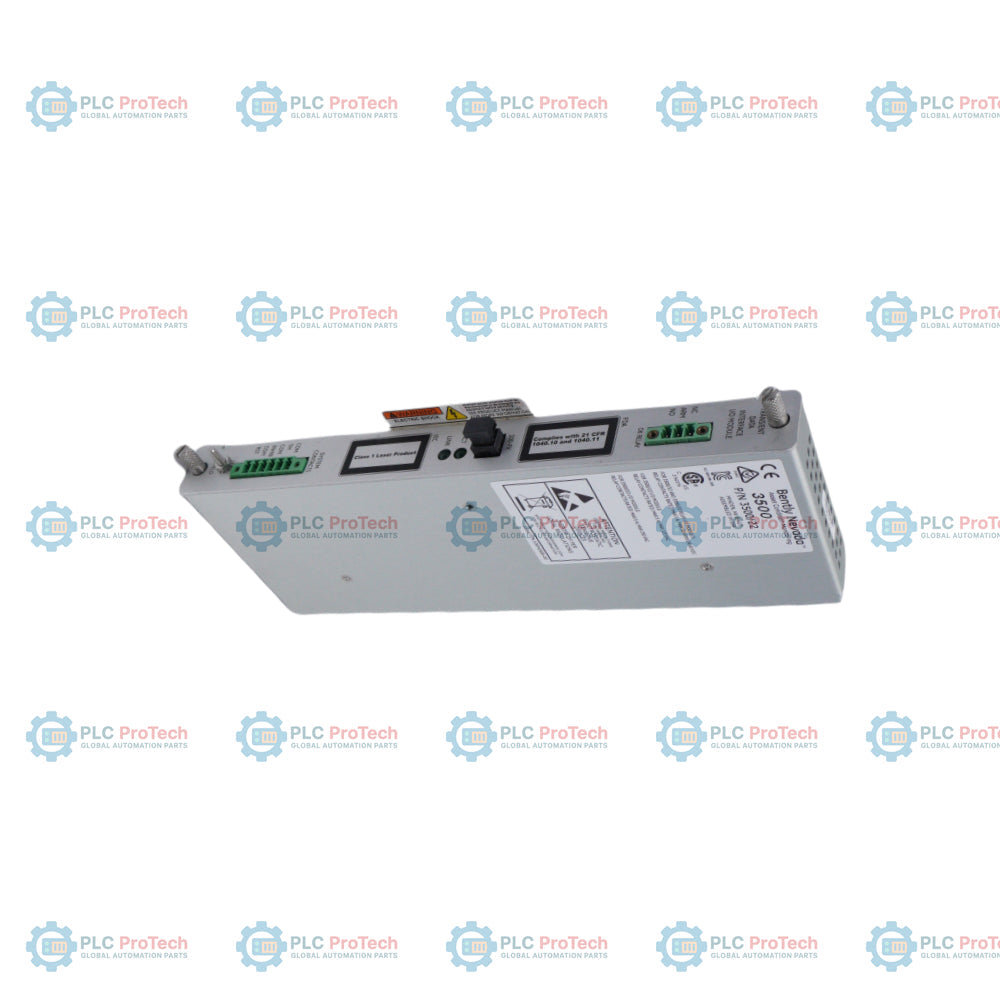

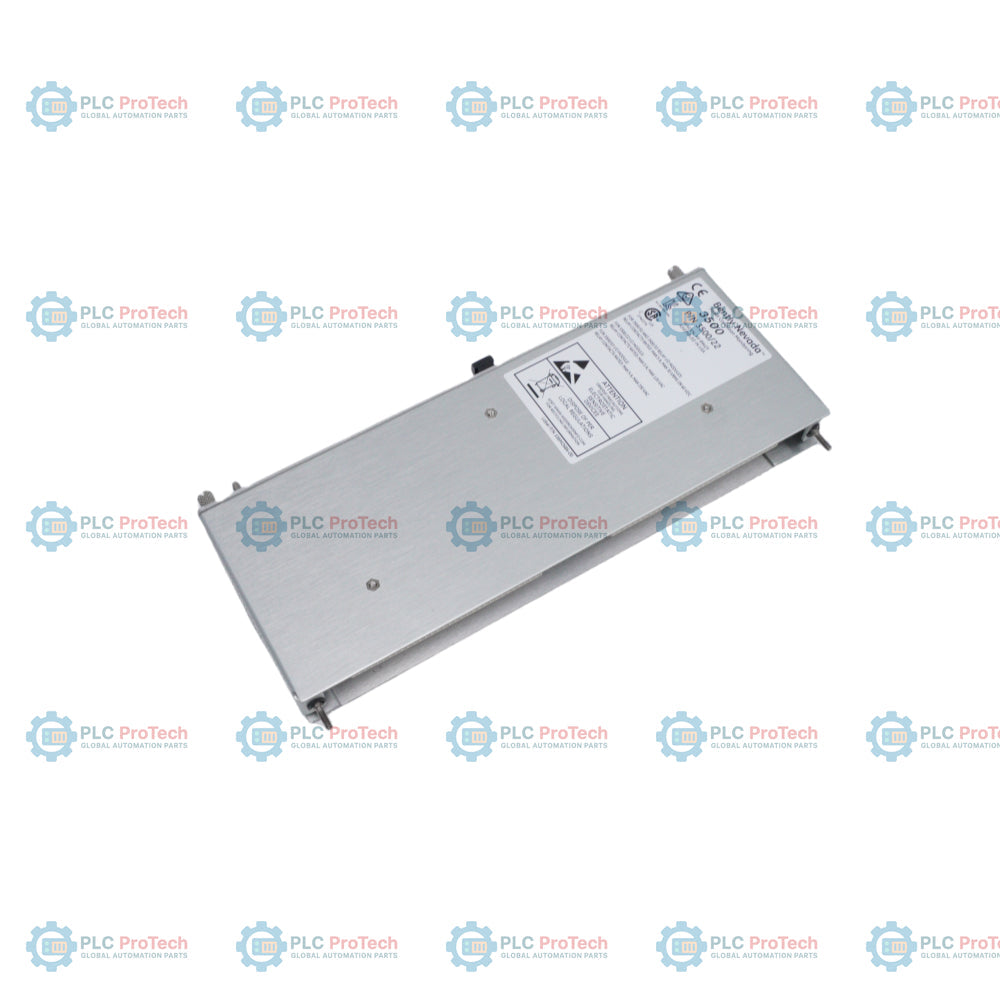

The Bently Nevada 146031-02 is a 100Base-FX Fiber Optic Ethernet I/O Module designed for use with the 3500/22M Transient Data Interface Module within the Bently Nevada 3500 Machinery Protection System. Installed in the rear slot of a 3500 rack, the 146031-02 provides full-duplex multimode fiber optic Ethernet communication to interface the rack with System 1 Condition Monitoring and Diagnostic software, 3500 System Configuration software, and 3500 Display software. It includes system contacts for Trip Multiply, Alarm Inhibit, and Rack Reset, an OK Relay contact for rack status annunciation, and a 2-pin terminal for connecting Signal Common to a single-point instrument ground.

Features

• Provides 100Base-FX fiber optic Ethernet interface for the 3500/22M TDI.
• Utilizes MT-RJ male connector for multimode fiber optic cabling up to 2000 meters (6560 feet).
• Supports BN Host Protocol and BN TDI Protocol over Ethernet TCP/IP.
• Includes OK Relay output for indicating normal rack operation or fault conditions.
• Features dry contact system inputs for Trip Multiply, Alarm Inhibit, and Rack Reset.
• Includes a 2-pin Signal Common connector for instrument ground connection.

Applications

• High-noise industrial environments requiring electromagnetic immunity via fiber optic communication.
• Long-distance machinery protection network links up to 2000 meters between 3500 racks and control rooms.
• Integration with System 1 Condition Monitoring and Diagnostic software and 3500 Configuration software.

Ordering Information

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Slot Placement: Install the 146031-02 I/O module into the full-height rear slot directly behind the 3500/22M TDI main module in Slot 1 of the 3500 rack.
• Fiber Optic Cabling: The module features an MT-RJ Male connector. Fiber optic cables must use an MT-RJ Female connector to ensure proper mating.
• Signal Grounding: When connecting Signal Common to a single-point instrument ground via the 2-pin connector, slide the selector switch on the side of the Power Input Module (PIM) in the direction of the "HP" arrow to isolate Signal Common from chassis ground.
• Upgrade Sequence Caution: When upgrading a rack from a 3500/20 RIM to a 3500/22 TDI, always remove the RIM main module and RIM I/O module before inserting the new TDI I/O module and TDI main module to prevent hardware damage.

Compliance and Certifications

• EMC: European Community Directive 2014/30/EU; EN 61000-6-2, EN 61000-6-4
• Electrical Safety: European Community Directive 2014/35/EU; EN 61010-1
• RoHS: European Community Directive 2011/65/EU
• FCC: Complies with part 15 of the FCC Rules
• Maritime: DNV GL rules for classification; ABS Rules for Condition of Classification, Part 1
• Hazardous Area Approvals:
  • cNRTLus: Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Zone 2: AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D; T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF)
  • ATEX/IECEx: Ex II 3 G, Ex nA nC ic IIC T4 Gc, Ex ec nC ic IIC T4 Gc, T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF)
