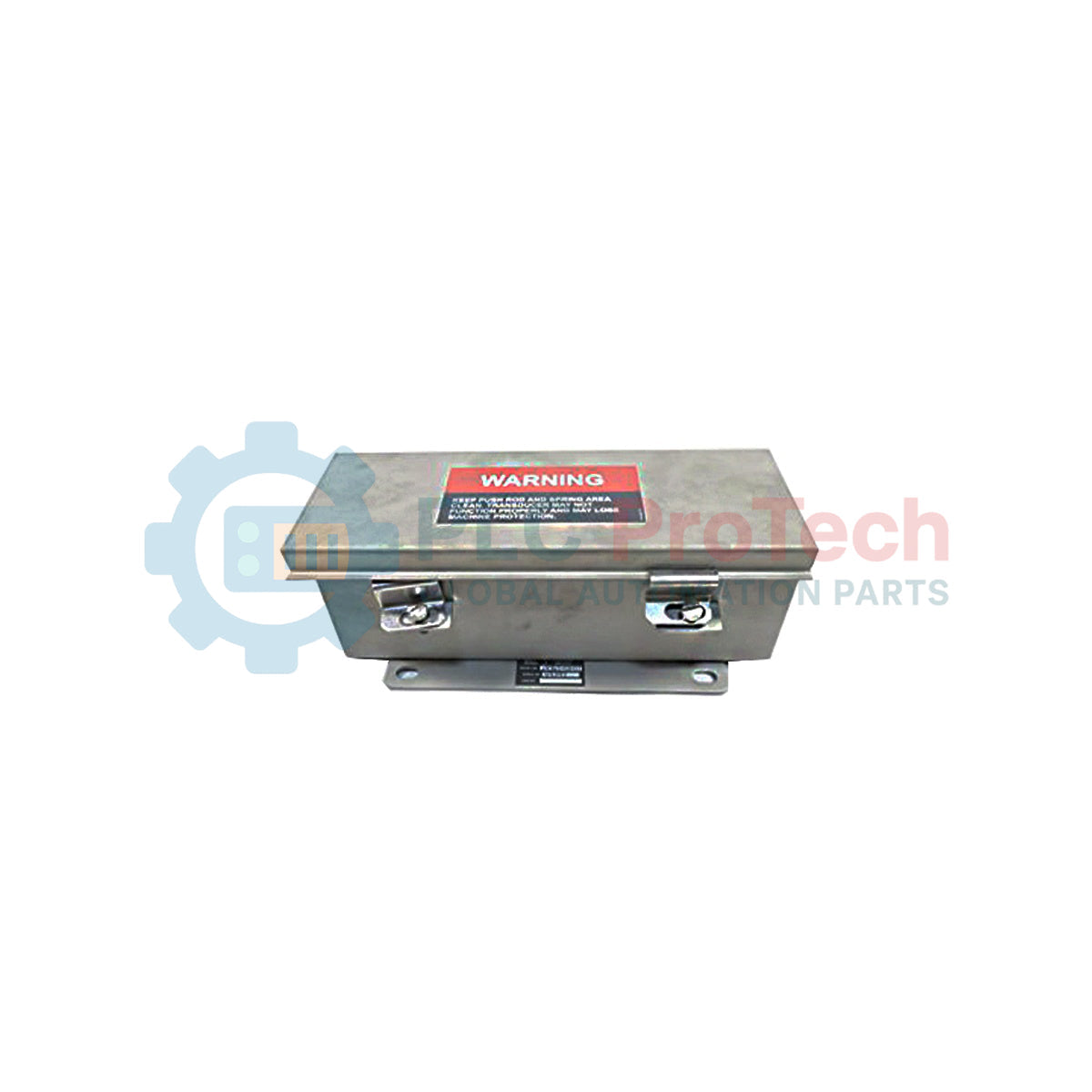

The Bently Nevada 24765-01-01 is a dc-powered case expansion transducer assembly designed for measuring thermal growth in turbine supervisory instrumentation (TSI) applications. Installed on the machine foundation at the end opposite where the turbine casing is attached, the unit monitors the thermal growth of the machine case relative to the foundation during startup and online operations. Operating with a linear variable differential transformer (LVDT) housed inside a protective weatherproof enclosure, the 24765-01-01 converts mechanical growth into a conditioned electrical signal. This specific configuration features a 25.4 mm (1.00 in) linear range with a spring return mechanism. When utilized in a dual transducer arrangement with 3300 or 3500 series monitors, it provides continuous position data to detect obstructed sliding feet, casing distortion, or abnormal growth differentials between rotating and stationary parts.
| Option / Ordering Code | Description |
|---|---|
| 24765-AXX-BXX | Case Expansion Transducer Assembly (dc) |
| A: Linear Range Option | 01 = 25.4 mm (1.00 in) |
| B: Spring Option | 01 = With spring return |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 24765-01-01 |
| Product Type | Case Expansion Transducer Assembly (dc) |
| Country of Origin | Made in U.S.A |
| Linear Range Option | 01 (25.4 mm / 1.00 in) |
| Spring Option | 01 (With spring return) |
| Electrical Scale Factor | 0.346 V/mm (8.79 V/in) |
| Linear Range | 25.4 mm (1.00 in) |
| -3 dB Frequency | 20 Hz |
| Linearity | +/- 0.5% full-range |
| Stability | 0.125% full-scale |
| Operating Temperature Range | -18 degC to +71 degC (0 degF to +160 degF) |
| Storage Temperature Range | -54 degC to +93 degC (-65 degF to +200 degF) |
| Core End Thread | 6-40 UNF-2B |
| Machine End Thread | 1/4-20 UNC-2A |
| Height | 88.9 mm (3.50 in) |
| Width | 117 mm (4.60 in) |
| Length | 241 mm (9.50 in) |
| Weight | 2.3 kg (5.0 lbs) |
