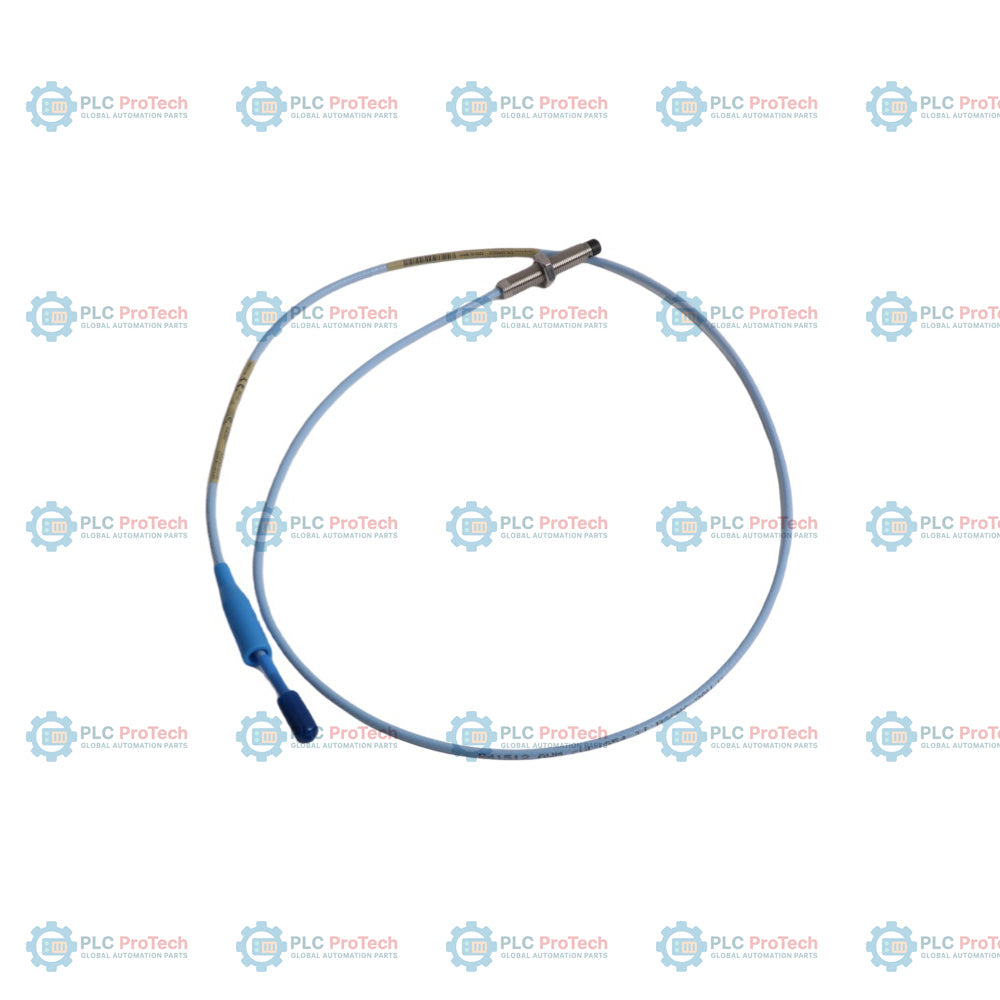

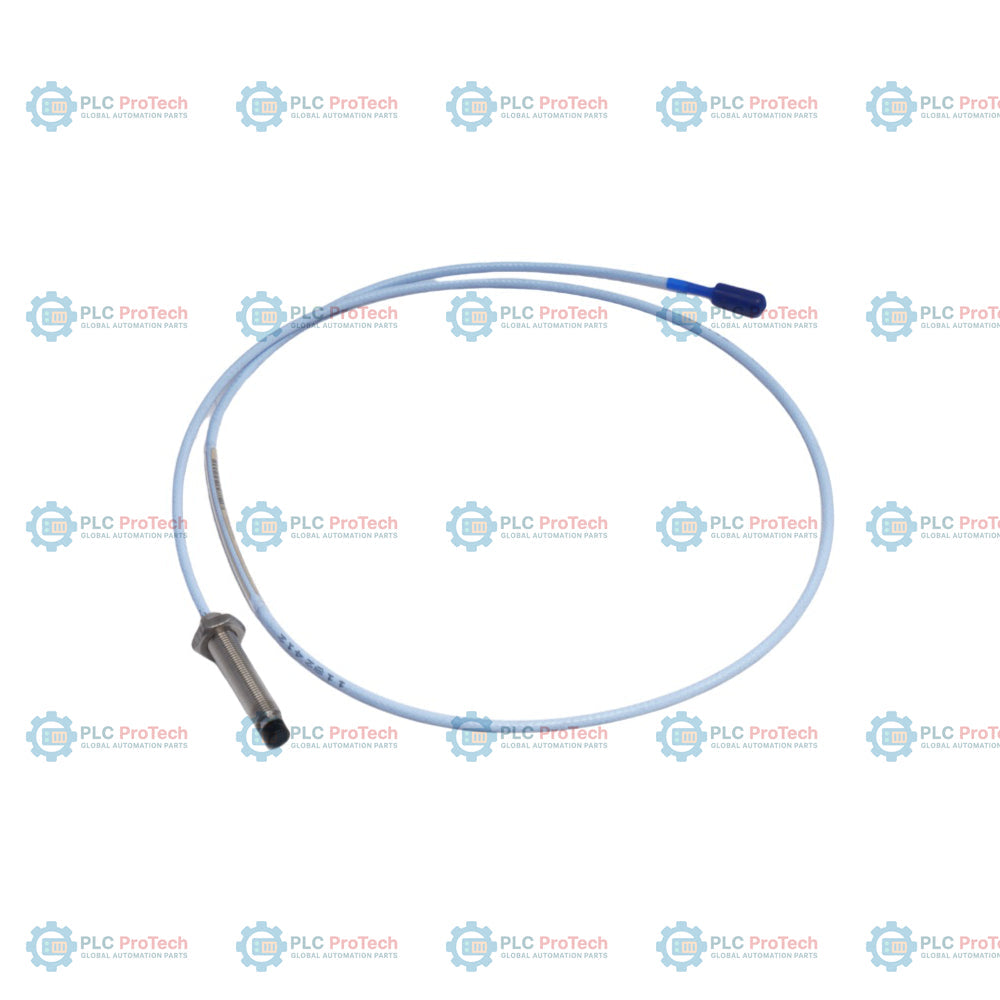

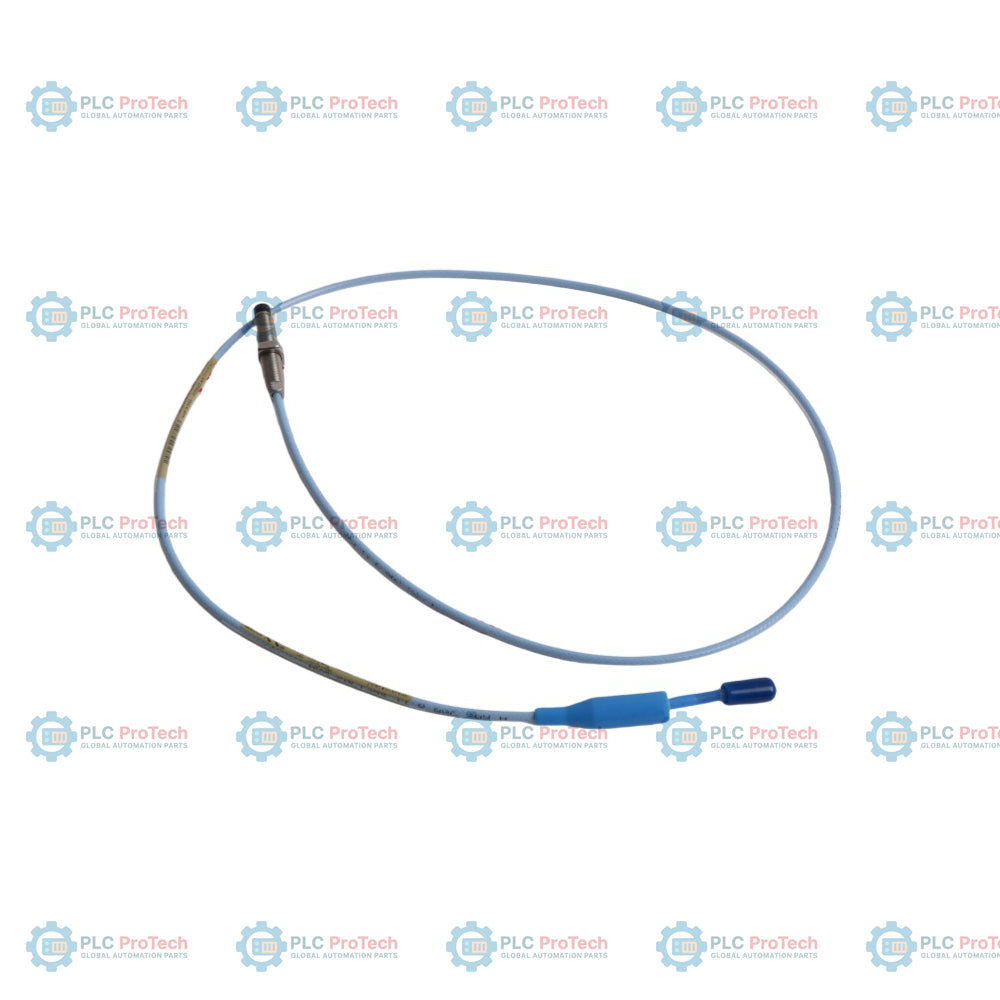

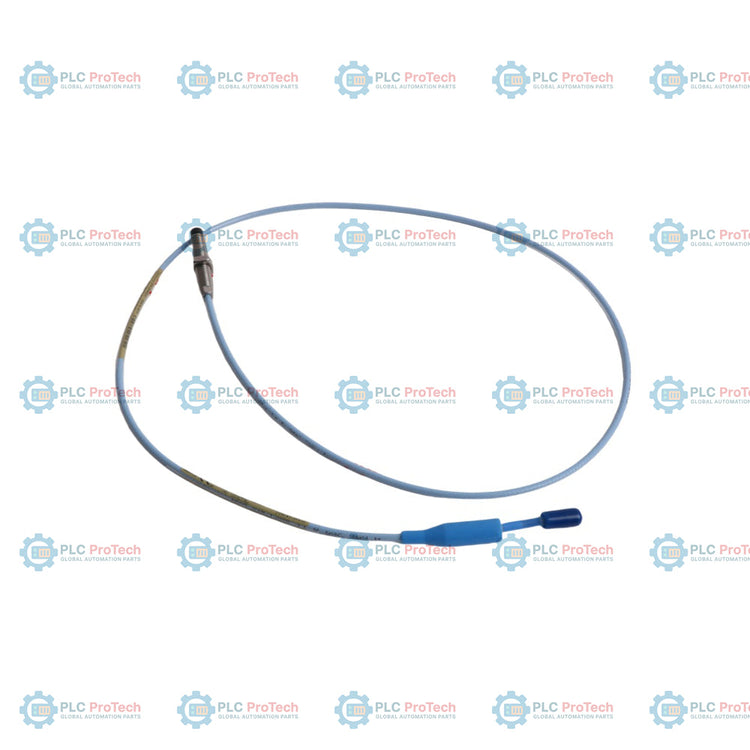

330103-00-05-10-12-00: 3300 XL 8 mm proximity probe, M10 x 1 thread (unarmored), 0 mm unthreaded length (Option 00), 50 mm case length (Option 05), 1.0 m system length (Option 10), Miniature ClickLoc connector with FluidLoc cable (Option 12), and no agency approval (Option 00). This eddy-current displacement transducer is a core component of the 3300 XL 8 mm Proximity Transducer System, designed for measuring radial shaft vibration and axial position on critical rotating machinery.
This configuration features a FluidLoc cable (Option 12), which provides a chemical-resistant barrier to prevent oil and fluid migration through the cable jacket. It is designed for seamless integration with 3300 XL Proximitor sensors and extension cables, ensuring high-accuracy, non-contact measurement in demanding industrial environments where fluid exposure is present.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-00-05-10-12-00 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread |
| A - Unthreaded Length | 00 | 0.0 mm |
| B - Case Length | 05 | 50 mm |
| C - Total Length | 10 | 1.0 m |
| D - Connector/Cable | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E - Agency Approval | 00 | Not required |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-05-10-12-00 |
| Probe Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Armor | No |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | FluidLoc |
| System Length | 1.0 m |
| Agency Approvals | Not required |
Ensure proper probe gapping according to the 3300 XL system manual to maintain linear output. When installing, confirm that the probe tip is not in contact with the machine shaft. Avoid tight cable bends near the connector to prevent internal conductor damage. Use appropriate mounting brackets for M10 x 1 threads and ensure all connections are hand-tightened (do not overtighten the connector).
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-05-10-12-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
