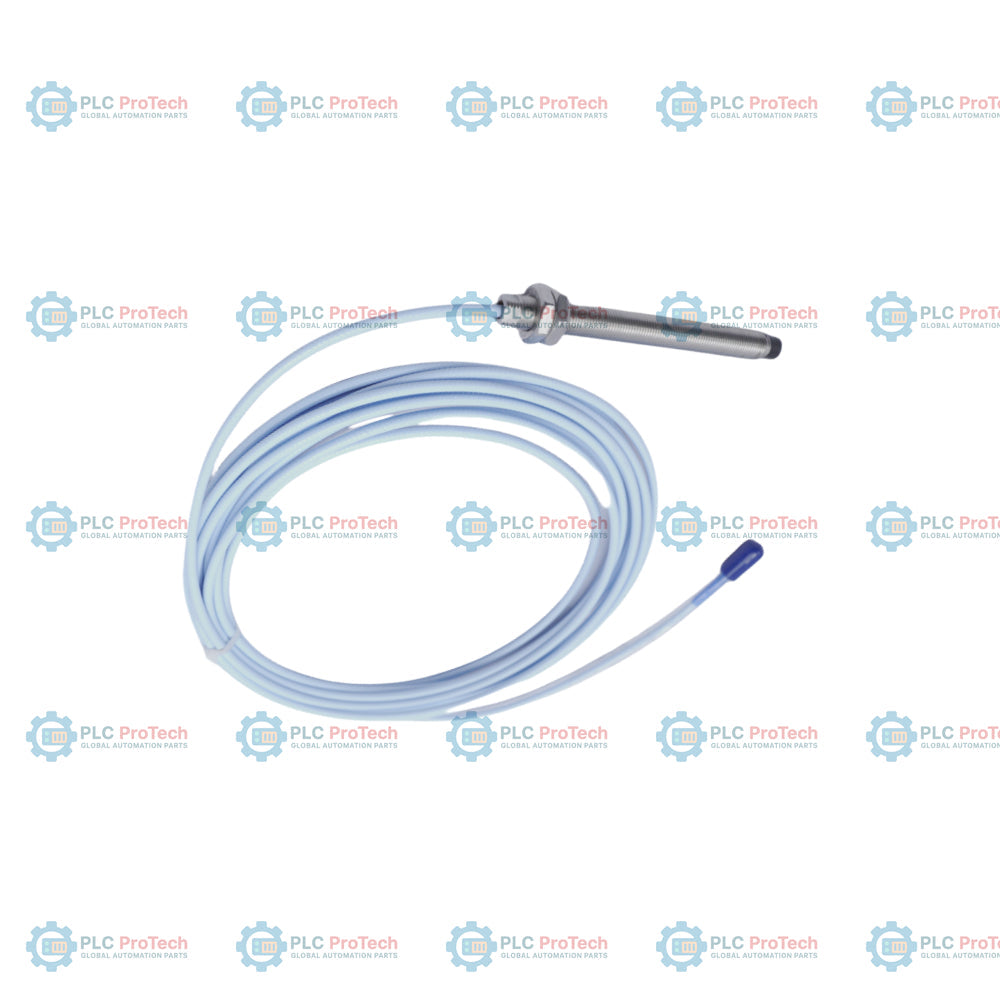

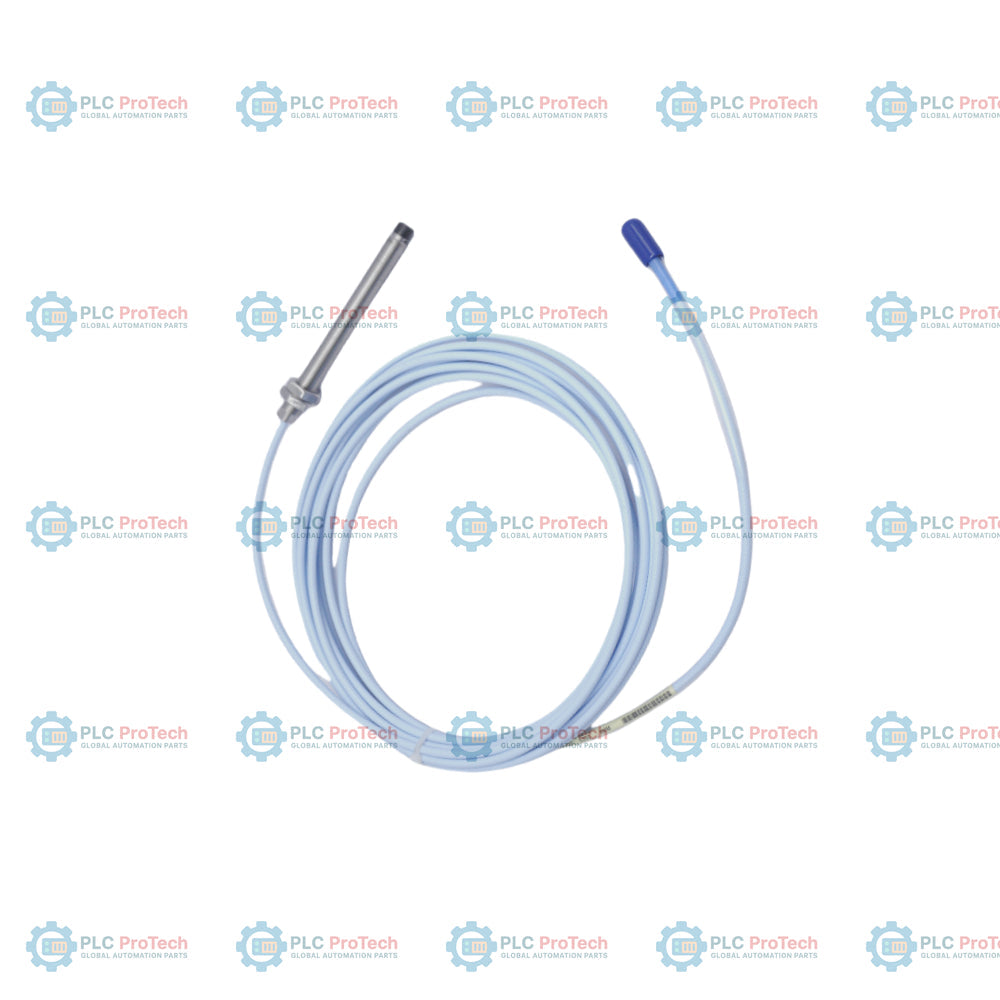

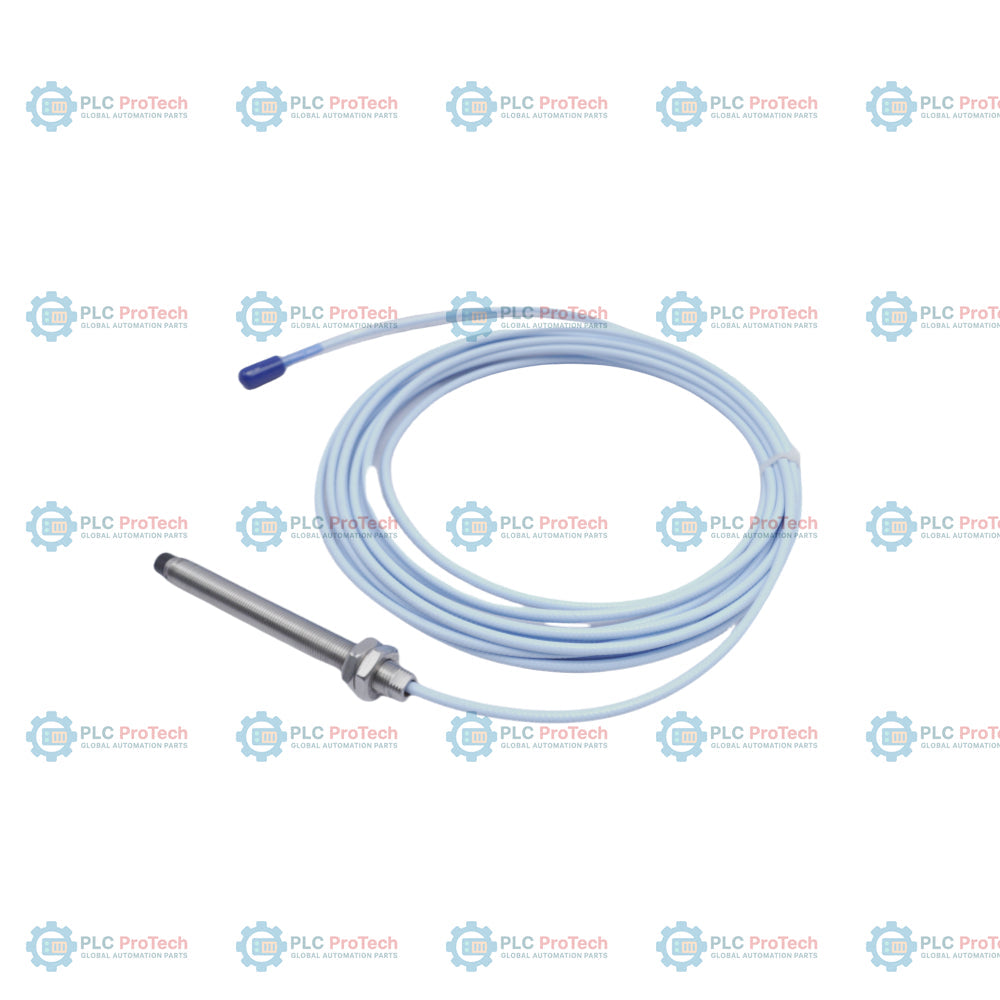

The Bently Nevada 330103-00-10-50-02-00 is an engineered, high-performance 3300 XL 8mm proximity probe featuring a metric M10 x 1 thread without protective armor. This precise physical configuration is defined by a 0 mm unthreaded length, a 100 mm overall case length, a 5.0-meter total cable length, and a standard miniature coaxial ClickLoc connector. Specifically designed with an integrated 5.0-meter cable length, this probe is optimized to connect directly to a 5-meter Proximitor sensor. This design bypasses the need for an intermediate extension cable, reducing connection points, maximizing transmission integrity, and streamlining setup in tight machine housings.
As a core component of the Bently Nevada 3300 XL system, this proximity probe uses eddy current technology to measure the gap between the probe tip and a conductive target, such as an AISI 4140 steel shaft. The resulting analog output voltage is directly proportional to physical distance, enabling extremely precise static (position) and dynamic (vibration) measurements. It is widely used for turbine vibration monitoring, Keyphasor phase reference tracking, and shaft speed detection. It maintains full physical and electrical interchangeability with older 3300-series 5 mm and 8 mm components, allowing painless retrofits into existing industrial architectures.
The Bently Nevada 330103-00-10-50-02-00 proximity probe is critical for machinery protection and condition monitoring in heavy rotating machinery. Common applications include:
| Option Segment | Code on This SKU | Meaning / Configuration |
|---|---|---|
| Base Model | 330103 | 3300 XL 8 mm Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B - Overall Case Length Option | 10 | 100 mm overall case length |
| C - Total Length Option | 50 | 5.0 meters (16.4 feet) total length (must be used with 5-meter Proximitor sensor) |
| D - Connector & Cable Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 00 | No approvals required |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330103-00-10-50-02-00 |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Case Thread Specification | M10 x 1 |
| Unthreaded Length | 0 mm |
| Case Length | 100 mm |
| Total System Length | 5.0 meters (16.4 feet) |
| Connector Type | Miniature coaxial male ClickLoc connector |
| Cable Material | 75 Ohm triaxial fluorine ethylene propylene (FEP) insulation |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Linear Measurement Range | 2.0 mm (80 mils), starting at approx. 0.25 mm (10 mils) to 2.25 mm (90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) +/- 5% typical (with standard 5m Proximitor) |
| Operating Temperature (Probe) | -52 degC to +177 degC (-62 degF to +350 degF) |
| Probe DC Resistance | 8.73 Ohm +/- 0.50 Ohm (center conductor to outer conductor) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Recommended Case Torque | 11.2 N-m (100 in-lbf) |
| Maximum Case Torque | 33.9 N-m (300 in-lbf) |
| Tensile Strength (Max Rated) | 330 N (75 lbf) probe case to lead connection |
| Weight | 0.46 kg |
| Dimensions | 160 mm x 160 mm x 45 mm (H x W x D) (packaged envelope) |
Ensure correct sensor performance by observing the following structural installation requirements:
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-10-50-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 460g
Dimensions: 160 mm x 160 mm x 45 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
