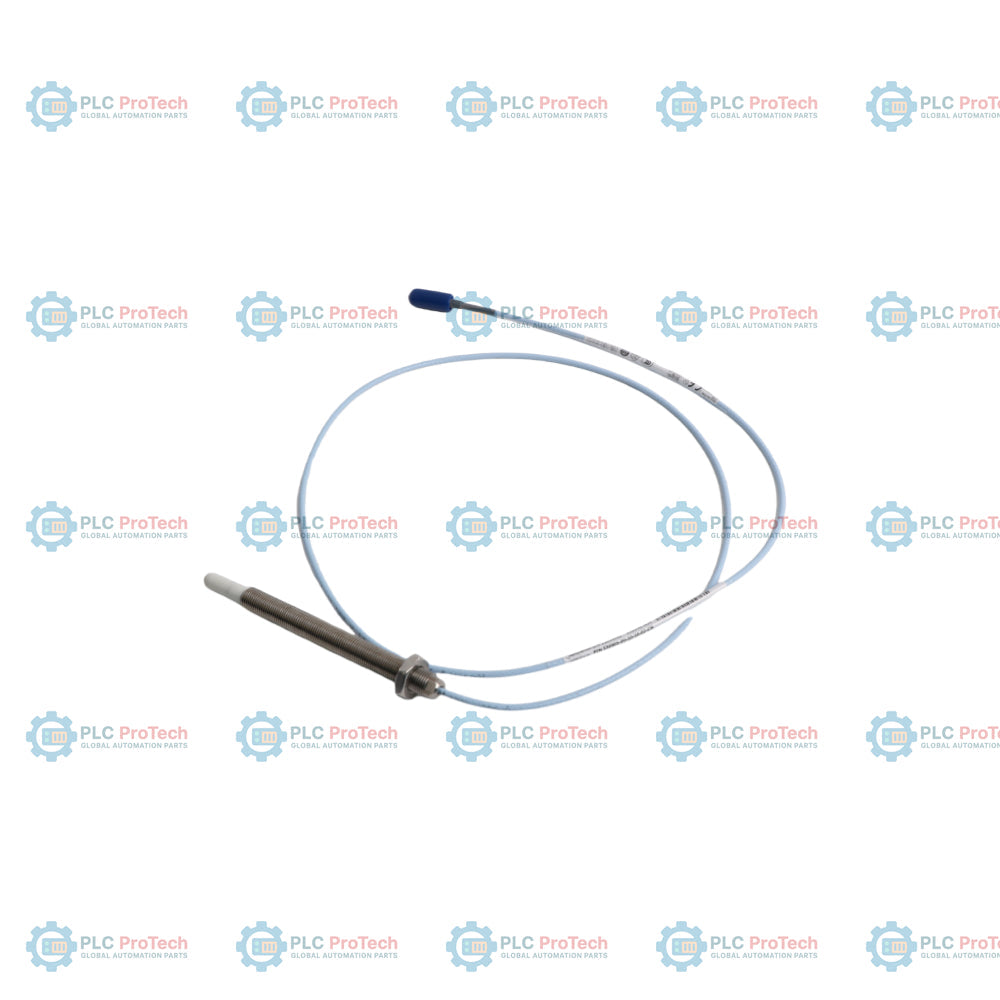

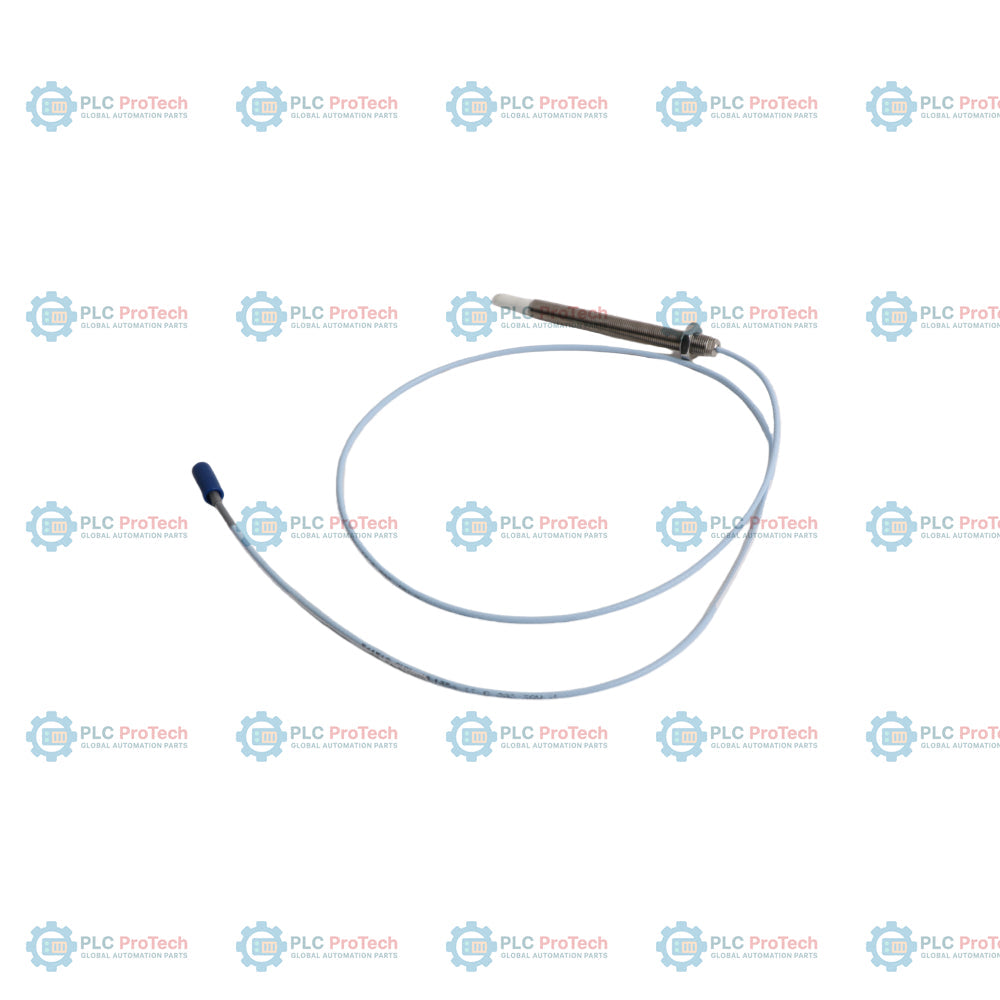

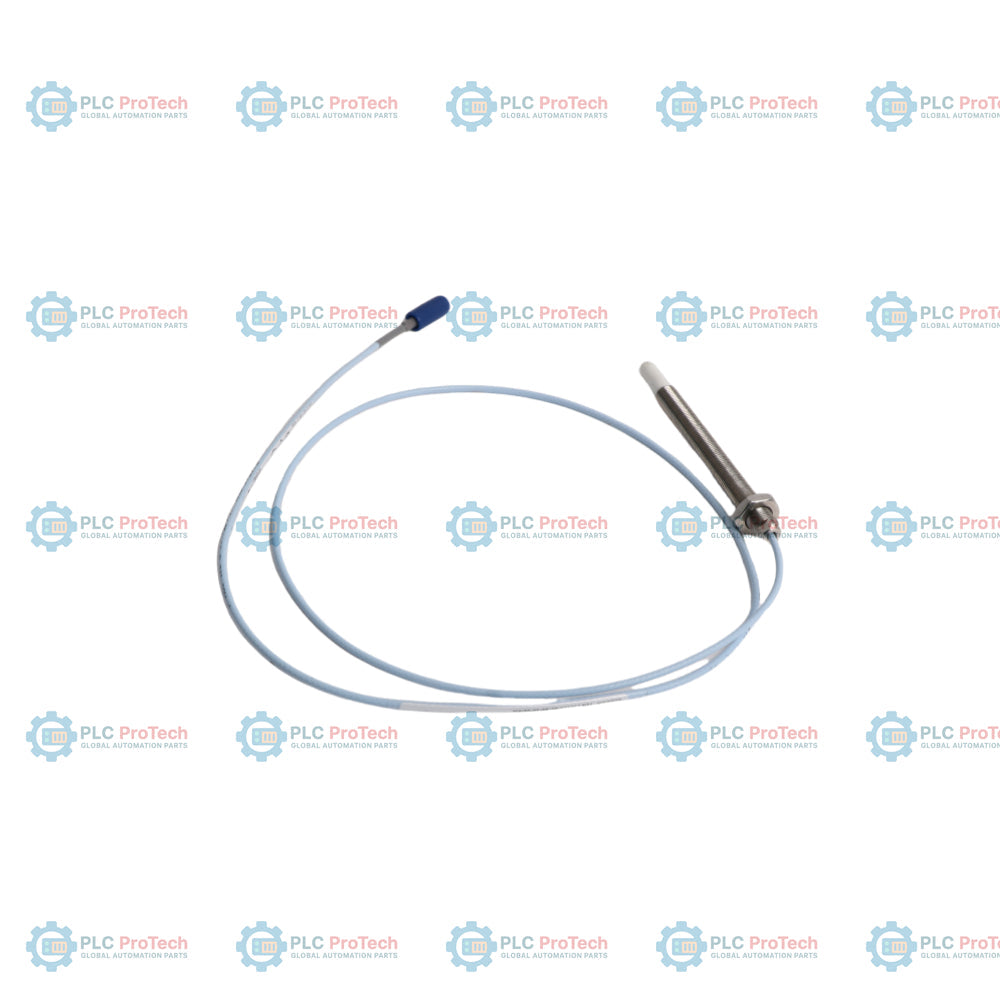

330103-00-16-10-02-CN: 3300 XL 8 mm metric proximity probe with M10 x 1 metric thread, configured with 0 mm unthreaded length (Option 00), 160 mm overall case length (Option 16), 1.0 meter total length (Option 10), standard cable with ClickLoc miniature coaxial connector (Option 02), and China hazardous area approval package -CN.
This non-contact eddy-current sensor measures radial vibration, axial position, and Keyphasor references on rotating shafts within fluid-film bearing machinery. Sibling models such as the 330101 utilize imperial threads (3/8-24 UNF), whereas this model uses metric threads without stainless steel armor to suit direct panel and machine casing penetrations. The -CN suffix adds NEPSI and CCC certifications to meet hazardous area compliance requirements in Chinese industrial installations.
| Option / Segment | Code on This SKU | Meaning / Description |
|---|---|---|
| Orderable Part Number | 330103-00-16-10-02-CN | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B - Overall Case Length Option | 16 | 160 mm overall case length |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| Suffix -CN | -CN | China hazardous area approval package (NEPSI + CCC + applicable markings) |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-16-10-02-CN |
| System Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | M10 x 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 160 mm |
| Total Length | 1.0 meter (3.3 feet) |
| Cable Type | 75 ohm coaxial standard cable, without armor |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Probe DC Resistance | 7.59 plus/minus 0.50 ohms (center conductor to outer conductor) |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Pressure Seal Limit | Up to 7.0 bar (100 psi) differential pressure |
| Approximate Weight | 0.11 kg |
| Dimensions | 160 mm x 10 mm x 10 mm (H x W x D) |
Ensure correct thread engagement with a maximum torque of 4.5 N-m (40 in-lb) for the M10 x 1 threads. Maintain a target-to-probe gap alignment using standard calibration practices. Ensure field wiring is run in dedicated, shielded conduit. The ClickLoc connector should be coupled finger-tight. Avoid sharp bends in the coaxial cable; the minimum bend radius is 25.4 mm (1.0 in).
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-16-10-02-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 110g
Dimensions: 160 mm x 10 mm x 10 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
330103-00-16-10-02-CN: 3300 XL 8 mm metric proximity probe with M10 x 1 metric thread, configured with 0 mm unthreaded length (Option 00), 160 mm overall case length (Option 16), 1.0 meter total length (Option 10), standard cable with ClickLoc miniature coaxial connector (Option 02), and China hazardous area approval package -CN.
This non-contact eddy-current sensor measures radial vibration, axial position, and Keyphasor references on rotating shafts within fluid-film bearing machinery. Sibling models such as the 330101 utilize imperial threads (3/8-24 UNF), whereas this model uses metric threads without stainless steel armor to suit direct panel and machine casing penetrations. The -CN suffix adds NEPSI and CCC certifications to meet hazardous area compliance requirements in Chinese industrial installations.
| Option / Segment | Code on This SKU | Meaning / Description |
|---|---|---|
| Orderable Part Number | 330103-00-16-10-02-CN | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B - Overall Case Length Option | 16 | 160 mm overall case length |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| Suffix -CN | -CN | China hazardous area approval package (NEPSI + CCC + applicable markings) |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-16-10-02-CN |
| System Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | M10 x 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 160 mm |
| Total Length | 1.0 meter (3.3 feet) |
| Cable Type | 75 ohm coaxial standard cable, without armor |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Probe DC Resistance | 7.59 plus/minus 0.50 ohms (center conductor to outer conductor) |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Pressure Seal Limit | Up to 7.0 bar (100 psi) differential pressure |
| Approximate Weight | 0.11 kg |
| Dimensions | 160 mm x 10 mm x 10 mm (H x W x D) |
Ensure correct thread engagement with a maximum torque of 4.5 N-m (40 in-lb) for the M10 x 1 threads. Maintain a target-to-probe gap alignment using standard calibration practices. Ensure field wiring is run in dedicated, shielded conduit. The ClickLoc connector should be coupled finger-tight. Avoid sharp bends in the coaxial cable; the minimum bend radius is 25.4 mm (1.0 in).
Global Express Shipping
Returns & Warranty
