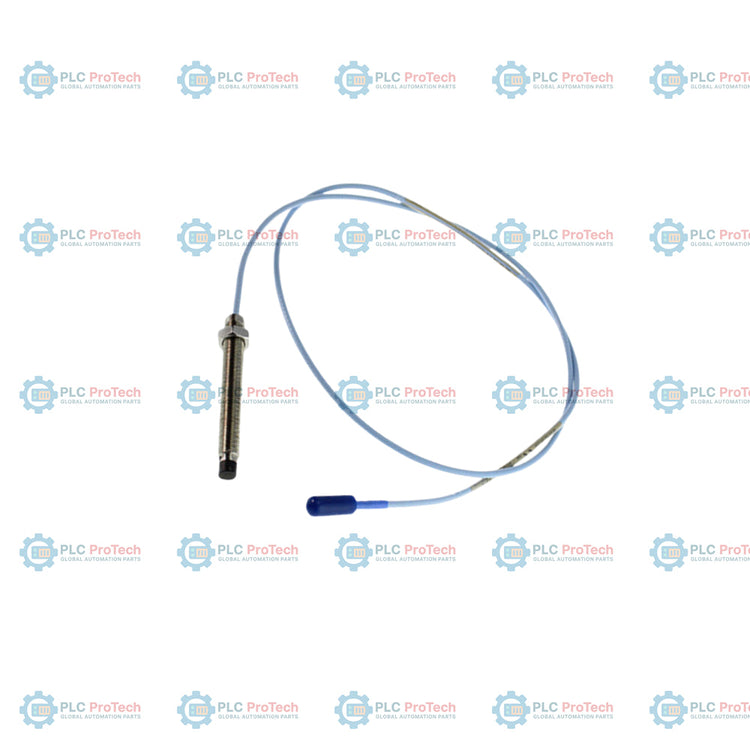

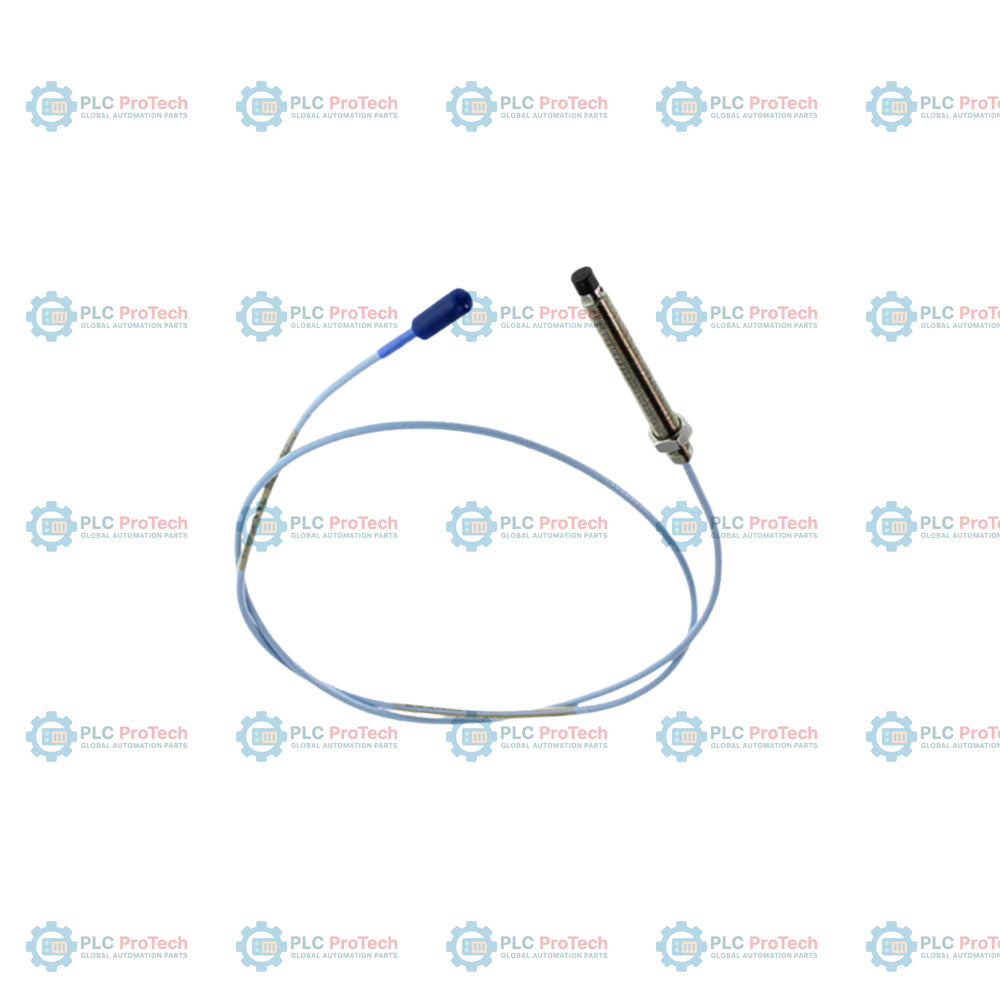

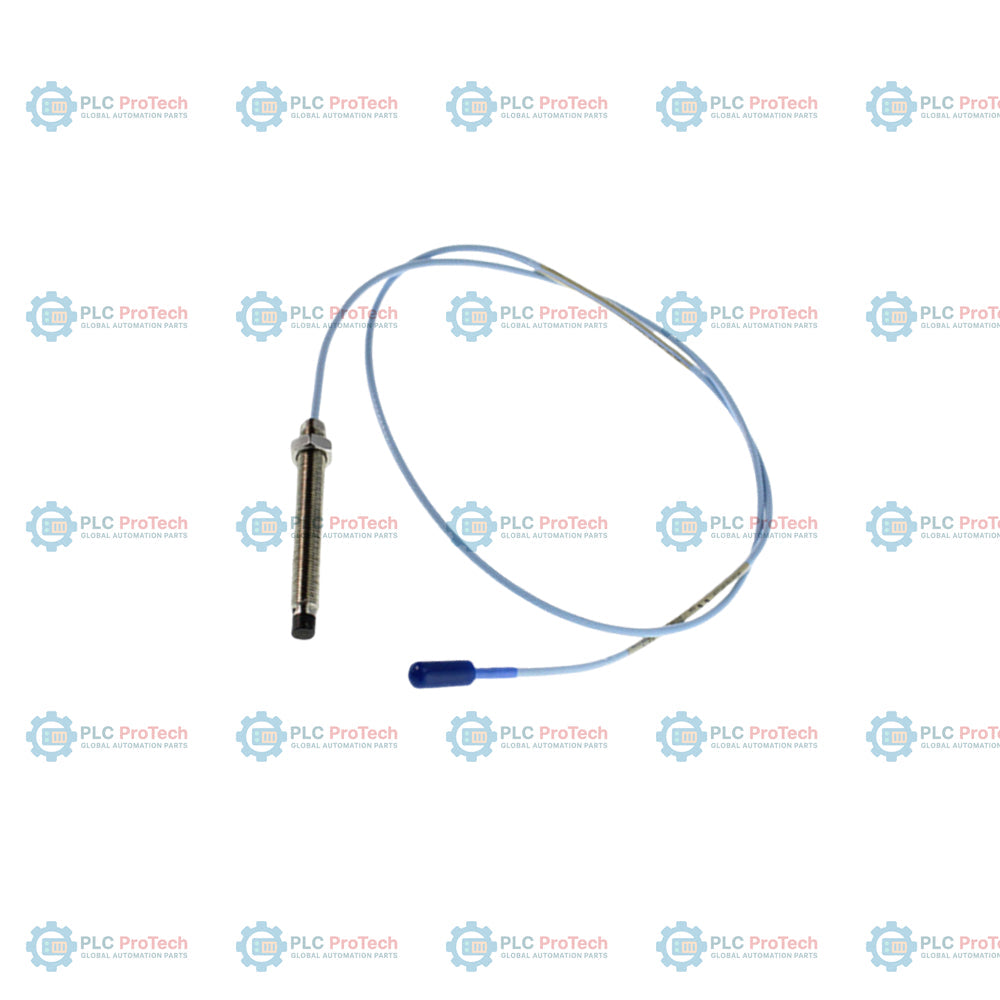

The 330103-00-21-10-11-CN is a 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 thread (unarmored), 0.0 in (0 mm) unthreaded length (Option 00), 2.1 in (53.3 mm) case length (Option 21), 1.0 m total length (Option 10), and a Miniature ClickLoc coaxial connector with connector protector and FluidLoc cable (Option 11). This 3300 XL 8 mm proximity probe is designed for high-accuracy, non-contact eddy-current displacement measurement, serving as a critical component in machinery protection monitoring chains.
This specific variant includes the -CN suffix, which indicates compliance with China hazardous area approval requirements, including NEPSI and CCC certifications. The inclusion of the FluidLoc cable (Option 11) provides enhanced protection against liquid ingress, making it suitable for environments where exposure to oil or other media is a factor. As part of the 3300 XL system, this probe is compatible with 3300 XL 8 mm Proximitor sensors and extension cables, providing a calibrated linear range for measuring shaft vibration and axial position on rotating machinery.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-00-21-10-11-CN | 3300 XL 8 mm Proximity Probe |
| A - Unthreaded Length | 00 | 0.0 in (0 mm) |
| B - Case Length | 21 | 2.1 in (53.3 mm) |
| C - Total Length | 10 | 1.0 m (3.3 ft) |
| D - Connector/Cable | 11 | Miniature ClickLoc, with connector protector, FluidLoc cable |
| Suffix | -CN | China hazardous area approval (NEPSI + CCC) |
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-21-10-11-CN |
| Probe Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Armor | None (Unarmored) |
| Cable Type | FluidLoc |
| Connector Type | Miniature ClickLoc with connector protector |
| Total Length | 1.0 m |
| Temperature Range | -55 degC to +177 degC |
| Material | Viton O-ring seal |
Ensure the Proximitor sensor is installed in an environment with a minimum IP54 protection rating. For hazardous area installations, adhere to Bently Nevada's specific installation drawings (e.g., 141092 or 140979) relevant to your area classification. The probe must be gapped correctly according to the system manual (141078) to ensure linear output. When using FluidLoc cable, ensure proper routing to prevent excessive bending or strain on the connector protector.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-21-10-11-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
