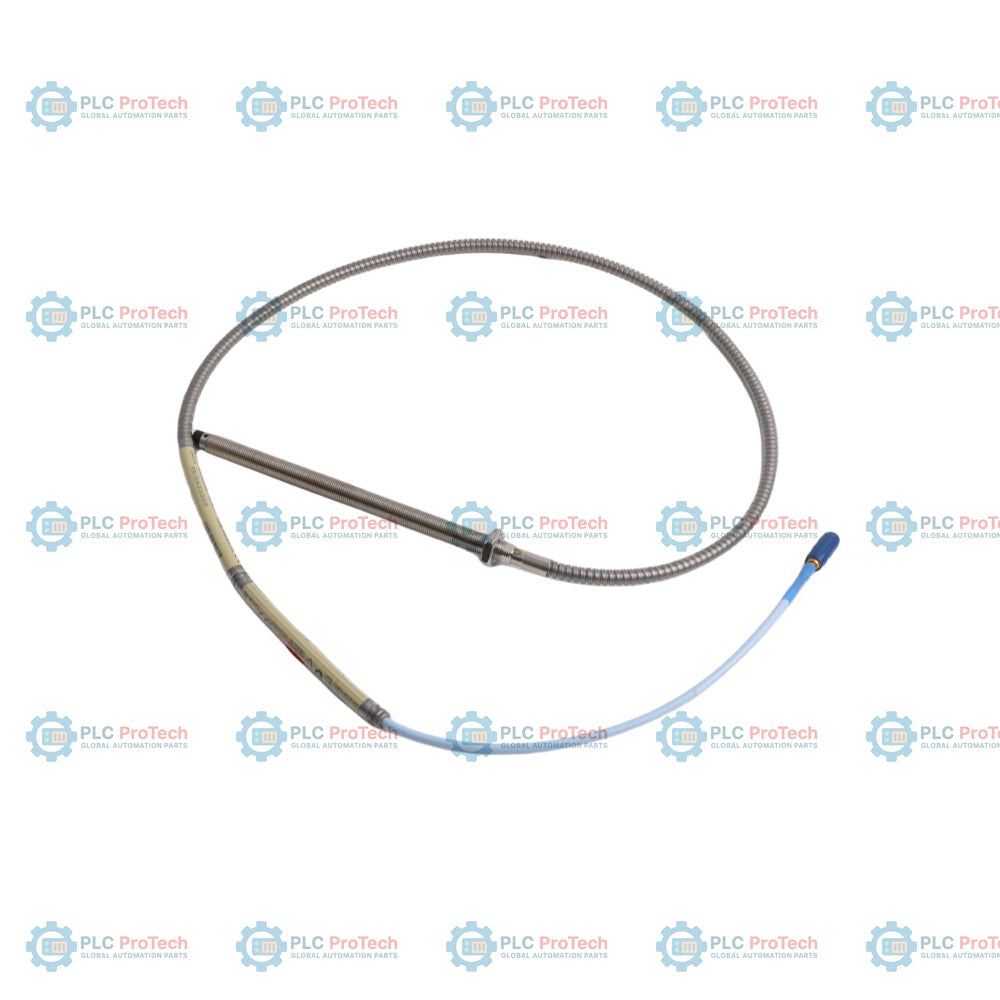

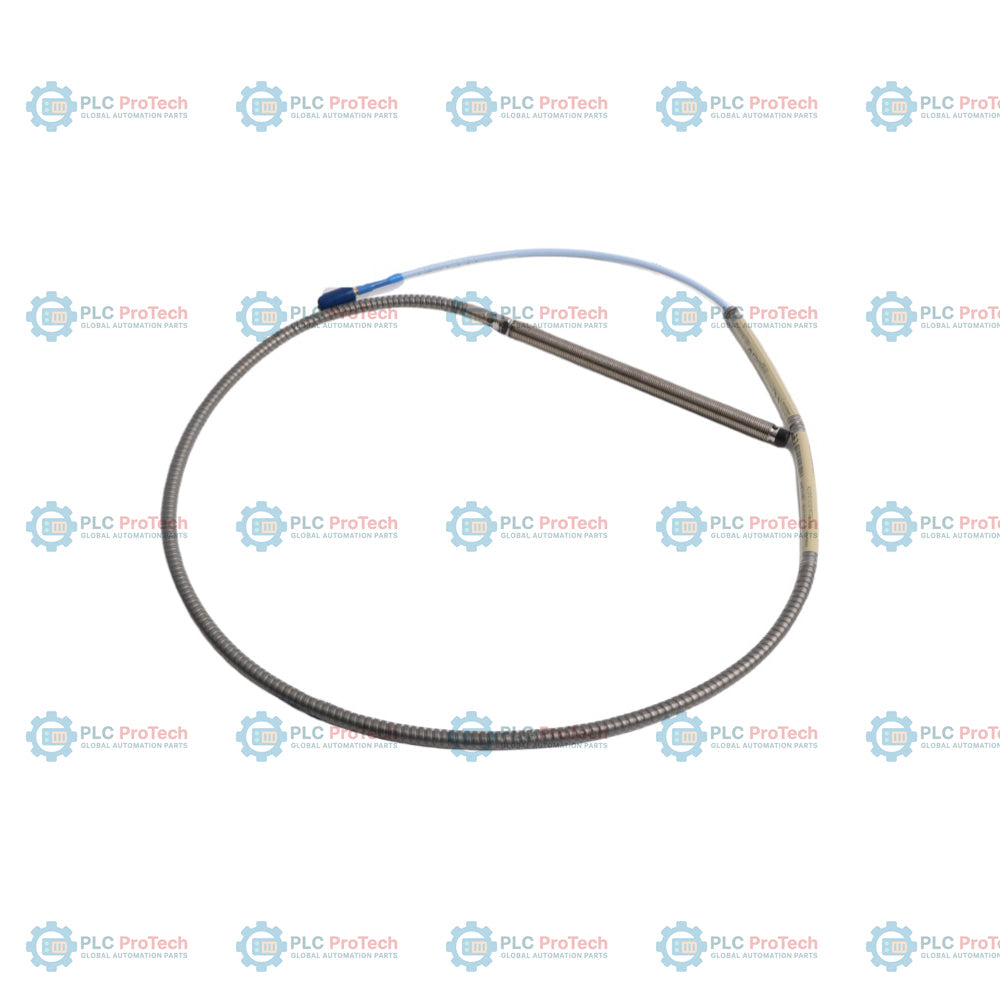

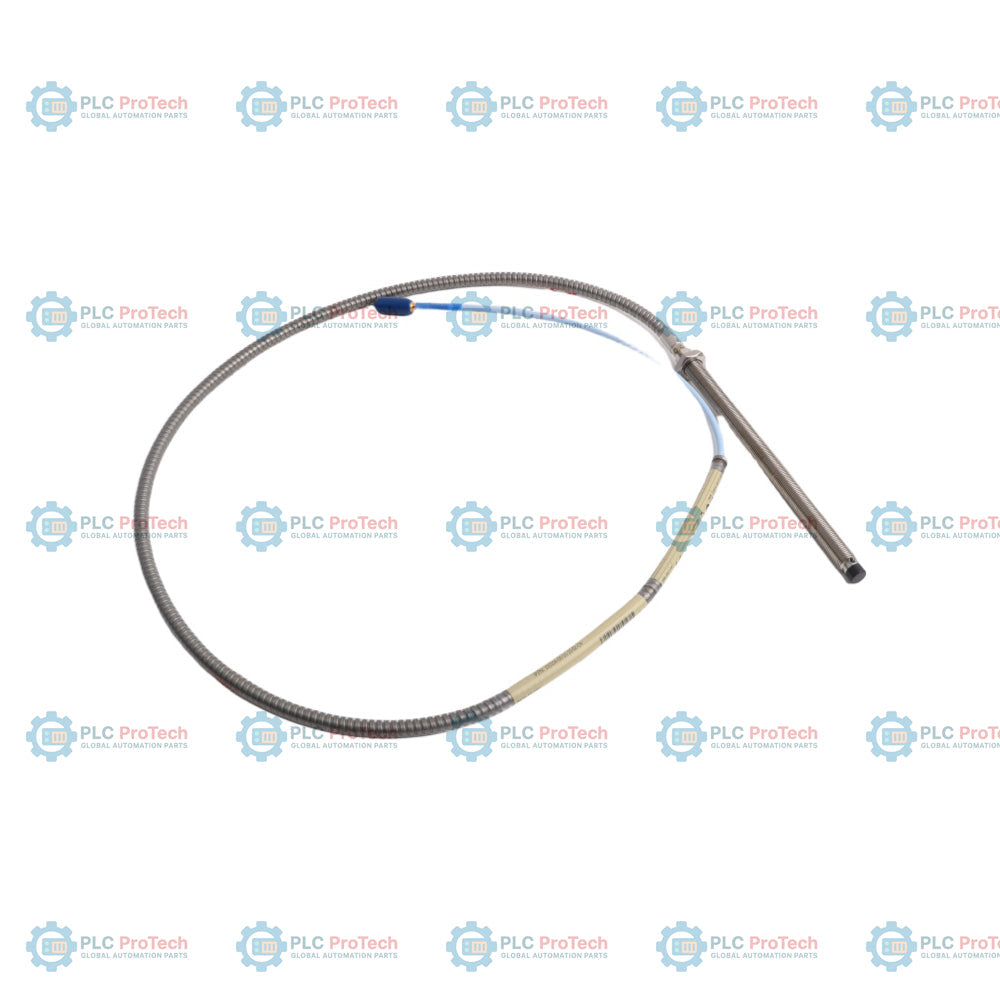

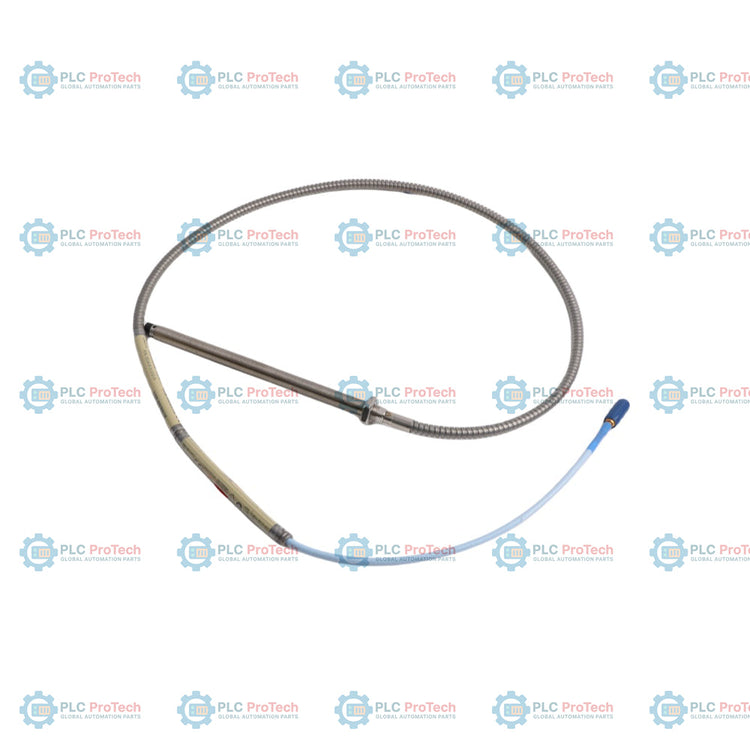

Bently Nevada 330104-00-16-10-02-05 3300 XL 8 mm Proximity Probe

SKU 330104-00-16-10-02-05

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330104-00-16-10-02-05
Origin United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.14 kg
Dimensions: 160 mm x 11 mm x 11 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

Fully threaded M10 x 1 metric steel probe body with stainless steel armor (Option 00, 0 mm unthreaded) and a 160 mm case length (Option 16) specifies the Bently Nevada 330104-00-16-10-02-05 3300 XL 8 mm proximity probe.

This specific metric-threaded probe is equipped with Option 02, signifying a miniature coaxial ClickLoc connector and standard cable, shielded by stainless steel armor. Unlike non-armored configurations (such as model 330103) or variants without hazardous area approvals, this probe incorporates Option 05 for CSA, ATEX, and IECEx certifications. The total system length of the cable is 1.0 meter (Option 10), which pairs with a 3300 XL Proximitor sensor and extension cable to form a complete machinery position monitoring loop.

Features

Option 00 specifies a 0 mm unthreaded length on an M10 x 1 metric threaded body.
Option 16 provides a 160 mm overall case length.
Option 10 indicates a 1.0-meter (3.3 feet) total cable length.
Option 02 provides a miniature coaxial ClickLoc connector on standard cable.
Option 05 provides CSA, ATEX, and IECEx hazardous area approvals.
Integrated stainless steel armor protects the coaxial cable from physical damage, abrasion, and harsh operating conditions.
Backwards compatible with non-XL 3300 series 5 mm and 8 mm components.

Applications

Shaft vibration and axial position monitoring in rotating machinery.
Radial vibration, axial thrust, and speed measurements on fluid-film bearing machines.
Heavy-industry environments including steam turbines, gas turbines, compressors, pumps, and generators.
Installation in hazardous areas requiring certified explosion-proof or intrinsically safe instrumentation.

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330104-00-16-10-02-05	3300 XL 8 mm proximity probe, M10 x 1 thread, with armor
A - Unthreaded Length	00	0 mm unthreaded length
B - Overall Case Length	16	160 mm case length
C - Total Length	10	1.0 meter (3.3 feet) total length
D - Connector/Cable	02	Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval	05	CSA, ATEX, IECEx Approvals

Technical Specifications

Manufacturer	Bently Nevada
Part Number/Model	330104-00-16-10-02-05
Product Type	3300 XL 8 mm Proximity Probe with Armor (Metric)
Thread Size	M10 x 1
Unthreaded Length (Option A)	0 mm
Case Length (Option B)	160 mm
Total Length (Option C)	1.0 meter (3.3 feet)
Connector Type (Option D)	Miniature ClickLoc coaxial connector
Cable Type	Standard coaxial cable, armored
Armor Material	Stainless steel
Agency Approvals (Option E)	CSA, ATEX, IECEx
Linear Range	2.0 mm (80 mils), starting at approximately 0.25 mm (10 mils) from target to 2.3 mm (90 mils)
Incremental Scale Factor (ISF)	7.87 V/mm (200 mV/mil) +/- 5%
Operating Temperature (Probe)	-52 degC to +177 degC (-62 degF to +350 degF)
Operating Temperature (Cable/Connector)	-51 degC to +260 degC (-60 degF to +500 degF)
Probe Pressure Rating	Designed to seal differential pressure between probe tip and case up to 7.0 bar (100 psi)
Target Material	AISI 4140 steel (calibrated standard)
Weight	0.14 kg
Dimensions	160 mm x 11 mm x 11 mm (H x W x D)

Installation Guidelines

Ensure correct thread engagement; maximum thread engagement length for M10 x 1 threads is 15 mm.
Recommended torque for M10 x 1 probe case is up to 10 N-m (90 in-lb). Do not exceed torque limits to avoid casing damage.
Finger-tighten the miniature coaxial ClickLoc connector.
Maintain appropriate probe gap, typically -9 Vdc [approx. 1.27 mm (50 mils)] for radial vibration monitoring.
Avoid bending the stainless steel armor beyond its minimum bend radius to prevent internal coaxial cable damage.

Compliance and Certifications

CSA: Class I, Div 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III
ATEX/IECEx: Zone 0/1/2, Ex ia IIC T4/T5 Ga, Ex nA IIC T4/T5 Gc
CE Compliant

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Cosa rappresenta il codice componente 330104-00-16-10-02-05?

Questa configurazione specifica una sonda di prossimità 3300 XL da 8 mm con filettatura metrica M10 x 1 e armatura in acciaio inossidabile. In particolare, presenta una lunghezza non filettata di 0 mm (opzione 00), una lunghezza complessiva del corpo di 160 mm (opzione 16), una lunghezza totale del cavo di 1,0 m (opzione 10), un cavo standard con connettore coassiale ClickLoc miniaturizzato (opzione 02) e omologazioni per aree pericolose CSA/ATEX/IECEx (opzione 05).

Perché questa sonda è dotata di un’armatura in acciaio inossidabile?

L’armatura in acciaio inossidabile protegge il cavo coassiale standard interno dall’usura meccanica, dall’abrasione e dagli impatti esterni negli ambienti industriali difficili, prolungando la durata del circuito del sensore.

Qual è il limite corretto di innesto della filettatura per questa sonda M10 x 1?

Per questo corpo sonda con filettatura M10 x 1, la lunghezza massima di innesto della filettatura è di 15 mm, per evitare inceppamenti o danni alla filettatura durante l’installazione.

Questa sonda richiede la calibrazione con uno specifico sensore Proximitor?

I componenti della sonda di prossimità 3300 XL da 8 mm sono completamente intercambiabili e retrocompatibili, pertanto non è necessario eseguire la calibrazione al banco né abbinare singole sonde a specifici sensori Proximitor della stessa famiglia di sistemi.
