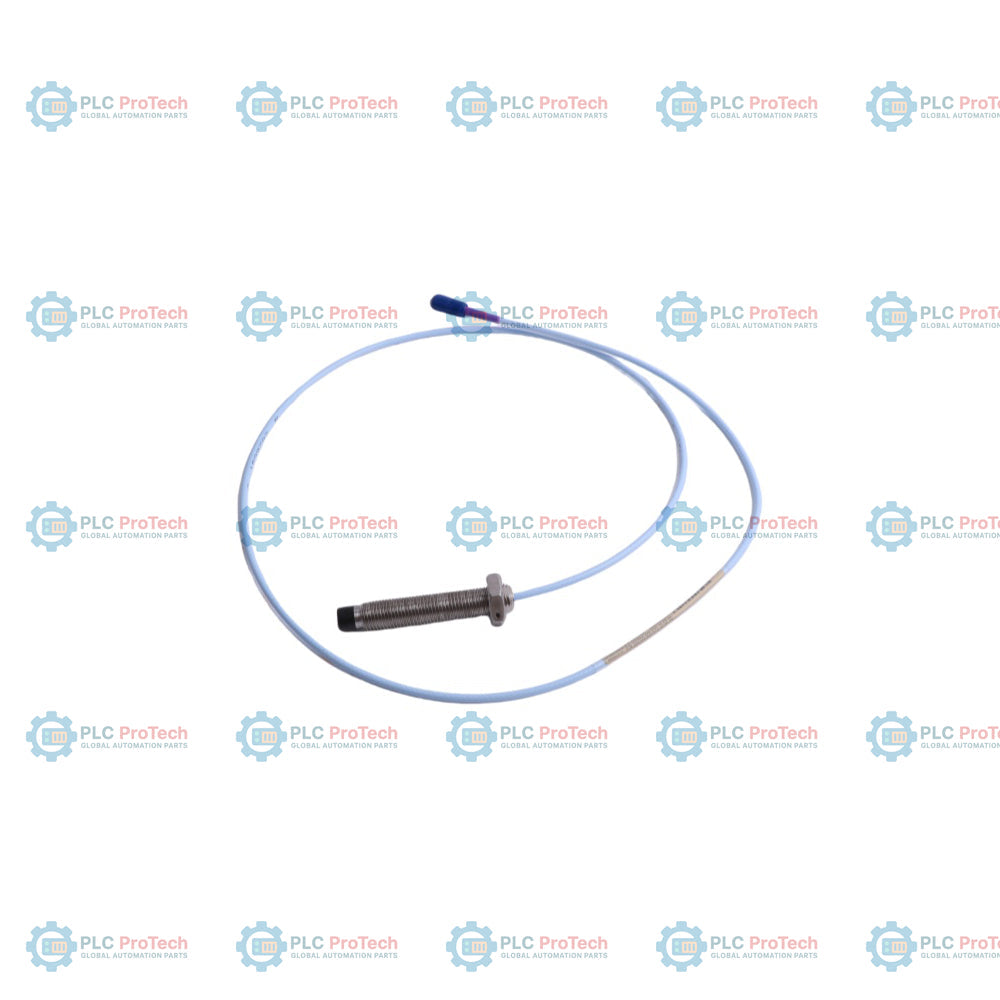

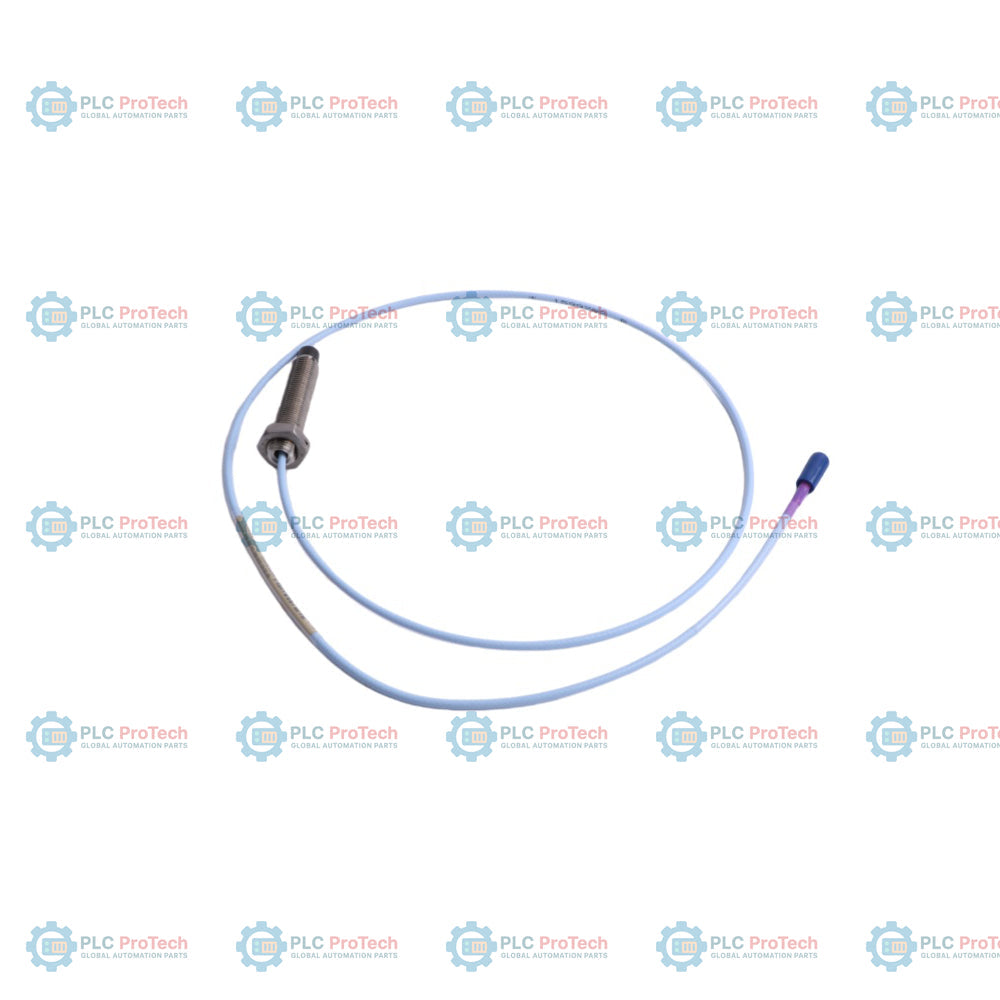

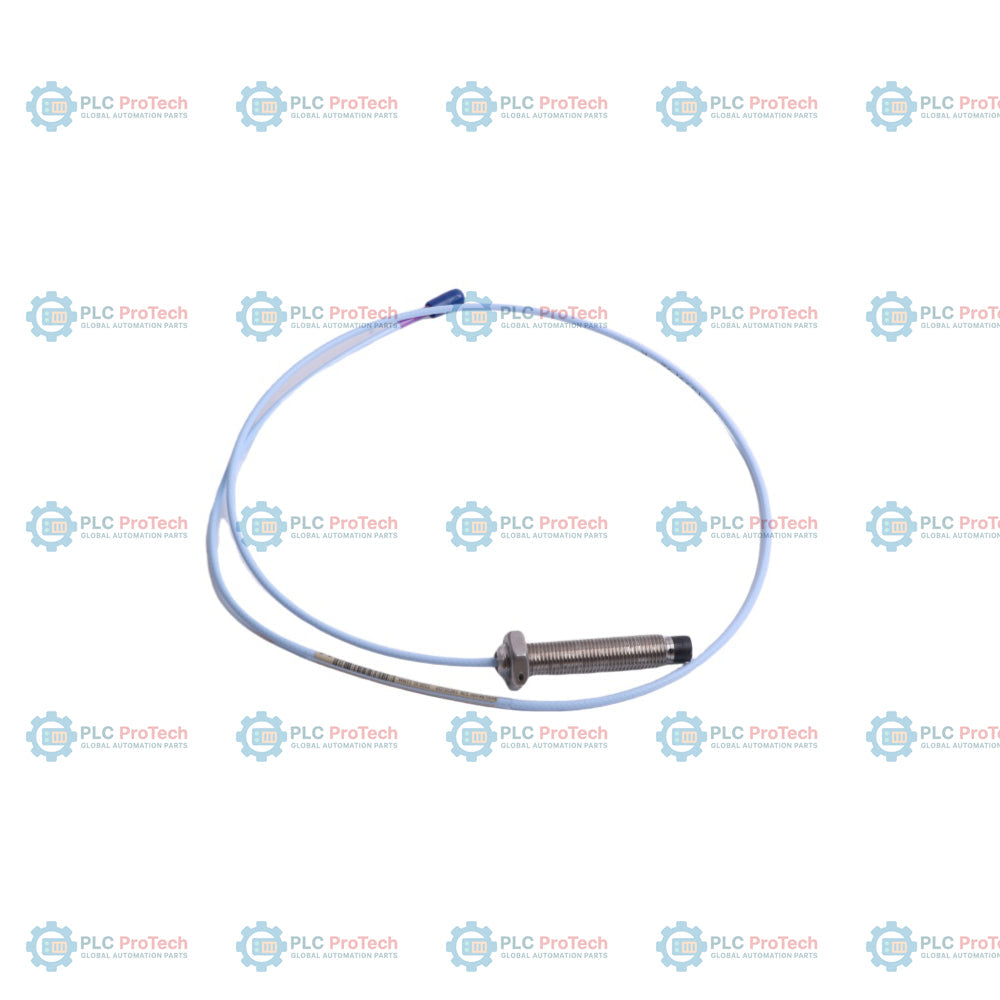

Bently Nevada 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe

SKU 330703-000-070-10-02-00

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330703-000-070-10-02-00
  • Origin United States
  • Product Type: 3300 XL 11 mm Proximity Probe
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.18 kg
  • Dimensions: 50 mm x 100 mm x 100 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

330703-000-070-10-02-00 specifies this 3300 XL 11 mm proximity probe configuration featuring an M14 x 1.5 metric thread without armor, a fully threaded case with 0 mm unthreaded length, a 70 mm overall case length, a 1.0-meter total length, a standard cable with a miniature coaxial ClickLoc connector, and no agency approvals.

This non-contact eddy-current displacement sensor is used in 3300 XL 11 mm transducer systems to measure vibration and axial position on fluid-film bearing machines. The probe tip and body design provide a linear measurement range of 4.0 mm, which is wider than standard 8 mm probes. It operates alongside the 330780 Proximitor Sensor and 330730 extension cable to transmit displacement measurements back to 3500 or compatible machinery protection monitors.

Features

  • Metric M14 x 1.5 threaded stainless steel body with no protective armor.
  • Fully threaded 70 mm overall case length with 0 mm unthreaded length option.
  • 1.0-meter integrated probe lead length.
  • Standard triaxial cable jacket with a miniature coaxial ClickLoc connector.
  • Linear range of 4.0 mm (160 mils) with an incremental scale factor of 3.94 V/mm (100 mV/mil).
  • Sealed tip configuration using polyphenylene sulfide (PPS) and Viton O-ring seals.

Applications

  • Axial thrust position measurements on steam turbine rotors and industrial compressors.
  • Ramp differential expansion measurements on heavy steam turbines.
  • Rod drop and rod position tracking in industrial reciprocating compressors.
  • Phase reference (Keyphasor) and speed tracking measurements on critical rotating machinery.

Ordering Information

Option Code on This SKU Description
Orderable Part Number 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe, M14 x 1.5 thread, without armor
A - Unthreaded Length Option 000 0 mm unthreaded length
B - Overall Case Length Option 070 70 mm overall case length
C - Total Length Option 10 1.0 meter (3.3 feet) total length
D - Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option 00 No approvals required

Technical Specifications

Manufacturer Bently Nevada
Part Number/Model 330703-000-070-10-02-00
Transducer System 3300 XL 11 mm
Thread Specification M14 x 1.5 metric thread
Armor Protection None (without armor)
Linear Range 4.0 mm (160 mils), from approximately 0.5 mm to 4.5 mm (20 to 180 mils) from target
Recommended Gap 2.5 mm (100 mils)
Output Sensitivity 3.94 V/mm (100 mV/mil)
Frequency Range 0 to 8 kHz (+0, -3 dB typical with up to 305 m of field wiring)
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 304 stainless steel (SST)
Cable Construction 75 ohm triaxial, fluoroethylene propylene (FEP) insulated
Connector Type Miniature coaxial ClickLoc connector
Connector Material Gold-plated brass
Probe dc Resistance 5.9 +/- 0.5 ohms (between center and outer conductor for 1.0 m length)
Operating and Storage Temperature -52 to +177 degC (-62 to +351 degF)
Humidity Limits 100% condensing, non-submersible when connectors are protected
Tensile Strength 330 N (75 lb) maximum rated from probe case to lead
Maximum Rated Torque 63.3 N-m (560 in-lb)
Recommended Installation Torque 21.1 N-m (187 in-lb)
Minimum Bend Radius 25.4 mm (1.0 in)

Installation Guidelines

  • Case Torque: Tighten the M14 x 1.5 probe body to the recommended torque of 21.1 N-m (187 in-lb). Do not exceed 63.3 N-m (560 in-lb) to prevent damage to the metric thread.
  • Connector Care: Finger-tighten the ClickLoc coaxial connector when attaching the extension cable. Ensure connections are clean and dry; do not apply silicone tape if exposed directly to turbine oil.
  • Cable Bend Limits: Route the probe lead maintaining a minimum bend radius of 25.4 mm (1.0 in) to prevent internal core damage.
  • Gap Adjustment: Adjust the installation position until the gap matches the nominal 2.5 mm (100 mils) target setting.

Compliance and Certifications

  • CE Mark: Complies with European Union EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU.
  • Electromagnetic Compatibility: Meets EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions).
  • China RoHS: Environment-Friendly Use Period (EFUP) of 15 years.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What does the part number 330703-000-070-10-02-00 represent?
This part number represents a Bently Nevada 3300 XL 11 mm proximity probe with an M14 x 1.5 metric thread and no armor. It has a fully threaded case (0 mm unthreaded length), a 70 mm overall case length, a 1.0-meter total length, a standard coaxial ClickLoc connector, and no agency approvals.
What is the linear range of this 3300 XL 11 mm proximity probe?
The probe provides a 4.0 mm (160 mils) linear range, typically operating between approximately 0.5 mm (20 mils) and 4.5 mm (180 mils) from the target, with an output voltage sensitivity of 3.94 V/mm (100 mV/mil).
Does this specific probe configuration come with a hazardous area certification?
No, the "00" option at the end of the part number indicates that agency approvals are not required for this specific configuration.
What is the recommended case torque during installation for this metric probe?
The recommended case torque for the M14 x 1.5 thread is 21.1 N-m (187 in-lb), with a maximum rated limit of 63.3 N-m (560 in-lb).
Which extension cables and Proximitor sensors are compatible with this probe?
This probe is compatible with the 3300 XL 11 mm extension cable (330730) and the 3300 XL 11 mm Proximitor Sensor (330780) to complete the transducer system.
