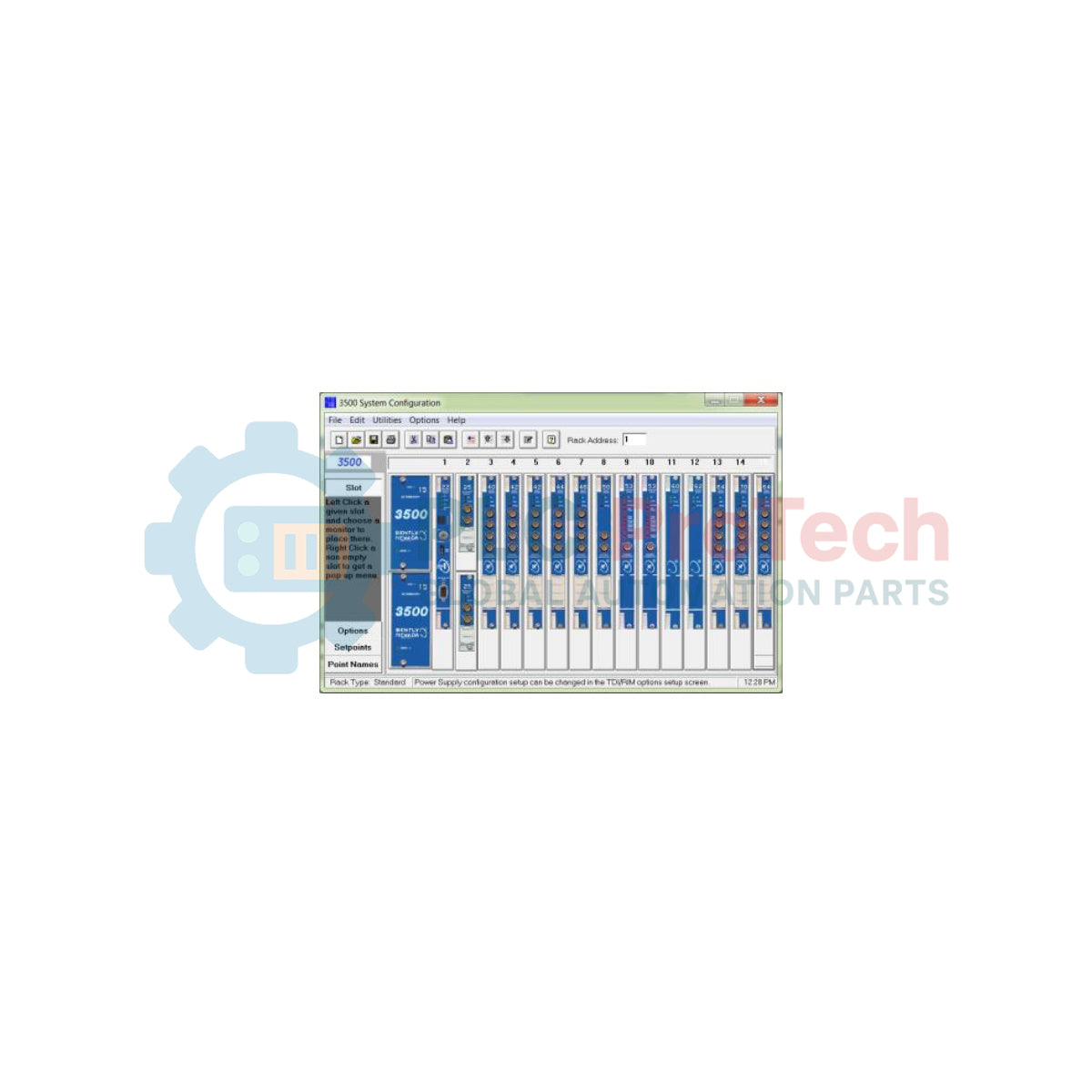

The 3500/01-01 is a Windows-based utility program designed to program and establish full operational parameters for all modules within the 3500 Machinery Protection System. This Rack Configuration Software and Configuration Manual allows engineering personnel to systematically manage channel configurations, define alert or danger setpoints, calibrate transducers, and implement complex alarm voting logic across a localized or distributed industrial network. The platform establishes a direct administrative channel to the monitor chassis via multiple connection types including standard RS232 links, direct USB-to-serial interfaces, modems, or integrated network gateways. By providing a structured, graphical workspace that represents the physical backplane layout, the system ensures precise adjustments can be made to individual slot hardware settings without introducing risk or disruption to the standalone hardware shutdown pathways intended for automatic machinery protection.
The software package and its essential associated interface accessories are designated under the following catalog numbers:
| Part Number | Specification |
|---|---|
| 3500/01-01 | Rack Configuration Software and Configuration Manual |
| 3500/18-A-XX | 3500 Rack Configuration Software Support plans |
| 100M2833 | 10 foot A to B USB cable |
| 130118-AXXXX-BXX | Host Computer to 3500 Rack Cable, RS232 |
| 132632-AXXXX-BXX | Host Computer to 3500 Rack Cable, RS422, PVC Insulated |
| Parameter | Value |
|---|---|
| Primary Function | System module programming and setup tool |
| Platform Baseline | Microsoft Windows-based operational design |
| Data Architecture | Static configuration download and verification |
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Country of Origin | USA |
| Package Dimensions (H x W x D) | 24.1 cm x 2.44 cm x 10.31 cm (9.50 in. x 0.96 in. x 4.06 in.) |
| Package Weight | 0.201 kg (0.443 lb.) |
| Parameter | Value |
|---|---|
| Processor Recommendation | Intel Pentium processor or better |
| Display Resolution | 800x600 (SVGA) or higher resolution Monitor |
| System Memory (RAM) | 128 Megabytes recommended |
| Operating System Compatibility | Microsoft Windows 7, Windows 2012 Server or greater |
| Localization Limits | English Operating Systems only |
| Available Disk Capacity | Minimum 35 Megabytes of hard disk space |
| Hardware Interfaces | RS232 Serial Port, USB port with USB to Serial Adapter, Modem, or Network access |
| Media Optical Drive | CD-ROM drive required for media extraction |
The package requires communication cables to establish operational connection paths to the physical hardware slots:
| Connection Option | Interface Function |
|---|---|
| RS232 Cable Connection | Connects standard host computer serial ports directly to the rack configuration interface. |
| USB Serial Adapter Link | Converts a host computer USB port into a serial stream for communication with older racks. |
| Network Link Access | Interfaces over a TCP/IP network connection to manage configuration files remotely. |
