Description

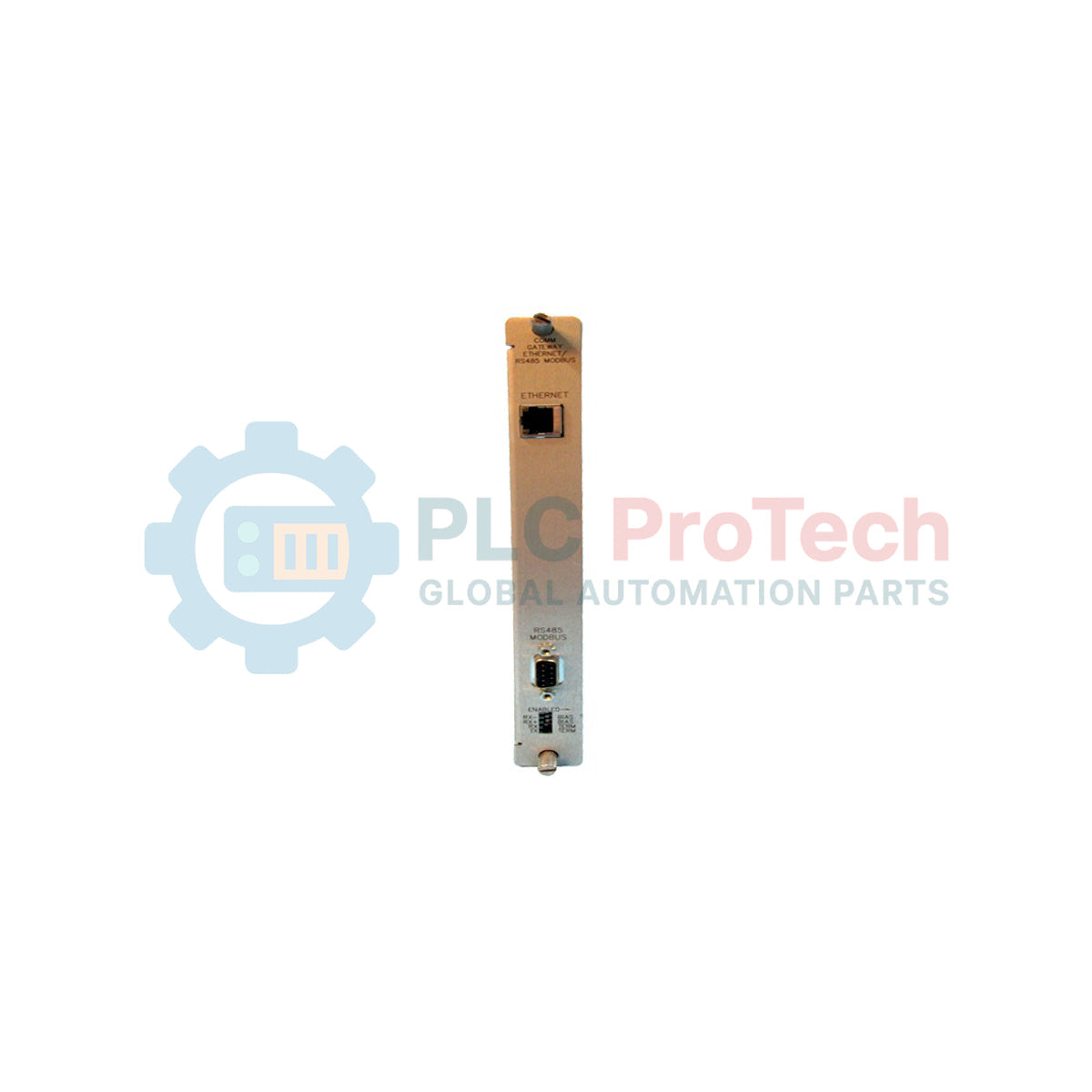

Designed for seamless integration within industrial monitoring architectures, the 136188-01 serves as the rear I/O interface backplane for the Bently Nevada 3500/92 Communication Gateway module. This heavy-duty Ethernet/RS232 Modbus I/O Module establishes secure and efficient digital communication links between 3500 machinery protection systems and external plant assets, such as Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and SCADA platforms.

By housing both high-speed Ethernet capabilities and legacy serial connectivity, the module facilitates the translation and transmission of static and dynamic machinery data. This interface ensures real-time diagnostic parameters and alarm statuses are readily available across the plant network without compromising the primary safety and shutdown capabilities of the protection rack.

Features

• Dual interface architecture featuring dedicated RJ45 Ethernet and serial RS232 physical ports.
• Direct backplane coupling designed specifically for the Bently Nevada 3500 rack system.
• Supports simultaneous communication configurations to optimize system integration.
• Ruggedized construction for high reliability in harsh industrial environments.
• Facilitates high-speed Modbus TCP/IP and standard Modbus RTU data protocols.

Applications

• Power generation facilities monitoring steam and gas turbine systems.
• Oil and gas extraction and refining operations.
• Petrochemical processing plants.
• Heavy industrial rotating machinery supervision.

Technical Specifications

Connections and Interfaces

Installation Guidelines

Proper physical installation and electrical grounding are critical to prevent data corruption or equipment damage. Adhere to the following engineering steps:

• Slot Alignment: Mount the 136188-01 I/O module in the rear slot of the 3500 rack directly behind the corresponding 3500/92 Communication Gateway main module.
• Power Sequencing: Ensure the rack power supply is switched off or proper hot-swap procedures are strictly maintained during insertion to protect the bus transceiver circuitry from transient surges.
• Shielding & Cabling: Use high-quality Category 5e (or better) shielded industrial Ethernet cable. For RS232 serial connections, utilize low-capacitance shielded cabling and limit run lengths to the standard 15-meter threshold.
• Grounding: Ensure the 3500 chassis ground is properly terminated to a low-impedance earth ground system to shield delicate signal lines from electromagnetic interference (EMI).
