Description

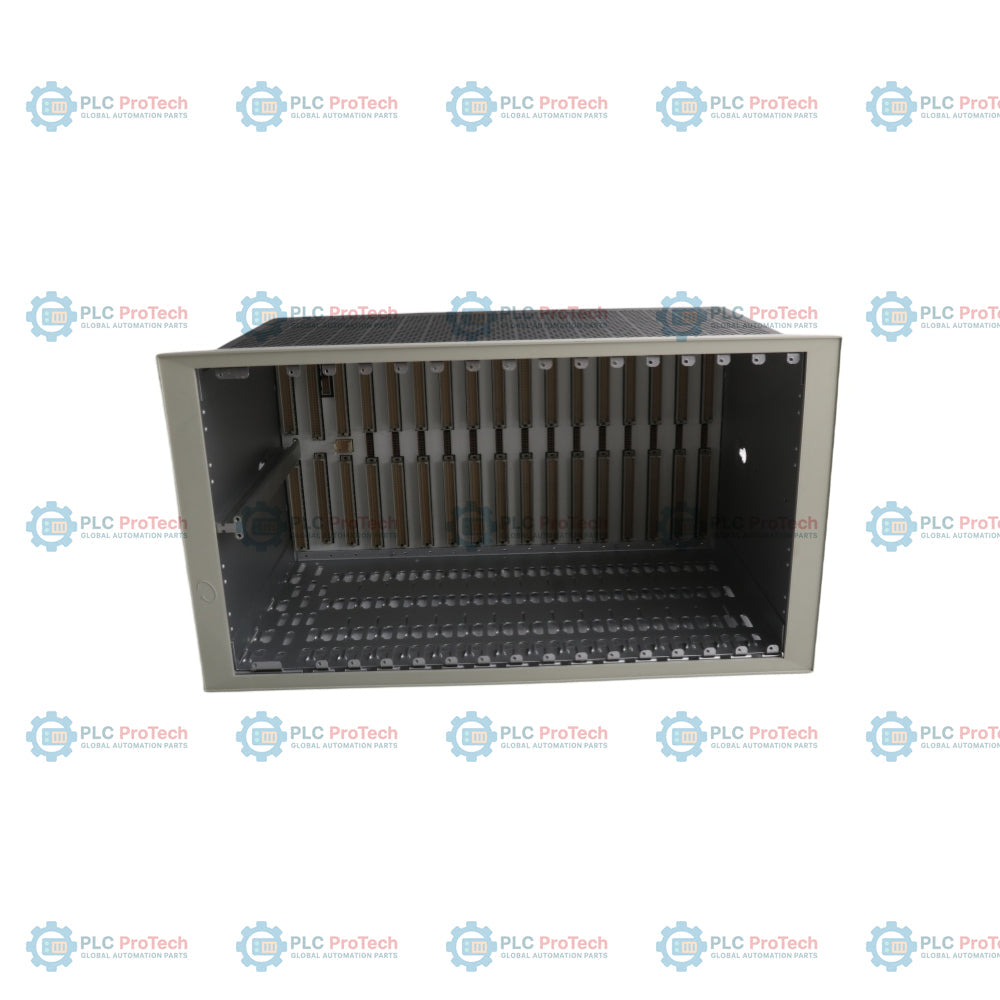

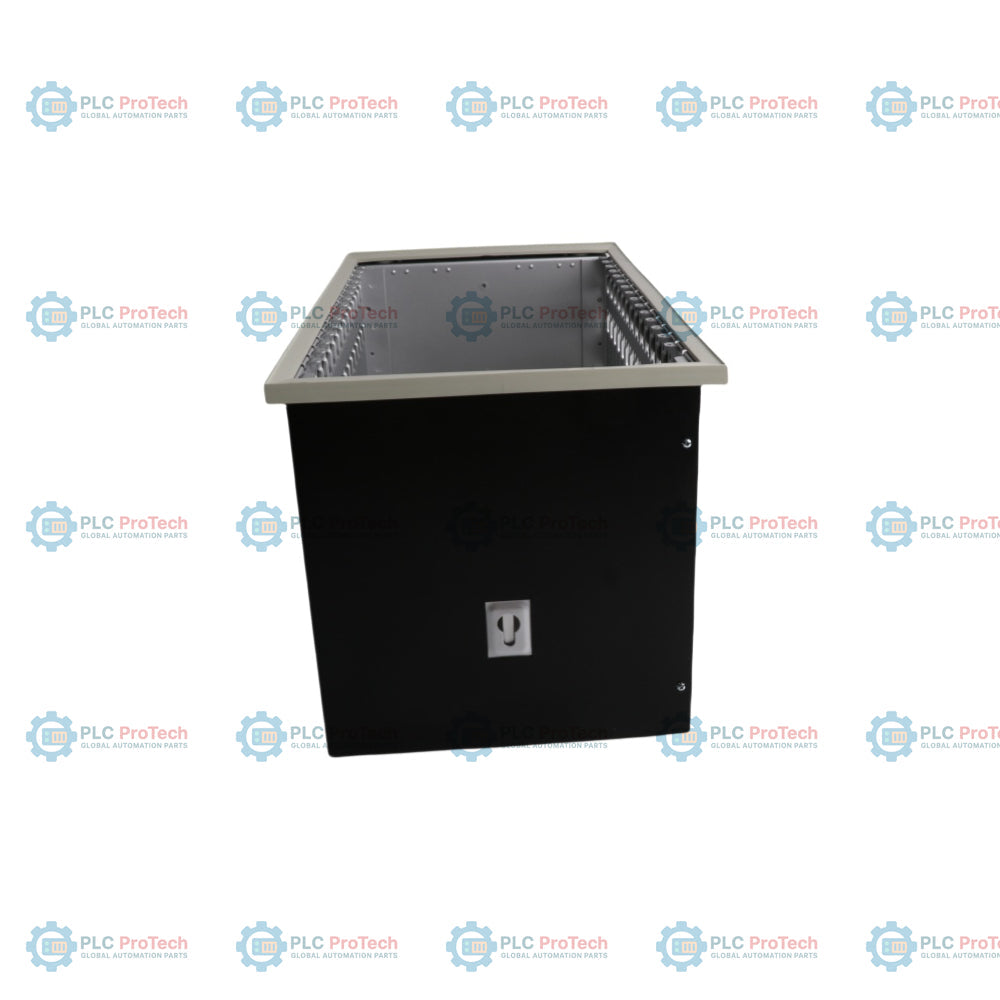

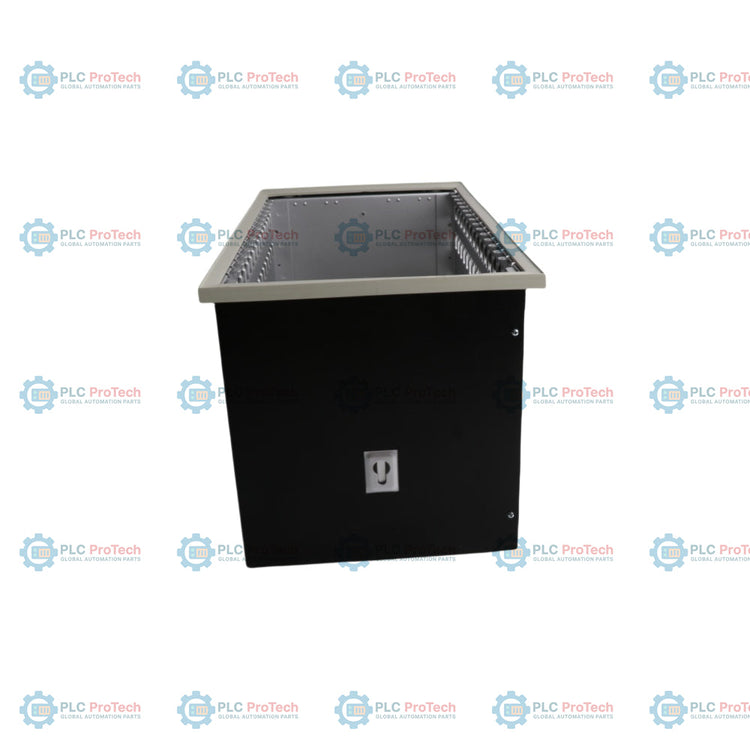

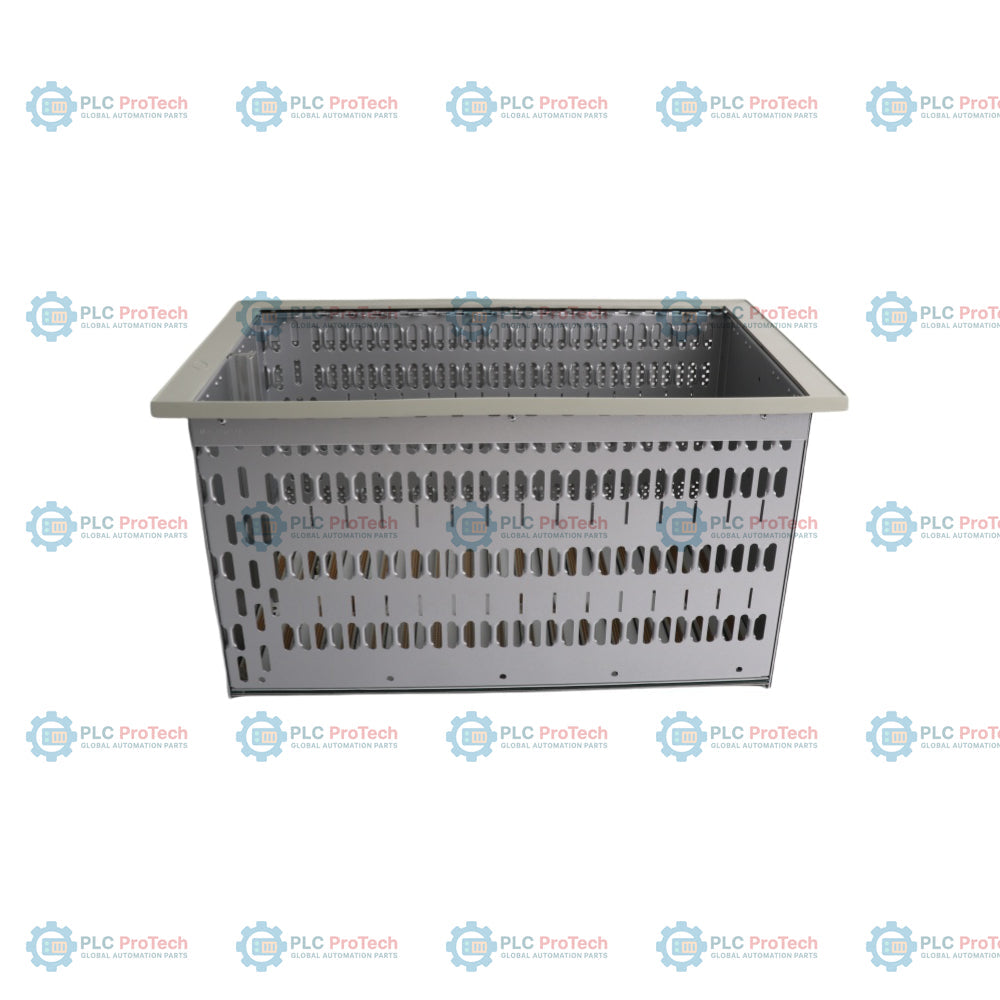

The Bently Nevada 3500/05-02-05-00-00-00 is a standardized hardware enclosure engineered to mount and interconnect all monitoring modules and power supplies within the 3500 Series Machinery Protection System. This specific configuration defines a 19-inch EIA full-size rack format designed for panel-mount installations, meaning it fits into rectangular panel cutouts and secures firmly from behind via specialized back-clamp sets. The backplane bus within the 3500/05-02-05-00-00-00 allows seamless digital communication and low-loss power distribution across its fourteen available general-purpose monitor slots. Positioned structurally with its power units and rack interface modules on the far left, the frame routes transducer input signals and I/O signals directly through rear-facing interface boards, providing a foundational backbone for automated machinery protection and plant asset condition diagnostics across high-criticality industrial operations.

Features

• Complete integrated enclosure assembly based on the 3500/05-02-05-00-00-00 hardware code, establishing a 14-slot panel-mount configuration.
• 19-inch EIA standard architectural footprint with heavy-gauge chassis rails for reliable structural stability.
• Integrated digital backplane enabling continuous communication and high-speed data transfer between monitoring nodes.
• Panel-mount format featuring specialized heavy-duty clamps accessible from the rear for tight panel integration.
• Tailored far-left slot spacing specifically dimensioned to hold half-height power supply cards and primary rack interface cards.
• High system flexibility allowing any mix of vibration, position, speed, or temperature monitoring units within the 14 operational bays.

Applications

• Structural rack frameworks hosting vibration and machine protection arrays inside petrochemical facilities and chemical units.
• Centralized asset condition monitoring instrumentation panels on power plant steam and gas turbine decks.
• Grouping multi-channel turbomachinery monitoring modules across oil and gas offshore platforms and pipeline pumping stations.

Ordering Information

Technical Specifications

Connections/Interfaces

The panel-mount structural array routes vital wiring links and module pathways through specific zones:

Installation Guidelines

• Cutout Measurements: Ensure the rectangular opening in the instrument panel matches the precise official dimensional requirements for panel-mount 14-slot housings before hoisting the frame.
• Rear Access Check: Verify that there is adequate physical clearance behind the panel assembly to allow maintenance technicians to safely execute field wiring on the rear I/O boards.
• Clamp Securement: Tighten the heavy-duty fastening clamps supplied with the enclosure evenly against the panel surface to ensure a tight mechanical hold.
• Component Tracking: Insert the core power supply units and the primary rack interface card into the far-left slots prior to populating any generic vibration or position monitoring cards.
• Instrumentation Grounding: Run a low-impedance copper grounding strap from the dedicated chassis ground stud directly to the verified plant instrumentation earth to mitigate electromagnetic noise.
