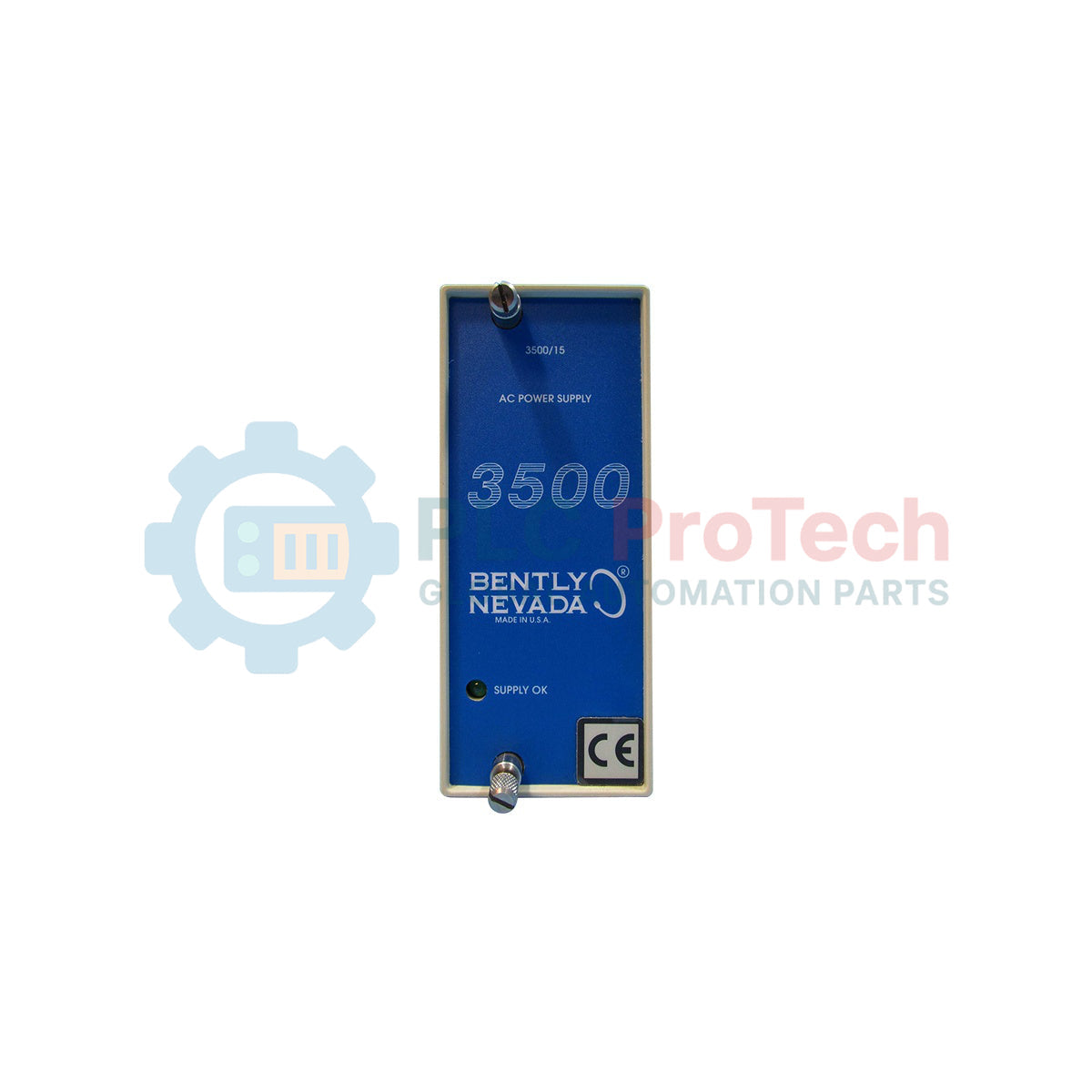

Bently Nevada 3500/15-02-00-00 High Voltage AC Power Supply Module

SKU 3500/15-02-00-00

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 3500/15-02-00-00
  • Origin United States
  • Product Type: Power Supply Module
  • Payment: T/T, Western Union
  • Weight: 1.39 kg
  • Dimensions: 120.7 mm x 50.8 mm x 251.5 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3500/15 Power Supply Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 3500/15-02-00-00 High Voltage AC Power Supply Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The 3500/15-02-00-00 is a high voltage AC power supply module designed for the 3500 Series Machinery Protection System. This half-height module installs into specialized slots on the left side of the 3500 rack to convert high voltage AC input into regulated voltages required by other system modules. Operating as a single supply or in a redundant dual-supply configuration, the 3500/15-02-00-00 ensures uninterrupted rack operation. In a dual setup, the lower slot houses the primary supply and the upper slot contains the backup supply; removing or inserting either module does not disrupt system operation. This specific configuration utilizes the high voltage AC power input module (PIM) and supports a nominal input voltage of 220 Vac rms.

Features

  • Half-height module design to maximize rack space efficiency.
  • Redundant power supply capability with automatic backup switching.
  • Hot-swappable replacement allowing module removal and insertion without disrupting rack operation.
  • Front panel "Supply OK" LED indicator for real-time operational status monitoring.
  • Integrated over-voltage protection that blows the input module fuse to protect internal components.
  • Under-voltage protection ensuring low voltage conditions will not damage the supply or PIM.

Applications

  • Turbo-machinery protection systems
  • Oil and gas refinery asset monitoring
  • Power generation turbine vibration and condition monitoring
  • Petrochemical plant machinery protection
  • Heavy industrial rotating equipment monitoring

Ordering Information

Option Code Description
A: Power Supply Type (Top Slot) 02 High Voltage ac (175 to 264 Vac rms)
B: Power Supply Type (Bottom Slot) 00 No supply (use when only one supply is required)
C: Agency Approval Option 00 None

Technical Specifications

Parameter Specification
Manufacturer Bently Nevada (General Electric Company)
Country of Origin USA
Input Voltage Type High Voltage AC
Nominal Input Voltage 220 Vac nominal
Input Voltage Range 175 to 264 Vac rms (247 to 373 Vac pk)
Input Voltage Range (Legacy) 175 to 250 Vac rms (for PIM prior to Rev. R / Supply prior to Rev. M)
Input Frequency 47 to 63 Hz
Full Rack Current Draw 2.3 A rms (maximum)
Power Supply Dimensions (H x W x D) 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
Power Supply Weight 1.39 kg (3.06 lb.)
Power Input Module Dimensions (H x W x D) 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
Power Input Module Weight 0.34 kg (0.75 lb.)
Operating Temperature -30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Humidity 95%, non-condensing
Minimum Loading No minimum rack load is required

Connections/Interfaces

Terminal Pin / Component Function
Front Panel LED Supply OK LED indicates when the power supply operates properly.
LN1 AC Power Line Input 1 connection on the PIM.
LN2 / NEUT AC Power Line Input 2 / Neutral connection on the PIM.
GND Protective Earth Ground connection.
FUSE Terminal Houses the 250V / 6.25A SB fuse for over-voltage protection.

Installation Guidelines

  • Rack Placement: Install the half-height power supply modules strictly into the specially designed slots located on the far left side of the 3500 rack.
  • Power Input Module: Mount the associated High Voltage AC Power Input Module (PIM) in the chassis position directly behind the main power supply module.
  • Redundancy Configuration: When deploying two power supplies for redundancy, place the primary supply in the lower slot and the backup supply in the upper slot.
  • Grounding: Securely connect the structural ground to the GND terminal on the rear Power Input Module to mitigate electromagnetic interference and ensure electrical safety.
  • Over-voltage Protection: Ensure the power source does not exceed 264 Vac rms, as over-voltage conditions will open the protective fuse on the PIM.
  • Hot-Swapping: When swapping modules, verify that at least one power supply remains active and operational to prevent system downtime.

Compliance and Certifications

  • EMC Standards: EN 61000-6-2 (Immunity for Industrial Environments), EN 55011/CISPR 11 (ISM Equipment), EN 61000-6-4 (Emissions for Industrial Environments)
  • European Community Directives: EMC Directive 2004/108/EC
  • Electrical Safety: EN 61010-1
