330101-00-20-05-02-CN | Bently Nevada | 3300 XL 8 mm Proximity Probes

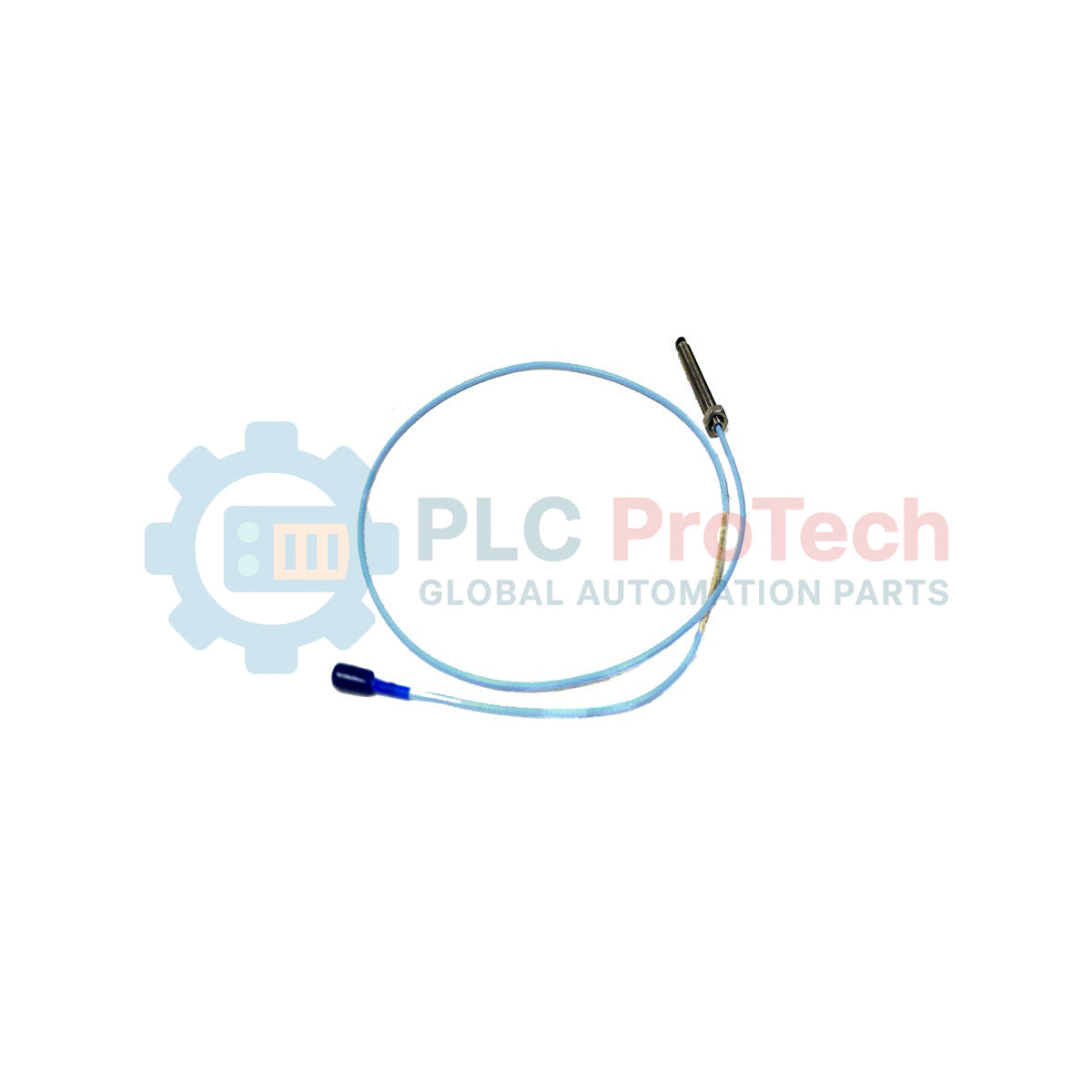

Bently Nevada 330101-00-20-05-02-CN 3300 XL Proximity Probe

SKU 330101-00-20-05-02-CN

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330101-00-20-05-02-CN
Origin United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 0.323 kg
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

Designed for demanding industrial machinery protection systems, the Bently Nevada 330101-00-20-05-02-CN is a high-precision 3300 XL 8 mm proximity probe configured with a 3/8-24 UNF threaded casing and designed without armor. This eddy current transducer sensor forms an essential component of a non-contact displacement and vibration measurement loop. By generating a high-frequency electromagnetic field around the tip, it accurately monitors dynamic target shaft positioning, oil film thickness, and structural vibration in critical rotating machinery.

The sensor is engineered to withstand extreme industrial environments, featuring a tip made of high-grade polyphenylene sulfide (PPS) and a robust stainless steel casing. Electrical integration is managed via a standard miniature coaxial cable terminated with a ClickLoc miniature coaxial connector, securing clean signal transmission to the proximity transmitter or monitor module.

Features

Interchangeable Design: Fully compatible with Bently Nevada 3300 XL 8 mm series sensor networks and extension cables.
Secure Interconnect: Features the ClickLoc miniature coaxial connector for stable electrical contact and resistance to industrial vibration.
Corrosion Resistance: Built with an AISI 303/304 stainless steel case and a PPS tip to endure chemically harsh environments.
Differential Pressure Sealing: Integrated Viton O-ring seals differential pressure between the probe tip and the sensor housing.

Applications

Steam and gas turbine shaft vibration monitoring
Centrifugal compressor axial thrust position tracking
High-speed industrial pump dynamic runout analysis
Generator and electric motor rotor eccentricity measurement

Configuration Breakdown

Option Parameter	Code	Specification Value
Thread / Armor Type	330101	3/8-24 UNF thread, without armor
Unthreaded Length	00	0.0 inches
Overall Case Length	20	2.0 inches
Total Length	05	0.5 meter (1.6 feet)
Connector and Cable	02	Miniature coaxial ClickLoc connector, standard cable
Agency Approval	CN	Country-specific approvals (China)

Technical Specifications

Manufacturer	Bently Nevada
Part Number / Model	330101-00-20-05-02-CN
Product Series	3300 XL 8 mm Proximity Transducer System
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or AISI 304 Stainless Steel (SST)
Operating and Storage Temperature	-51 degC to +177 degC
Sealing Element	Viton O-ring
Weight	0.323 kg
Country of Origin	United States

Installation Guidelines

Mechanical Clearance: Maintain a minimum radial clearance around the probe tip to prevent crosstalk or side-loading interference from surrounding metal components.
Torque Limits: Follow nominal torque ratings for 3/8-24 UNF stainless steel threads to prevent stripping the case or damaging the mounting bracket.
Cable Protection: Route the standard coaxial cable through designated conduit or cable trays to protect against physical pinch hazards and severe electromagnetic interference (EMI).

Compliance and Certifications

CN Approvals: Certified for country-specific hazardous areas and industrial safety standards.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What does the "CN" suffix indicate on this Bently Nevada probe?

The "CN" suffix signifies country-specific agency approvals, indicating that this proximity probe meets specific hazardous location and electrical safety standards required for the Chinese market.

What is the exact cable length of the 330101-00-20-05-02-CN model?

The "05" code in the part number specifies a total cable length of 0.5 meters (approximately 1.6 feet) with a standard unarmored coaxial cable.

Is the probe pressure tested before shipment?

No, while 3300 XL probes are designed with a Viton O-ring seal to prevent differential pressure leaks between the tip and case, they are not pressure tested prior to standard shipment. For high-pressure system verification, contact custom design services.

What material is used for the probe tip?

The probe tip is manufactured using Polyphenylene sulfide (PPS), which provides excellent thermal stability and resistance to chemicals and industrial fluids.
