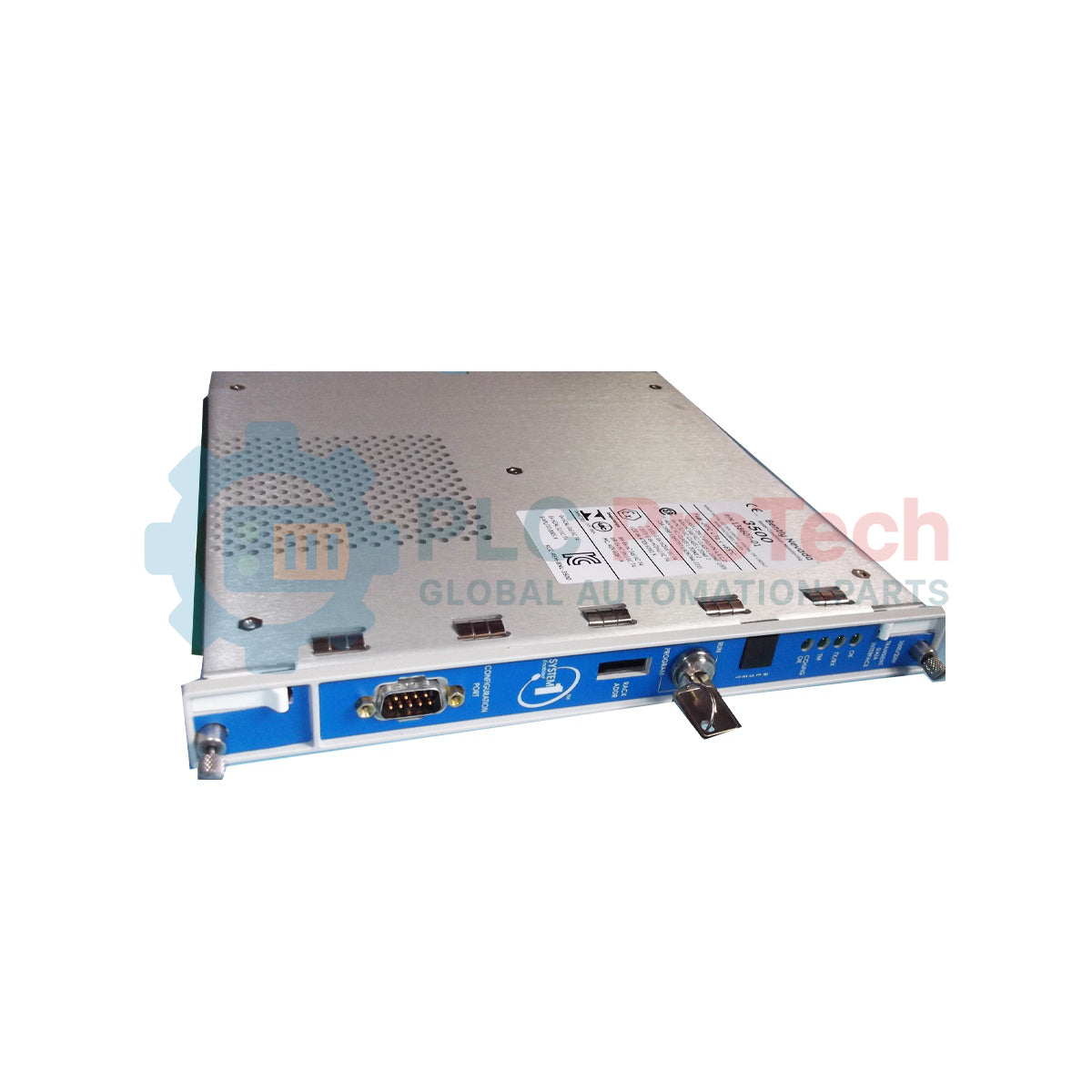

Integrating continuous machinery protection with diagnostic data acquisition, the Bently Nevada 3500/22-01-02-CN serves as the primary communication interface between 3500 Series racks and System 1 software. This Transient Data Interface (TDI) acts as a highly specialized bridge, processing static and dynamic configuration parameters and collecting transient waveform data across all slotted monitor modules. Configured with a 100Base-FX Fiber Optic interface, this module is built for long-distance, high-noise industrial communication loops where standard copper-based Ethernet is susceptible to electromagnetic interference (EMI).
| Manufacturer | Bently Nevada |
| Product Code | 3500/22-01-02-CN |
| TDI Module Type | Standard Transient Data Interface |
| I/O Module Type | 100Base-FX (Fiber Optic) Ethernet I/O |
| Agency Approval Option | CN (Country Specific Approvals) |
| Country of Origin | United States (U.S.A.) |
| Dimensions (H x W x D) | 24.13 cm x 2.44 cm x 24.18 cm |
| Shipping Weight | 2.5 kg |
| Interface Connection | Functional Assignment |
|---|---|
| TX/RX Fiber Ports | 100Base-FX multi-mode fiber connection for primary control room communications. |
| Front Panel Port | Serial/USB-compatible service port for local laptop engineering connection. |
The 3500/22M TDI directly replaces older legacy 3500/20 Rack Interface Modules (RIM). However, upgrading from a 3500/20 to a 3500/22 requires updating the 3500 Rack Configuration Software and ensuring that the firmware matches your running version of System 1 diagnostic software.
When utilizing the 100Base-FX fiber optic I/O option, always adhere strictly to the minimum bend radius specifications of the multi-mode fiber cabling. Tight bends inside high-density enclosure channels can lead to packet drop errors, which disrupts System 1 live waveform rendering and delays transient event capture.
Ensure that fiber optic connector tips are thoroughly inspected with an optical scope and cleaned with lint-free wipes prior to insertion. Even microscopic dust particles on the 100Base-FX ports can significantly degrade light transmission levels, triggering communication timeout alarms.
Do not hot-swap the 3500/22M TDI module while the machinery is active and relying on relay outputs or safety interlocking logic. Inserting or removing the TDI can momentarily interrupt rack communication loops and cause state faults. Ensure all bypass interlocks are active if servicing a live system.
Slide the main 3500/22M TDI module into the designated slot of the 3500 rack (typically the slot adjacent to the power supplies).
Align and secure the 100Base-FX Fiber Optic I/O module into the corresponding rear slot position, hand-tightening the retaining screws.
Connect the fiber cables to the TX/RX ports and verify that the front panel Link LED illuminates, indicating valid hardware negotiation.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 3500/22-01-02-CN
Country of origin:United States
Product Type: Turbine Supervisory Instrumentation Modules
Payment: T/T, Western Union
Weight: 320g
Dimensions: 24.13 cm x 2.44 cm x 24.18 cm
Shipping port: Xiamen
Warranty: 12 months
