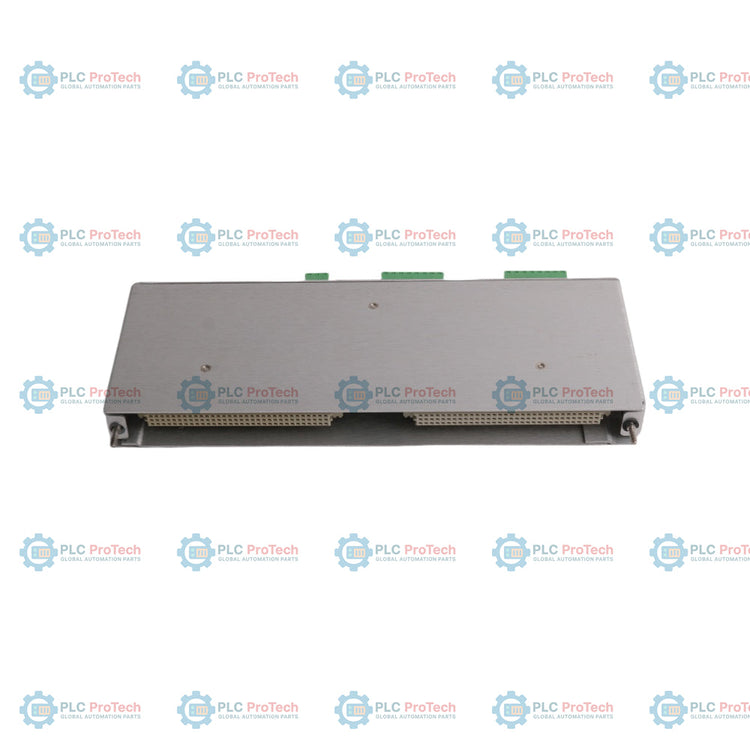

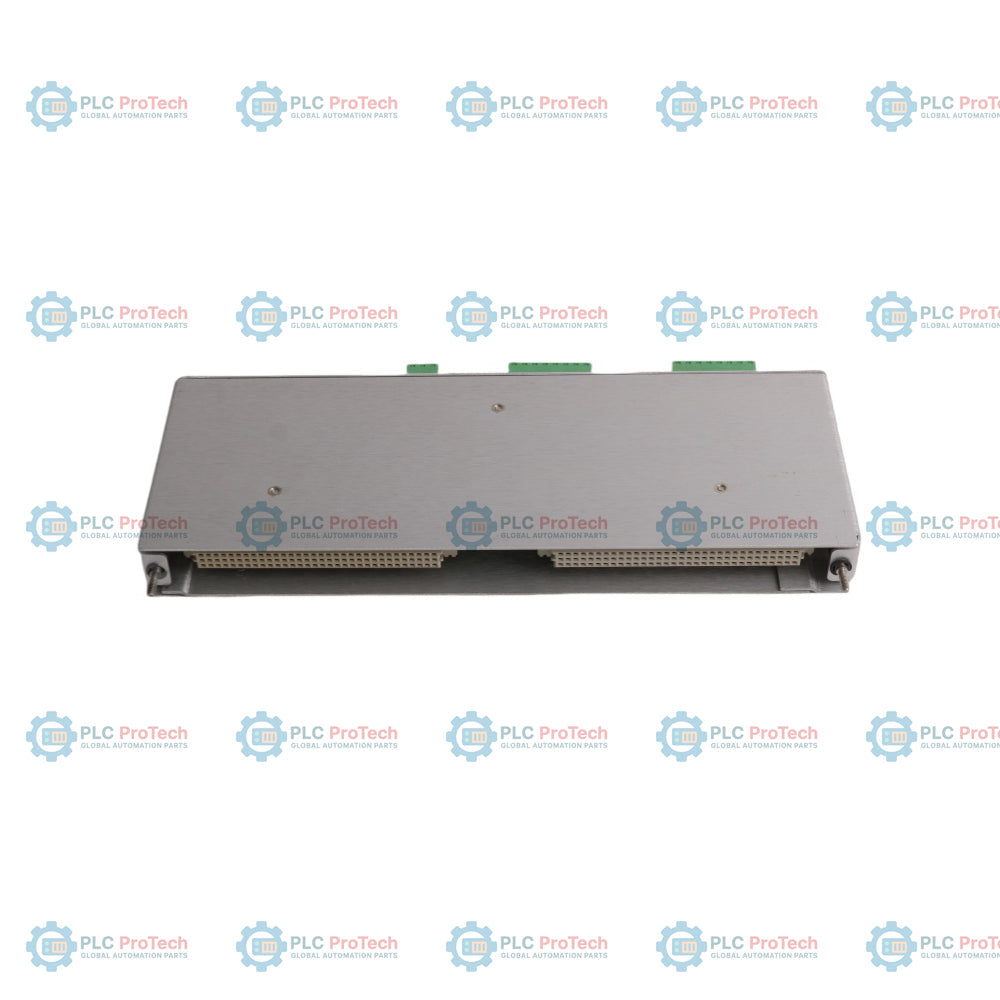

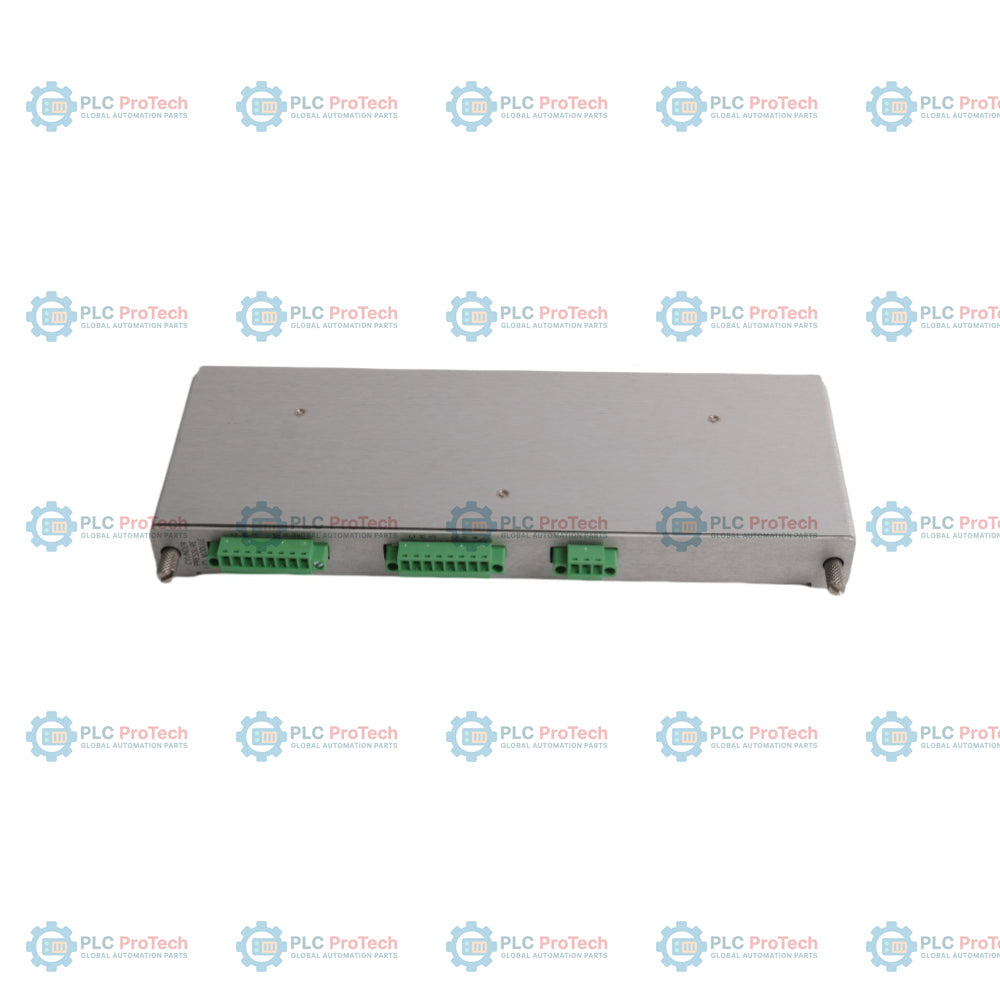

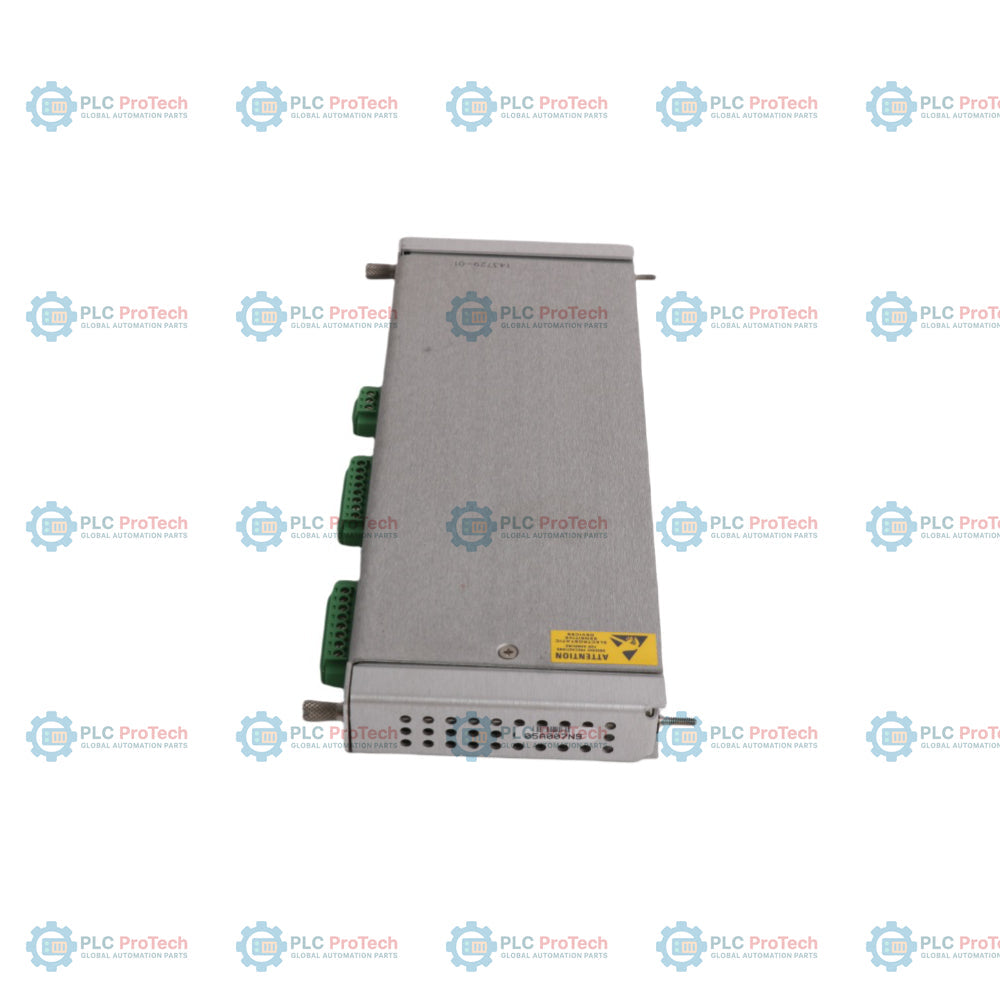

The 3500/77M, full part number 3500/77M-04-00 (incorporating main monitor module 3500/77M and rear I/O component 143737-01), is a 4-channel hardware module engineered within the 3500 Machinery Protection System to condition absolute pressure signals from approved positive voltage third-party transducers installed on reciprocating compressors. The instrument operates via continuous backplane communication to execute machinery protection logic by comparing eight discrete measured variables per channel—specifically Discharge Pressure, Suction Pressure, Maximum Pressure, Minimum Pressure, Compression Ratio, Peak Rod Compression, Peak Rod Tension, and Degree of Rod Reversal—against user-configurable alert and danger setpoints. This option -04-00 variant is structurally defined by a cylinder pressure I/O module with external termination interfaces and no hazardous area agency approvals required. The module delivers internal current-limiting transducer power supplies at +23.0 Vdc per channel and outputs inverted, offset buffered analog signals through front-panel coaxial ports for diagnostic cross-analysis without impacting primary monitoring operations.

Ordering Information

• 3500/77M-04-00: Complete Cylinder Pressure Monitor Assembly
  • Specifies the combined kit consisting of the front main monitor module and the rear I/O module.
• -04: I/O Module Type Option
  • Cylinder Pressure I/O Module with External Terminations (Rear I/O Module Part Number: 143737-01).
• -00: Agency Approval Option
  • No hazardous area agency approvals or certifications required.
• Spares & Accessories
  • Part Number 143737-01: Cylinder Pressure I/O Module with External Terminations for Bently Approved Third-Party Pressure Transducers.

Hardware Specifications

Engineering Notes

• The cylinder pressure I/O module processing logic dynamically alters its signal conversion scale factor based on the programmed target range, scaling from 95,000 mV/psi for 100 psia down to 950 mV/psi for 10,000 psia systems.
• For single-chamber rod dynamics diagnostics, Peak Rod Compression, Peak Rod Tension, and Degree of Rod Reversal calculations mathematically integrate physical raw casing measurements with internal multi-channel variables.
• Front panel buffered coaxial outputs are short-circuit protected but are structurally inverted and offset by -2.265 Vdc when interacting with the external termination I/O module architecture.
• Control logic allows the mapping of independent alert setpoints across all active measured variables, whereas danger setpoints are strictly limited to a maximum of two variables per channel.

Field Guidelines

• Connect the external termination block to the rear I/O chassis interface via shielded, twisted-pair wiring assemblies to preserve high-frequency signal integrity and prevent noise injection.
• Terminate the field transducer cable shields exclusively at the designated external termination block ground strip to avoid creating parallel ground loops with the machine casing ground.
• Observe the strict 24.5 mA current-limiting parameters on the +23.0 Vdc internal supply lines when interfacing with third-party absolute pressure sensors.
• Maintain minimum bend radius limits for all external field cabling routing into the 3500 chassis enclosure to eliminate mechanical tension on the termination terminal blocks.

Technical & Procurement FAQ

Q: Why do the front-panel buffered outputs on the 3500/77M-04-00 show negative voltage offsets on an oscilloscope?

A: This behavior is normal for this specific architecture; the cylinder pressure external termination I/O electronics are structurally designed to invert and offset the raw signal by -2.265 Vdc.

Q: Can this pressure monitor module be swapped or inserted into any random slot within a 3500 rack?

A: No, the module must be positioned into a standard chassis slot compatible with monitoring modules and must line up directly with its corresponding 143737-01 rear external termination I/O board.

Q: What is the maximum distance or line resistance supported for the third-party pressure transducer connection?

A: Cable distance limits depend on the specific capacitance of the field cable, but signal integrity over long distances is maintained due to the high 50 kΩ input impedance of the I/O block.
