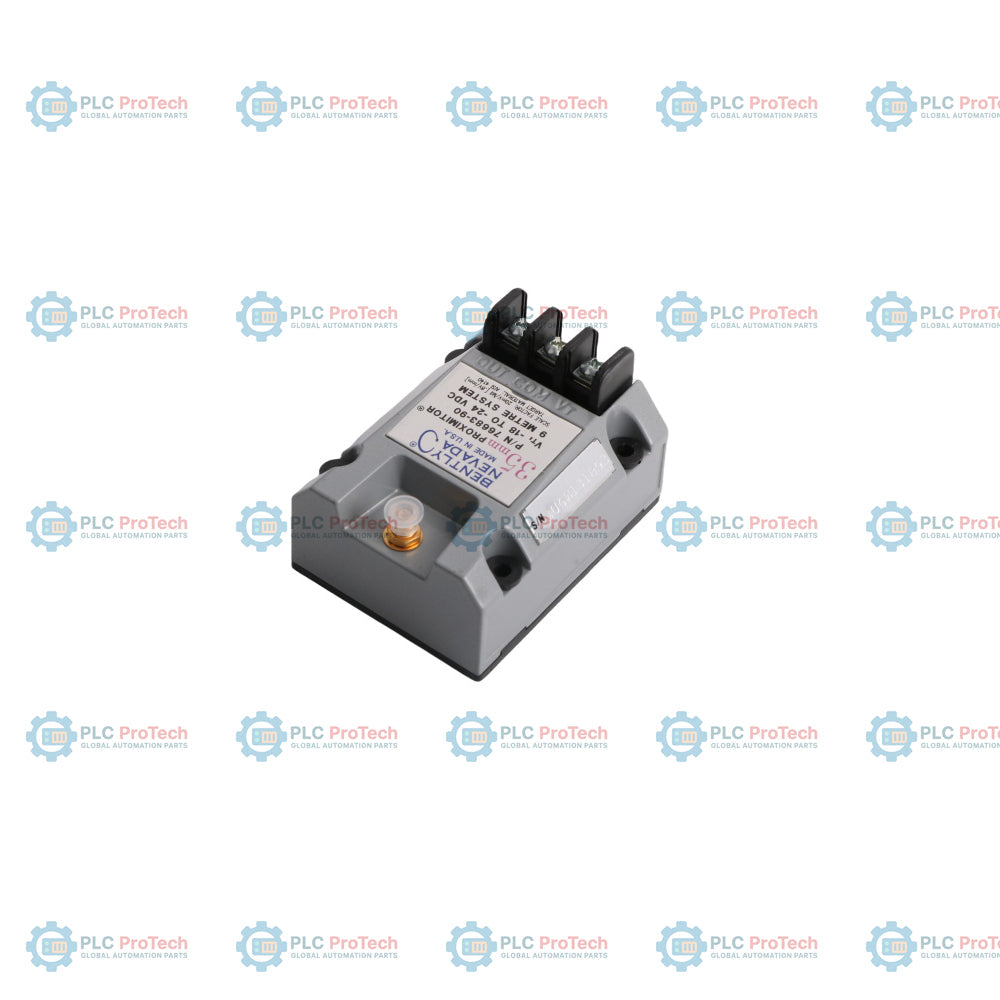

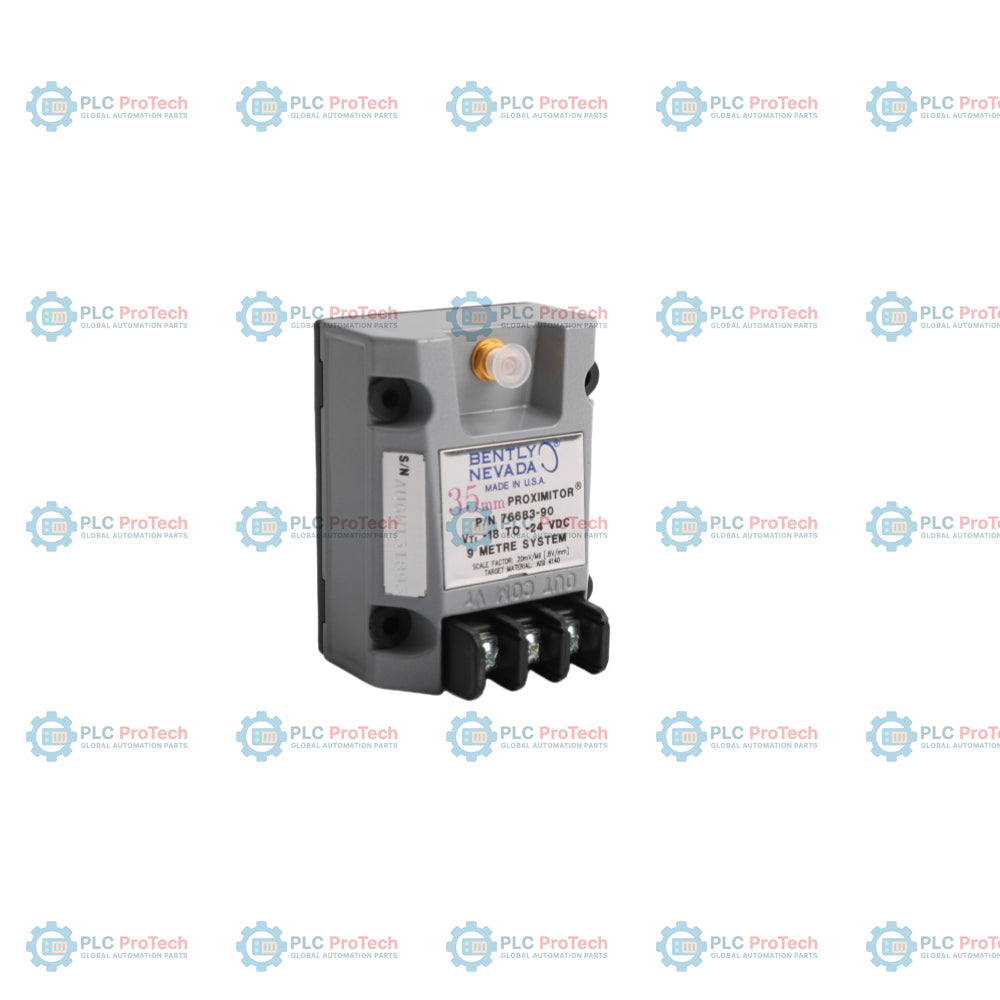

The 76683, full part number 76683-90, is a high-precision 35 mm Proximitor Sensor engineered for industrial rotor dynamics and machinery protection monitoring. Powered by an externally connected -18 VDC to -24 VDC power supply, the instrument generates a radio frequency (RF) output voltage that is transmitted via the extension cable and probe lead straight to the probe tip coil. This coil radiates RF energy in the form of an alternating magnetic field, inducing localized eddy currents within the observed conductive target material. As the target surface moves closer to the probe tip, the eddy currents increase in amplitude, causing a distinct power loss within the probe-and-proximitor circuit loop and generating a corresponding, highly linear decrease in the coil RF voltage. The internal sensor electronics measure this peak amplitude fluctuation to deliver a proportional DC gap voltage output directly to monitoring systems, providing continuous displacement verification that remains constant if the gap is fixed and varies dynamically over time to trace physical shaft vibration or axial position changes.

Ordering Information

• -90: System Length Option
  • Requires 9 m total probe-lead-plus-extension-cable length.

Hardware Specifications

Engineering Notes

• The 35 mm eddy-current scaling profile is explicitly calibrated to match the electrical properties of standard ferromagnetic target materials; alternative target alloys will alter the baseline gap voltage response curves.
• Total physical length matching is mandatory for precision operations; mismatching a -90 suffix Proximitor with a 5 m cable network will disrupt internal tuned RF tank parameters and invalidate calibration data.
• Internal power losses within the driver circuit are directly proportional to the physical proximity of the observed surface, allowing highly accurate translation of raw RF modulation into clean analog signals.

Field Guidelines

• Execute mandatory shield grounding by bonding the outer extension cable shield strictly at the instrumentation rack ground bar while keeping the probe junction completely floating to intercept ground loops.
• Route the high-frequency extension cable assemblies through dedicated steel conduit paths, ensuring complete isolation from adjacent heavy-power three-phase motor lines or alternating current switching buses.
• Adhere strictly to the recommended minimum bend radius boundaries for the coaxial extension leads to ensure internal dielectric layer symmetry remains undistorted during permanent panel routing.

Technical & Procurement FAQ

Q: Can a 76683-90 Proximitor be installed alongside a standard 5-meter total length probe assembly?

A: No, the -90 suffix indicates the internal tuning is matched exclusively for a 9 m total probe-lead-plus-extension-cable network; substituting a 5-meter setup will cause severe calibration shift errors.

Q: What is the primary physical function of the alternating magnetic field generated at the 35 mm tip?

A: The alternating magnetic field projects RF energy into the adjacent shaft surface to induce eddy currents, which are then monitored as a direct circuit power loss to map relative distance.

Q: Does this Proximitor device require a separate external transmitter module to interface with standard 3500 series racks?

A: No, the 76683-90 converts the raw probe coil impedance changes directly into the standard analog DC gap voltage and dynamic AC signals required by the machine protection monitors.
