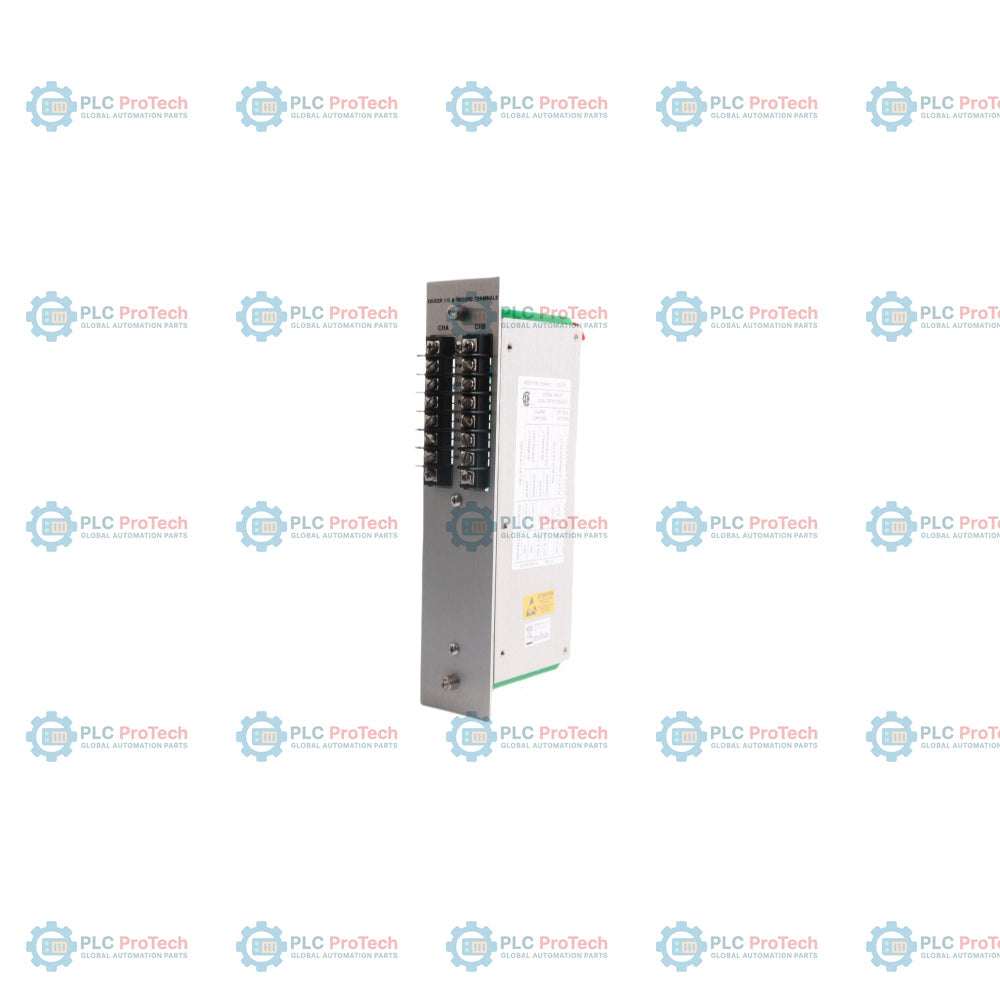

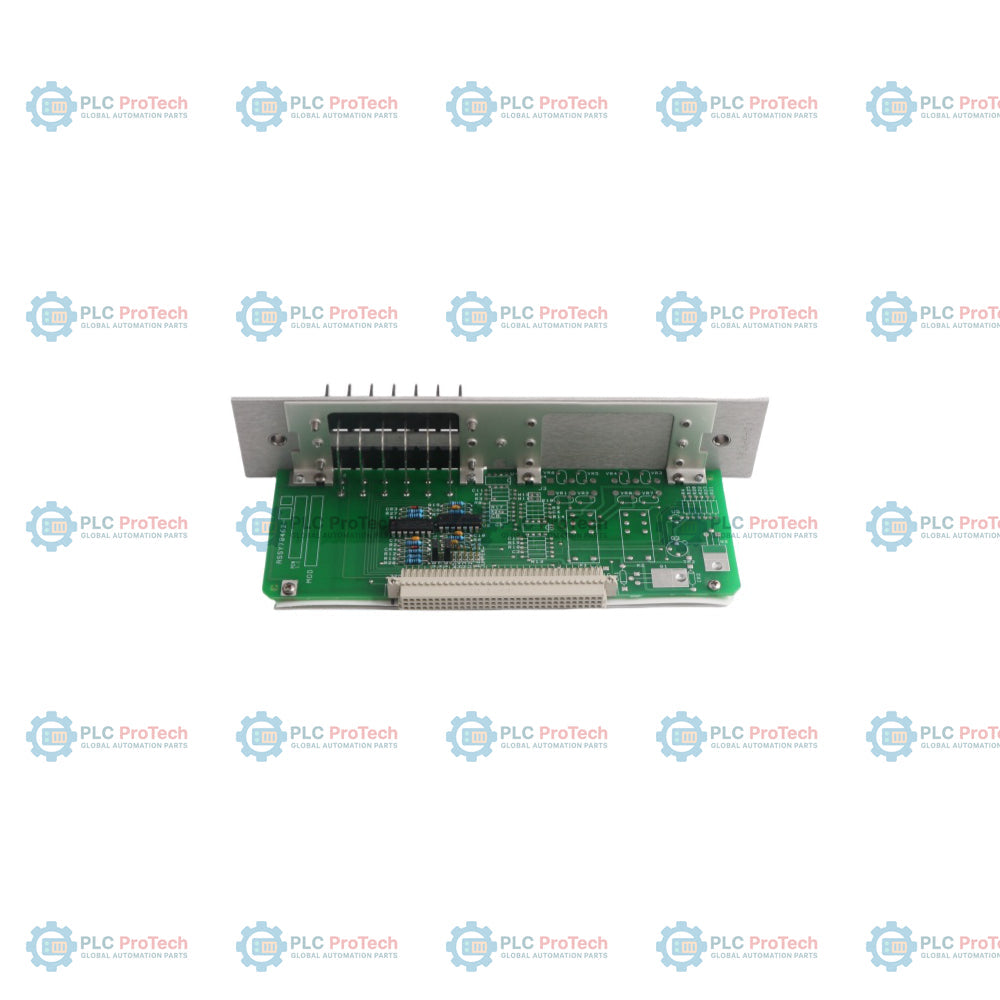

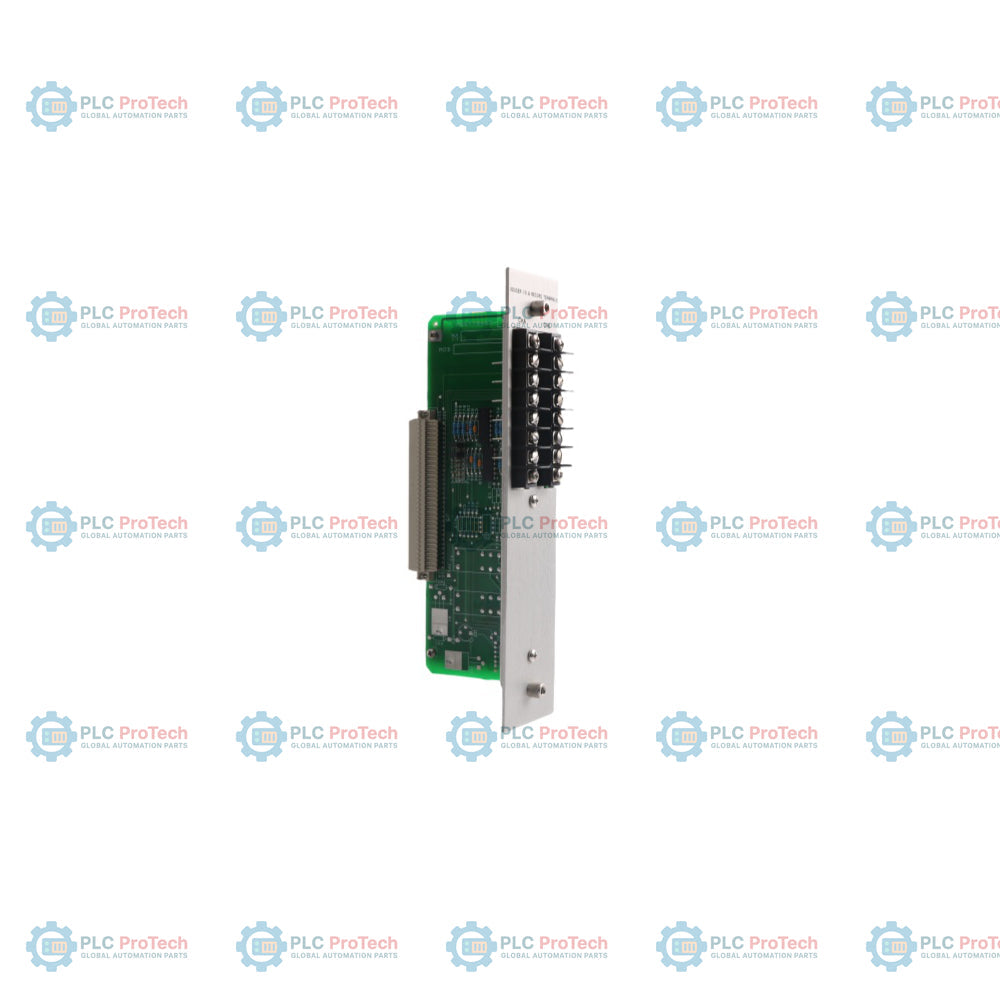

The 81544-01 Transducer Input/Output and Recorder Terminal Module, alternative factory part number 78462-02, is a rear-mounting interface component engineered exclusively for the Bently Nevada 3300/45 Dual Differential Expansion Monitor within a Turbine Supervisory Instrumentation system. The module facilitates the dual-channel routing of dynamic signal inputs from two separate proximity probe transducer setups to evaluate absolute axial rotor displacement relative to the machine casing caused by thermal expansion during startup and shutdown. Electrically configured with a fixed input impedance of 10 kΩ, it supports the monitor's control logic which processes both the magnitude and direction of differential expansion across four programmable alert thresholds consisting of two over-alarm and two under-alarm setpoints. This passive terminal architecture is executed without onboard electromechanical relay contacts, operating instead as a direct signal pass-through and recorder distribution hub for continuous machinery protection.
Hardware Specifications
Parameter
Specification
Manufacturer
Bently Nevada
Part Number
81544-01 (78462-02)
Product Series
3300 System
Compatible Monitor Module
3300/45 Dual Differential Expansion Monitor
Channel Count
2 Independent channels (Channel B can be turned OFF)
Transducer Interfacing
2 Proximity probe transducer signals
Input Impedance
10 kΩ
Alarm Capacity Support
4 Setpoints total (2 Over-alarms, 2 Under-alarms)
Relay Configuration
No onboard relays
Country of Manufacture
United States (USA)
Engineering Notes
The 10 kΩ input impedance is optimized to match the output parameter of standard Bently Nevada Proximitor sensors, ensuring zero signal degradation across the differential expansion measurement arc.
When single-point axial measurements are required on smaller machine casings, Channel B must be programmatically disabled within the 3300/45 monitor to suppress open-circuit gap voltage faults.
Because the 81544-01 contains no mechanical relays, all interlocking alarm and trip execution commands must be processed via the system backplane to an adjacent 3300 system relay module.
Thermal expansion changes during turbine ramp-up alter the baseline gap voltage; raw recorder outputs from this terminal map these proportional DC shifts for trend plotting.
Field Guidelines
Implement rigorous shield grounding at the designated terminal strip block, ensuring the outer shield drain wire of the proximity probe extension cable is tied to instrument ground while remaining isolated at the sensor housing.
Maintain separate wire routing paths for the low-impedance sensor inputs and any neighboring high-voltage AC control circuits to avoid cross-talk within the TSI panel enclosure.
Prior to commissioning, verify that terminal lug screws are tightened to standard torque specifications to eliminate intermittent gap voltage fluctuations caused by physical contact resistance.
Ensure proper spacing and mechanical alignment when sliding the 81544-01 terminal block onto the rear rack connectors to prevent pin distortion or open circuit paths on the 3300 backplane.
Technical & Procurement FAQ
Q: Does the 81544-01 terminal block module include mechanical relay contacts for driving local trip solenoids?
A: No, the 81544-01 is designated as a No Relays module; it routes raw transducer and recorder signals, relying on the 3300 backplane to pass alarm states to a dedicated relay module.
Q: Can this component be utilized with any standard 3300 series proximity probe monitor, such as a radial vibration module?
A: No, this part number is mapped directly to the hardware parameters of the 3300/45 Dual Differential Expansion Monitor and cannot be substituted into other monitoring slots.
Q: What is the technical function of the alternate part number 78462-02 listed on the assembly?
A: The number 78462-02 represents the bare raw board or sub-assembly designation used during production, which corresponds identically to the complete top-level part number 81544-01.
