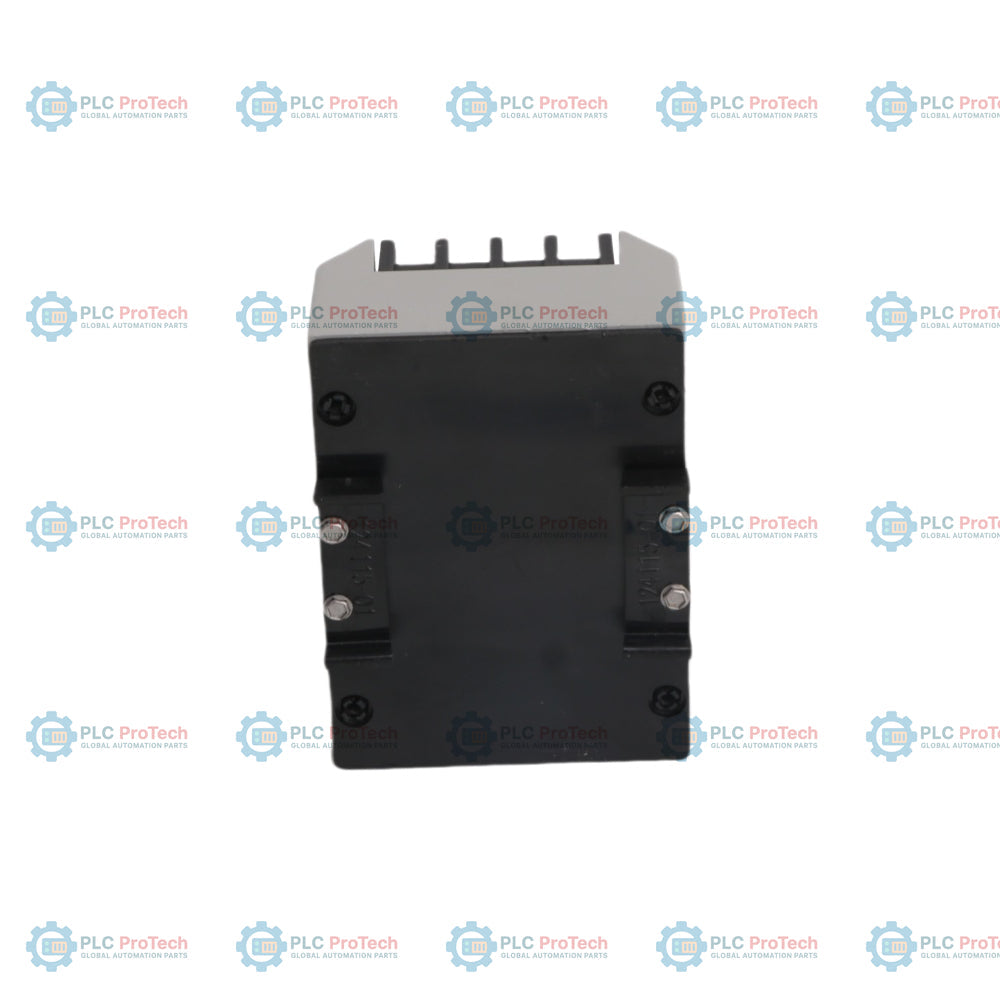

Bently Nevada 990-10-XX-01-05 MOD: 163930-01 Vibration Transmitter

SKU 990-10-XX-01-05

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 990-10-XX-01-05
Origin United States
Product Type: Vibration Transmitter
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.46 kg
Dimensions: 9.8cm x 7.3cm x 6cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 990-10-XX-01-05 MOD: 163930-01 is a loop-powered 2-wire vibration transmitter engineered to process raw signals from proximity probe systems and output a proportional 4-20 mA analog current loop directly to control architectures. This integration eliminates the need for separate proximitor sensors and centralized monitor racks, allowing for a simplified machinery protection interface on compact rotating assets. The device monitors peak-to-peak casing or shaft vibration to safeguard original equipment manufacturer (OEM) packages against mechanical faults. Optimized for confined physical spaces, the system utilizes specialized narrow-profile transducers to deliver reliable dynamic measurements. The MOD: 163930-01 designation indicates a specific factory modification tailored to adjust internal circuit gain, tune frequency response curves, or match the input impedance requirements of targeted industrial control loops.

Features

Integrated proximitor and transmitter functionality within a single potted enclosure.
Directly outputs a 4-20 mA DC signal proportional to overall vibration displacement.
Dedicated non-isolated dynamic signal terminals (PROX OUT and COM) for field analysis.
Not OK / Signal Defeat circuitry to prevent erroneous control system trips during sensor faults.
Fully encapsulated electronics providing resistance to 100% condensing humidity.

Applications

OEM centrifugal air compressor protection packages.
Small industrial pump vibration monitoring.
Electric motor shaft displacement tracking.
Industrial cooling fan and blower machinery protection loops.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model Number	990-10-XX-01-05 MOD: 163930-01
Product Type	2-Wire Vibration Transmitter
Full-Scale Range	0-10 mils peak-to-peak (0-250 um pp)
Output Signal	4-20 mA DC analog current loop
Dynamic Diagnostics	Non-isolated coaxial/terminal PROX OUT and COM
Transducer Compatibility	3300 NSv proximity probe system
Mounting Configuration	35 mm DIN rail clip mount
Environmental Protection	Fully potted internal electronics (100% condensing humidity rated)
Country of Origin	United States
Weight	0.38 kg
Dimensions	115 mm x 45 mm x 95 mm

Connections/Interfaces

Connector Pin	Function
4-20mA (+)	Positive Loop Power Supply Input
4-20mA (-)	Negative Loop Current Output / Signal
PROX OUT	Unisolated Dynamic Voltage Signal Output
COM	Signal Common / Ground reference

Installation Guidelines

DIN Rail Mounting: Securely latch the integrated mounting clip onto a standard 35 mm DIN rail inside a dust-tight enclosure.
Shielding and Noise Suppression: Connect the cable shield wires to the instrument ground at the PLC/DCS cabinet only. Maintain shield continuity through any intermediate junction boxes without grounding the shield locally at the transmitter.
Transducer Gap Adjustment: Follow standard engineering procedures to adjust the initial mechanical gap of the 3300 NSv probe using the dynamic voltage output from the PROX OUT terminal prior to finalizing installation.
Conduit and Cable Routing: Separate field wiring from high-power electrical cabling to mitigate electromagnetic interference that can distort the low-level transmitter inputs.

Compliance and Certifications

CSA Division 2
ATEX Zone 0 / Zone 2
ABS Marine Type Approval

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary measurement range of this transmitter?

The primary full-scale measurement range configured for this device is 0-10 mils peak-to-peak, which equates to 0-250 um peak-to-peak displacement.

Which proximity probe system is compatible with this model?

This transmitter is engineered specifically to interface with the Bently Nevada 3300 NSv narrow side view proximity probe and its associated extension cables.

How does the Not OK circuit protect the control system?

The circuit continuously checks probe and cable integrity. If a loose connection or open circuit is found, the transmitter locks the loop output to avoid false alarms or high-current trip states.

Can I read raw vibration data directly from the field module?

Yes, you can connect a dynamic signal analyzer or oscilloscope to the non-isolated PROX OUT and COM terminals to observe the unconditioned voltage waveform and check the gap status.
