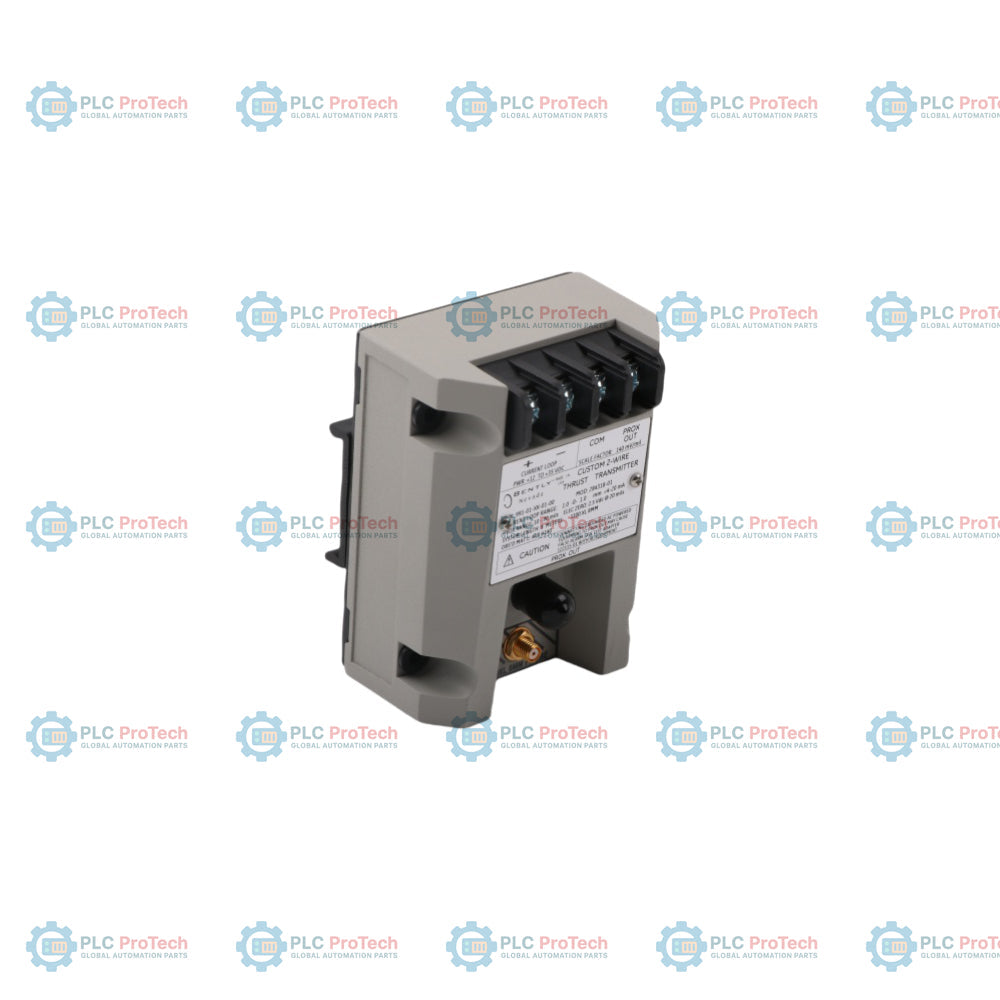

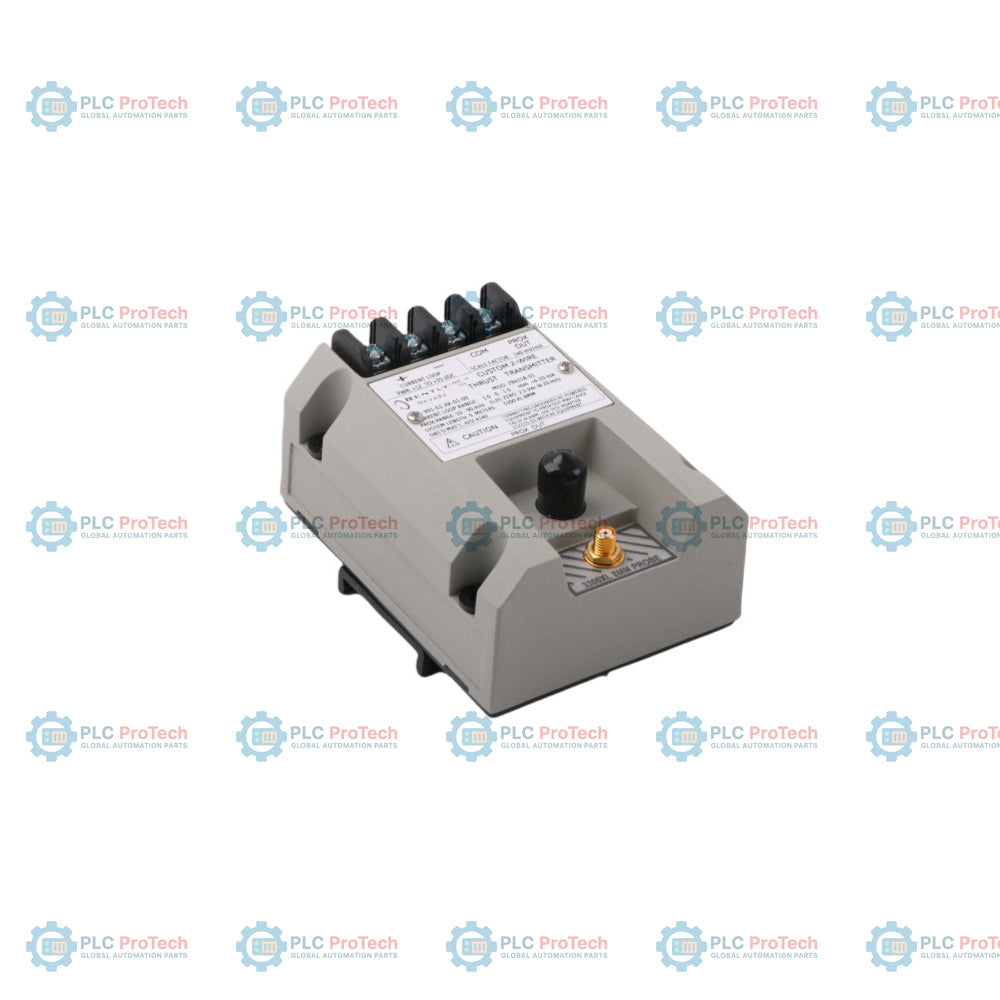

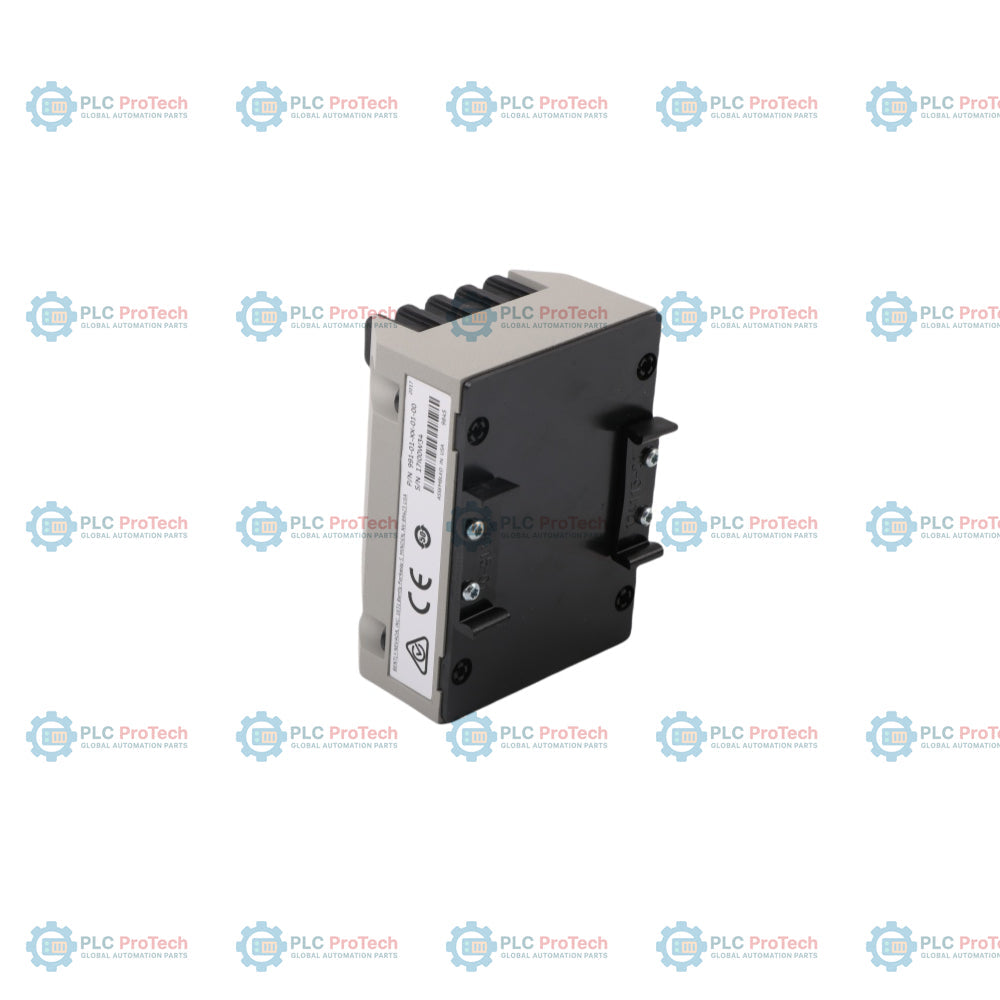

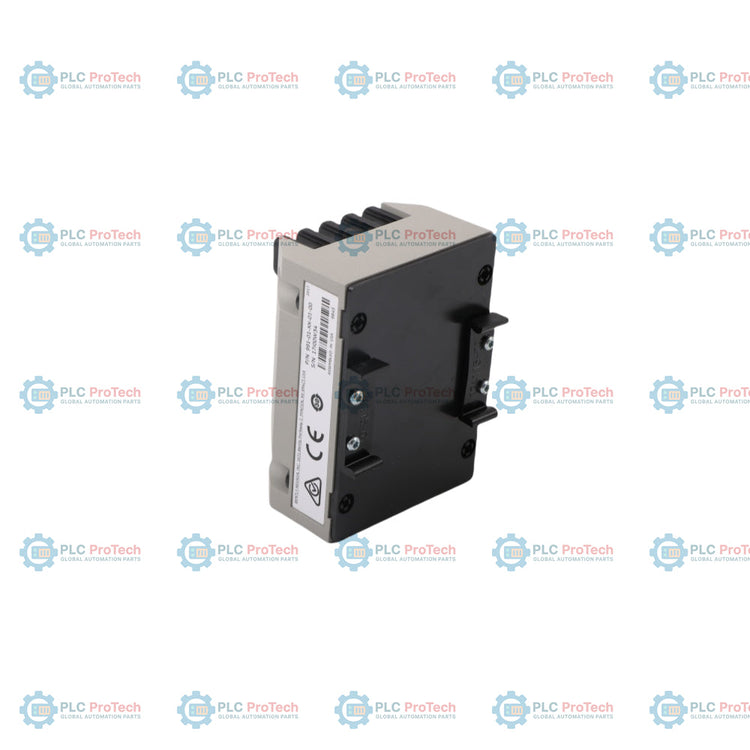

The Bently Nevada 991-01-XX-01-00 (MOD:284318-01) is a high-reliability, loop-powered 2-wire thrust displacement transmitter designed to process eddy-current proximity probe signals into a continuous 4-20 mA current output. Operating over a specialized current loop range of 1.0 - 0 - 1.0 mm (correlating directly to a 4-20 mA span), this instrument delivers raw axial position monitoring directly to control systems like PLCs or DCS without requiring an intervening monitor rack. The device is factory-calibrated for a 9-meter 3300 XL 5mm/8mm proximity transducer system observing AISI 4140 steel targets. By integrating proximity sensor technology with standard loop-powered transmitter architecture, it translates micro-inch physical shaft shifts into proportional analog signals, while offering an isolated PROX OUT dynamic terminal for rotor dynamics diagnostics and gap voltage auditing via external vibration analyzers.

Hardware Specifications

Engineering Notes

• Dynamic Monitoring Safety: The PROX OUT terminal provides direct access to the raw eddy-current transducer gap voltage signal. Connecting grounded AC-powered test equipment directly to this terminal without isolation will alter the loop impedance, corrupting the 4-20 mA analog transmission and potentially triggering false machinery shutdown alarms.
• Scale Factor Deviations: The transmitter is calibrated specifically for a scale factor of 140 mV/mil when working with a 3300 XL 5mm/8mm system. Mismatching the system length (e.g., combining a 5-meter cable with a 9-meter transmitter) will invalidate the linear current output tracking.
• Electrical Zero Adjustments: Ensure that during mechanical installation, the probe is physically gapped near the electrical zero point of 2.5 VDC @ 20 mils to allow equal, proportional travel tracking in both the positive and negative thrust directions.

Field Guidelines

• Test Adapter Requirements: For routine loop verification or portable data collector hookups, always insert the specialized Bently Nevada 122115-01 test adapter between the terminal block and any AC-powered diagnostic equipment to maintain loop safety isolation.
• Loop Cable Routing: Use twisted, shielded pairs (minimum 18 AWG) for the positive and negative current loop wiring. Terminate the outer shield neatly at the control cabinet ground rail, keeping it completely ungrounded and floating at the transmitter field junction box.
• Terminal Integrity: Secure the top screw terminals using proper torque metrics. Prevent uninsulated wire exposure to mitigate short circuits between the current loop inputs and the sensitive proximity interface terminals.

Technical & Procurement FAQ

Question: What does the "XX" indicate within the 991-01-XX-01-00 part number format?

Answer: The "XX" is a variable variable selection position code that designates specific international agency hazardous area certifications (such as ATEX, CSA, or FM approvals) for intrinsic safety or non-incendive field installations.

Question: How is the physical direction of axial thrust displacement mapped onto the 4-20 mA loop profile?

Answer: The transmitter tracks displacement bi-directionally over a 1.0 - 0 - 1.0 mm mechanical span. The electrical zero parameter of 2.5 VDC at 20 mils acts as the center-point baseline, allowing the current loop to modulate scale tracking linearly up and down relative to rotor movement.

Question: Can a generic 3-wire proximity sensor extension cable be spliced into the 9-meter system network?

Answer: No. Splicing or modifying proximity probe extension leads alters the internal coaxial capacitance and overall system impedance. This compromises the 140 mV/mil raw scale factor calibration and introduces signal drift errors into the 4-20 mA tracking loops.
