Equipment Description

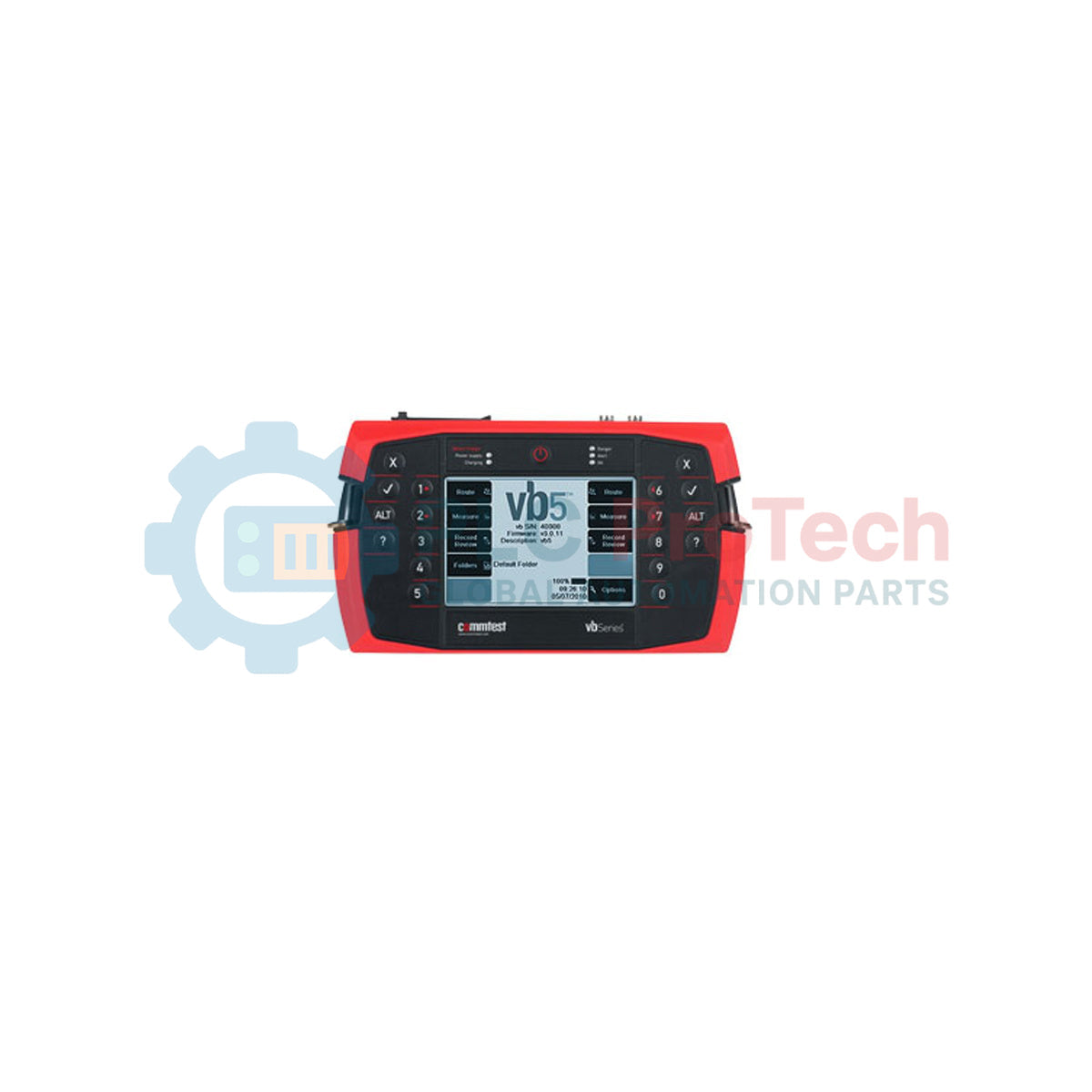

The Bently Nevada VB5-01 (VB5-01) vb5 Portable Data Collector is a rugged, single-channel vibration analysis instrument engineered for predictive maintenance across heavy industrial environments, including oil refineries, power generation plants, petrochemical facilities, and mining operations. By capturing high-resolution dynamic asset data, this portable device allows maintenance engineers to identify early-stage mechanical faults such as unbalance, misalignment, looseness, and bearing wear before catastrophic failures occur. Integrating the Bently Nevada VB5-01 into standard routing procedures significantly reduces unscheduled downtime, optimizes machinery lifespans, and safeguards critical rotating assets.

Hardware Architecture and Channel Configuration

The internal architecture of this instrument features a high-performance 24-bit Analog-to-Digital Converter (ADC) that ensures maximum signal fidelity and wide dynamic range during data acquisition. The primary input channel natively supports standard industrial accelerometers, converting raw acceleration signals into precise velocity and displacement measurements via onboard digital integration.

For advanced diagnostics requiring phase analysis or precise rotational speed tracking, the system supports an optional laser tachometer sensor. This tachometer functions via beam reflection using reflective tape applied directly to the machine shaft. The optical input is isolated to prevent ground loop interference, operating reliably across a nominal range of 10 cm to 2 m depending on target tape size, and supplies a regulated 5 V, 50 mA power feed directly to the sensor.

Technical Specifications

FAQs

How do I upload routes and download collected vibration data to a PC?

The instrument features dual communication interfaces, supporting both direct USB connections and standard Ethernet networking. You can interface the hardware with your machinery management software to transfer route configurations and offload time-waveform or FFT spectrum data for long-term trending.

Can this unit support proximity probes or displacement sensors for orbit analysis?

The hardware configuration of this model is optimized for single-channel accelerometer inputs. For full dual-channel cross-phase analysis or proximity probe XY orbit data collection, a multi-channel data collector from the Bently Nevada portable line is recommended.

What type of reflective tape is required for the optional laser tachometer?

Standard high-visibility industrial reflective tape is required. Ensure the shaft surface is completely clean and free of grease before application. The operational sensing distance spans from 10 cm up to 2 m, determined by the surface area of the applied tape strip.

Field Engineering and Maintenance Guidelines

• Sensor Cable Routing and Shielding: When collecting data near high-voltage motor casings or variable frequency drives (VFDs), ensure the accelerometer cable is properly shielded and kept separate from power lines to mitigate electromagnetic interference (EMI) that can corrupt 24-bit ADC samples.

• Sensor Placement Integrity: For repeatable trend analysis, always mount the accelerometer firmly using a heavy-duty magnetic base or a quick-connect stud on a clean, unpainted, flat metal surface as close to the bearing housing zone as possible. Avoid hand-held probes for high-frequency measurements above 1 kHz.

• Battery and Storage Maintenance: Store the portable data collector within an environment tracking between 0 and 30 deg C to prolong internal battery health. If the device remains unused for extended periods, perform a full charge cycle every 3 months to prevent deep discharge failure.
