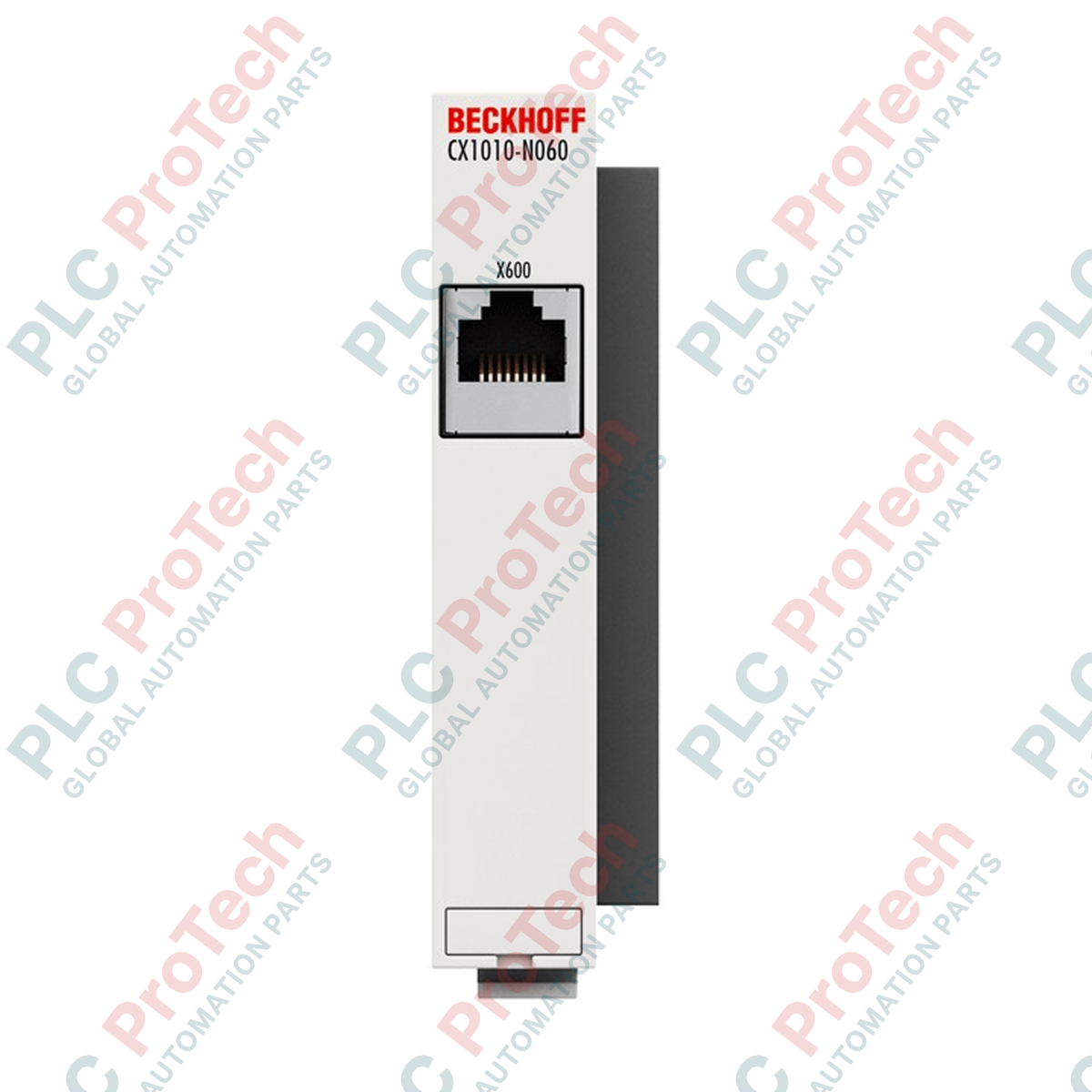

The CX1010-N060 (CX1010N060) is a dedicated Ethernet system interface designed to expand the communication capabilities of the CX1010 Embedded PC series. This module provides a high-performance 10/100 Mbit/s network connection via a standard RJ45 port, serving as a critical bridge for integrating the controller into local area networks (LANs) or connecting to higher-level IT infrastructures. Engineered for reliability in industrial environments such as automated manufacturing cells and building control systems, the CX1010-N060 enables seamless data exchange, remote programming, and visualization. Its compact 19 mm form factor allows for efficient modular expansion, ensuring that system designers can add network connectivity without significantly increasing the hardware footprint.
The hardware architecture of the CX1010-N060 is designed for "plug-and-play" integration with the CX system bus. It draws its power directly from the system bus via the connected CX1100-xxxx power supply modules, eliminating the need for external power wiring. The module supports standard Ethernet protocols and is optimized for use with Category 5 (Cat. 5) cabling. A key configuration constraint is that this module is not combinable with the CX1100-0004 power supply unit, a vital consideration for system compatibility and electrical engineering. The interface is housed in a robust IP20-rated enclosure and maintains high levels of EMC immunity, ensuring stable communication even in environments with significant electromagnetic interference.
| Attribute | Specification Details |
| Model | CX1010-N060 |
| Brand | BECKHOFF |
| Origin | Germany |
| Interface | 1 x Ethernet (10/100 Mbit/s) |
| Connection Type | 1 x RJ45 |
| Max Cable Length | 20 m (Cat. 5) |
| Power Supply | Via system bus (CX1100-xxxx) |
| Dimensions (W x H x D) | 19 mm x 100 mm x 51 mm |
| Operating Temperature | 0 to +55 Celsius |
| Storage Temperature | -25 to +85 Celsius |
| Weight | approx. 80 g |
| Protection Rating | IP20 |
| Compatibility | Not compatible with CX1100-0004 |
| Shipping Weight | 2.0 kg |
Can the CX1010-N060 be used to create a redundant network ring?
No, the CX1010-N060 provides a single Ethernet port intended for point-to-point or switch-based network integration. For network redundancy or ring topologies, specialized EtherCAT or Ethernet redundancy modules from the Beckhoff catalog would be required.
Why is there a 20-meter cable length restriction listed for this module?
The 20-meter limit is a specified parameter to ensure maximum signal integrity and timing determinism within the CX1010 system architecture using Cat. 5 cabling. While standard Ethernet often allows for longer runs, adhering to this 20-meter limit ensures the module meets its stated EMC and performance ratings in industrial settings.
Does this module require software drivers to be recognized by TwinCAT?
The CX1010-N060 is automatically recognized by the TwinCAT System Manager as part of the CX hardware configuration. Once connected to the system bus, the Ethernet port can be configured within the operating system (Windows CE or Windows XP Embedded) for TCP/IP communication.
System Compatibility Check: Before installation, verify the power supply module in use. The CX1010-N060 is strictly incompatible with the CX1100-0004. Using these components together can lead to system bus errors or hardware malfunctions. Ensure your configuration utilizes CX1100-0001, -0002, or -0003 units.
Cabling Best Practices: Use only high-quality, shielded Cat. 5 (or higher) Ethernet cables. Although the connection is a standard RJ45, the shield of the cable should be properly grounded through the RJ45 housing to the CX system's ground potential to mitigate the effects of high-frequency industrial noise.
Mechanical Installation: The module is designed for 35 mm DIN rail mounting as part of the CX assembly. Ensure the side-mounted PC104-like system bus connectors are clean and properly aligned before snapping the module into place. The double slot and key connection system must be fully engaged to maintain electrical continuity across the system bus.
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: CX1010-N060
Country of origin:Germany
Product Type: System interfaces
Payment: T/T, Western Union
Weight: 500g
Dimensions: 19 mm x 100 mm x 51 mm
Shipping port: Xiamen
Warranty: 12 months
