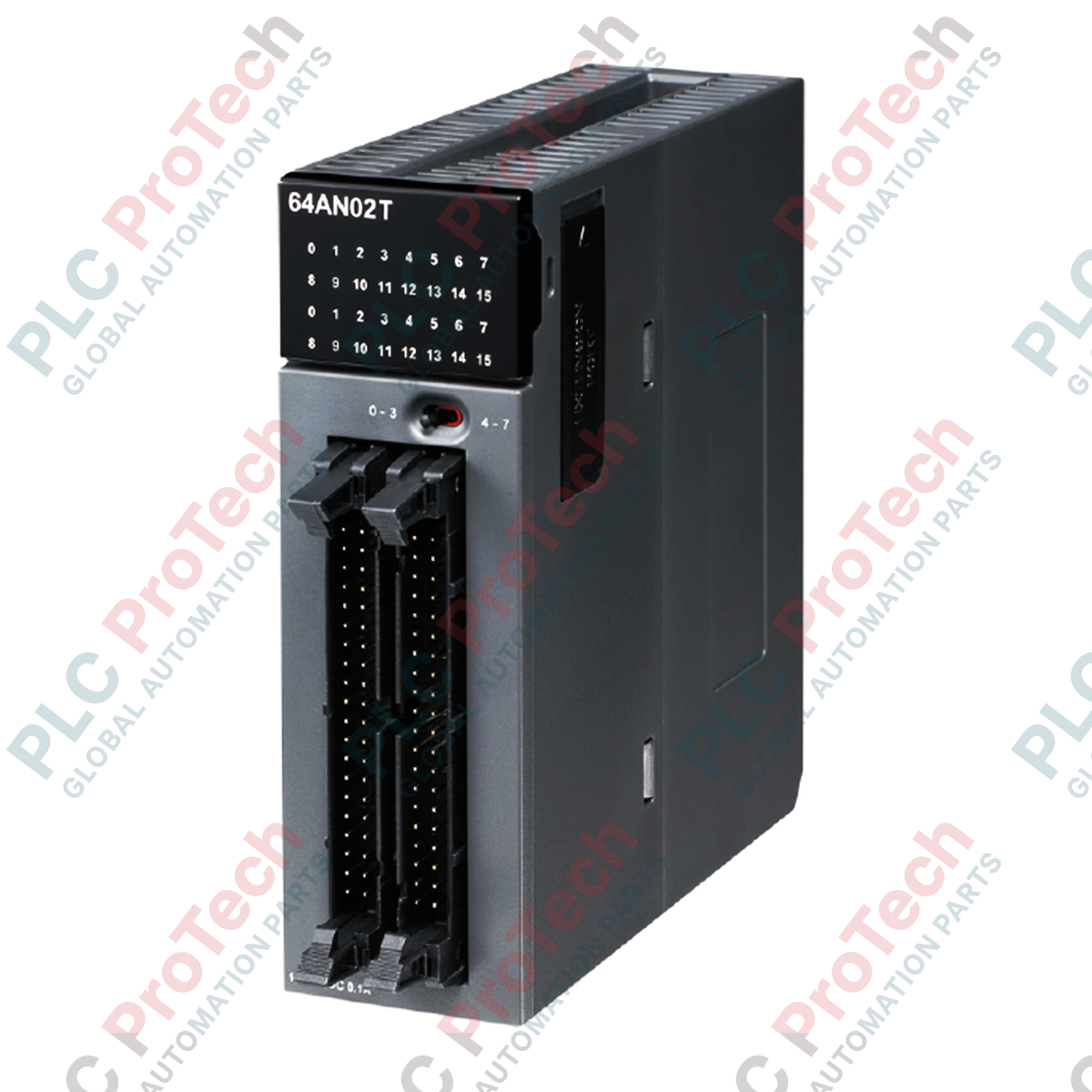

The Delta AH64AN02T-5C (AH64AN02T5C) is a high-density 64-point digital output module specifically engineered for the AH500 Series Rack-based PLC system. Designed for large-scale automation projects in industries such as semiconductor manufacturing, textile machinery, and high-speed logistics, the AH64AN02T-5C provides an ultra-compact solution for controlling multiple discrete loads. By utilizing a NPN (Sink) transistor architecture, it allows for high-speed switching and precise control of solenoids, relays, and pilot lights. Its primary value lies in the support for hot-swapping and "keep-last-value" functionality, ensuring that critical processes remain stable and maintainable even during hardware replacement or CPU shutdown events.
The AH64AN02T-5C architecture is focused on maximizing I/O density within a 35 mm wide module footprint. It features 64 discrete output points, split into manageable groups, capable of handling 12 to 24 VDC at 0.1 Amps per point. The module utilizes latched connectors to ensure vibration-proof wiring and rapid mass-termination via optional ribbon cables.
A key engineering feature is the "Hot-swapping" capability, which allows the module to be removed and replaced without powering down the entire AH500 backplane, a critical requirement for 24/7 continuous production. Furthermore, the "Keep-last-value" function provides a fail-safe mechanism: should the CPU stop or lose communication, the outputs can be configured to hold their current state, preventing sudden mechanical shifts in the field. Individual LED indicators provide status for 32 points at a time (switchable), facilitating immediate visual diagnostics of the output states.
| Feature | Specification |
| Model | AH64AN02T-5C |
| Brand | Delta Electronics |
| Series | AH500 High-End PLC |
| Output Type | Transistor NPN (Sink) |
| Points | 64 Points |
| Voltage Range | 12 to 24 VDC (-15% to +20%) |
| Output Current | 0.1 A per Point |
| Power Consumption | 0.6 W (Internal) / 1.5 W (External) |
| Terminal Type | Latched Connector |
| Hot-Swap Support | Yes |
| Operating Temp | 0 to 55 deg C |
| Dimensions | 110 x 35 x 103 mm |
| Weight | 0.25 kg |
Q1: How do I view the status of all 64 points if there are only 32 LEDs?
A1: The module features a toggle switch or software-selectable display mode that allows the LED array to switch between showing points 0–31 and points 32–63.
Q2: What is the benefit of the NPN (Sink) output for my system?
A2: NPN outputs are ideal for interfacing with devices that have a common positive (V+) rail. They are widely used in high-speed switching applications and offer compatibility with a vast range of industrial sensors and secondary relays.
Q3: Which cable and terminal accessories are recommended for this module?
A3: For optimal integration, use the DVPACAB7B10 cables paired with DVPAETB-OR16A relay terminals (for 16-point breakout) or DVPACAB7A10 cables with DVPAETB-OT32A terminals for 32-point high-density breakout.
External Power Management: The module requires an external 24 VDC supply to drive the output loads (1.5 W consumption). Ensure this power supply is fused correctly. Because this is a 64-point module, the cumulative current can reach 6.4 Amps if all points are active; verify that your external power wiring gauge is sufficient to handle the total load.
Hot-Swapping Protocol: When hot-swapping the AH64AN02T-5C, ensure the latched connectors are fully released before pulling the module from the backplane. The AH500 rack logic will automatically detect the removal and re-insertion, but the "Keep-last-value" logic must be pre-configured in the CPU parameters to maintain field state during the swap.
Heat Dissipation: With 64 points active at 0.1 A, localized heat can build up. Maintain the 35 mm spacing and ensure the cabinet’s cooling system provides adequate airflow to keep the module below the 55 deg C maximum operating threshold.
The AH64AN02T-5C is distinguished by its incredible I/O density, effectively replacing four 16-point modules and saving over 100 mm of rack space. Its "Keep-last-value" function is an essential safety feature for processes involving heated elements or specific valve positions that must not change during a controller reset. Furthermore, the use of latched connectors instead of traditional screw terminals reduces installation time by up to 70% and eliminates the risk of loose connections due to industrial vibrations, ensuring long-term operational reliability.
Global Express Shipping
Returns & Warranty
Manufacturer: Delta Electronics
Product No.: AH64AN02T-5C
Country of origin:Taiwan
Product Type: Digital I/O Modules
Payment: T/T, Western Union
Weight: 2000g
Dimensions: mm H x W x D: 110 x 35 x 103
Shipping port: Xiamen
Warranty: 12 months
