Overview & Engineering Value

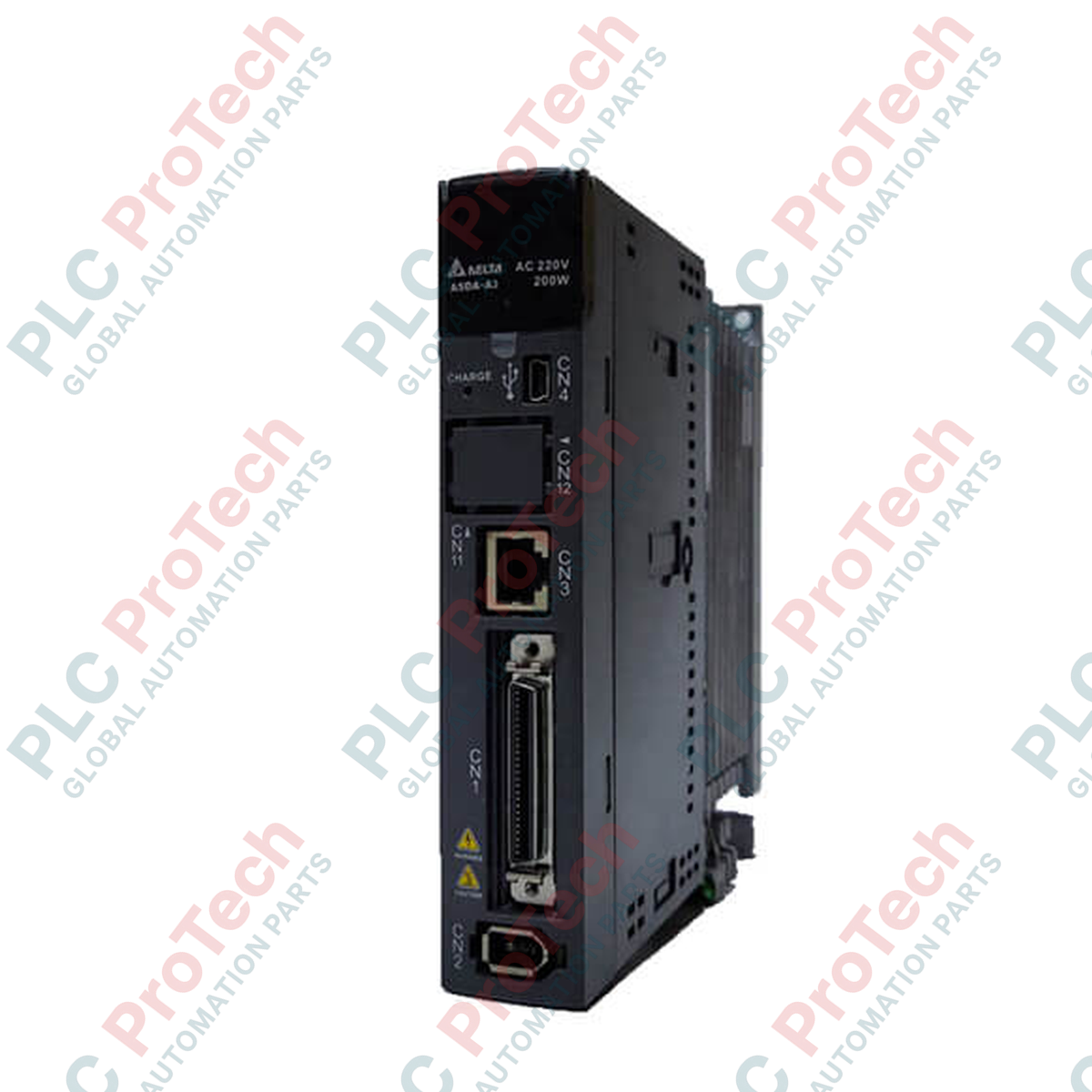

The ASD-A3-0721-L (ASDA30721L) is a high-performance 750 W AC servo drive engineered for high-speed, high-precision motion control applications. Operating within the advanced Delta ASDA-A3 framework, this drive provides crucial performance upgrades for multi-axis packaging machinery, pick-and-place robotics, electronic manufacturing equipment, and high-speed feeding systems.

By delivering a high responsiveness bandwidth alongside embedded full closed-loop control capabilities, the unit effectively mitigates structural vibration and corrects for mechanical backlash in real time. This ensures micrometer-level positioning fidelity, directly translating to minimized cycle times, optimized throughput, and reduced mechanical wear on transmission systems in demanding industrial environments.

System Configuration & Control Architecture

The electrical architecture of the drive supports versatile power input configurations, accepting either 220 V single-phase or three-phase alternating current. Designed as an 'L-Type' variant within the A3 family, the hardware is optimized for classic and localized control interfaces, integrating high-speed Pulse Train (PT) input and internal Position Register (PR) modes.

The onboard 2-channel analog voltage control interface permits rapid velocity or torque adjustments, while a dedicated RS-485 serial communication link handles monitoring and parameter modification. To ensure absolute positional accuracy despite belt stretching or screw thermal expansion, the drive incorporates a secondary encoder interface dedicated to executing full closed-loop control directly from the load side.

Hardware Specifications

Technical Queries & Troubleshooting

• How is the internal PR (Position Register) mode programmed for standalone positioning?

  The driver features an internal indexer function capable of storing multiple position targets, velocities, and acceleration profiles. These registers are configured via the Delta ASDA-Soft software tool and triggered dynamically through configured digital inputs, eliminating the requirement for an external motion controller or PLC high-speed pulse card.

• What is the structural advantage of the Full Closed-Loop Control mode on this drive?

  Standard systems rely solely on the motor's rear encoder, leaving mechanical errors undetected. By connecting a external linear scale or auxiliary encoder mounted directly on the linear axis back to the CN5 port of the drive, the loop is closed around the actual load. The drive then continuously compensates for mechanical elasticity and backlash.

• Can this drive be operated on standard single-phase 220 VAC residential or light industrial power?

  Yes. The input stage accommodates single-phase 220 V connections on terminal lines L1 and L2. However, when operating under heavy cyclic loads or high acceleration demands, three-phase input is recommended to balance the DC bus ripple voltage and prevent premature bus capacitor degradation.

Field Commissioning & Safety Protocols

Regenerative Resistor Dimensioning

When executing rapid deceleration profiles with high-inertia loads, the motor feeds kinetic energy back into the drive's DC bus. If the internal bus voltage exceeds 410 VDC, an overvoltage fault occurs. To prevent this, check the integrated chopper duty cycle; if necessary, wire an external power resistor across terminals P(+) and D, ensuring the parameter for regenerative resistor capacity is properly modified in the internal memory.

Pulse Input Noise Mitigation

High-speed pulse train inputs (up to 4 Mpps) are highly susceptible to high-frequency EMI generated by nearby motor power cables. Always use shielded twisted-pair (STP) cabling for the CN1 command signal connector. The shield must be bonded to the metal shell of the connector and grounded directly to the drive chassis via the provided grounding plate to ensure signal integrity.

Mounting and Forced Thermal Airflow

Mount the servo drive vertically on a flat, unpainted metallic backpanel to ensure optimal heat dissipation. Maintain a minimum side-to-side clearance of 10 mm and a vertical gap of 50 mm from adjacent equipment. For cabinet enclosures with high internal heat generation, install a cooling fan directly below the drive alignment to maintain the ambient incoming air temperature below 55 deg C.
