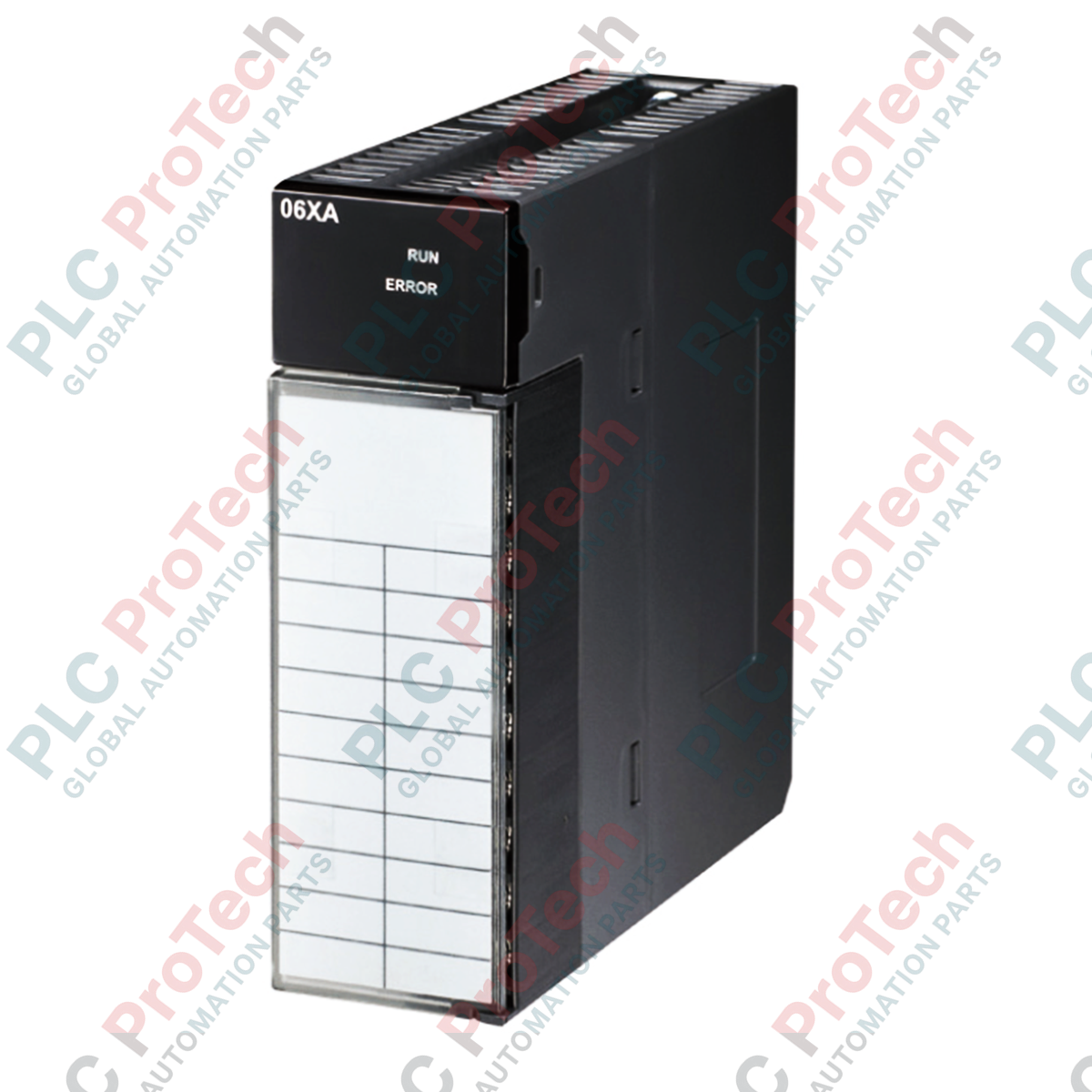

Designed to facilitate precise signal integration within industrial automation architectures, the Delta Electronics AH06XA-5A acts as a high-density mixed analog interface for the high-performance AH Series PLC platform. This module combines both analog inputs and outputs on a single physical footprint, allowing system integrators to minimize rack space while maintaining exceptional signal fidelity. Featuring an isolated signal design, the unit prevents ground loops and electrical interference from damaging sensitive internal system logic. Built-in diagnostics, status LEDs, and a removable JIS terminal block ensure rapid deployment and simplified maintenance during long-term field operations.
| Specification Parameter | Value / Detail |
|---|---|
| Manufacturer | Delta Electronics |
| Model Number | AH06XA-5A |
| Series | AH Series PLC System |
| Input Channels | 4 channels |
| Output Channels | 2 channels |
| Hardware Resolution | 16-bit |
| Conversion Speed | 150 microseconds / channel |
| Input Impedance | Voltage: 200 kilohms, Current: 250 ohms |
| Internal Power Consumption | 0.34 W |
| External Power Consumption | 1.4 W (at 24VDC) |
| Terminal Type | JIS Removable Terminal Block |
| Isolation Method | Optocoupler isolation (channels to system bus) |
| Shipping Weight | 2.0 kg |
| Country of Origin | Taiwan |
The AH06XA-5A acts as a space-saving alternative to using separate AH04AD-5A (analog input) and AH04DA-5A (analog output) modules. When replacing separate modules with this mixed I/O module, note that your PLC backplane positioning and I/O mapping must be reconfigured in ISPSoft. It is 100% compatible with all standard AH Series main and extension backplanes. Ensure that your CPU firmware is updated to support mixed-module hot-swapping configurations prior to deployment.
When routing both inputs and outputs on the same module, thermal management inside the enclosure is critical. High-density wiring can restrict convective airflow. Keep current loops isolated; sharing a common return line for active input sensors and heavy control-valve positioner outputs can cause common-mode noise issues that reduce the real-world accuracy below the hardware’s 16-bit theoretical threshold.
Always use double-shielded twisted pair (STP) cables for both input and output analog lines. Ground the cable shields at a single point (typically the cabinet's grounding bar) to avoid circulating ground currents. The JIS removable terminal block allows pre-wiring; however, ensure terminal screws are torqued to the OEM specification to prevent vibration-induced signal drift on the millivolt/milliamp level.
CRITICAL WARNING:
Always verify that the mains power and external 24VDC auxiliary loop power are disconnected before installing or removing the terminal block or module. Working on live wiring can damage the analog input channels and pose shock risks to personnel.
Align the module guides with the slots on the AH Series backplane and push the module firmly until the top and bottom lock tabs snap into place.
Wire the analog field devices using shielded, twisted-pair cables. Maintain separation between high-voltage power cables and sensitive low-voltage analog signal cables.
Securely plug the wired JIS terminal block into the front of the AH06XA-5A module and tighten the retaining screws.
Apply external 24VDC system power and verify the status LED indications using ISPSoft diagnostic software to ensure fault-free operation.
