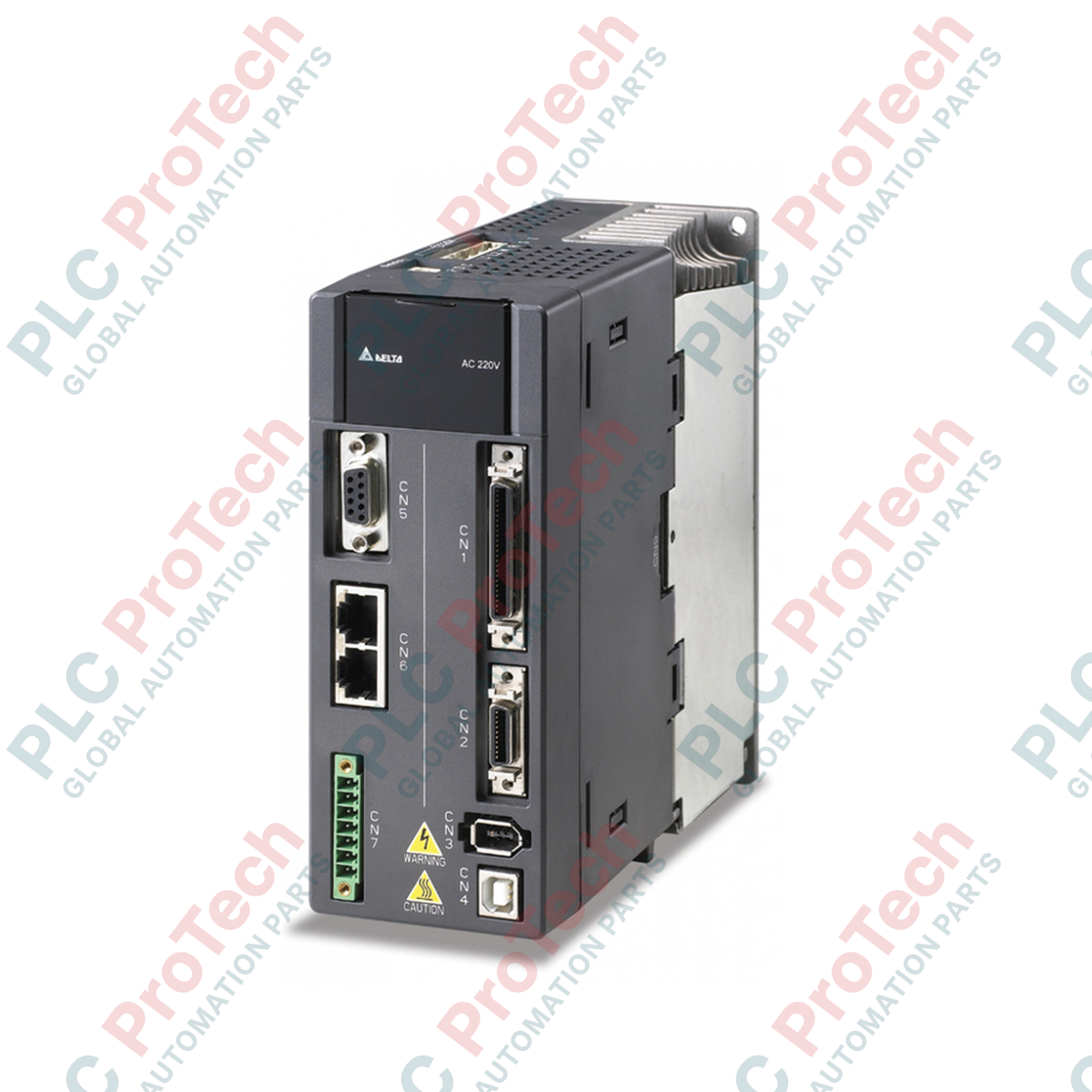

Delta Electronics ASD-A2-1021-U ASDA-A2 Series AC Servo Drive

SKU ASD-A2-1021-U

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Delta Electronics
  • Product No.: ASD-A2-1021-U
  • Origin United States
  • Product Type: AC Servo Drives
  • Payment: T/T, Western Union
  • Weight: 2.0 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Description

Engineered for high-performance motion control applications, the Delta Electronics ASD-A2-1021-U serves as a core drive component within the ASDA-A2 Series family. Delivering a rated output power of 1.0 kW under a 220V single-phase input configuration, this unit is specifically designed to meet the rigorous demands of modern industrial automation systems. By integrating advanced closed-loop control, a built-in electronic cam (E-Cam), and high-speed communication interfaces, it provides precise positioning, exceptional torque control, and smooth speed regulation for dynamic machine architectures.

Features

  • Advanced E-Cam Function: Built-in electronic cam with up to 720 points for smooth interpolative path planning and flying shear or rotary cut operations without external controller overhead.
  • Full-Closed Loop Control: Direct secondary encoder feedback interface to eliminate mechanical backlash and ensure endpoint positioning accuracy.
  • Suppression of Vibration: Dual-mode automatic high-frequency resonance suppression and low-frequency vibration damping filters for enhanced mechanical stability.
  • Versatile Extension Port: Designated "U" model configuration featuring high-speed extension ports for multiple expansion interfaces and communication options.

Applications

  • Multi-axis CNC machining centers and high-speed precision milling setups.
  • Flying shear, rotary cut, and packaging machinery requiring synchronized master-slave gearing.
  • High-speed pick-and-place gantry robots and automated material handling lines.
  • Textile, printing, and paper converting machines demanding continuous tension and registration control.

Technical Specifications

Parameter Value / Specification
Manufacturer Delta Electronics
Model Number ASD-A2-1021-U
Series Name ASDA-A2 Series
Rated Output Power 1.0 kW
Input Voltage / Phase 220 VAC, 1-Phase / 3-Phase
Permissible Voltage Range 170 to 255 VAC (50/60 Hz)
Control Modes Position, Speed, Torque, and Mixed Modes
Encoder Feedback Resolution 20-bit incremental / absolute (1,280,000 p/rev)
Built-in Dynamic Brake Integrated
Cooling Method Natural convection / Forced fan cooling
Net Weight 2.0 kg
Shipping Weight (Calculated) 4.0 kg

Connections and Interfaces

Connector / Terminal Functional Assignment
L1, L2, L3 (R, S, T) Main AC Power Input Terminals (Use L1/L2 for single-phase operation)
U, V, W Servo Motor Output Terminals (Do not connect to AC line power)
CN1 Control I/O Interface (50-pin MDR connector for digital/analog inputs & outputs)
CN2 Motor Encoder Interface (Feedback signal reception from the motor)
CN3 Communication Interface (USB / RS-485 / RS-232 connections for software setup)
CN4 Full-Closed Loop Interface (Auxiliary encoder input for linear scale feedback)

Empirical Engineering Insights

Alternative Models & Compatibility

The ASDA-A2 model variants with the "-U" suffix are functionally compatible with standard "B" or "M" models in analog torque and speed modes, but differ significantly in their digital bus capabilities and the physical full-closed loop CN4 feedback layout. When upgrading from older ASDA-AB series drives, please note that the control cabinet layout requires adjustments, as the footprint is not identical, and physical encoder cables must be upgraded to support the 20-bit serial encoder standard of the A2 motor series.

Application Pitfalls & Engineering Notes

When operating the ASD-A2-1021-U drive on single-phase 220 VAC power instead of a three-phase supply, the internal DC bus voltage ripple increases during high-acceleration/deceleration cycles. Under these conditions, avoid driving the motor continuous-duty cycles exceeding 80% of rated torque. If high inertia loads are present, the internal regeneration capability may trigger a AL005 (Overvoltage) fault. This must be resolved by calculating the regeneration energy and adding an external braking resistor across terminals P+ and D, while adjusting parameter P1-52 to match the resistance and power rating of the external component.

Commissioning & Wiring Tips

To prevent electrical noise issues with high-resolution 20-bit encoders, ensure the motor frame is grounded directly to the drive’s PE terminal using minimum 14 AWG wire. When utilizing the CN1 interface for pulse train positioning, always use twisted-pair shielded cables with the shield terminated at the drive chassis end only. Ensure that parameters P2-15 through P2-17 (Digital Input Filters) are correctly configured to match the input signal frequency to filter out signal bounce or external high-frequency EMI.

Installation Guidelines

CRITICAL WARNING: Before installing, removing, or wiring the drive, ensure that the main power source is completely disconnected. Wait at least 10 minutes after turning off the power to allow the internal high-voltage DC bus capacitors to discharge to a safe level (below 50V). Measure the voltage between terminals P+ and N- with a reliable multimeter to confirm the zero-energy state before proceeding.
1
Mount the drive vertically inside a clean, dry, IP54-rated metal enclosure. Ensure a minimum clearance of 50 mm above and below, and 10 mm on either side of the drive chassis to permit adequate convective airflow from the integrated cooling fans.
2
Connect the main single-phase AC incoming power lines to terminals L1 and L2. Leave L3 open. Ensure a properly sized branch-circuit fuse or molded case circuit breaker (MCCB) is installed upstream for thermal overload protection.
3
Wire the servo motor output terminals U, V, and W directly to the corresponding motor phase leads. Under no circumstances should AC mains supply power be connected directly to U, V, and W, as this will result in immediate, catastrophic damage to the drive output stage.
4
Verify that the ground terminal of the drive is connected to the common system ground bar using the shortest possible path, utilizing a heavy-gauge copper grounding conductor to minimize electromagnetic interference.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Can the ASD-A2-1021-U drive run on three-phase 220V power?
Yes, this model supports both single-phase and three-phase 220 VAC inputs. Operating on three-phase power reduces bus voltage ripple and is recommended for high-acceleration cycling.
What is the function of the CN4 interface on the drive?
CN4 is the auxiliary encoder input designed for full-closed loop control. It connects directly to external linear scales or encoders to eliminate mechanical backlashes on critical axes.
How do I resolve an AL005 Overvoltage fault on deceleration?
Connect an external braking resistor across the P+ and D terminals, and program parameter P1-52 with the correct resistance value and wattage to dissipate excess regenerative energy.
What encoder cables are required for this servo drive series?
The ASDA-A2 series requires high-speed, 20-bit serial encoder feedback cables. Standard ASDA-A or ASDA-B encoder cables are not compatible due to differences in communications protocols.
Reviews

ASD-A2-1021-U

Stock & lead time on request

Call
1 su 1

Delta Electronics ASD-A2-1021-U ASDA-A2 Series AC Servo Drive

Only 10 item(s) left in stock
  • Manufacturer: Delta Electronics

  • Product No.: ASD-A2-1021-U

  • Country of origin:United States

  • Product Type: AC Servo Drives

  • Payment: T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Quantità
Visualizza dettagli completi

Product Description

Description

Engineered for high-performance motion control applications, the Delta Electronics ASD-A2-1021-U serves as a core drive component within the ASDA-A2 Series family. Delivering a rated output power of 1.0 kW under a 220V single-phase input configuration, this unit is specifically designed to meet the rigorous demands of modern industrial automation systems. By integrating advanced closed-loop control, a built-in electronic cam (E-Cam), and high-speed communication interfaces, it provides precise positioning, exceptional torque control, and smooth speed regulation for dynamic machine architectures.

Features

  • Advanced E-Cam Function: Built-in electronic cam with up to 720 points for smooth interpolative path planning and flying shear or rotary cut operations without external controller overhead.
  • Full-Closed Loop Control: Direct secondary encoder feedback interface to eliminate mechanical backlash and ensure endpoint positioning accuracy.
  • Suppression of Vibration: Dual-mode automatic high-frequency resonance suppression and low-frequency vibration damping filters for enhanced mechanical stability.
  • Versatile Extension Port: Designated "U" model configuration featuring high-speed extension ports for multiple expansion interfaces and communication options.

Applications

  • Multi-axis CNC machining centers and high-speed precision milling setups.
  • Flying shear, rotary cut, and packaging machinery requiring synchronized master-slave gearing.
  • High-speed pick-and-place gantry robots and automated material handling lines.
  • Textile, printing, and paper converting machines demanding continuous tension and registration control.

Technical Specifications

Parameter Value / Specification
Manufacturer Delta Electronics
Model Number ASD-A2-1021-U
Series Name ASDA-A2 Series
Rated Output Power 1.0 kW
Input Voltage / Phase 220 VAC, 1-Phase / 3-Phase
Permissible Voltage Range 170 to 255 VAC (50/60 Hz)
Control Modes Position, Speed, Torque, and Mixed Modes
Encoder Feedback Resolution 20-bit incremental / absolute (1,280,000 p/rev)
Built-in Dynamic Brake Integrated
Cooling Method Natural convection / Forced fan cooling
Net Weight 2.0 kg
Shipping Weight (Calculated) 4.0 kg

Connections and Interfaces

Connector / Terminal Functional Assignment
L1, L2, L3 (R, S, T) Main AC Power Input Terminals (Use L1/L2 for single-phase operation)
U, V, W Servo Motor Output Terminals (Do not connect to AC line power)
CN1 Control I/O Interface (50-pin MDR connector for digital/analog inputs & outputs)
CN2 Motor Encoder Interface (Feedback signal reception from the motor)
CN3 Communication Interface (USB / RS-485 / RS-232 connections for software setup)
CN4 Full-Closed Loop Interface (Auxiliary encoder input for linear scale feedback)

Empirical Engineering Insights

Alternative Models & Compatibility

The ASDA-A2 model variants with the "-U" suffix are functionally compatible with standard "B" or "M" models in analog torque and speed modes, but differ significantly in their digital bus capabilities and the physical full-closed loop CN4 feedback layout. When upgrading from older ASDA-AB series drives, please note that the control cabinet layout requires adjustments, as the footprint is not identical, and physical encoder cables must be upgraded to support the 20-bit serial encoder standard of the A2 motor series.

Application Pitfalls & Engineering Notes

When operating the ASD-A2-1021-U drive on single-phase 220 VAC power instead of a three-phase supply, the internal DC bus voltage ripple increases during high-acceleration/deceleration cycles. Under these conditions, avoid driving the motor continuous-duty cycles exceeding 80% of rated torque. If high inertia loads are present, the internal regeneration capability may trigger a AL005 (Overvoltage) fault. This must be resolved by calculating the regeneration energy and adding an external braking resistor across terminals P+ and D, while adjusting parameter P1-52 to match the resistance and power rating of the external component.

Commissioning & Wiring Tips

To prevent electrical noise issues with high-resolution 20-bit encoders, ensure the motor frame is grounded directly to the drive’s PE terminal using minimum 14 AWG wire. When utilizing the CN1 interface for pulse train positioning, always use twisted-pair shielded cables with the shield terminated at the drive chassis end only. Ensure that parameters P2-15 through P2-17 (Digital Input Filters) are correctly configured to match the input signal frequency to filter out signal bounce or external high-frequency EMI.

Installation Guidelines

CRITICAL WARNING: Before installing, removing, or wiring the drive, ensure that the main power source is completely disconnected. Wait at least 10 minutes after turning off the power to allow the internal high-voltage DC bus capacitors to discharge to a safe level (below 50V). Measure the voltage between terminals P+ and N- with a reliable multimeter to confirm the zero-energy state before proceeding.
1
Mount the drive vertically inside a clean, dry, IP54-rated metal enclosure. Ensure a minimum clearance of 50 mm above and below, and 10 mm on either side of the drive chassis to permit adequate convective airflow from the integrated cooling fans.
2
Connect the main single-phase AC incoming power lines to terminals L1 and L2. Leave L3 open. Ensure a properly sized branch-circuit fuse or molded case circuit breaker (MCCB) is installed upstream for thermal overload protection.
3
Wire the servo motor output terminals U, V, and W directly to the corresponding motor phase leads. Under no circumstances should AC mains supply power be connected directly to U, V, and W, as this will result in immediate, catastrophic damage to the drive output stage.
4
Verify that the ground terminal of the drive is connected to the common system ground bar using the shortest possible path, utilizing a heavy-gauge copper grounding conductor to minimize electromagnetic interference.

Can the ASD-A2-1021-U drive run on three-phase 220V power?

Yes, this model supports both single-phase and three-phase 220 VAC inputs. Operating on three-phase power reduces bus voltage ripple and is recommended for high-acceleration cycling.

What is the function of the CN4 interface on the drive?

CN4 is the auxiliary encoder input designed for full-closed loop control. It connects directly to external linear scales or encoders to eliminate mechanical backlashes on critical axes.

How do I resolve an AL005 Overvoltage fault on deceleration?

Connect an external braking resistor across the P+ and D terminals, and program parameter P1-52 with the correct resistance value and wattage to dissipate excess regenerative energy.

What encoder cables are required for this servo drive series?

The ASDA-A2 series requires high-speed, 20-bit serial encoder feedback cables. Standard ASDA-A or ASDA-B encoder cables are not compatible due to differences in communications protocols.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
