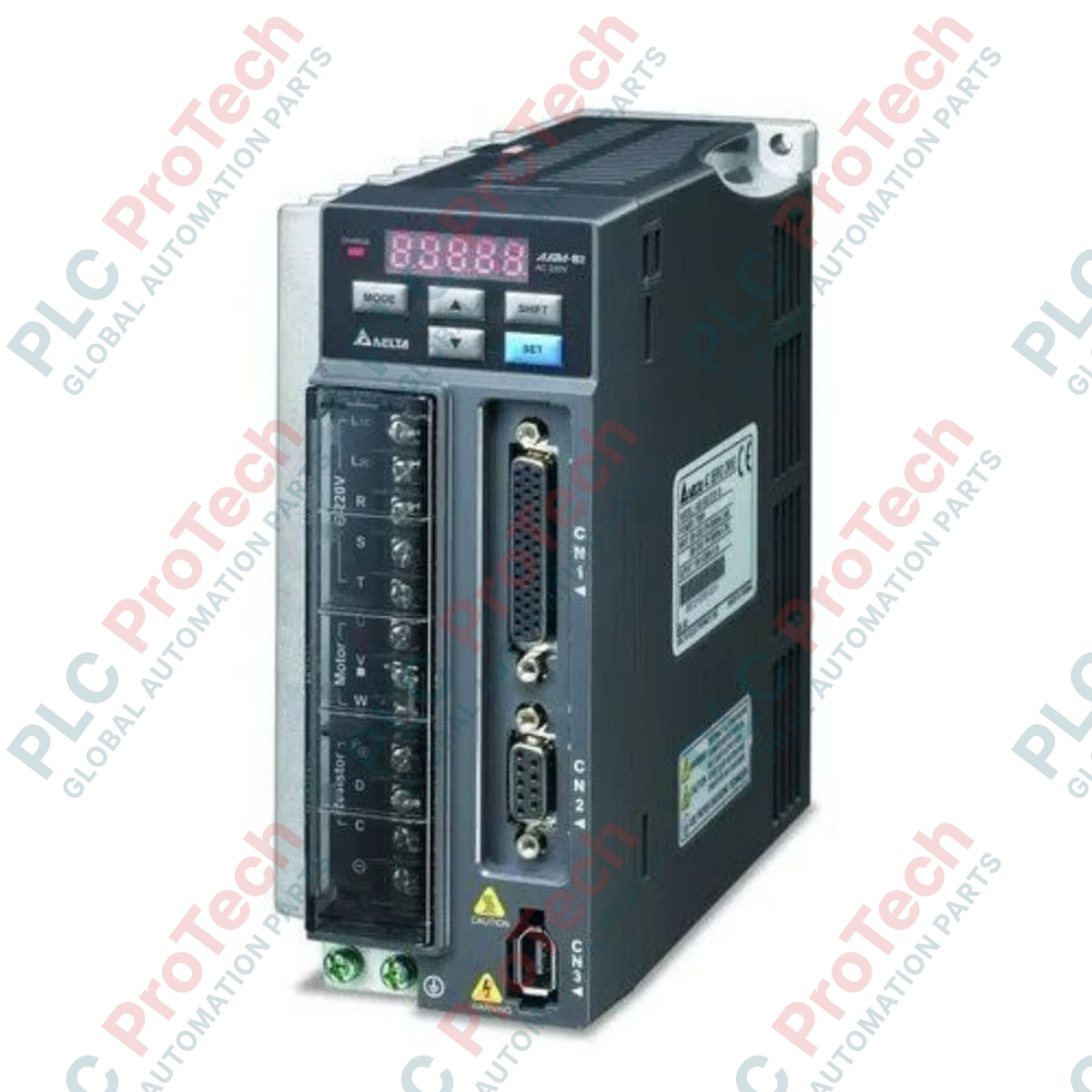

Delta Electronics ASD-B1521-A ASDA-B Series AC Servo Drive

SKU ASD-B1521-A

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Delta Electronics
Product No.: ASD-B1521-A
Origin United States
Product Type: AC Servo Drives
Payment: T/T, Western Union
Weight: 4.0 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Managing precise motor acceleration and speed profiles in industrial automation systems is seamlessly handled by the Delta Electronics ASD-B1521-A. This high-reliability ASDA-B Series AC servo drive offers robust performance for closed-loop motion control. Engineered with a rated output power of 1.5 kW and operating on a 220V 1-phase input, the unit translates complex controller commands into smooth mechanical actuation. It represents an optimal balance of cost-efficiency and performance for modern machinery positioning.

Key Features

High-precision encoder feedback support for strict position execution.
Built-in dynamic braking for accelerated deceleration profiles and emergency stops.
Flexible control mode switching including position, speed, and torque profiles.
Onboard digital tuning parameters via keypad interface or external utility software.
Integrated protection mechanisms for overcurrent, overvoltage, and thermal overload.

Applications

Precision CNC machining centers and coordinate tables.
Automated packaging systems and labeling equipment.
Textile winding, tensioning, and cutting machinery.
Pick-and-place gantry robots and material handling systems.

Technical Specifications

Specification Parameter	Value
Manufacturer	Delta Electronics
Model Number	ASD-B1521-A
Series Name	ASDA-B Series
Rated Output Power	1.5 kW
Input Voltage / Phase	220V AC, 1-Phase
Version Code	A
Control Modes	Position, Speed, Torque
Cooling Method	Natural Air / Fan Cooling
Operating Temperature	0 to 55 degC
Net Weight	2.0 kg
Shipping Weight (Calculated)	4.0 kg

Connections and Interfaces

Connector Code	Terminal / Interface Function
CN1	Input / Output Control Signal Interface (I/O commands, pulse/direction inputs)
CN2	Encoder Feedback Interface (Motor feedback connection)
CN3	Serial Communication Interface (RS-232 / RS-485 to PC or PLC)
R, S, T	Main Circuit Power Supply Inputs (single-phase applied across specified terminals)
U, V, W	Servo Motor Output Terminals

Empirical Engineering Insights

Alternative Models & Compatibility

The ASD-B1521-A belongs to the legacy ASDA-B series. When replacing this unit in existing machinery, note that Delta's newer ASDA-B2 series (such as ASD-B2-1521-B) may require different connector terminal pin assignments for digital outputs. Ensure control loops and wiring diagrams are verified during any migration.

Application Pitfalls & Engineering Notes

In vertical or high-inertia axis applications, thermal dissipation can rise rapidly. Under heavy decelerating loads, the internal regenerative resistor capacity may be exceeded, causing an AL005 (Overvoltage) trip. Installing an external regenerative resistor and correctly setting parameters P1-52 and P1-53 is highly recommended to circumvent this condition.

Commissioning & Wiring Tips

Always ground the drive frame directly to the main cabinet ground plane. To prevent high-frequency noise from corrupting pulse signals on CN1, use twisted-pair shielded cable for the step/dir signal lines and keep these signal runs isolated from the high-voltage U, V, W motor output lines by at least 100mm.

Installation Guidelines

CRITICAL WARNING: Hazardous voltage levels can persist in the internal capacitors of the ASD-B1521-A even after primary input power is isolated. Wait at least 10 minutes following complete power disconnection and verify with a reliable multimeter that the DC bus charge has dropped to safe levels before handling terminal blocks.

Mounting Orientation: Install the drive vertically on an unpainted, conductive metal backplane to ensure optimum ground contact and thermal dissipation.

Clearance Space: Maintain a minimum spacing of 50mm above and below the housing, and 10mm laterally to prevent thermal accumulation in control panels.

Signal Integrity: Confirm CN2 encoder shield braid makes continuous 360-degree contact with the connector shell to avoid communication dropouts.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What does the ASD-B1521-A model number signify?

The model designates an ASDA-B Series servo drive with a rated output power of 1.5 kW and an input voltage rating of 220V single-phase, design version A.

How do I resolve an AL005 Overvoltage Fault on this drive?

AL005 occurs when regenerative energy exceeds DC bus capacity during deceleration. This is resolved by adding an external regenerative resistor to the drive and configuring parameters P1-52 and P1-53.

Can this servo drive run on three-phase input?

The ASD-B1521-A is specifically rated for 220V single-phase power input. Operating outside specified phases can damage internal rectifying components or trigger system faults.
