Description

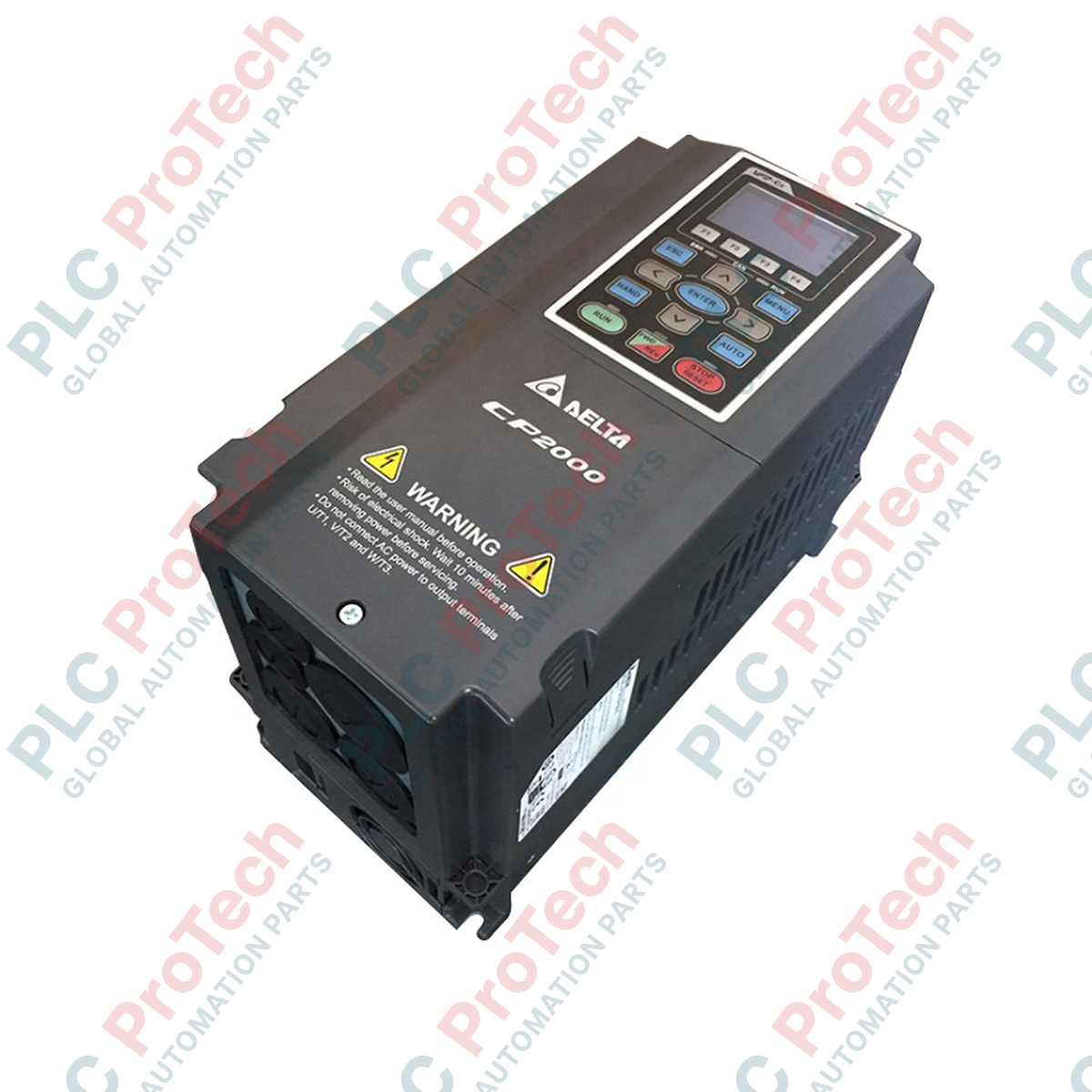

Engineered specifically for energy-efficient HVAC and pumping systems, the Delta Electronics VFD300CP43B-21 represents a high-performance fan/pump vector control drive within the rugged CP2000 Series. Designed to optimize fluid control processes, this variable frequency drive (VFD) delivers precise speed and torque regulation to reduce energy consumption in variable torque applications. It features advanced sensorless vector control alongside traditional V/F control curves to match the load demands of modern industrial fluid systems.

This wall-mount drive is built to operate under demanding power profiles, accepting a 460V three-phase input and supplying up to 60 Amps of continuous current to support 30 kW (40 HP) AC motors. With built-in multi-pump control algorithms, integrated PID feedback loops, and dual-rating performance capabilities, the VFD300CP43B-21 provides direct building automation and process control integration without requiring external PLC modules for basic operations.

Features

• Application-Specific Tuning: Dedicated parameter groups for fans, centrifugal pumps, and water-supply sequences.
• Multi-Pump Control: Built-in sequencing capacity to coordinate lead/lag arrangements and balance run hours across multiple motor units.
• Integrated Communications: Embedded Modbus RTU/ASCII and BACnet protocols for direct BMS and industrial network integration.
• Robust Protection: Features IP20 and NEMA 1 rated enclosures suitable for clean, wall-mounted electrical room installations.
• Energy Savings: Automated energy-optimization mode dynamically adjusts output voltage based on load fluctuations to minimize active power draw.

Applications

• Commercial and industrial HVAC air handling units (AHUs).
• Cooling tower fan speed modulation and heat exchanger control.
• Municipal water supply systems and wastewater lift stations.
• Constant pressure irrigation and agricultural pumping arrays.
• Industrial boiler feed pumps and closed-loop circulation systems.

Technical Specifications

Installation Guidelines

Proper physical and electrical deployment ensures optimal performance and long service life for the drive system:

• Orientation: Install the drive strictly in a vertical orientation on a flat, non-flammable wall surface or backpanel.
• Clearances: Ensure a minimum of 50 mm clearance on both sides and 120 mm clearance above and below the unit to maintain convective air cooling.
• Grounding: Connect the ground terminal of the drive to a dedicated electrical system ground point. Do not loop ground connections between multiple VFDs.
• Shielding: Use shielded power cables for motor connections, and route control/signal wiring in separate, grounded metal conduits to prevent electromagnetic interference.
