Product Overview

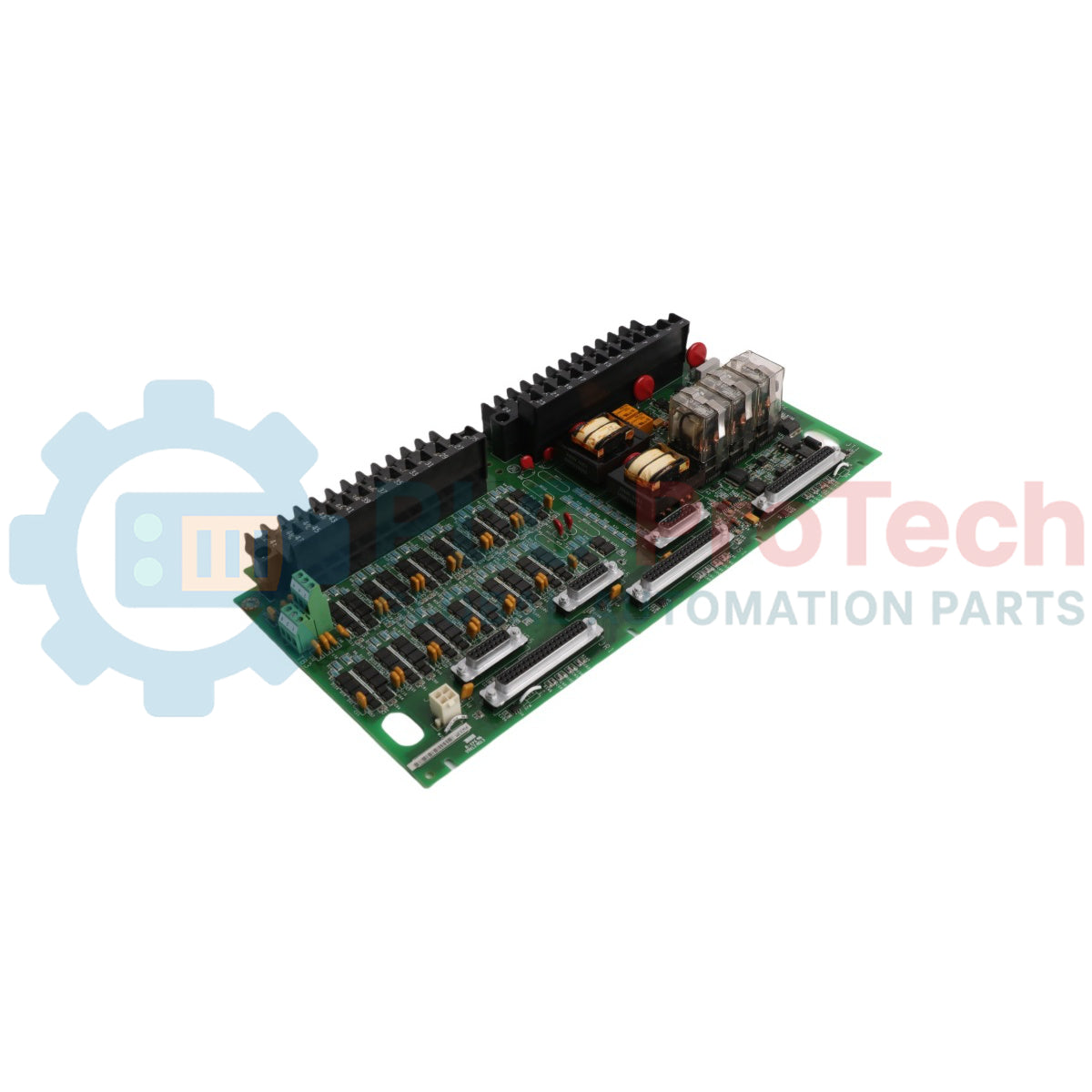

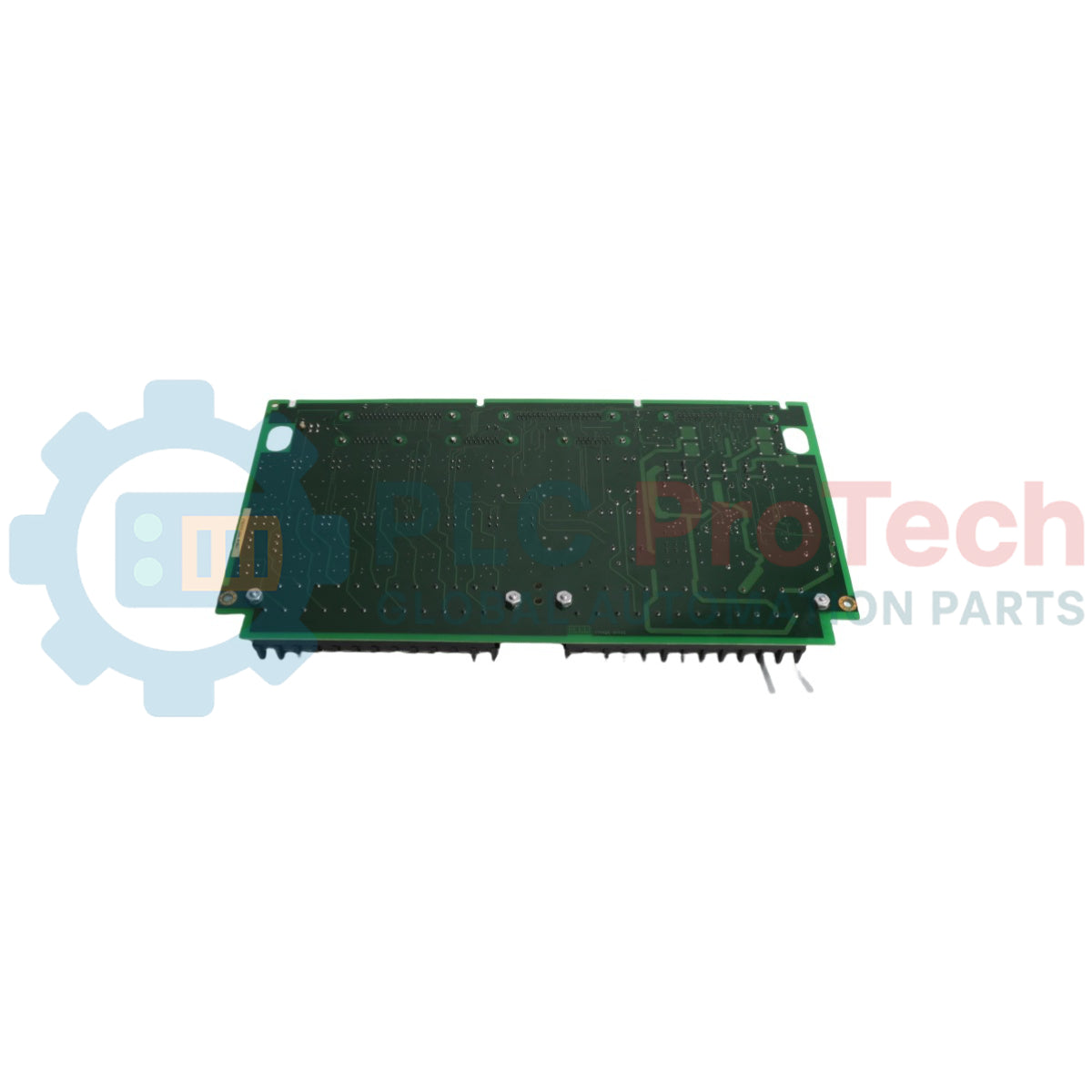

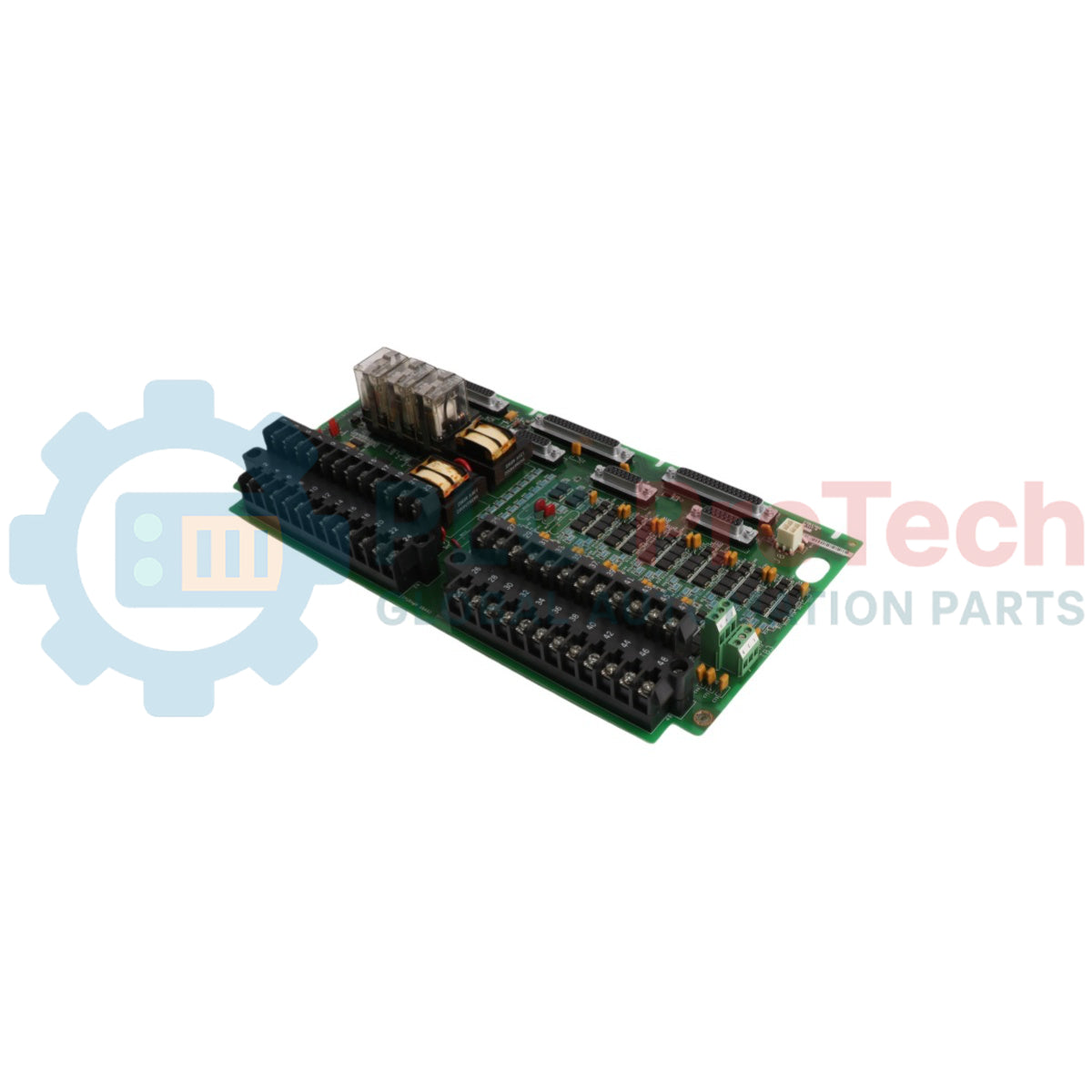

The IS200TTURH1B is a high-integrity, specialized turbine termination board developed by GE Energy for the legacy Mark VI Speedtronic control system series. Operating as the primary hardwired interface for steam and gas turbine electro-hydraulic systems, this card directly lands critical field signals required for synchronization and overspeed protection loops. Heavy continuous-process facilities—including industrial thermal power generation plants, combined-cycle utility grids, and large oil and gas pipeline compressor stations—rely on the IS200TTURH1B to aggregate sensitive telemetry data. The board monitors magnetic speed pickups, matches generator synchronization parameters, and controls hydraulic solenoid valve trip coils. By providing robust passive signal terminal paths and localized surge filtering, this board ensures the main control processor receives stable waveforms. This stability helps prevent hazardous turbine overspeed trips and reduces unprogrammed system downtime.

Circuit Architecture & Processing Functions

The specialized circuit layout, localized signal conditioners, and redundant terminal barriers of the IS200TTURH1B maintain strict real-time control over critical turbine operating parameters.

• Magnetic Speed Pickup Channels: Outfitted with dedicated passive inputs to capture high-frequency passive pulse signals from speed sensors monitoring shaft rotation (RPM).

• Generator Synchronization Isolation: Features built-in voltage transformer interface lines to monitor bus voltage, generator line voltage, and phase angles during automatic synchronization routines.

• Trip Solenoid Drive Paths: Links directly with emergency trip system (ETS) loops to safely distribute heavy actuation currents out to hydraulic fluid dump valves.

• System Interfacing Connection: Connects to the primary control processor rack via high-density ribbon cables, routing clean analog and discrete signals to the system backplane.

Technical Performance Standards

Turbine Telemetry & Troubleshooting FAQs

What specific field sensors connect directly to the terminals of the IS200TTURH1B board?

The IS200TTURH1B accepts inputs from turbine speed pickups (such as magnetic reluctance sensors) and potential transformers (PTs) that monitor bus and generator line voltage. It also lands status feedback lines from main generator circuit breakers and auxiliary trip limit switches.

How does the H1B revision code impact backward compatibility during field retrofits?

The H1B designation identifies the specific hardware component layout and trace routing for this version of the TTUR board. When replacing a faulty card in an active Mark VI control panel, engineers must match this functional suffix to ensure the card fits existing terminal layouts and interfaces correctly with the control software.

What are the common indicators of a signal processing failure on this termination board?

Faults on this board typically show up as erratic speed readings, synchronization errors, or open-circuit diagnostic warnings on the operator workstation. These issues are often caused by loose wire connections at the terminal block, breakdown of the onboard surge filters, or damaged ribbon cables leading to the central controller.

Field Engineering & Installation Guide

• Shield Grounding Methods for Speed Pickup Lines:

  To maintain clean pulse tracking on high-frequency speed channels, route all field sensor wires through high-quality twisted, shielded instrumentation cables. Connect the outer cable shield to the dedicated cabinet earth ground bar at the termination board side only, and cut the shield clean at the sensor end. This practice keeps electromagnetic noise from interfering with the pulse streams and causing false speed readings.

• Anti-Static Handling for Control Board Maintenance:

  The components on this termination board are sensitive to electrostatic discharge (ESD). Field engineers must wear a properly bonded anti-static wrist strap connected to the enclosure chassis before handling the board or changing any wire connections. Hold the module strictly by its fiberglass borders or mechanical edges to avoid touching exposed trace routes.

• Terminal Torque Limits and Connection Checks:

  Secure all field wires into the terminal blocks using the specified engineering torque values to prevent loose connections. Loose wires can cause high contact resistance, introducing signal errors on analog loops or interrupting emergency trip circuits due to low-frequency panel vibrations.
