Description

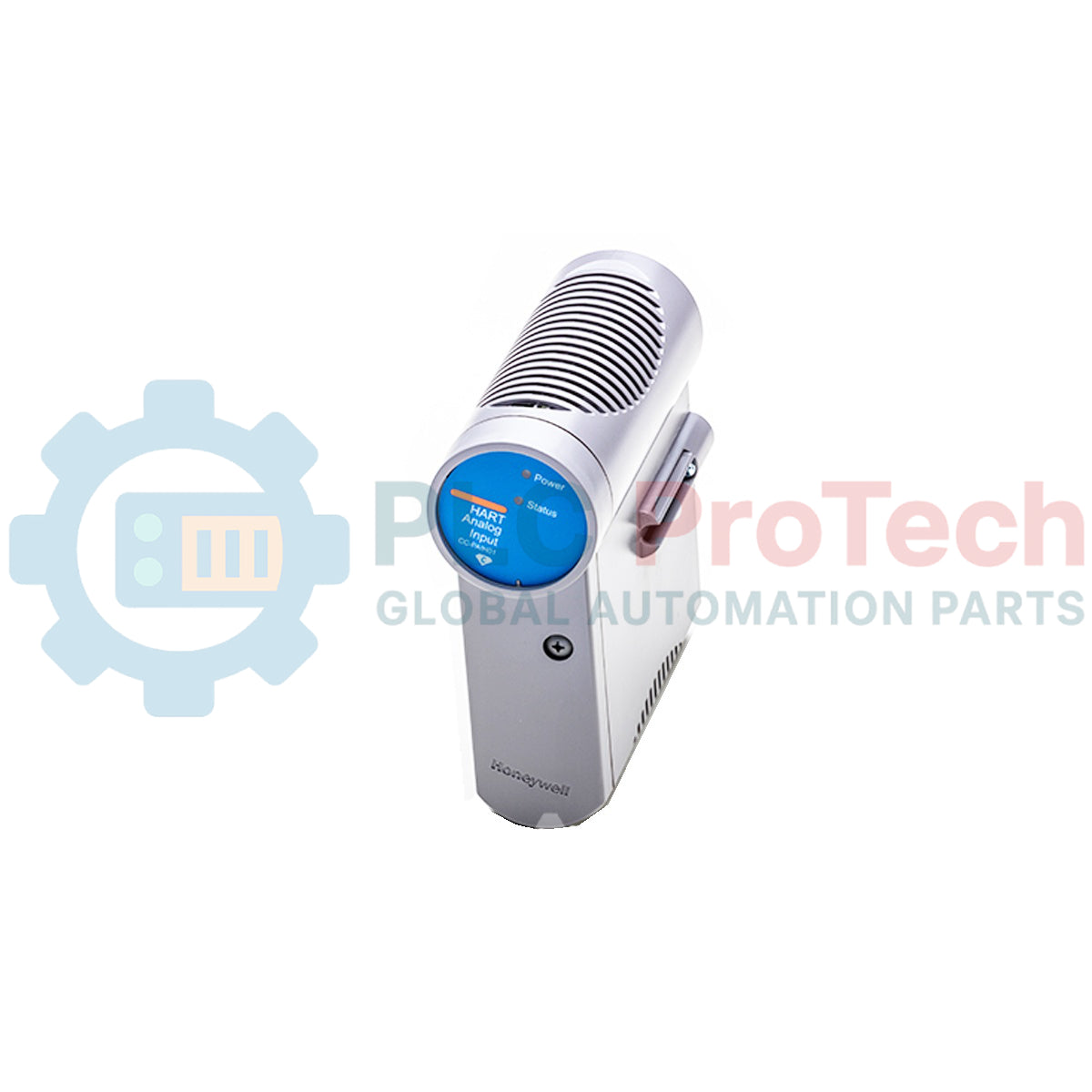

Interfacing directly with process transmitters across critical loops, the Honeywell CC-PAIH01 functions as a high-density, conformally coated analog input module designed for the Experion C300 Series C I/O architecture. This module processes up to 16 channels of 4-20 mA analog signals while simultaneously routing bidirectional digital HART communications to provide deep field device diagnostics and multi-variable tracking. Built with extreme-environment survivability in mind, its conformal coating guards sensitive board-level components against corrosive industrial atmospheres, ensuring high-availability control across continuous processing environments.

Key Features

• HART Integration: Supports continuous point-to-point HART pass-through, extracting secondary, tertiary, and quaternary variables alongside device status registers.
• Flexible Input Wiring: Features 16 high-level analog input circuits, with support for differential input configurations on channels 13 through 16 to suppress common-mode noise.
• Conformal Coating: Engineered with a specialized protective film (denoted by the CC prefix) meeting Class G3 harsh environment standards to resist moisture, dust, and airborne chemical contaminants.
• Hot-Swappable Design: Enables safe, online replacement of faulty modules under active chassis power without disrupting adjacent processing nodes or control execution.
• Experion integration: Fits seamlessly into C300 Input/Output Termination Assemblies (IOTAs) for clean cable management and direct system backplane connection.

Applications

• Refinery and petrochemical distillation column monitor systems.
• Continuous emissions monitoring and environmental tracking systems.
• Distributed DCS-level flow, temperature, and pressure tracking loops.
• Hazardous-area chemical process safety systems requiring ISA Class G3 compliance.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The CC-PAIH01 is the direct conformally coated counterpart to the standard CX-PAIH01. It uses identical IOTAs (such as the CC-TAIH01 or CC-TAIH11 redundant assembly). When upgrading legacy non-coated modules, engineers must verify that the corresponding IOTA and neighboring field terminals also have equivalent coating ratings to ensure overall system reliability in corrosive atmospheres.

Application Pitfalls & Engineering Notes

A common configuration error is attempting to deploy differential pressure transmitters with long, unshielded cable runs on channels 1 through 12. Because differential inputs are restricted to channels 13-16, placing high-noise or floating transmitter loops on channels 1-12 can cause offset errors. If channels 13-16 are fully utilized, ground loop isolators must be installed externally on channels 1-12.

Commissioning & Wiring Tips

When utilizing HART diagnostics, confirm that the HART device polling rate in the Experion Control Builder is optimized. Unused channels should be disabled in the software configuration to prevent the onboard processor from scanning empty terminal links, which maintains optimal system cycle times and prevents spurious open-loop alarms.
