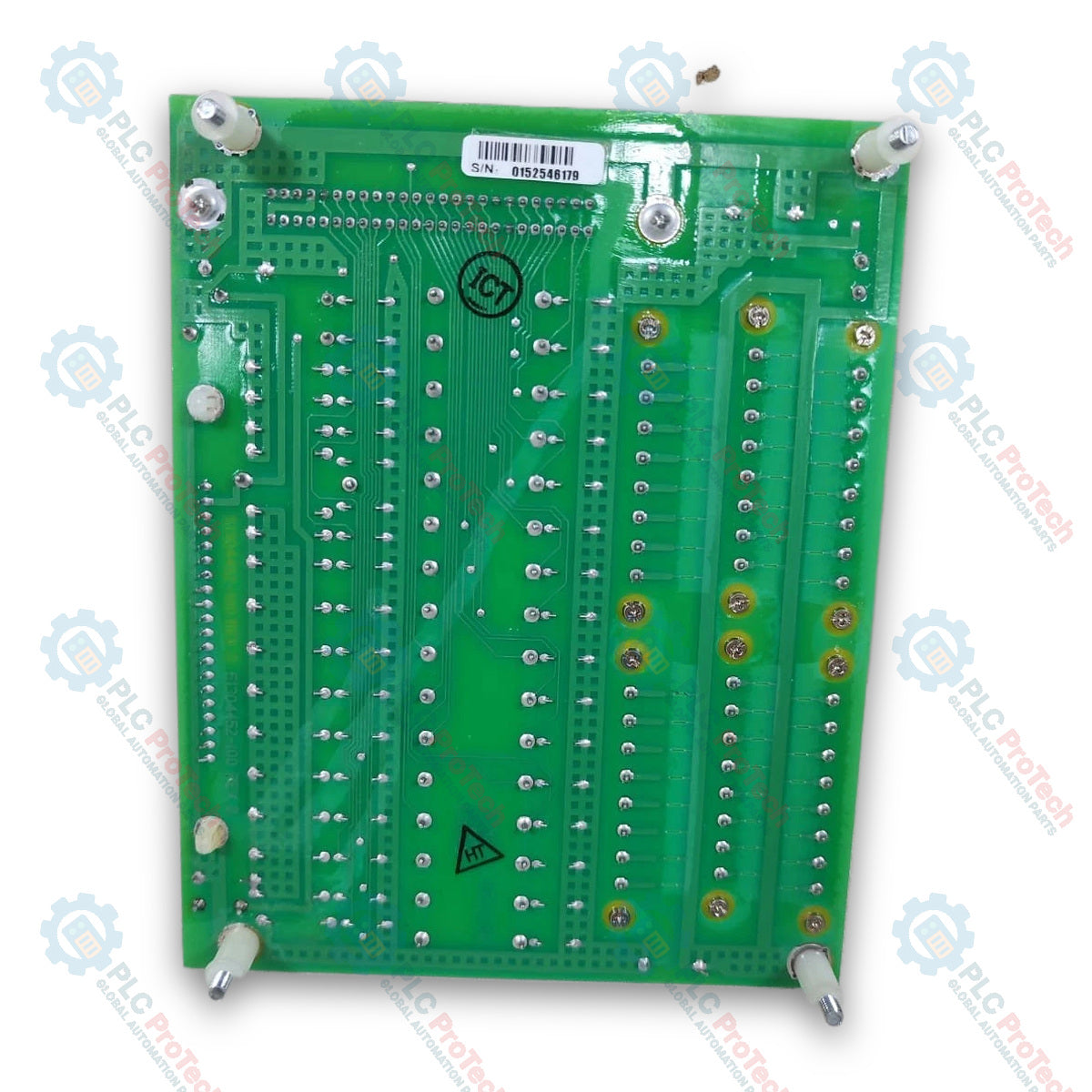

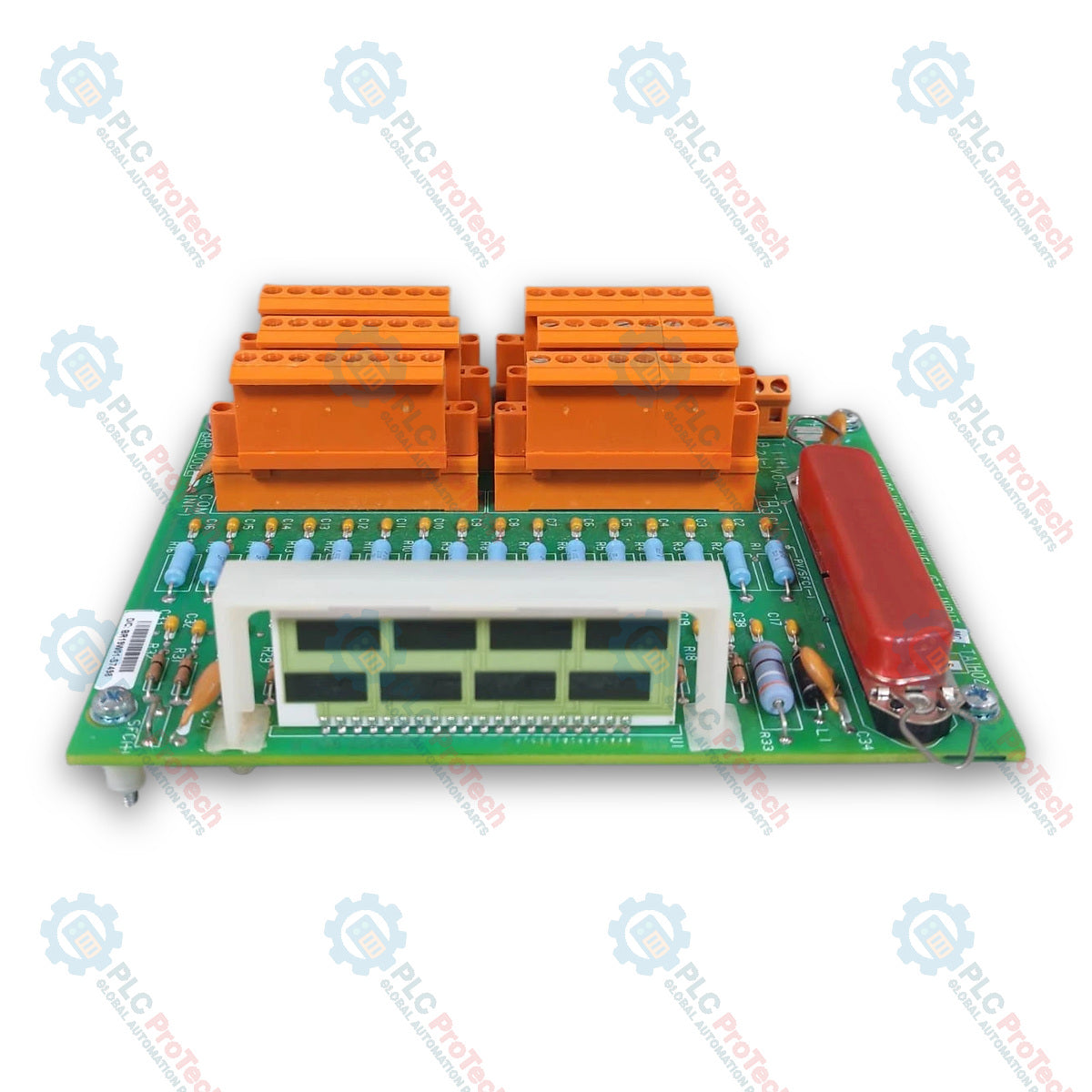

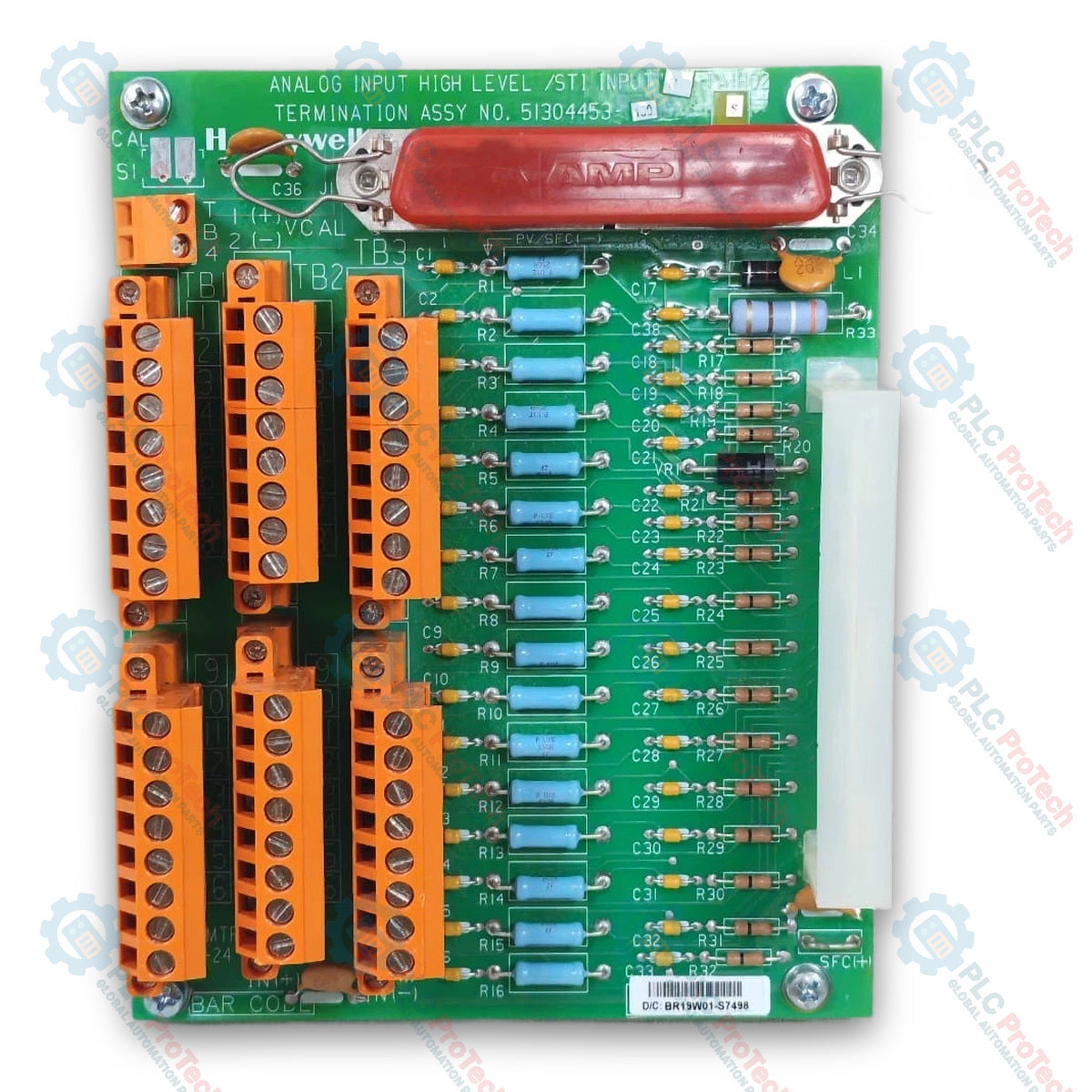

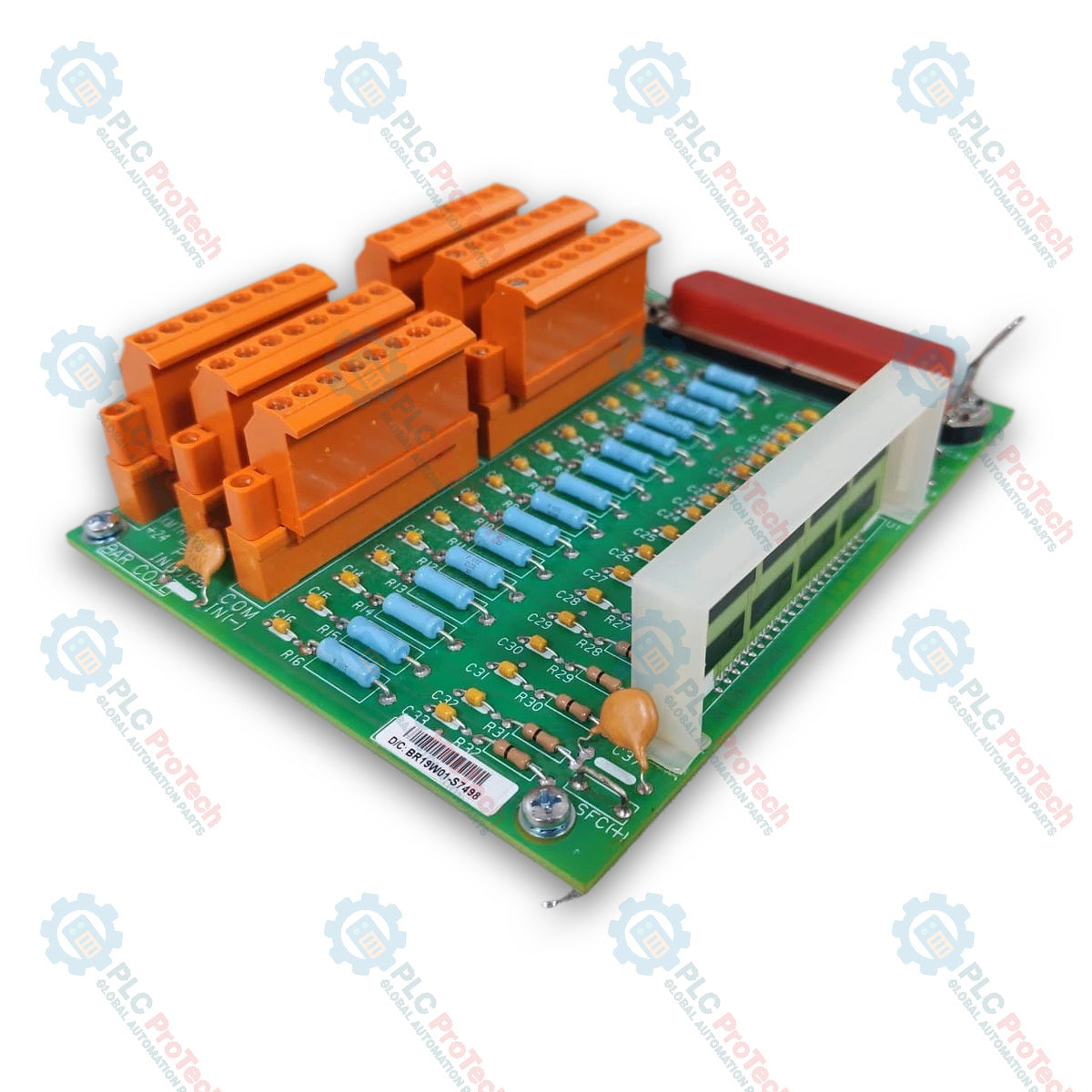

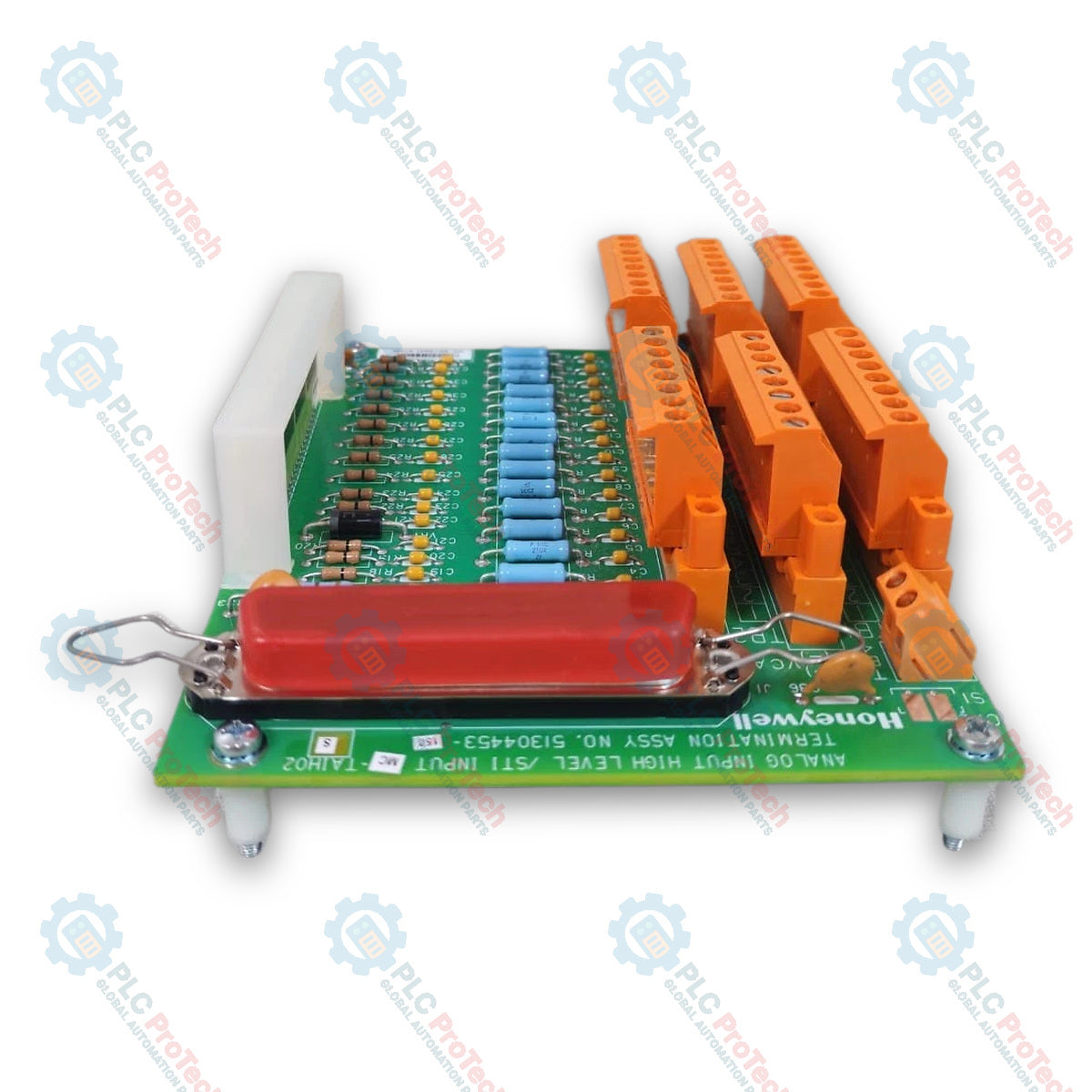

Honeywell MC-TAIH02 51304453-150 TPS Process Manage High Level Analog Input/STI FTA
MC-TAIH02 51304453-150
MC-TAIH02 51304453-150
1 / 5

Honeywell

Honeywell MC-TAIH02 51304453-150 TPS Process Manage High Level Analog Input/STI FTA

SKU MC-TAIH02 51304453-150

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Honeywell
  • Product No.: MC-TAIH02 51304453-150
  • Origin United States
  • Product Type: Analog Input/STI FTA Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.45 kg
  • Dimensions: 12.0 cm x 12.0 cm x 5.0 cm (W x H x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Analog Input/STI FTA Module Field Termination Assemblies Process Manager I/O

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Honeywell MC-TAIH02 51304453-150 TPS Process Manage High Level Analog Input/STI FTA

Download Open in new tab
Quantità
Call sales Contact

Product Description

The Honeywell MC-TAIH02 is a High Level Analog Input / Smart Transmitter Interface Field Termination Assembly (FTA) designed for process signal termination and field wiring interfacing within TotalPlant Solution (TPS) Process Manager systems.

Features

  • Accommodates up to 16 differential input channels for analog voltage/current signals or digital smart transmitter communications.
  • Integrates resistor current limiting (145 ohm, non-fused) for transmitter power conditioning in Class 1, Div 2 hazardous location interfacing.
  • Features compression-type termination blocks capable of accepting wire sizes up to 14 AWG (~1.6 mm).
  • Supports high-density A-size assembly footprint for cabinet space efficiency.
  • Provided with standard conformal coating for harsh environment and corrosion protection.

Applications

  • High-level analog voltage and current field loop terminations
  • Smart Transmitter Interface (DE protocol) field device wiring
  • Process Manager (PM), Advanced Process Manager (APM), High Performance Process Manager (HPM), and Enhanced High Performance Process Manager (EHPM) I/O subsystems

Technical Specifications

Parameter Specification
Manufacturer Honeywell
Model Number MC-TAIH02
Part Number 51304453-150
Base Model Equivalent MU-TAIH02 (Conformally Coated)
Number of Channels 16 differential channels
Compatible IOP Modules MC-PAIH03, MU-PSTX03
Input Signal Types Voltage, current (2-wire or self-powered), Honeywell DE protocol
Transmitter Power Conditioning Resistor Current Limited (145 ohm, not fused)
Terminal Block Type Compression-Type
Maximum Wire Size 14 AWG (~1.6 mm)
FTA Assembly Size Size A
Environmental Protection Conformally Coated (G3 / Harsh Atmosphere rating)
Surge Withstand Capability ANSI/IEEE C37.90.1-1978

Installation Guidelines

  • Field Wiring Connection: Route field wiring to the compression terminals ensuring conductors do not exceed 14 AWG (~1.6 mm).
  • System Common Reference: The low-side input connection is normally connected to system common via a wire jumper on the FTA, which can be removed subject to operating within Common Mode Voltage limits.
  • Cable Routing: Connect the FTA to the corresponding Input/Output Processor (IOP) using approved Honeywell FTA cables up to 50 meters in length.
  • Corrosion Protection: Maintain conformal coating integrity when installed in non-G1 process environments.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Which Input Output Processors are compatible with the FTA?
The FTA connects directly to the MC-PAIH03 High Level Analog Input Processor and the MU-PSTX03 Smart Transmitter Interface Processor.
What wire size range does the terminal block accept?
The compression-type termination blocks accommodate field wiring up to 14 AWG or approximately 1.6 mm.
How is power conditioning provided for field transmitters?
Field transmitter power conditioning is provided through non-fused, resistor-current-limited 145 ohm circuits suitable for Class 1, Div 2 interfacing.
