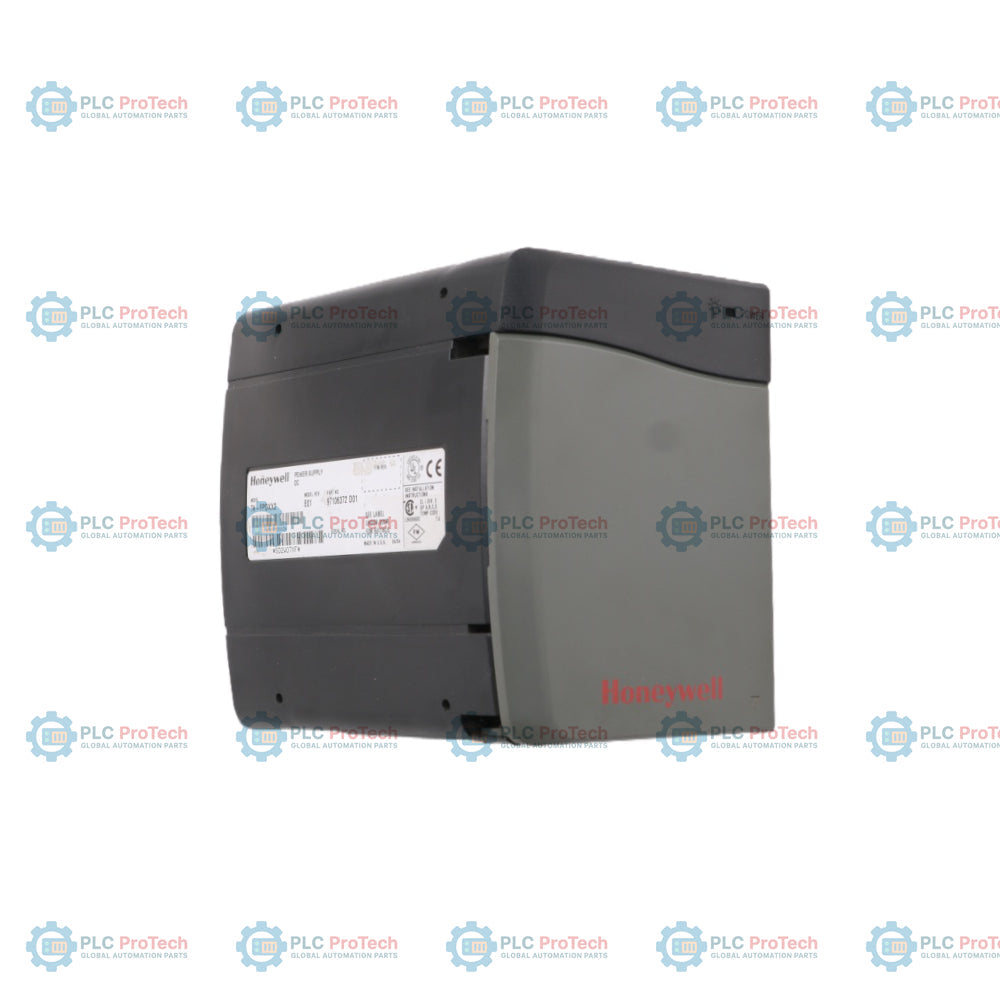

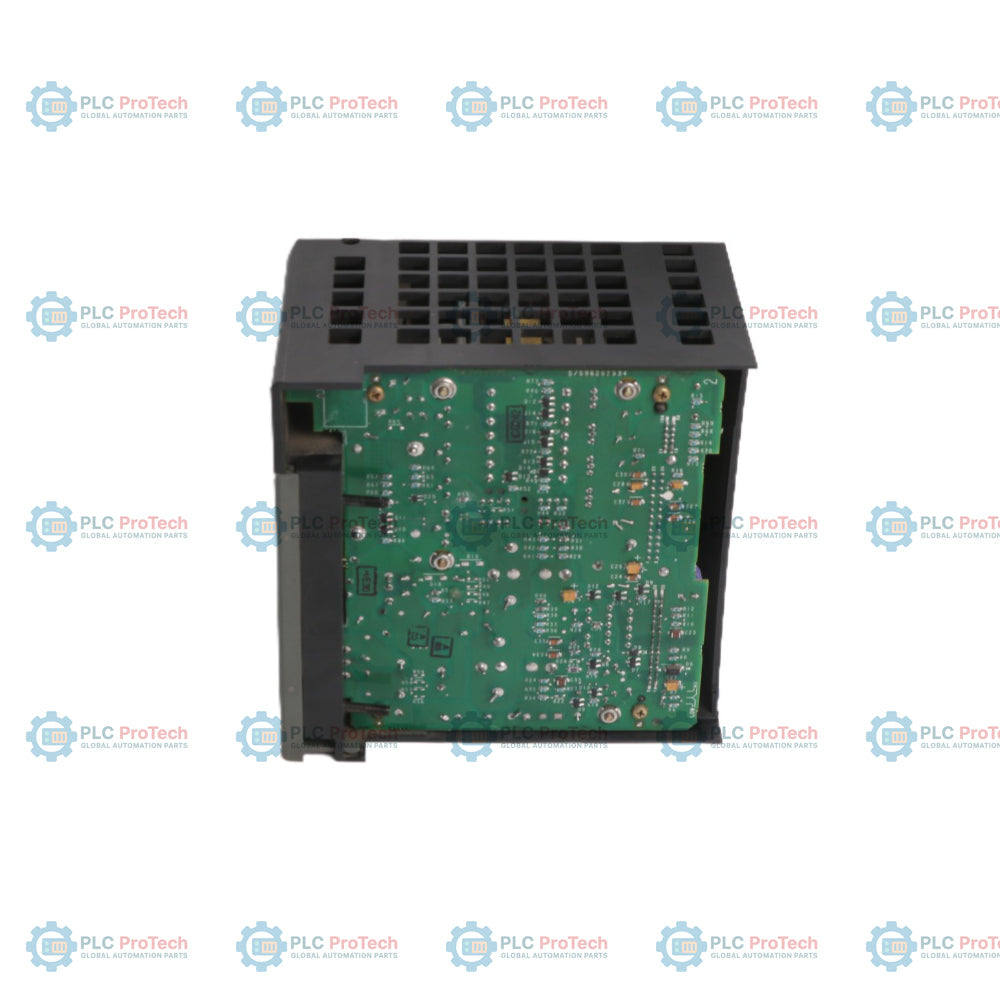

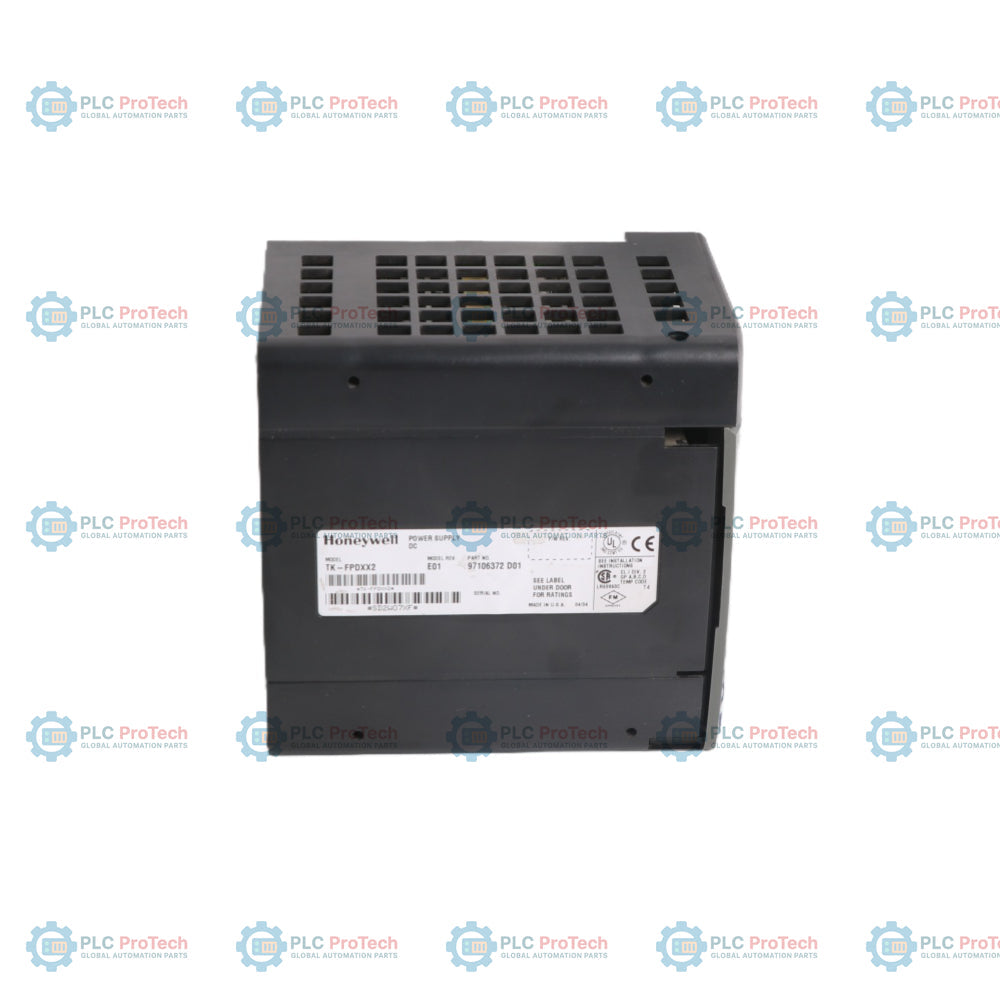

The Honeywell TK-FPDXX2 is a conformal-coated, standard (non-redundant) power supply module designed for Experion Chassis Series-A (CIOM-A) systems. It slides directly onto the left side of the chassis to supply DC power to all installed modules via the backplane without consuming a standard chassis slot position. Featuring a conformal coating, the TK-FPDXX2 is designed to withstand harsh industrial environments meeting Moderate (G2) or Harsh (G3) airborne contaminant conditions.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | TK-FPDXX2 |
| Coating | Conformal Coated |
| Type | Standard (non-redundant) Power Supply Module |
| Input Voltage Range | 19.2-32 VDC (Input may drop to 16 V for a maximum of 2 minutes each hour for motor starting) |
| Input Power | 100 W |
| Maximum Inrush Current | 30 A |
| Frequency Range | DC |
| Total Power Output Maximum | 70 W @ 60 degC |
| Backplane Output Current Maximum |
1.5 A @ 1.2 V 4 A @ 3.3 V 10 A @ 5.1 V 2.8 A @ 24.0 V |
| Output Power Combination Limit | Total combined output power across 1.2 V, 3.3 V, 5 V, and 24 V backplane outputs cannot exceed 70 W |
| Fuse Protection | Non-replaceable fuse is soldered in place |
| Wiring Size | #14 AWG (1.4 mm) |
| Dimensions (L x D x H) | 11.2 x 14.5 x 14.0 cm (4.41 x 5.71 x 5.51 in) |
| Weight | Approximate 1.1 kg (2.5 lb.) |
| Location | Left side of chassis (does not consume a slot) |
| Operating Temperature | 0 to 60 degC (32 to 140 degF) |
| Storage Temperature | -40 to 85 degC (-40 to 185 degF) |
| Relative Humidity | 5 to 95% noncondensing (de-rated to 55% above 40 degC to maintain constant moisture content) |
| Temperature Change Rate | <= 1 degC/min. (<= 5 degC/min. storage) |
| Operating Altitude | -300 to +3000 m |
| Vibration (3 axes) | 10 to 60 Hz, 0.5 g max. acceleration, 0.1 inches displacement |
| Mechanical Shock | 5 g max. acceleration, 30 ms max. duration |
