Product Overview

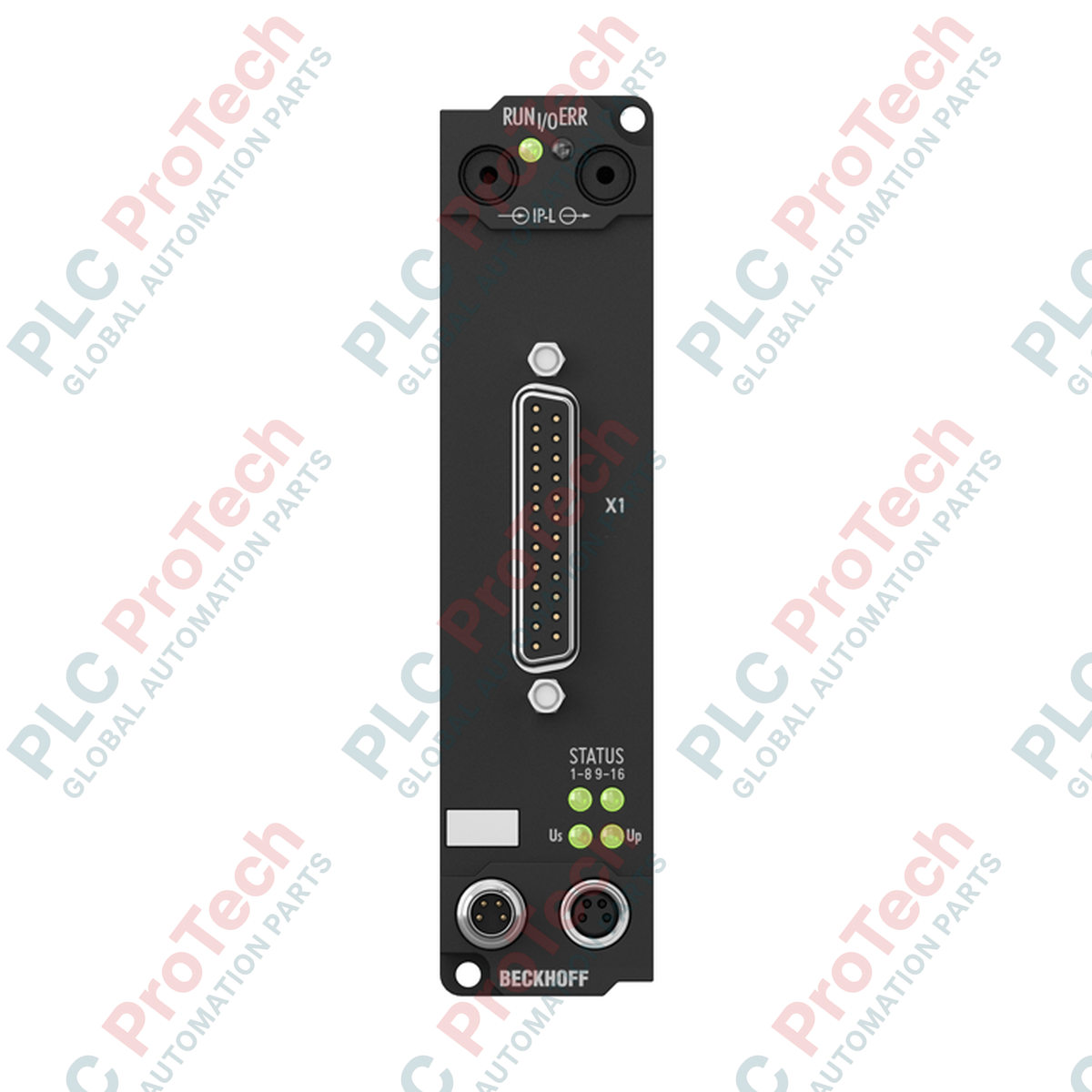

The IE2808-0001 (IE28080001) is a high-density, IP67-rated expansion module designed for the BECKHOFF Fieldbus Box system. This Extension Box consolidates 16 digital outputs into a remarkably slim 30 mm housing, making it an essential component for decentralized automation where cabinet space is non-existent. Engineered for direct machine mounting, the IE2808-0001 connects to a Coupler Box via the high-speed IP-Link interface. By providing localized control for valves, actuators, and indicators in harsh environments like food processing, automotive lines, and material handling, this module significantly reduces wiring overhead while maintaining superior signal integrity through its fiber-optic communication backbone.

Output Logic and Protection Systems

The IE2808-0001 features a centralized 25-pin D-sub socket (UNC4-40) for output connections, facilitating the use of pre-assembled cable harnesses for rapid installation. Each of the 16 channels is rated for 0.5 A at 24 VDC, supporting a versatile mix of ohmic, inductive, and lamp loads. To ensure maximum system reliability, every channel is individually short-circuit proof. In the event of a fault, the module handles errors automatically and provides diagnostic data—including 16 bits of status information—back to the process image. This allows for real-time monitoring of output health and immediate identification of field-side wiring issues without manual intervention.

Technical Specifications

Engineering FAQ & Diagnostics

How is the total current limit managed across 16 channels?

While each individual channel can handle 0.5 A, the IE2808-0001 has a total sum current limit of 4 A. This means if all 16 channels are active simultaneously, the average load per channel should not exceed 0.25 A. For applications requiring high-current pulses across all channels, engineers should verify the duty cycle to prevent thermal overload.

What is the benefit of the D-sub 25 connection in an IP67 environment?

The use of a D-sub socket allows for high-density wiring that is much more compact than using 16 individual M12 connectors. When paired with a compatible BECKHOFF IP67-rated D-sub cable/hood, the system maintains its full environmental protection while simplifying the replacement of the entire I/O block during maintenance.

Does this module require a separate power supply connection?

Yes. The power is supplied via a 4-pin M8 male socket. It also features a downstream 4-pin M8 female socket, allowing the 24 VDC supply to be daisy-chained to subsequent Extension Boxes, reducing the number of home-run power cables required in the field.

Field Installation and Maintenance Guide

• IP-Link Fiber Optic Handling: The module communicates via the IP-Link ring. When installing the fiber optic cables, ensure the bending radius does not exceed the manufacturer’s specification (typically 30 mm). Use the specific BECKHOFF stripping tool to ensure the fiber ends are flush, as uneven cuts can cause "CRC errors" in the fieldbus communication.

• D-sub Connector Sealing: To achieve the IP67 rating, the 25-pin D-sub connector must be fitted with the correct gasket and tightened using the UNC4-40 screws. Do not over-torque; a firm hand-tightening or 0.4 Nm torque is sufficient to compress the seal without stripping the threads.

• Thermal Considerations: In variable installation positions, ensure that the Polyamide (PA6) housing is not in direct contact with high-heat sources (exceeding 55 Celsius). Although the module is fanless and rugged, maintaining ambient airflow around the D-sub connection area helps dissipate heat when running the module at its 4 A sum-current limit.

Engineering Advantages

The BECKHOFF IE2808-0001 excels in applications requiring high-density output control in wet or dusty locations. Its construction from PA6 Polyamide provides excellent resistance to chemical cleaning agents and mechanical impacts. By utilizing 16 diagnostic input bits in the process image, engineers can implement advanced "Predictive Maintenance" strategies, detecting short circuits or broken wires at the edge of the network before they result in costly production halts.
