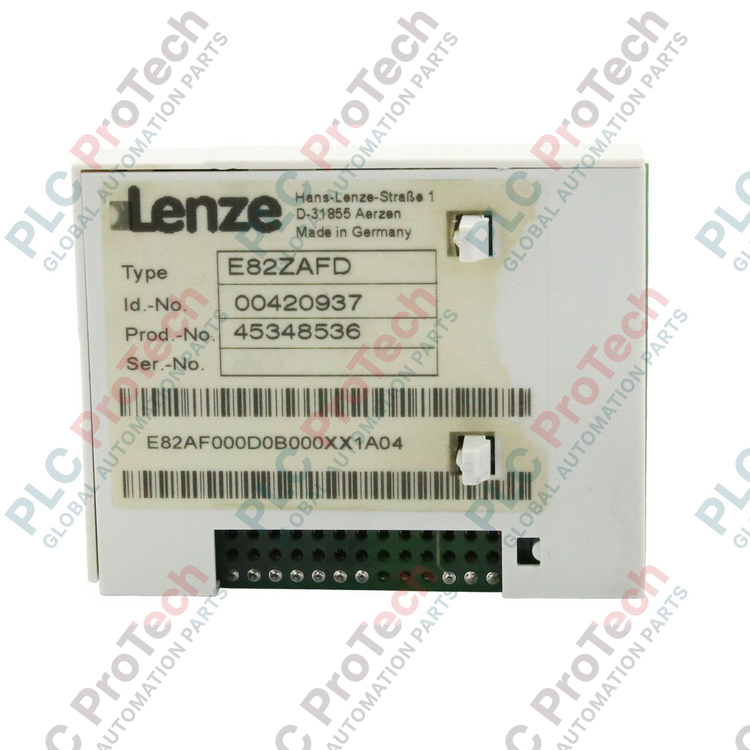

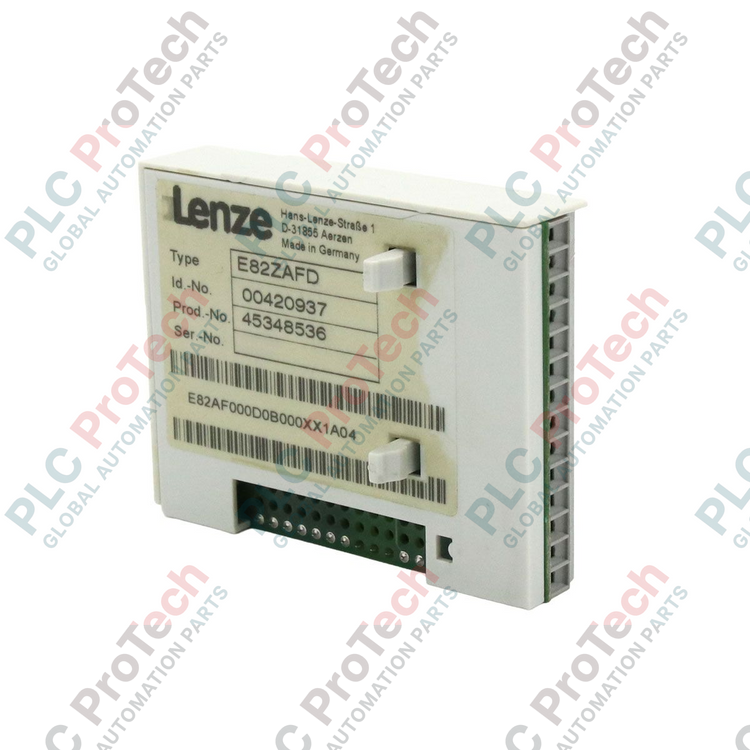

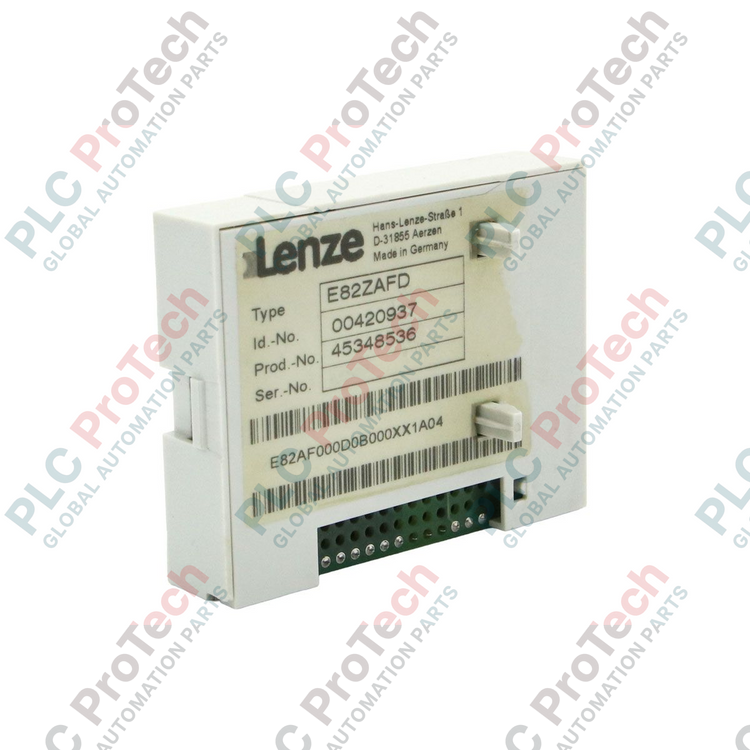

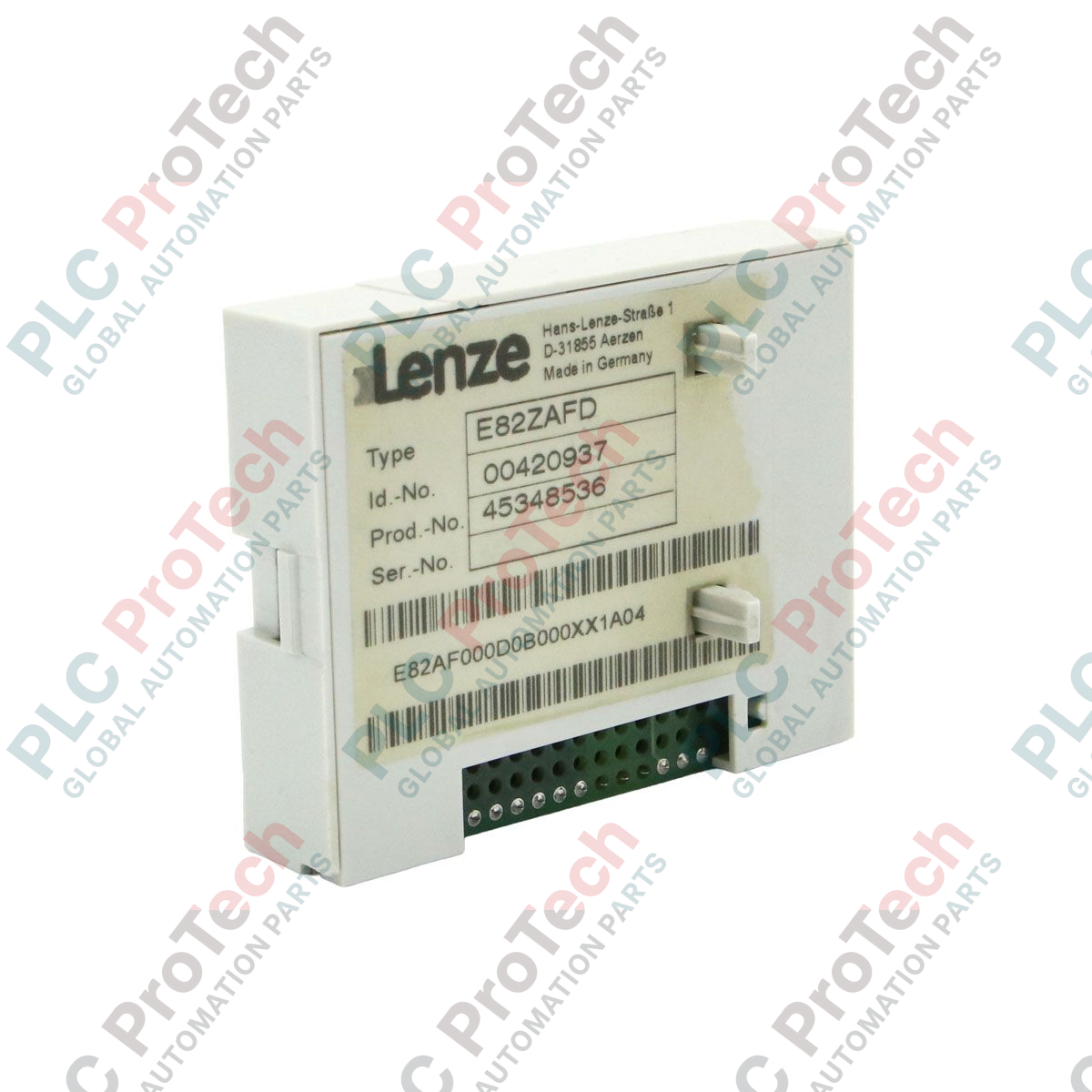

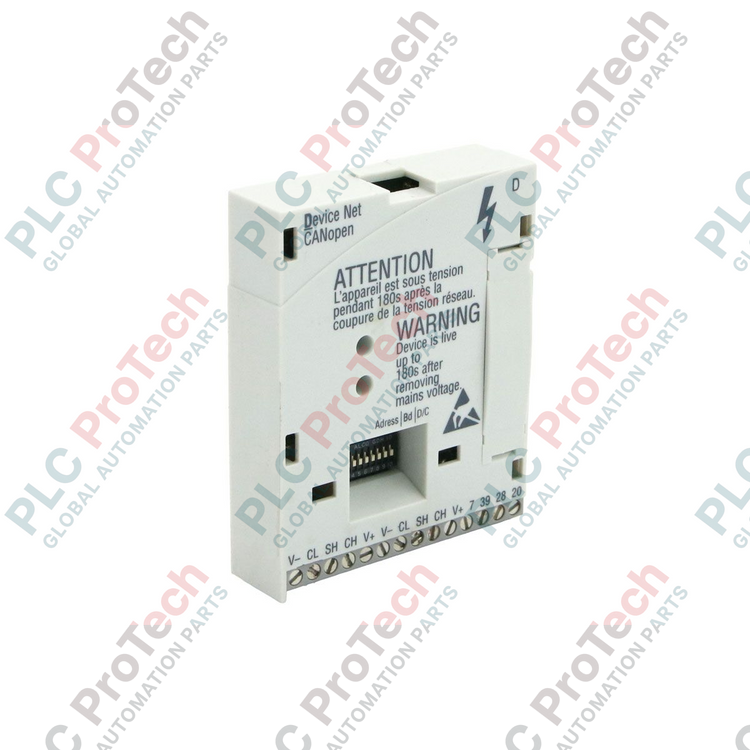

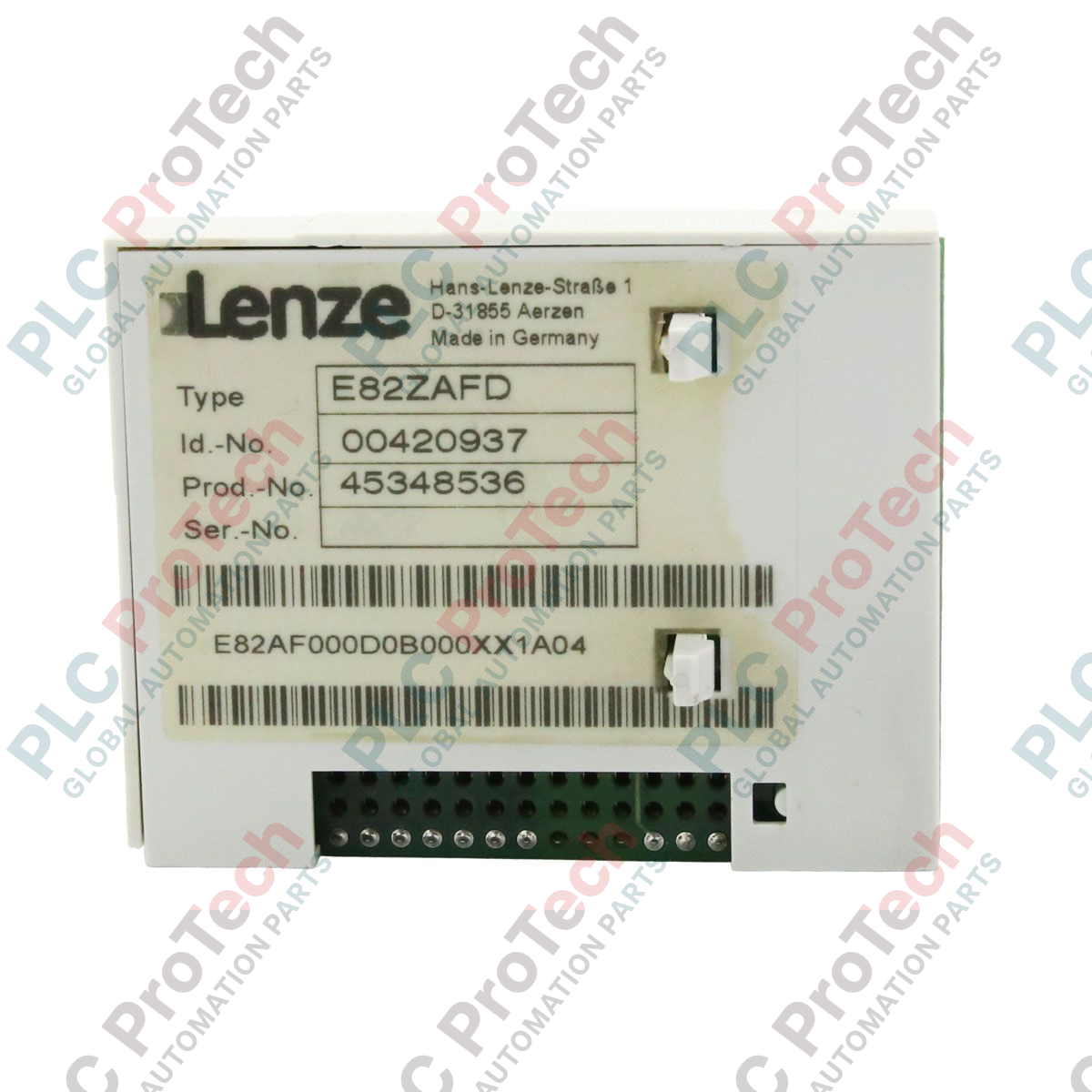

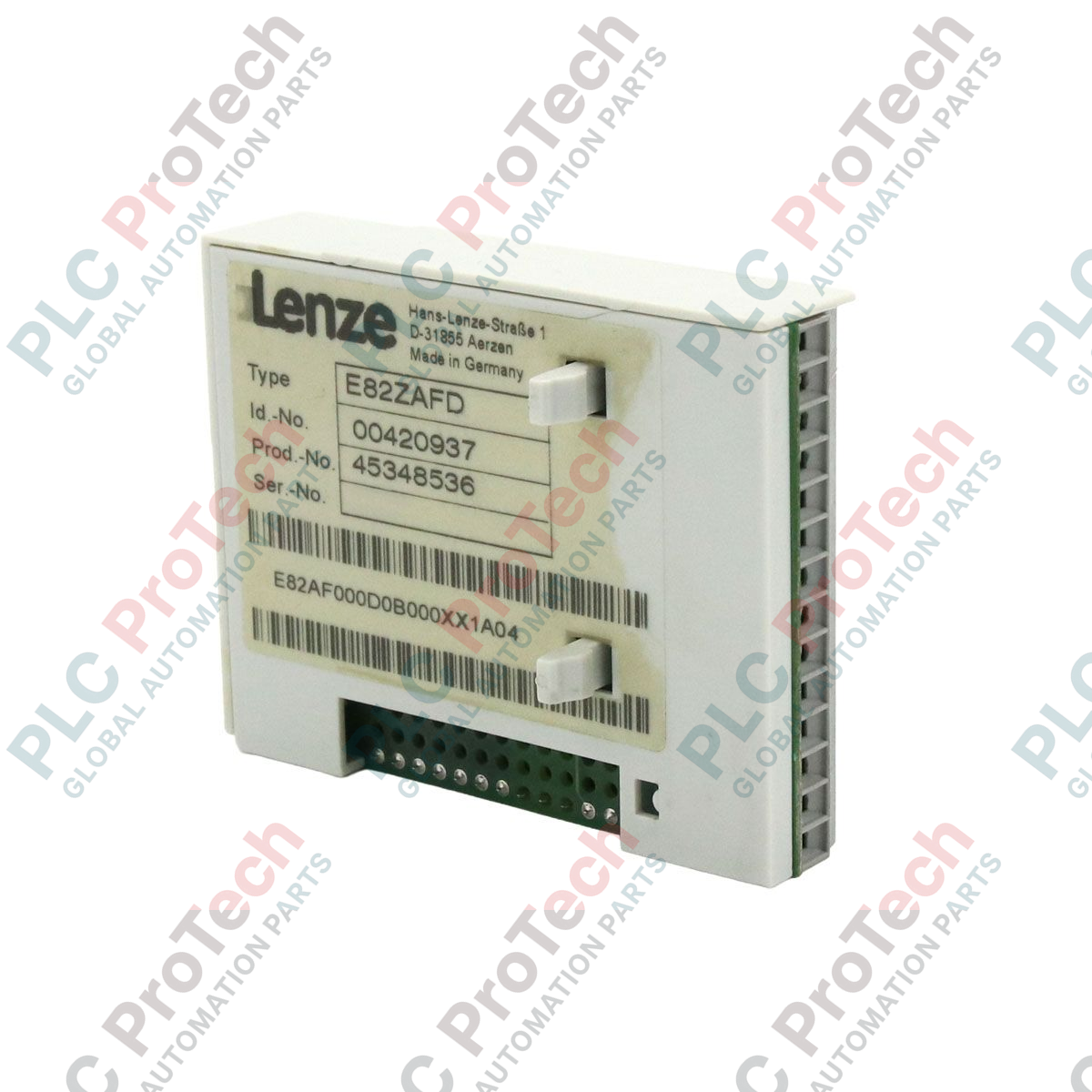

Integrating seamlessly into the 8200 vector frequency inverter range, the Lenze E82ZAFD serves as a dedicated CANopen communication interface designed to facilitate high-speed, deterministic data exchange across industrial automation networks. This module mounts directly onto the front-facing Application Interface (AIF) slot of the drive, eliminating the need for external mounting hardware or additional control wiring.
| Manufacturer | Lenze |
| Model Number | E82ZAFD |
| Series | 8200-series |
| Module Type | Function Module / Communication Interface |
| Communication Protocol | CANopen (DS301) |
| Baud Rate Range | 20 kbps to 1 Mbps |
| Node Address Range | 1 to 63 (configurable via DIP switches or codes) |
| Interface Slot Type | AIF (Application Interface) |
| Country of Origin | Germany |
| Shipping Weight (Calculated) | 0.02 kg |
| Package Dimensions (Calculated) | 80 mm x 50 mm x 30 mm |
| Terminal / Pin | Function / Circuit Assignment |
|---|---|
| CAN_H | CAN High Signal Line |
| CAN_L | CAN Low Signal Line |
| GND | CAN Reference Ground (Isolated) |
The E82ZAFD is backwards compatible with all standard Lenze 8200 vector frequency inverters ranging from 0.25 kW to 90 kW. It directly replaces non-isolated CAN communication modules. Note that depending on the firmware revision of your 8200 vector drive (specifically revisions below V2.0), certain advanced CANopen monitoring objects may have limited access, requiring configuration via the standard drive keypad parameter codes.
A common point of failure during commissioning is the omission of the physical 120-ohm termination resistor. The E82ZAFD does not feature an internal software-switchable termination resistor; therefore, a physical 120-ohm resistor must be wired externally across the CAN_H and CAN_L terminals at the first and last physical nodes of the bus. Operating without proper termination leads to intermittent frame errors, packet loss, and drive communication faults (typically triggering a CE0 or CE3 fault on the inverter).
To ensure robust noise immunity in high-EMI environments, use only high-quality shielded twisted-pair (STP) cabling specified for CAN networks. Route the communication cable at least 20 cm away from high-voltage motor output cables and AC supply lines. The cable shield must be grounded at a single point (typically at the master controller) to prevent ground loops from corrupting the differential communication signals.
Before installing or removing the E82ZAFD module, completely de-energize the main AC supply to the Lenze 8200 vector inverter. Wait at least 5 minutes for the internal DC-bus capacitors to fully discharge to safe voltage levels. Verify zero voltage at the power terminals before proceeding. Hot-plugging the module will cause permanent damage to the AIF interface and the drive's control board.
Ensure the inverter is completely powered down and the DC-bus discharge time has elapsed.

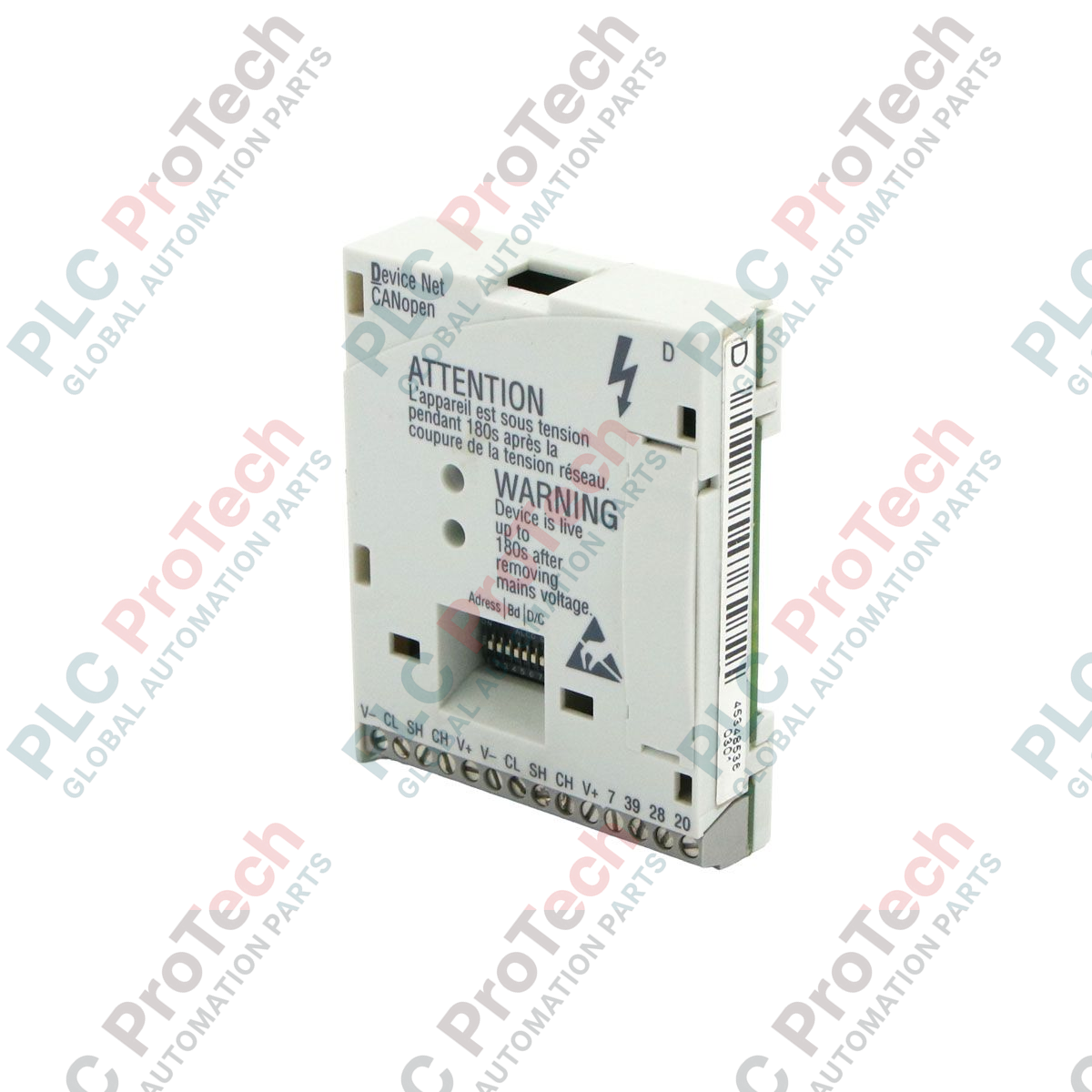

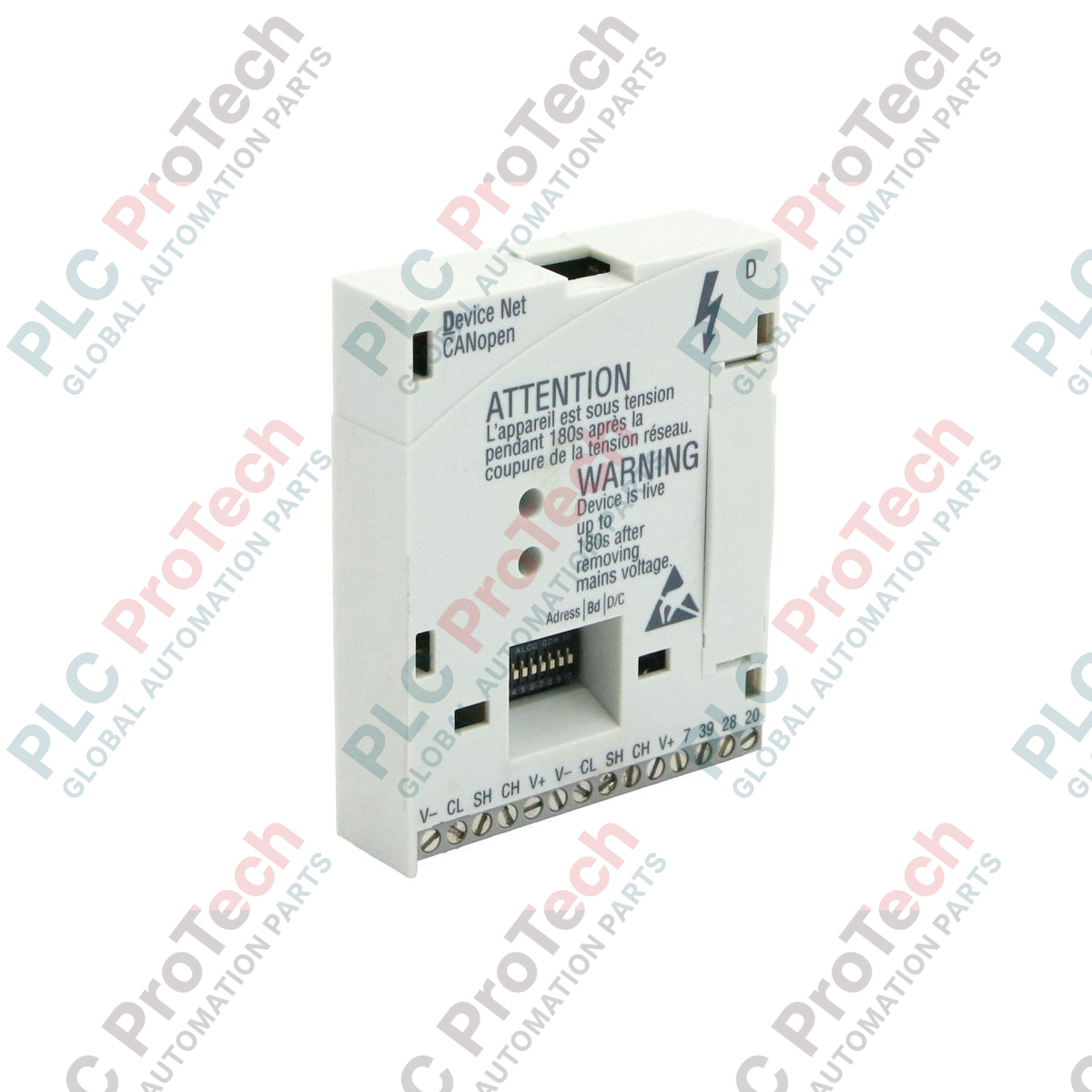

Set the required node address and baud rate using the DIP switches located on the side of the E82ZAFD module before inserting it into the slot.
Align the module carefully with the AIF slot on the front of the 8200 vector inverter and press firmly until the retaining clips click into place.
Connect the CAN bus lines (CAN_H, CAN_L, and GND) to the pluggable terminal block, ensuring correct polarity and shielding termination.
