Description

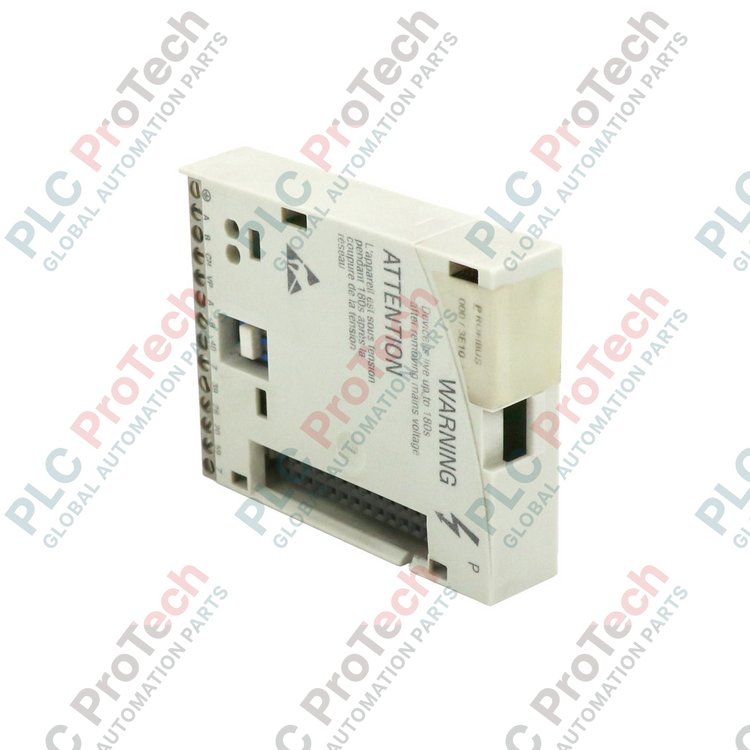

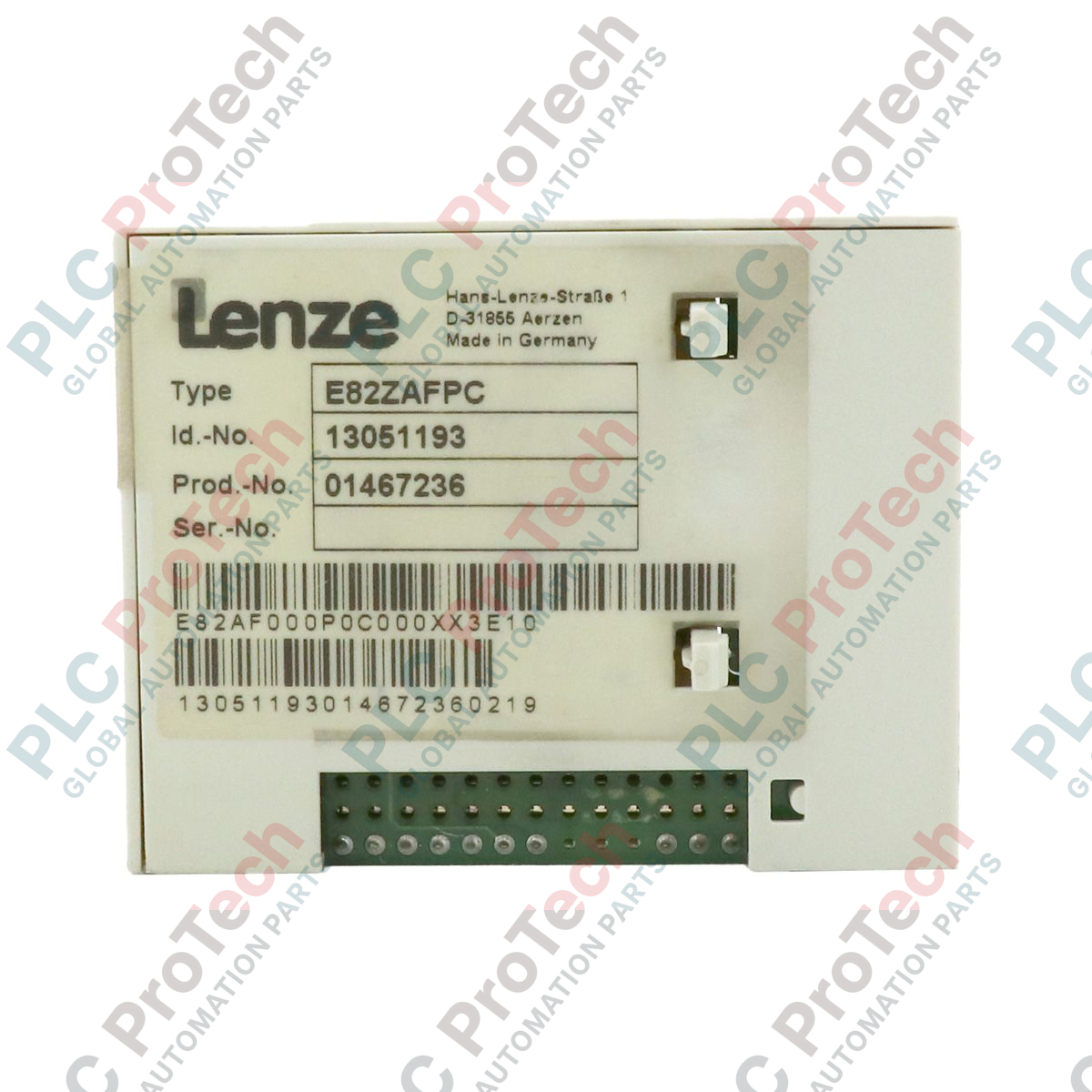

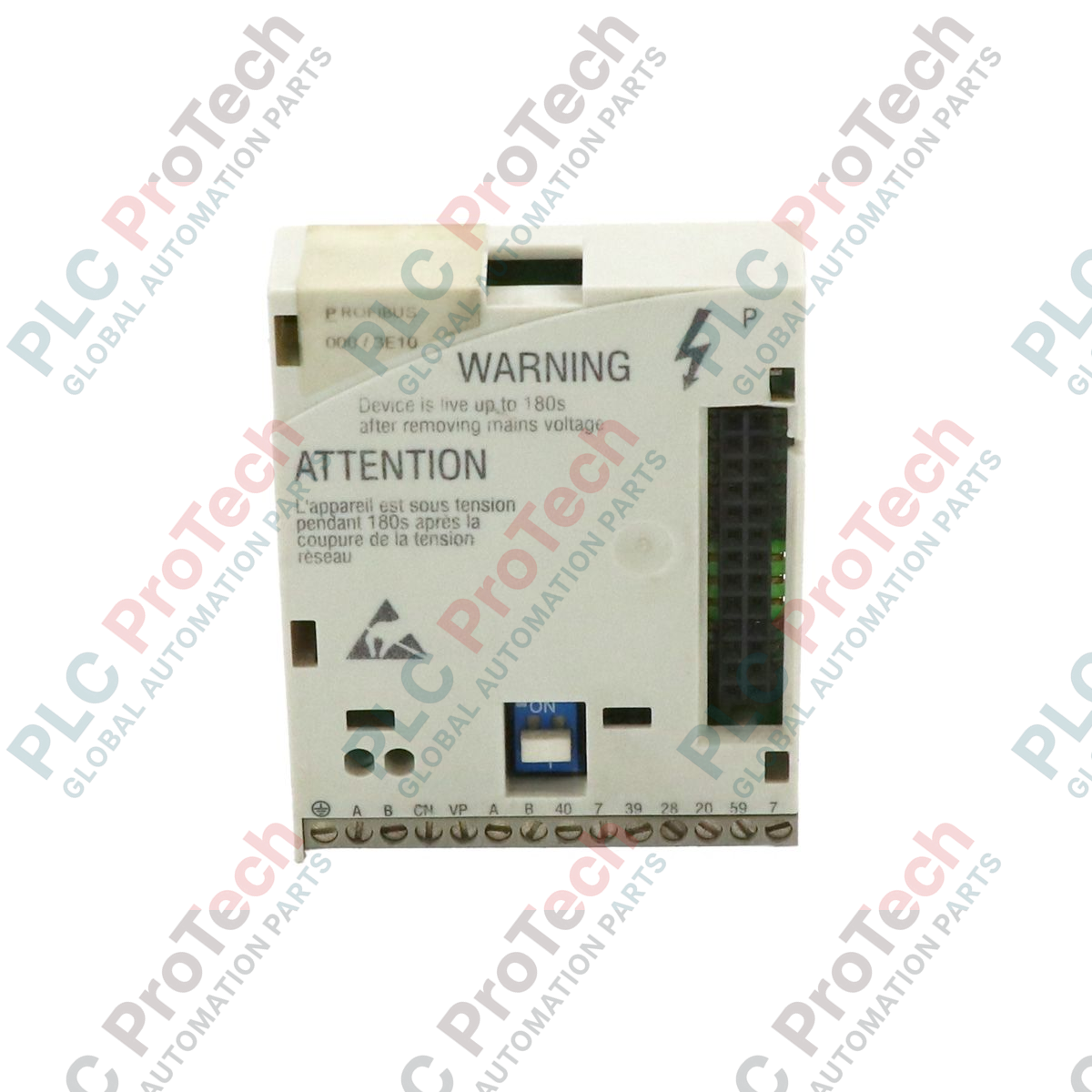

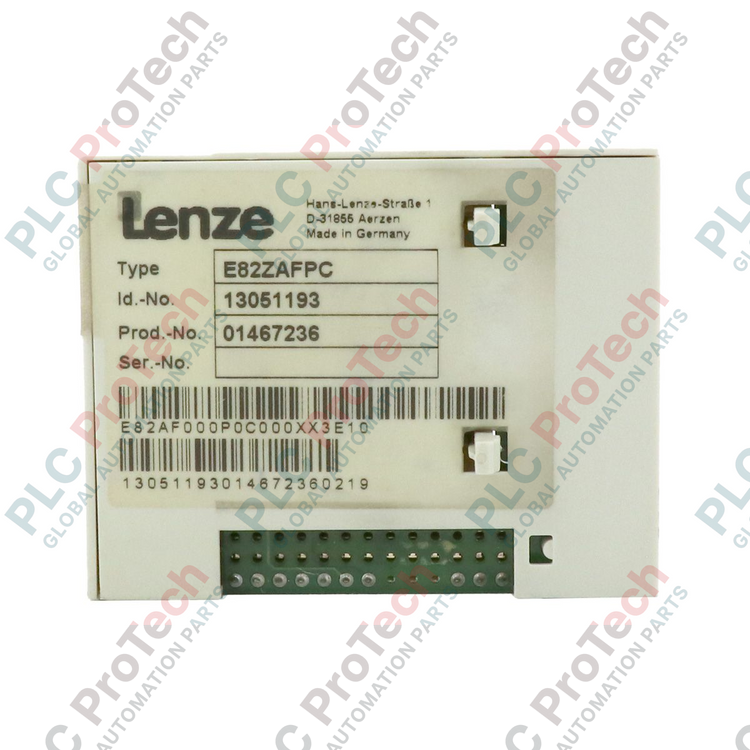

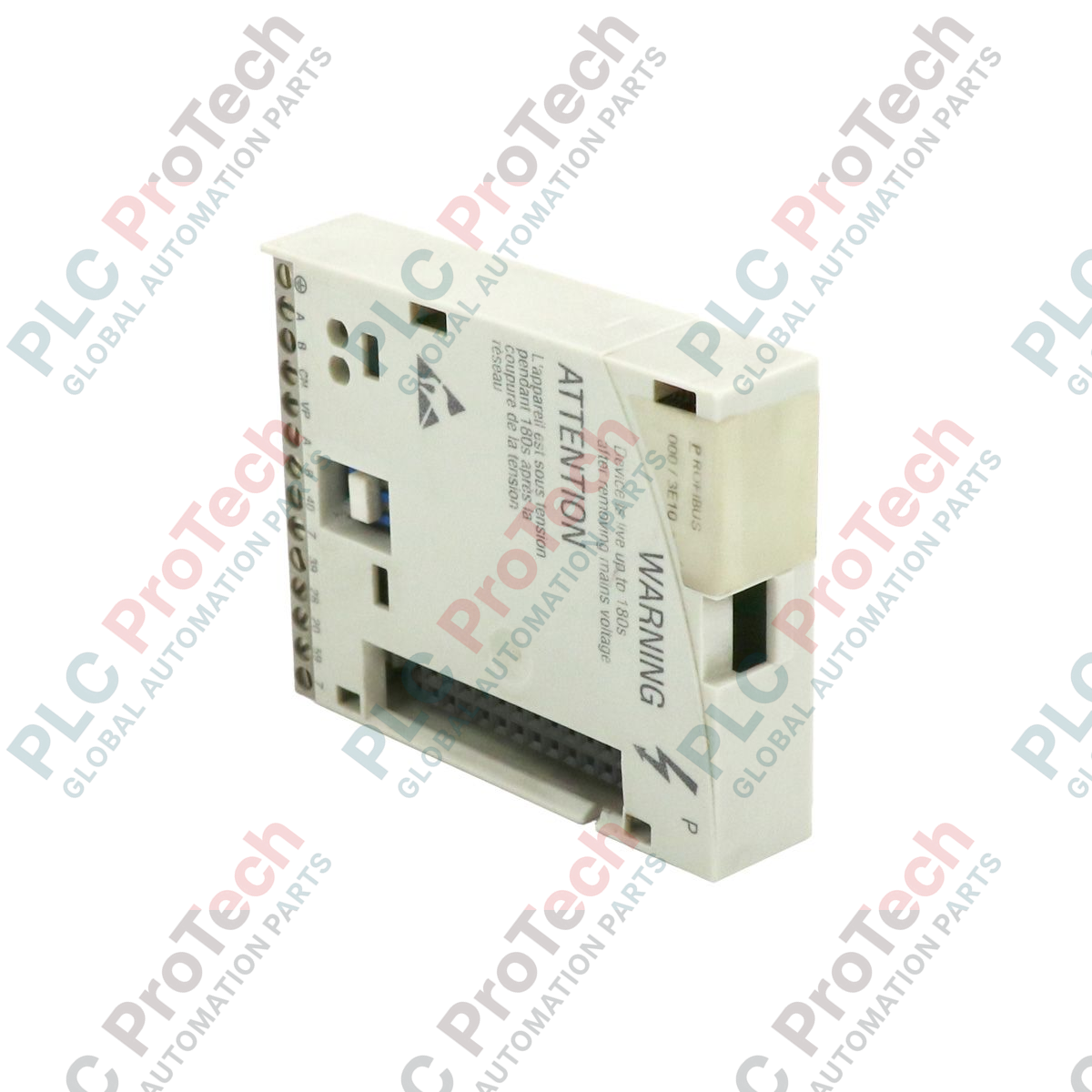

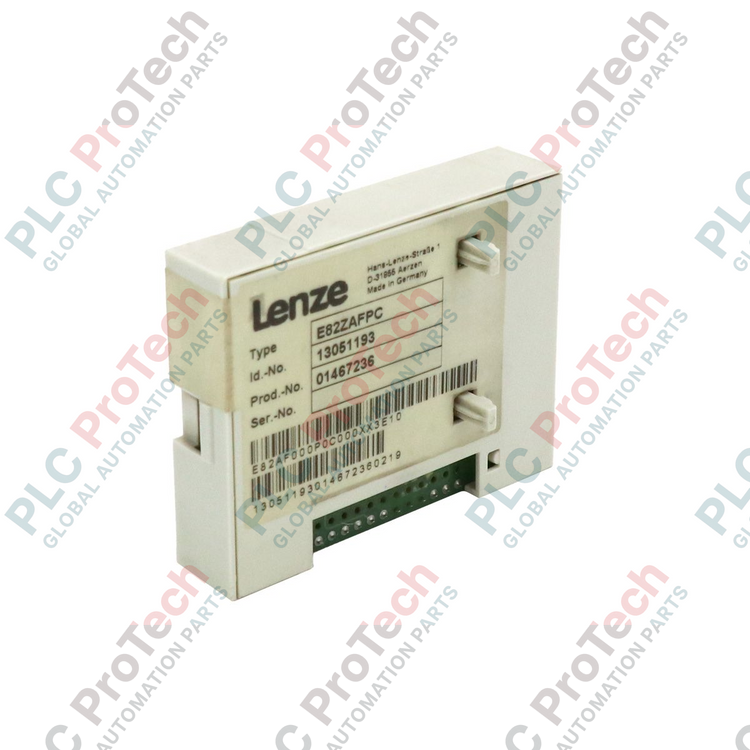

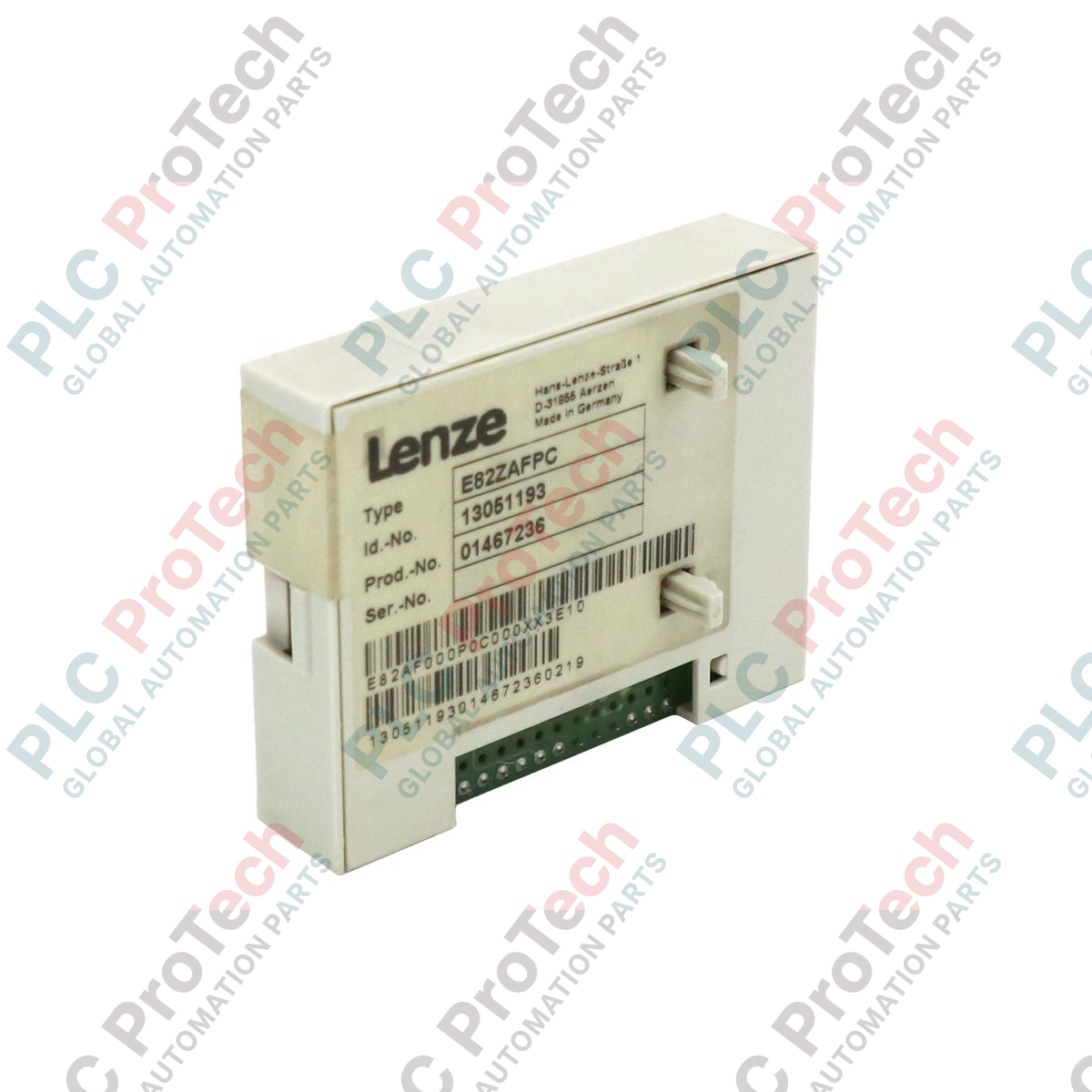

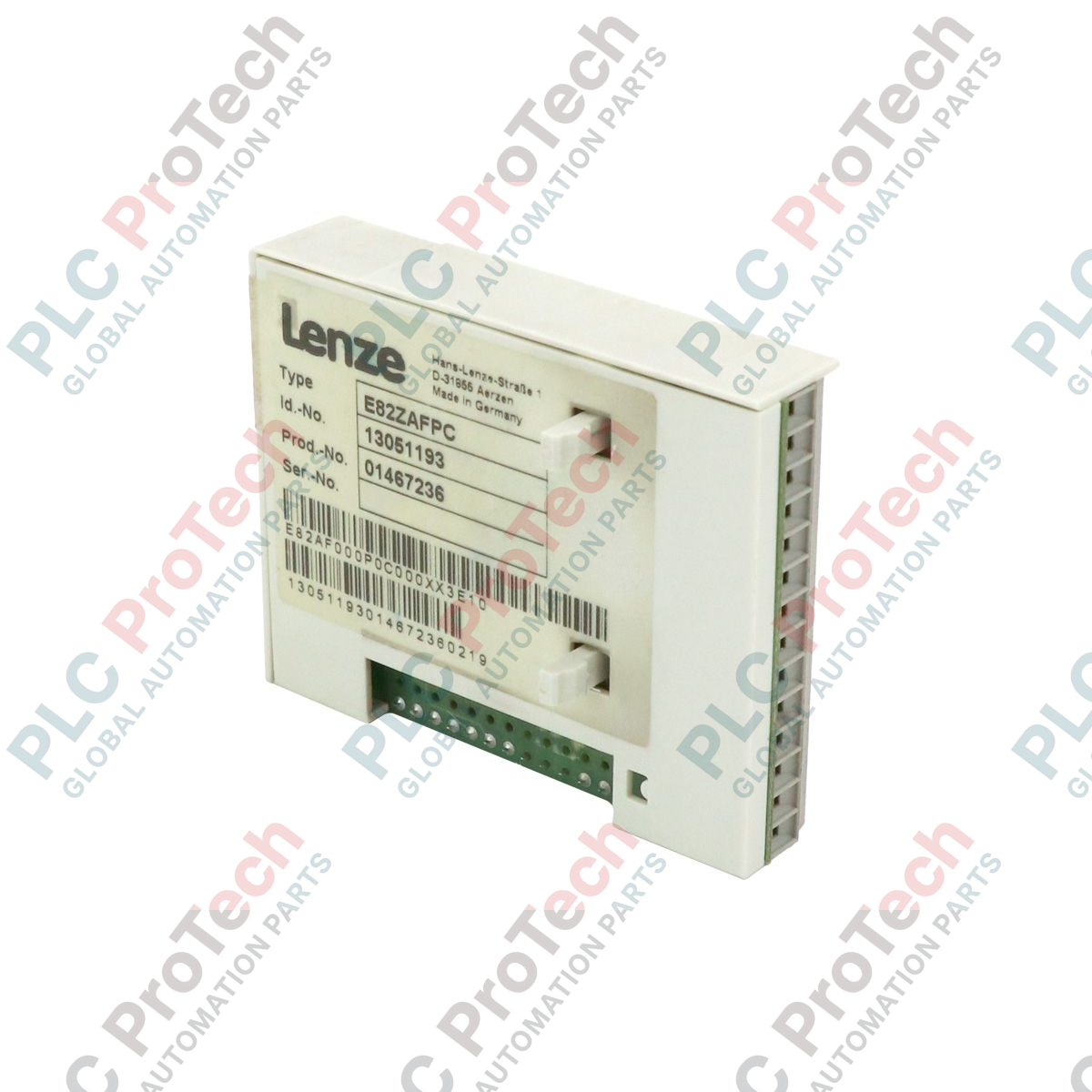

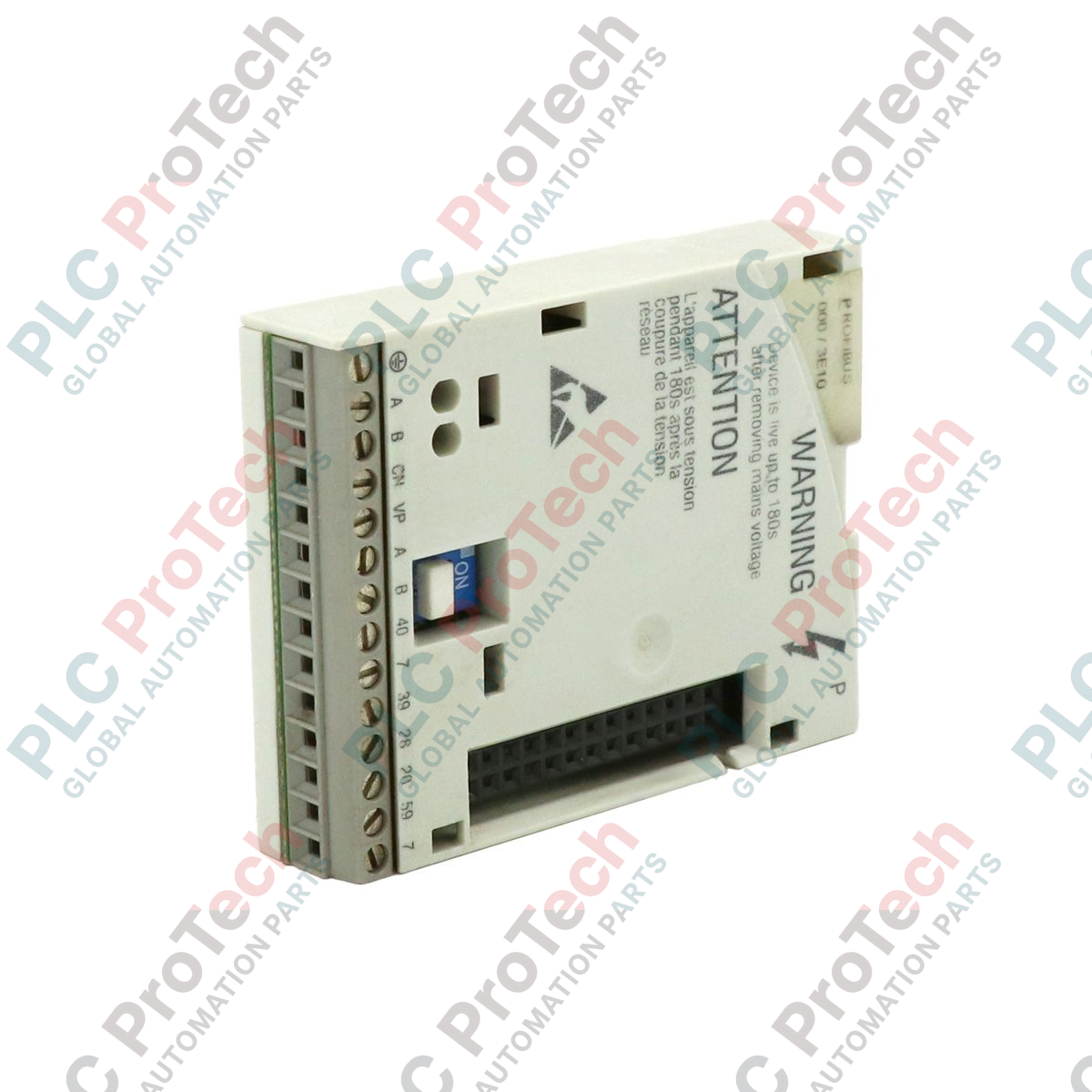

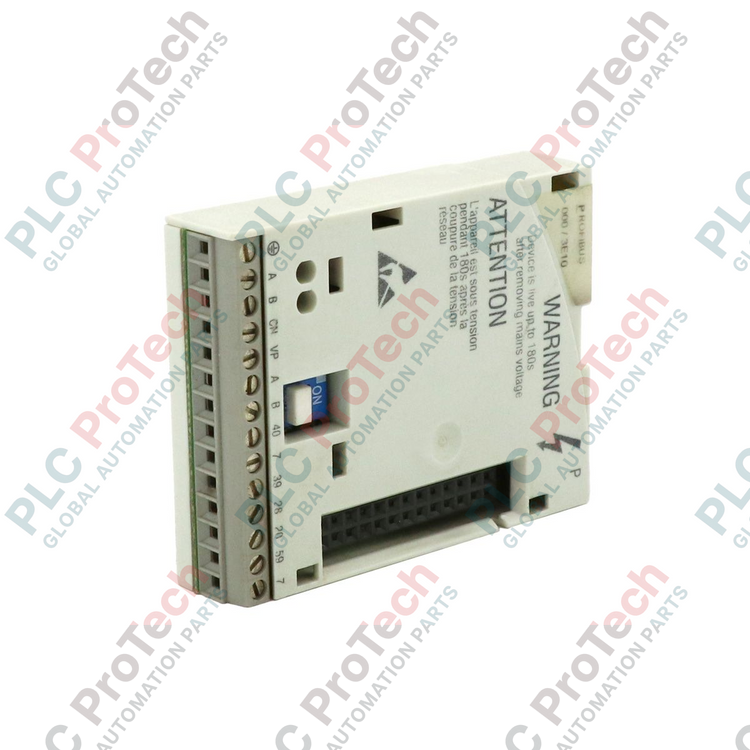

Designed to facilitate seamless fieldbus integration, the Lenze E82ZAFPC serves as a dedicated PROFIBUS communication module for the 8200-series frequency inverters. This interface module enables direct connection of the drive controller to a PROFIBUS-DP network, allowing for high-speed cyclic process data exchange and acyclic parameter access. By integrating this module into your control architecture, operators can achieve centralized control, real-time diagnostics, and remote parameterization of the connected drive systems from a master PLC or distributed control system.

Engineered for industrial environments, the module mounts directly onto the application interface (AIF) slot of the 8200-series vector inverters. This plug-and-play design minimizes wiring complexity and reduces installation time, making it a reliable choice for both new system deployments and legacy machinery retrofits.

Features

• Direct compatibility with Lenze 8200-series vector frequency inverters.
• Supports the standard PROFIBUS-DP communication protocol for high-speed data transmission.
• Enables both cyclic process data transfer and acyclic parameter configuration.
• Compact, plug-on design that mounts directly into the drive's AIF slot.
• Integrated diagnostic indicators for quick network and communication status verification.

Applications

• Factory automation and centralized machine control.
• Conveyor systems and material handling applications.
• Pumping, ventilation, and HVAC systems utilizing legacy Lenze drives.
• Retrofitting and maintenance of existing production lines requiring fieldbus connectivity.

Technical Specifications

Installation Guidelines

To ensure safe and reliable operation, adhere to the following engineering guidelines during installation:

• Power Isolation: Ensure the host frequency inverter is completely powered down and that the DC-bus capacitors have fully discharged before inserting or removing the communication module.
• Mechanical Mounting: Plug the E82ZAFPC module firmly into the designated AIF slot on the front of the 8200-series inverter. Secure the module using the integrated retaining screws to guarantee proper grounding and mechanical stability.
• Shielding and Grounding: Use high-quality, shielded twisted-pair cables compliant with PROFIBUS standards. Ensure the cable shield is grounded over a wide area at both ends of the connection to prevent electromagnetic interference.
• Addressing: Configure the station address using the onboard DIP switches or via the drive's internal parameters prior to commissioning the network.
