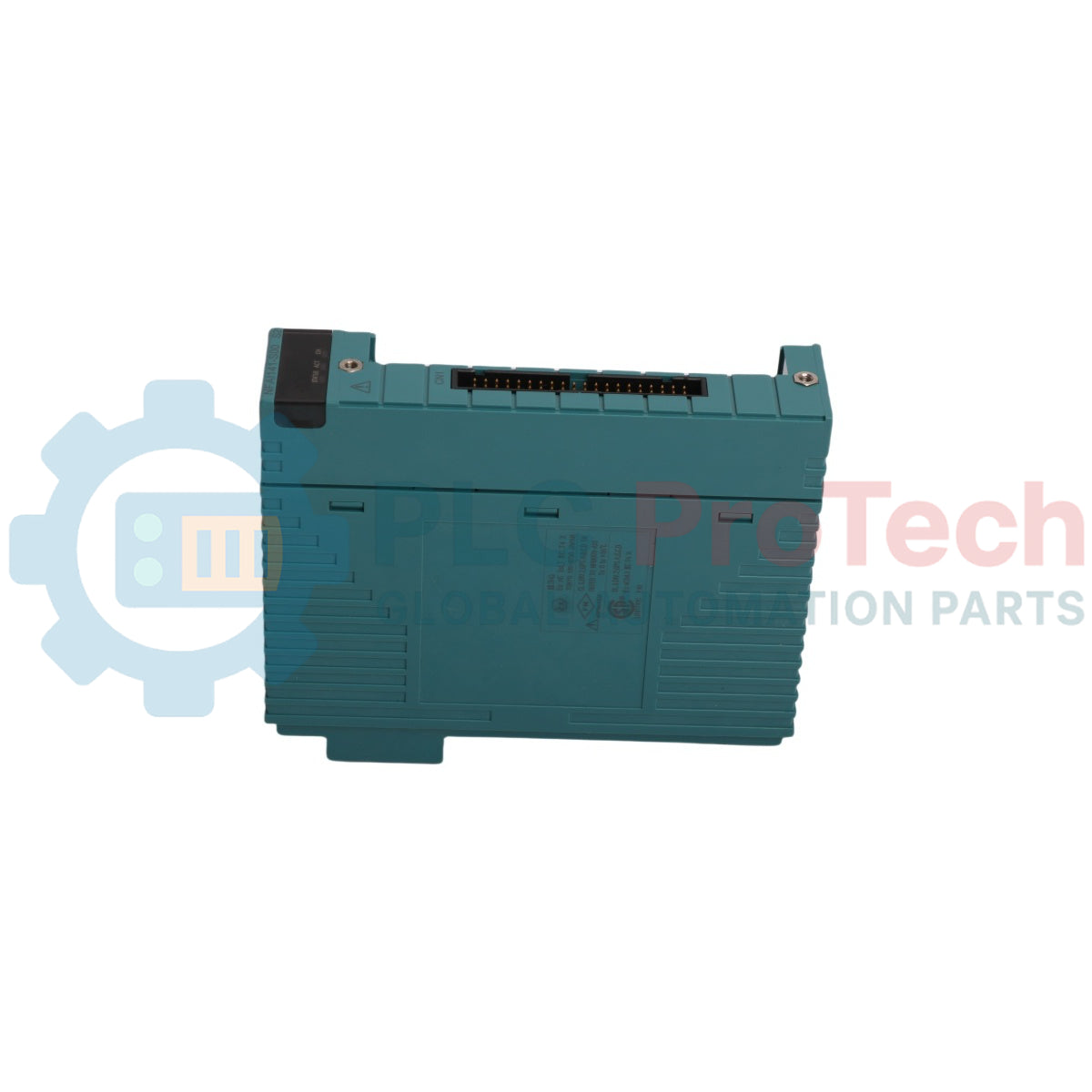

NFAI141-S00 S2 Yokogawa STARDOM FCN Analog Input Module

SKU NFAI141-S00 S2

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Yokogawa
  • Product No.: NFAI141-S00 S2
  • Origin Japan
  • Product Type: Analog Input Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.2 kg
  • Dimensions: 107.5 mm x 32.8 mm x 130.0 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Product Overview

The Yokogawa NFAI141-S00 S2 (NFAI141-S00 S2) is a high-density, 16-channel analog input module engineered for the STARDOM FCN autonomous controller platform. It is widely specified in oil and gas extraction fields, chemical batching plants, and water treatment facilities, where real-time tracking of process variables like pressure, temperature, and flow is essential. The module interfaces with 4 to 20 mA DC normalized signals from both 2-wire and 4-wire transmitters, and features integrated HART communication capabilities. By delivering a fast 10 ms data refresh cycle and onboard overcurrent protection, this module ensures accurate, low-latency measurements. Its ultra-reliable signal acquisition prevents unexpected process trips and safeguards processing loops, dramatically minimizing unscheduled plant downtime.

Suffix Breakdown

The system ordering code for the NFAI141-S00 S2 designates its precise electrical specifications, environmental options, and hardware design generation:

  • NFAI141: Base product model for the 16-channel, 4 to 20 mA, Non-Isolated Analog Input Module.

  • -S: Standard type module designed for standard industrial process requirements.

  • 0: Specifies a hardware build with no explosion protection ratings.

  • 0: Basic type functional configuration.

  • S2: Style 2 hardware revision, denoting modern components and backward compatibility within standard STARDOM FCN baseplates.

Core Technical Specifications

Parameter Certified Specification Value
Model NFAI141-S00 S2
Brand Yokogawa Electric Corporation
Origin Japan
Input Channel Count 16 channels, non-isolated
Nominal Input Range 4 to 20 mA DC
Transmitter Power Supply 22.8 to 26.4 V DC (with 27 mA output current limit)
System Precision plus/minus 0.1% of full scale
Data Refresh Interval 10 ms
Input Step Response Time 100 ms
Overcurrent Protection Integrated per channel
Input Impedance Power ON: 250 Ohm; Power OFF: 500 kOhm or more
Signal Protocol Standard Analog with integrated HART Pass-Through
Power Consumption 310 mA (at 5 V DC); 450 mA (at 24 V DC)
Module Dimensions 107.5 mm x 32.8 mm x 130.0 mm (L x W x H)
Net Weight 0.20 kg

Technical FAQs

  • Q: How does the NFAI141-S00 S2 accommodate both 2-wire and 4-wire transmitters?

    A: The module contains internal physical setting pins for each of the 16 channels. Technicians must configure these jumpers depending on the loop power requirements: 2-wire transmitter mode utilizes the module's onboard 24 V DC power loop, while 4-wire transmitter mode configures the channel to accept externally powered current loops.

  • Q: What is the maximum voltage drop across the input terminals during normal operation?

    A: Due to the internal protective circuitry built to prevent current spikes from damaging the system, a voltage drop of up to 3 V DC may occur across the 250 Ohm input resistance at full-scale current.

  • Q: Can the NFAI141-S00 S2 be connected directly to a Zener safety barrier for hazardous locations?

    A: No, connecting a Zener barrier directly to this module is not permitted. For intrinsically safe applications in hazardous areas, you must install an active galvanic isolation barrier between this non-isolated module and the field devices.


On-Site Engineering & Installation Guidelines

  • Field Power Requirement for 2-Wire Transmitter Loops: When configuring channels for 2-wire transmitter operation, you must supply an external 24 V DC source to the analog field power supply terminal on the rack's power supply module. Without this external 24 V DC field feed, the module cannot distribute loop power to the field transmitters.

  • Signal Cable Isolation and Shielding: To eliminate high-frequency electromagnetic noise, route the analog input cables through dedicated instrument trays. Ground the cable shields at a single point inside the control cabinet. Avoid running these low-voltage signal lines parallel to high-voltage AC motor lines or variable frequency drive (VFD) outputs.

  • Jumpers and Pin Setting Protection: Always power down the FCN rack before removing the module to adjust individual channel 2-wire or 4-wire setting pins. Modifying the jumpers while the module is live can trigger overcurrent faults or cause momentary process signal disruption on adjacent channels.

Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
Reviews

NFAI141-S00 S2

Stock & lead time on request

Call
1 su 3

NFAI141-S00 S2 Yokogawa STARDOM FCN Analog Input Module

Only 10 item(s) left in stock
  • Manufacturer: Yokogawa

  • Product No.: NFAI141-S00 S2

  • Country of origin:Japan

  • Product Type: Analog Input Module

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 200g

  • Dimensions: 107.5 mm x 32.8 mm x 130.0 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Quantità
Visualizza dettagli completi

Product Description

Product Overview

The Yokogawa NFAI141-S00 S2 (NFAI141-S00 S2) is a high-density, 16-channel analog input module engineered for the STARDOM FCN autonomous controller platform. It is widely specified in oil and gas extraction fields, chemical batching plants, and water treatment facilities, where real-time tracking of process variables like pressure, temperature, and flow is essential. The module interfaces with 4 to 20 mA DC normalized signals from both 2-wire and 4-wire transmitters, and features integrated HART communication capabilities. By delivering a fast 10 ms data refresh cycle and onboard overcurrent protection, this module ensures accurate, low-latency measurements. Its ultra-reliable signal acquisition prevents unexpected process trips and safeguards processing loops, dramatically minimizing unscheduled plant downtime.

Suffix Breakdown

The system ordering code for the NFAI141-S00 S2 designates its precise electrical specifications, environmental options, and hardware design generation:

  • NFAI141: Base product model for the 16-channel, 4 to 20 mA, Non-Isolated Analog Input Module.

  • -S: Standard type module designed for standard industrial process requirements.

  • 0: Specifies a hardware build with no explosion protection ratings.

  • 0: Basic type functional configuration.

  • S2: Style 2 hardware revision, denoting modern components and backward compatibility within standard STARDOM FCN baseplates.

Core Technical Specifications

Parameter Certified Specification Value
Model NFAI141-S00 S2
Brand Yokogawa Electric Corporation
Origin Japan
Input Channel Count 16 channels, non-isolated
Nominal Input Range 4 to 20 mA DC
Transmitter Power Supply 22.8 to 26.4 V DC (with 27 mA output current limit)
System Precision plus/minus 0.1% of full scale
Data Refresh Interval 10 ms
Input Step Response Time 100 ms
Overcurrent Protection Integrated per channel
Input Impedance Power ON: 250 Ohm; Power OFF: 500 kOhm or more
Signal Protocol Standard Analog with integrated HART Pass-Through
Power Consumption 310 mA (at 5 V DC); 450 mA (at 24 V DC)
Module Dimensions 107.5 mm x 32.8 mm x 130.0 mm (L x W x H)
Net Weight 0.20 kg

Technical FAQs

  • Q: How does the NFAI141-S00 S2 accommodate both 2-wire and 4-wire transmitters?

    A: The module contains internal physical setting pins for each of the 16 channels. Technicians must configure these jumpers depending on the loop power requirements: 2-wire transmitter mode utilizes the module's onboard 24 V DC power loop, while 4-wire transmitter mode configures the channel to accept externally powered current loops.

  • Q: What is the maximum voltage drop across the input terminals during normal operation?

    A: Due to the internal protective circuitry built to prevent current spikes from damaging the system, a voltage drop of up to 3 V DC may occur across the 250 Ohm input resistance at full-scale current.

  • Q: Can the NFAI141-S00 S2 be connected directly to a Zener safety barrier for hazardous locations?

    A: No, connecting a Zener barrier directly to this module is not permitted. For intrinsically safe applications in hazardous areas, you must install an active galvanic isolation barrier between this non-isolated module and the field devices.


On-Site Engineering & Installation Guidelines

  • Field Power Requirement for 2-Wire Transmitter Loops: When configuring channels for 2-wire transmitter operation, you must supply an external 24 V DC source to the analog field power supply terminal on the rack's power supply module. Without this external 24 V DC field feed, the module cannot distribute loop power to the field transmitters.

  • Signal Cable Isolation and Shielding: To eliminate high-frequency electromagnetic noise, route the analog input cables through dedicated instrument trays. Ground the cable shields at a single point inside the control cabinet. Avoid running these low-voltage signal lines parallel to high-voltage AC motor lines or variable frequency drive (VFD) outputs.

  • Jumpers and Pin Setting Protection: Always power down the FCN rack before removing the module to adjust individual channel 2-wire or 4-wire setting pins. Modifying the jumpers while the module is live can trigger overcurrent faults or cause momentary process signal disruption on adjacent channels.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
