Description

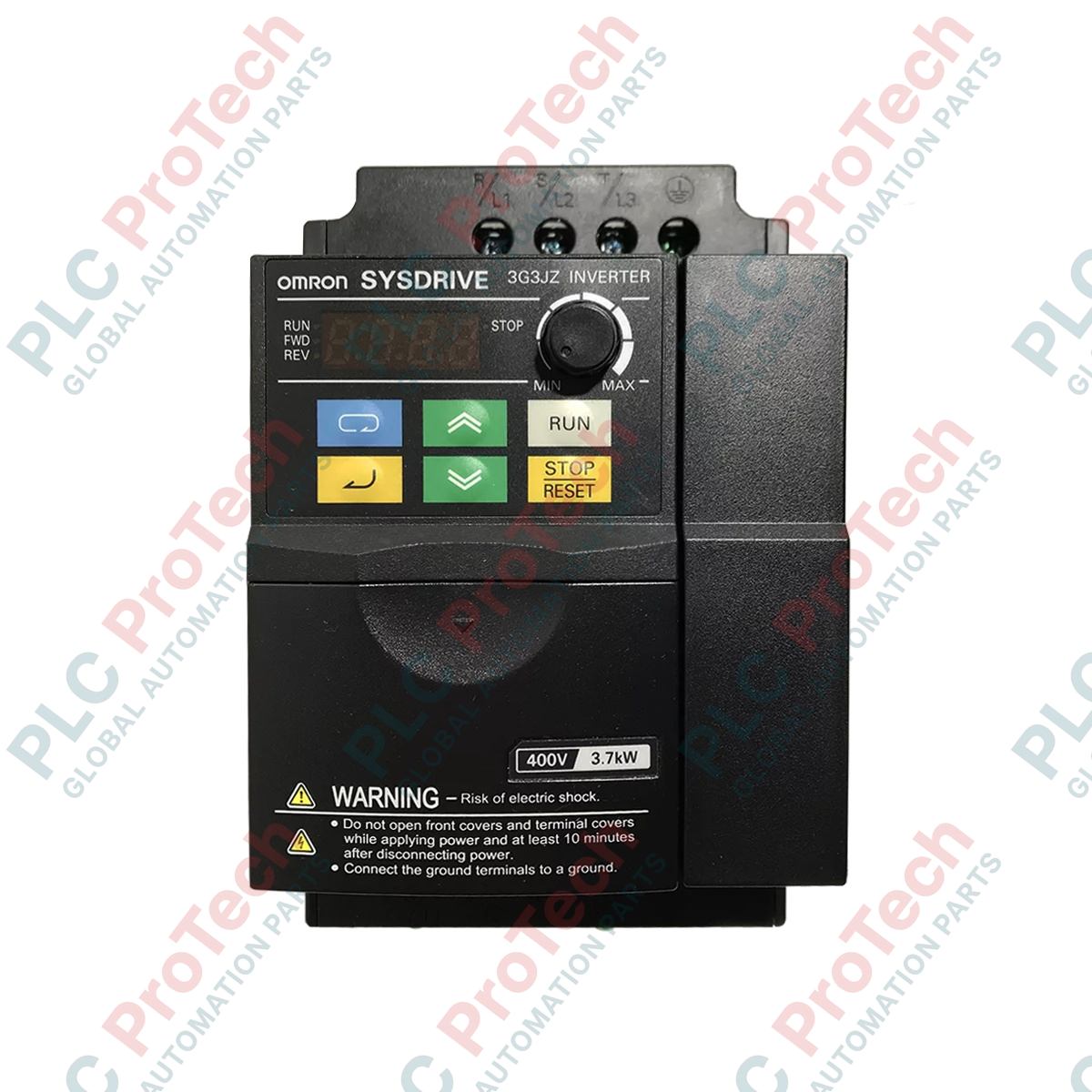

Designed for precise speed control in standard industrial induction motors, the Omron 3G3JZ-A4037 is an intelligent, easy-to-use variable frequency drive belonging to the renowned SYSDRIVE 3G3JZ Series. This variable speed AC drive delivers reliable motor control and efficient operation for high-demand processing equipment. Integrating seamlessly into electrical control cabinets, the module features a space-saving footprint and a streamlined programming interface to simplify installation, commissioning, and maintenance workflows.

The unit features a robust hardware architecture tailored for 3-phase AC 400V power systems, with a maximum applicable motor capacity of 3.7 kW. To ensure stable operation within industrial enclosures, it is designed for panel-mounting or closed wall-mounting setups, offering a minimum of IP20 ingress protection. The inverter's control design optimizes energy use while maintaining high torque output across a wide speed range, making it highly compatible with existing automation systems.

Features

• Efficient power delivery optimized for 3-phase 400V level systems.
• Panel-mounting and closed wall-mounting design with a minimum IP20 protection rating.
• User-friendly programming interface for rapid parameter configuration and diagnostics.
• Compact physical dimensions designed to conserve space inside industrial control enclosures.
• Broad integration capabilities with standard automation controllers and PLCs.

Applications

• Conveyor and material handling systems
• Industrial fan and ventilation control
• Centrifugal pumps and fluid management equipment
• Packaging machines and processing lines
• Textile machinery and standard automated production lines

Technical Specifications

Installation Guidelines

• Mounting: Install the inverter vertically on a flat, non-flammable surface inside a dust-free control panel. Ensure the ambient temperature inside the panel does not exceed operational limits.
• Ventilation: Maintain minimum clearances of 100 mm above and below the unit, and 50 mm on both sides to allow adequate convective airflow and thermal dissipation.
• Wiring & Grounding: Use shielded power cables for motor connections to minimize electromagnetic interference (EMI). Securely ground the inverter’s ground terminal to the main system ground bus.
• Protection: Install recommended circuit breakers or line fuses on the AC input side of the drive to protect system components from overcurrent conditions.
