CJ1W-NC213

Omron

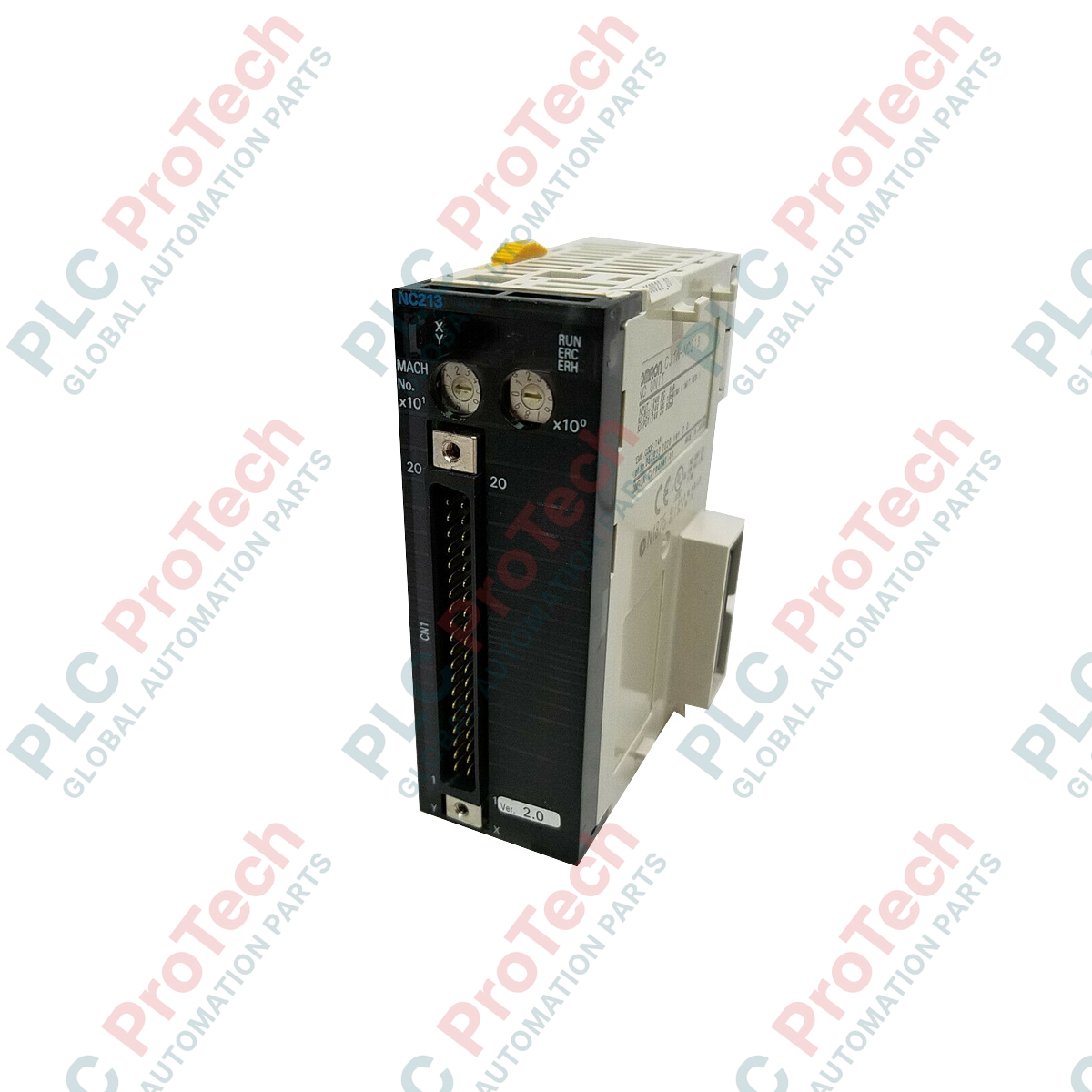

Omron CJ1W-NC213 CJ Series Position Control Unit

SKU CJ1W-NC213

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Omron
  • Product No.: CJ1W-NC213
  • Origin Japan
  • Product Type: Position Control Units
  • Payment: T/T, Western Union
  • Weight: 0.1 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

CJ Series Position Control Units
Quantità
Call sales Contact

Product Description

Description

High-speed pulse train control is executed directly from the PLC backplane utilizing the CJ1W-NC213 position control module. Designed for the Omron CJ-series PLC platform, this intelligent I/O unit provides precise, dual-axis motion control. By generating high-accuracy pulse train command signals, it interfaces seamlessly with stepping motor drives and servo systems to execute complex positioning profiles without requiring dedicated external controllers.

The module communicates over the standard CJ-series system bus, allowing direct parameter configuration, speed changes, and target position updates directly from the PLC program. This simplifies programming and reduces system latency during multi-axis alignment, packaging, or feeding operations.

Features

  • Supports precise, dual-axis independent or coordinated positioning profiles.
  • Provides open-collector pulse train outputs for stepper and servo drive interfacing.
  • Implements direct control parameters via memory allocation within the host PLC CPU.
  • Features high-speed processing for minimal startup time delay in time-critical applications.
  • Supports multiple operating modes including position control, speed control, and interrupt feeding.

Applications

  • Packaging, wrapping, and sealing machinery.
  • Automated pick-and-place assembly lines.
  • Material handling systems and multi-axis conveyor sorting.
  • X-Y positioning tables and gantry alignment mechanisms.

Technical Specifications

CategoryTechnical ParameterValue / Specification
Manufacturer Omron Omron Corporation
Part Number / Model CJ1W-NC213 CJ1W-NC213
Product Type Position Control Unit (PCU) Intelligent I/O Module
Compatible PLC Series CJ Series (CJ1, CJ2) CJ-series Backplane Bus
Number of Controlled Axes 2 axes Independent or interpolated control
Output Type Open-collector output Pulse-train output mode
Internal Supply Voltage 5 V DC (for the PCU itself) 4.75 to 5.25 V DC allowable range
External Supply Voltage 24 V DC (for external outputs) 21.6 to 26.4 V DC allowable range
Internal Current Consumption 250 mA max. Measured at 5 V DC on backplane bus
Ambient Operating Temperature 0 to 55 degC Non-condensing environment
Unit Weight 0.10 kg Net weight of module

Installation Guidelines

  • Bus Connection: Ensure the CJ-series PLC power supply is switched off before inserting or removing the CJ1W-NC213 module from the backplane rack.
  • Noise Suppression: Route the pulse train output signal cables completely separate from high-voltage AC power lines or motor cables to prevent electromagnetic interference.
  • Shielding: Always use shielded twisted-pair cabling for connection to the servo or stepper drive, and ground the shield at the drive side according to local industrial regulations.
  • External Power Supply: Verify that the external 24 V DC power supply meets the allowable voltage tolerance limits to avoid pulse generation errors.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the Omron CJ1W-NC213?
The Omron CJ1W-NC213 is a 2-axis position control unit designed for CJ-series PLCs. It generates open-collector pulse-train signals to control stepper motor drives and servo systems.
What are the power requirements for the CJ1W-NC213 module?
The module requires a 5 V DC internal supply from the PLC backplane (consuming 250 mA max.) and an external 24 V DC power supply (ranging from 21.6 to 26.4 V DC) for driving the output signals.
Does this module support line-driver or open-collector outputs?
The CJ1W-NC213 specifically features open-collector outputs. For applications requiring line-driver outputs, different models in the CJ1W-NC series must be selected.
What is the operating temperature range for the CJ1W-NC213?
The module is designed to operate in ambient temperatures ranging from 0 to 55 degC.
