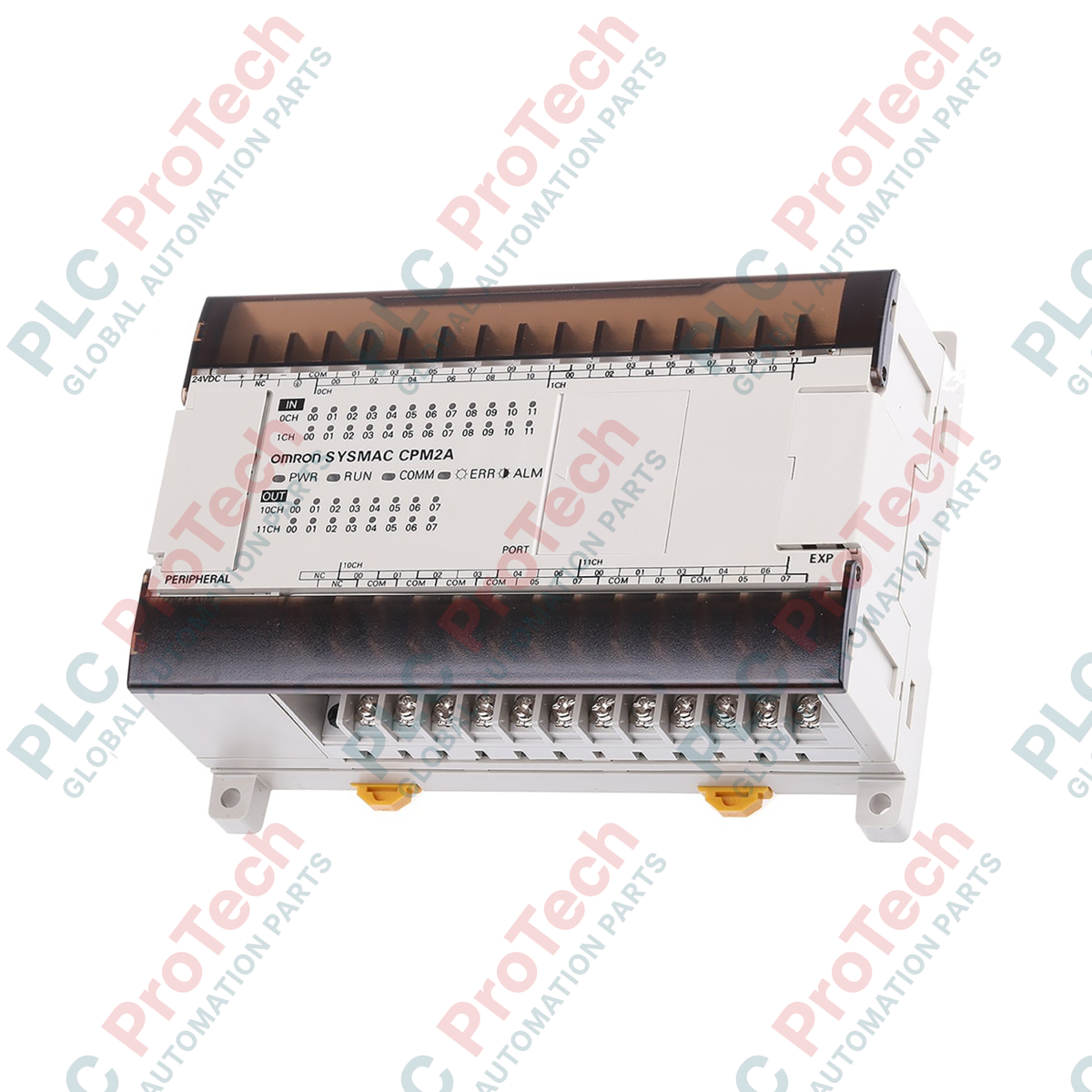

Designed to manage standalone industrial automation processes, the Omron CPM2A-40CDT-D serves as a highly reliable micro programmable logic controller (PLC) combining high-density physical I/O with integrated high-speed counter functions. Operating on a nominal 24 VDC power source, this controller is engineered to execute high-speed machine control sequences in tight cabinet spaces. The device integrates native communication capabilities alongside simple positioning controls, making it a versatile option for machinery automation.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Omron |
| Model Number | CPM2A-40CDT-D |
| Series Name | CPM2A Micro PLC Series |
| Supply Voltage Range | 20.4 to 26.4 VDC |
| Digital Inputs | 24 Inputs (24 VDC) |
| Digital Outputs | 16 Outputs |
| Output Type | Transistor (Sinking / NPN) |
| Net Weight | 0.7 kg |
| Shipping Weight (Calculated) | 2.0 kg |
While the CPM2A-40CDT-D remains a legacy standard for small machinery control, migration to modern platforms like the Omron CP1E or CP1L series is possible. Converting programs from this device requires using CX-Programmer software to map PLC memory addresses. Note that physical footprint dimensions and terminal block layouts differ between the CPM2A and CP1E lines, demanding panel modifications during active physical retrofits.
Thermal orientation is vital for long-term component preservation inside electrical enclosures. The manufacturer specifies horizontal DIN-rail mounting. Running this controller in a vertical orientation limits convective heat dissipation, requiring you to derate the maximum operating ambient temperature from 55 degC down to 45 degC. Ensure output transistor currents do not exceed rated system values to prevent thermal runaway in the output driver circuits.
To avoid electro-magnetic noise contamination on high-speed encoder inputs, keep signal wiring segregated from high-current AC power runs. Connect the controller's Functional Earth (FE) terminal directly to a low-resistance ground system. When driving inductive DC components such as solenoids or contactors via transistor outputs, always install a freewheeling diode in parallel with the load to absorb voltage spikes.
