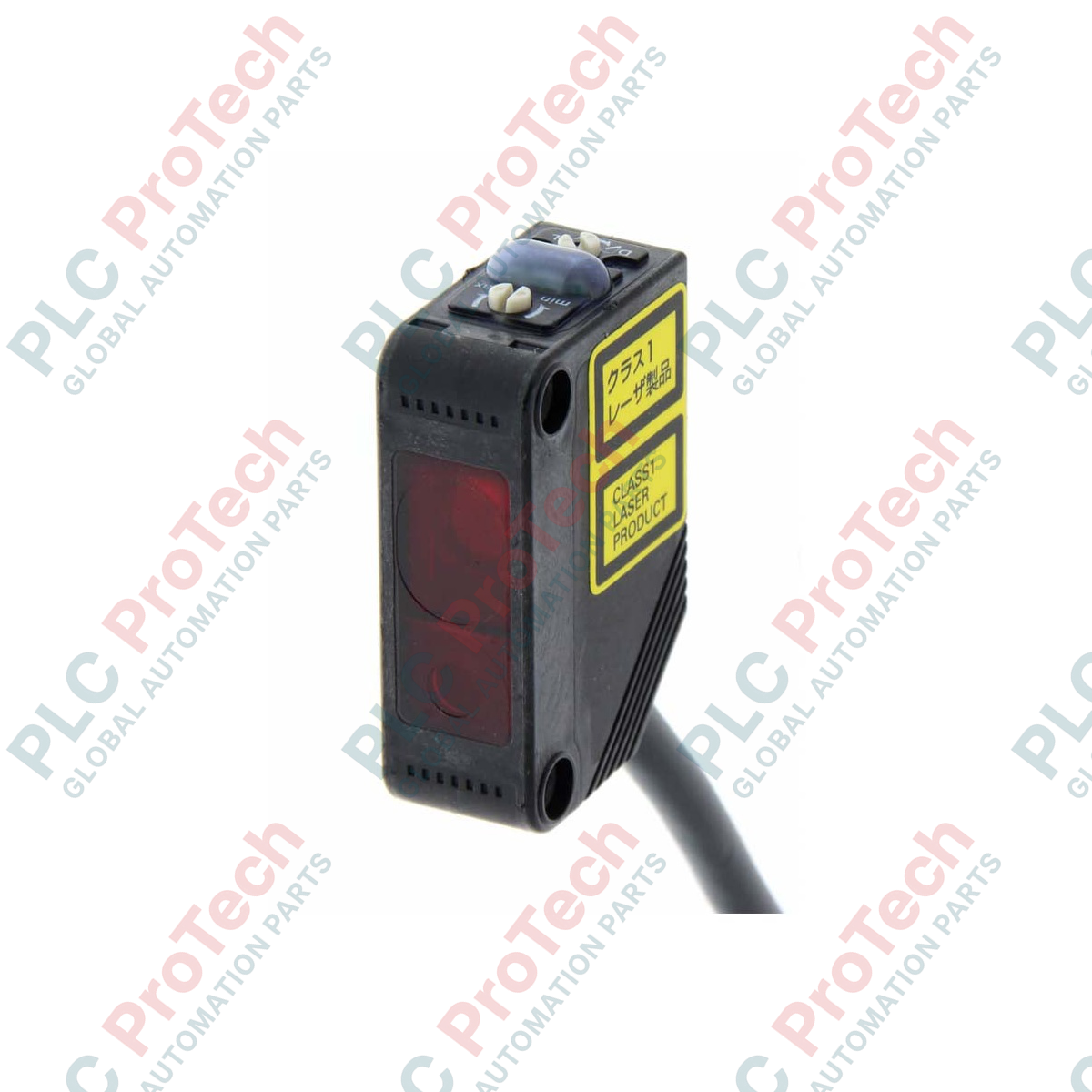

Omron E3Z-LL86 E3Z Photoelectric Sensor

SKU E3Z-LL86

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Omron
  • Product No.: E3Z-LL86
  • Origin Japan
  • Product Type: Photoelectric Sensors
  • Payment: T/T, Western Union
  • Weight: 1.0 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

E3Z Photoelectric Sensors
Quantità
Call sales Contact

Product Description

Description

Designed for highly precise object detection in automated industrial systems, the E3Z-LL86 photoelectric sensor utilizes advanced laser technology to deliver reliable background suppression (BGS). Operating as a distance-settable sensor, this device is capable of detecting targets accurately regardless of color, gloss, or background interference. The sensor features a high-performance red laser diode (LD) light source, enabling precise positioning and alignment tasks across a variety of manufacturing environments.

This Omron E3Z series sensor is equipped with a PNP open-collector control output and connects via a standard M8 4-pin connector. Its compact, robust housing provides excellent resistance to dust and moisture, making it suitable for demanding factory automation applications. By utilizing BGS technology, the sensor ensures stable detection even when a highly reflective background is present behind the target.

Features

  • Distance-settable sensing method utilizing background suppression (BGS) to eliminate background interference.
  • Equipped with a highly visible red LD (655 nm) light source (JIS Class 1, IEC Class 1, and FDA Class 2).
  • Standard PNP open-collector control output with light-ON/dark-ON selectable modes.
  • Compact and space-saving rectangular housing for easy integration into tight machine configurations.
  • Robust optical alignment design with a small, concentrated beam spot for precise micro-object detection.

Applications

  • Electronic component and semiconductor positioning.
  • Packaging line sorting and registration mark detection.
  • Automated warehousing and material handling conveyor systems.
  • Robotic end-of-arm tooling and pick-and-place alignment.

Technical Specifications

Manufacturer Omron
Part Number / Model E3Z-LL86
Sensor Type Photoelectric Sensor (Distance-settable Laser BGS)
Sensing Distance (White Paper) 20 to 300 mm (100 x 100 mm white paper)
Sensing Distance (Black Paper) 20 to 160 mm (100 x 100 mm black paper)
Set Distance Range (White Paper) 40 to 300 mm (100 x 100 mm white paper)
Set Distance Range (Black Paper) 40 to 160 mm (100 x 100 mm black paper)
Light Source (Wavelength) Red LD (655 nm), JIS Class 1, IEC Class 1, FDA Class 2
Spot Diameter (Reference Value) 0.5 mm diameter at 300 mm distance
Power Supply Voltage 12 to 24 VDC plus/minus 10 percent, ripple (p-p) 10 percent max.
Current Consumption 30 mA max.
Control Output PNP open collector, load power supply voltage: 26.4 VDC max., load current: 100 mA max.
Connection Type M8 connector (4-pin)
Ambient Operating Temperature -10 to 55 degC (with no icing or condensation)
Ambient Operating Humidity 35 percent to 85 percent RH
Approximate Shipping Weight 1 kg

Connections and Interfaces

Connector Pin Number Function Wire Color Reference
1 Power Supply (+V) Brown
2 Control Input / Mode Select White
3 Power Supply (0V) Blue
4 Control Output (PNP) Black

Installation Guidelines

  • Mount the sensor securely to a rigid surface or mounting bracket to prevent misalignment caused by vibration or physical impact.
  • Ensure the optical window of the sensor is kept clean and free from oil, dust, or condensation. Use a clean, dry, lint-free cloth for cleaning.
  • Verify that the cable and connector are routed away from high-voltage cables or power-switching lines to avoid electromagnetic interference.
  • Tighten the M8 connector securely by hand to maintain the ingress protection rating. Avoid using excessive force or tools that could damage the connector threading.

Compliance and Certifications

  • CE Mark
  • UL Listed
  • IEC 60825-1 Class 1 Laser Product
  • FDA Laser Class 2 compliant
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the sensing range of the Omron E3Z-LL86 sensor?
The sensing range is 20 to 300 mm when detecting standard white paper (100 x 100 mm), and 20 to 160 mm when detecting standard black paper (100 x 100 mm).
What output configuration does this sensor use?
The E3Z-LL86 features a PNP open-collector control output with a maximum load current of 100 mA and a maximum load power supply voltage of 26.4 VDC.
Does the E3Z-LL86 require a separate reflector or receiver?
No, the E3Z-LL86 is a distance-settable background suppression (BGS) sensor, meaning it operates as a diffuse-reflective device that detects light directly reflected from the target object.
What type of light source is utilized in this Omron sensor?
It utilizes a visible red laser diode (655 nm wavelength) rated as a JIS Class 1, IEC Class 1, and FDA Class 2 laser.
Reviews

More from this brand

Omron NA5-12W101S-V1 | Omron | NA5-V1 Series HMI
NA5-12W101S-V1Omron NA5-12W101S-V1 | Omron | NA5-V1 Series HMI
Omron XWT-ID16 16-Point Digital Input Expansion Module
XWT-ID16Omron XWT-ID16 16-Point Digital Input Expansion Module
Omron G3PE-225B-3N | Omron | Solid State Contactors for Three-phase Heaters
G3PE-225B-3NOmron G3PE-225B-3N | Omron | Solid State Contactors for Three-phase Heaters
Omron NX-ECC202 | Omron | NX-series EtherCAT Coupler Unit
NX-ECC202Omron NX-ECC202 | Omron | NX-series EtherCAT Coupler Unit

E3Z-LL86

Stock & lead time on request

Call
  • E3Z-LL86
1 1

Omron E3Z-LL86 E3Z Photoelectric Sensor

Only 5 item(s) left in stock

  • Manufacturer: Omron

  • Product No.: E3Z-LL86

  • Country of origin:Japan

  • Product Type: Photoelectric Sensors

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

Designed for highly precise object detection in automated industrial systems, the E3Z-LL86 photoelectric sensor utilizes advanced laser technology to deliver reliable background suppression (BGS). Operating as a distance-settable sensor, this device is capable of detecting targets accurately regardless of color, gloss, or background interference. The sensor features a high-performance red laser diode (LD) light source, enabling precise positioning and alignment tasks across a variety of manufacturing environments.

This Omron E3Z series sensor is equipped with a PNP open-collector control output and connects via a standard M8 4-pin connector. Its compact, robust housing provides excellent resistance to dust and moisture, making it suitable for demanding factory automation applications. By utilizing BGS technology, the sensor ensures stable detection even when a highly reflective background is present behind the target.

Features

  • Distance-settable sensing method utilizing background suppression (BGS) to eliminate background interference.
  • Equipped with a highly visible red LD (655 nm) light source (JIS Class 1, IEC Class 1, and FDA Class 2).
  • Standard PNP open-collector control output with light-ON/dark-ON selectable modes.
  • Compact and space-saving rectangular housing for easy integration into tight machine configurations.
  • Robust optical alignment design with a small, concentrated beam spot for precise micro-object detection.

Applications

  • Electronic component and semiconductor positioning.
  • Packaging line sorting and registration mark detection.
  • Automated warehousing and material handling conveyor systems.
  • Robotic end-of-arm tooling and pick-and-place alignment.

Technical Specifications

Manufacturer Omron
Part Number / Model E3Z-LL86
Sensor Type Photoelectric Sensor (Distance-settable Laser BGS)
Sensing Distance (White Paper) 20 to 300 mm (100 x 100 mm white paper)
Sensing Distance (Black Paper) 20 to 160 mm (100 x 100 mm black paper)
Set Distance Range (White Paper) 40 to 300 mm (100 x 100 mm white paper)
Set Distance Range (Black Paper) 40 to 160 mm (100 x 100 mm black paper)
Light Source (Wavelength) Red LD (655 nm), JIS Class 1, IEC Class 1, FDA Class 2
Spot Diameter (Reference Value) 0.5 mm diameter at 300 mm distance
Power Supply Voltage 12 to 24 VDC plus/minus 10 percent, ripple (p-p) 10 percent max.
Current Consumption 30 mA max.
Control Output PNP open collector, load power supply voltage: 26.4 VDC max., load current: 100 mA max.
Connection Type M8 connector (4-pin)
Ambient Operating Temperature -10 to 55 degC (with no icing or condensation)
Ambient Operating Humidity 35 percent to 85 percent RH
Approximate Shipping Weight 1 kg

Connections and Interfaces

Connector Pin Number Function Wire Color Reference
1 Power Supply (+V) Brown
2 Control Input / Mode Select White
3 Power Supply (0V) Blue
4 Control Output (PNP) Black

Installation Guidelines

  • Mount the sensor securely to a rigid surface or mounting bracket to prevent misalignment caused by vibration or physical impact.
  • Ensure the optical window of the sensor is kept clean and free from oil, dust, or condensation. Use a clean, dry, lint-free cloth for cleaning.
  • Verify that the cable and connector are routed away from high-voltage cables or power-switching lines to avoid electromagnetic interference.
  • Tighten the M8 connector securely by hand to maintain the ingress protection rating. Avoid using excessive force or tools that could damage the connector threading.

Compliance and Certifications

  • CE Mark
  • UL Listed
  • IEC 60825-1 Class 1 Laser Product
  • FDA Laser Class 2 compliant
Key Features:
#E3Z #Photoelectric Sensors

What is the sensing range of the Omron E3Z-LL86 sensor?
The sensing range is 20 to 300 mm when detecting standard white paper (100 x 100 mm), and 20 to 160 mm when detecting standard black paper (100 x 100 mm).

What output configuration does this sensor use?
The E3Z-LL86 features a PNP open-collector control output with a maximum load current of 100 mA and a maximum load power supply voltage of 26.4 VDC.

Does the E3Z-LL86 require a separate reflector or receiver?
No, the E3Z-LL86 is a distance-settable background suppression (BGS) sensor, meaning it operates as a diffuse-reflective device that detects light directly reflected from the target object.

What type of light source is utilized in this Omron sensor?
It utilizes a visible red laser diode (655 nm wavelength) rated as a JIS Class 1, IEC Class 1, and FDA Class 2 laser.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
