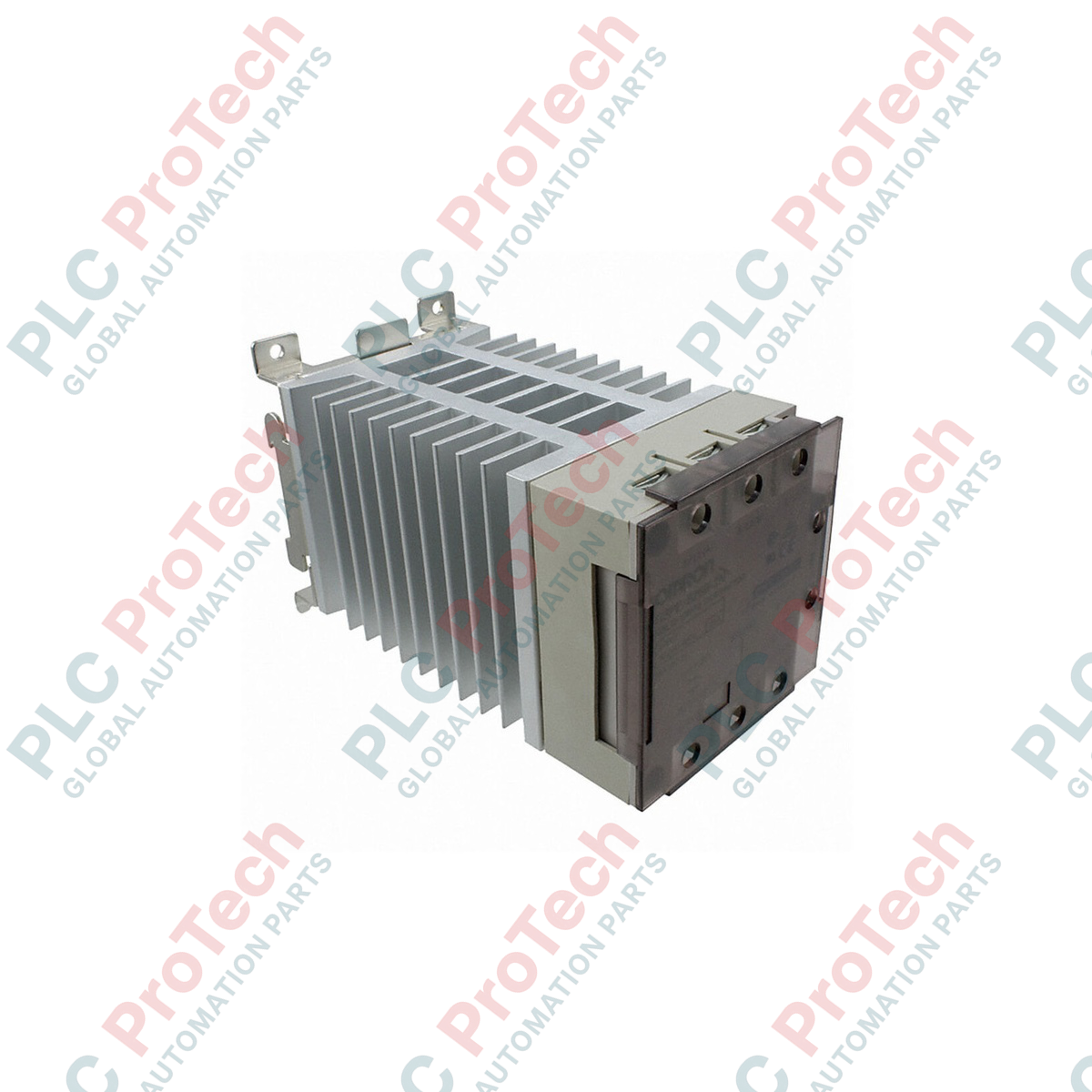

Omron G3PE-535B-2N 3-Phase Heater Control (Solid State Relay)

SKU G3PE-535B-2N

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Omron
Product No.: G3PE-535B-2N
Origin Japan
Product Type: 3-phase Heater Control
Payment: T/T, Western Union
Weight: 0.5 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The G3PE-535B-2N is a robust, compact 3-phase solid-state relay (SSR) designed specifically for high-efficiency heater control in industrial applications. By utilizing a phototriac isolation method, this unit ensures complete electrical separation between the control signal and the high-voltage load, providing safe and reliable switching for heating elements.

This model is engineered for heavy-duty performance, supporting a 35A load current and a wide load voltage range of 200 to 480 VAC. A critical feature is the integrated zero-cross function, which minimizes electrical noise (EMI) by switching the output only when the AC voltage crosses zero, thereby extending the life of both the heater and the relay. With its screw terminal structure and high inrush current resistivity, the G3PE-535B-2N is a dependable choice for industrial heating processes.

Features

Control Type: 3-phase heater control (SSR)
Isolation: Phototriac isolation for maximum safety
Zero Cross Function: Equipped for EMI reduction and component longevity
Input Voltage: 12–24 VDC (Operating range: 9.6–30 VDC)
Load Capability: 35A current capacity; 29.0 kW (at 480 VAC)
Design: Rugged screw terminal structure for secure field wiring

Applications

Industrial ovens, furnaces, and kilns
Plastic molding and extrusion heating systems
Commercial food processing and packaging equipment
Semiconductor manufacturing heating processes

Technical Specifications

Feature	Specification
Manufacturer	Omron
Model	G3PE-535B-2N
Rated Load Voltage	200–480 VAC
Load Current	35 A
Input Voltage	12–24 VDC
Isolation	Phototriac
Inrush Current	440 A (1 cycle)
Weight	3.0 kg

Installation Guidelines

Heat Dissipation: Due to the 35A current capacity, ensure the relay is mounted on a heat sink or in an area with sufficient airflow. SSRs generate heat during operation, and proper cooling is essential to prevent thermal failure.
Wiring: Use appropriately rated cables for the load side to handle 35A continuously. Ensure all terminal screws are tightened to the specified torque to prevent overheating at the connection point.
Safety: Since the load voltage can be as high as 480 VAC, ensure the system is properly grounded and that protective covers are installed over terminals to prevent accidental contact.
EMI Considerations: Although the zero-cross function significantly reduces electrical noise, keep low-voltage control signal wiring physically separated from high-voltage load wiring to maintain signal integrity.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the purpose of the zero-cross function in the G3PE-535B-2N?

The zero-cross function ensures the relay switches the load only when the AC voltage is at zero, which significantly reduces electromagnetic interference (EMI) and prevents high inrush current spikes.

What is the maximum load capacity for this heater control relay?

It can handle a load of up to 29.0 kW when operating at 480 VAC.

How should I handle heat management for this relay?

Because the relay handles up to 35A, it is crucial to mount it on a suitable heat sink or ensure there is adequate forced airflow in the cabinet to maintain operating temperatures within safe limits.
