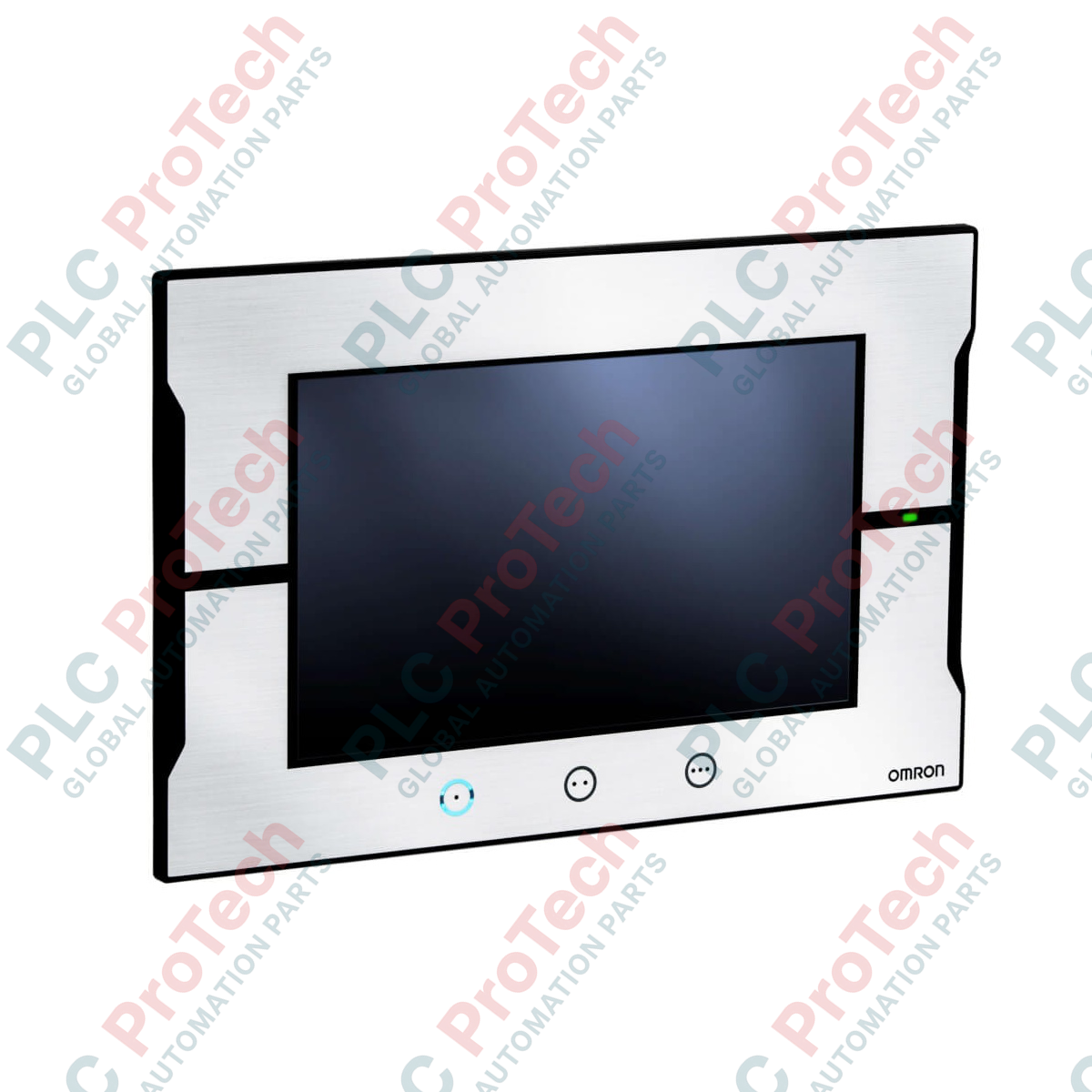

Omron NA5-9W001S-V1 NA5-V1 Series HMI Touch Screen

SKU NA5-9W001S-V1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Omron
Product No.: NA5-9W001S-V1
Origin Japan
Product Type: HMI Touch Screens
Payment: T/T, Western Union
Weight: 1.7 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Engineered for seamless integration within the Sysmac automation platform, the Omron NA5-9W001S-V1 provides dynamic machine visualization and control. This high-resolution widescreen HMI terminal features a 9-inch active-matrix TFT display that supports up to 16.7 million colors, delivering clear operator screens and precise diagnostic data. With integrated dual Ethernet ports, USB host/device interfaces, and a dedicated serial connection, this operator interface coordinates high-speed communication between PLCs, motion controllers, and enterprise networks.

The unit acts as an intelligent machine-level portal, allowing synchronized troubleshooting, data logging, and media playback directly on the plant floor. Designed with a rugged silver bezel and an IP65-rated front panel, the NA5-9W001S-V1 HMI module resists dust and water ingress, making it highly reliable in demanding manufacturing environments such as automotive assembly, packaging lines, and food processing plants.

Features

Widescreen 9-inch TFT display supporting 16,777,216 vibrant colors for complex graphical user interfaces.
WVGA 800 x 480 pixel resolution provides crisp rendering of fine detail, trend graphs, and machinery schematics.
Dual 10/100/1000 Base-T Ethernet ports for segmenting control network traffic from office network data.
Integrated USB interfaces for quick project uploads, data logging storage, and peripheral connectivity.
IP65-rated front face ensures reliable operation in washdown and dust-heavy industrial settings.

Applications

Packaging machinery control and diagnostics.
Automotive manufacturing assembly and tracking stations.
Water and wastewater processing plant visualization.
Food and beverage production lines requiring sanitization.
High-speed material handling and sorting systems.

Technical Specifications

Manufacturer	Omron
Part Number / Model	NA5-9W001S-V1
Series	NA5-V1 Series
Screen Diagonal	9 inches
Display Type	TFT LCD
Horizontal Pixels	800 pixels
Vertical Pixels	480 pixels
Display Colors	16,777,216 colors
Frame Color	Silver
Ethernet Ports	2
USB Ports	3
RS-232 Ports	1
Front Degree of Protection	IP65
Front Width	290 mm
Front Height	190 mm
Panel Cutout Width	260 mm
Panel Cutout Height	165 mm
Built-in Depth	63.1 mm
Weight	1700 g

Connections and Interfaces

Port / Interface	Function / Description
Ethernet Port 1	10/100/1000 Mbps communication with Sysmac controllers and PLCs
Ethernet Port 2	Host network link, remote monitoring, or secondary network ring
USB Host Ports	Connection for storage media, barcode scanners, or update utilities
USB Device Port	Direct connection to PC running Sysmac Studio programming software
RS-232 Serial Port	Serial interface for legacy controllers, temperature controllers, and barcode readers

Installation Guidelines

Verify that the panel cutout dimensions exactly measure 260 mm x 165 mm prior to installation.
Ensure the sealing gasket is correctly aligned and seated in the channel to maintain the IP65 protective front seal.
Secure the terminal using the provided mounting brackets, tightening them evenly to prevent front bezel warping.
Incorporate a functional ground connection to minimize electrical noise interference on communication lines.
Ensure adequate clearance around the rear vents to maintain cooling air circulation inside the enclosure.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the physical display resolution of the Omron NA5-9W001S-V1?

The NA5-9W001S-V1 has a display resolution of 800 x 480 pixels (WVGA) with a 9-inch screen diagonal.

Does this HMI support communication over multiple Ethernet networks?

Yes, it features two separate Ethernet ports, allowing you to segment your control network from your corporate or local field network.

What software program is used to configure the NA5-9W001S-V1 HMI?

This module is fully integrated and programmed using Omron's Sysmac Studio software package.

What is the front panel environmental rating for this terminal?

The front face of the NA5-9W001S-V1 is IP65-rated, meaning it is protected against dust ingress and low-pressure water jets.
