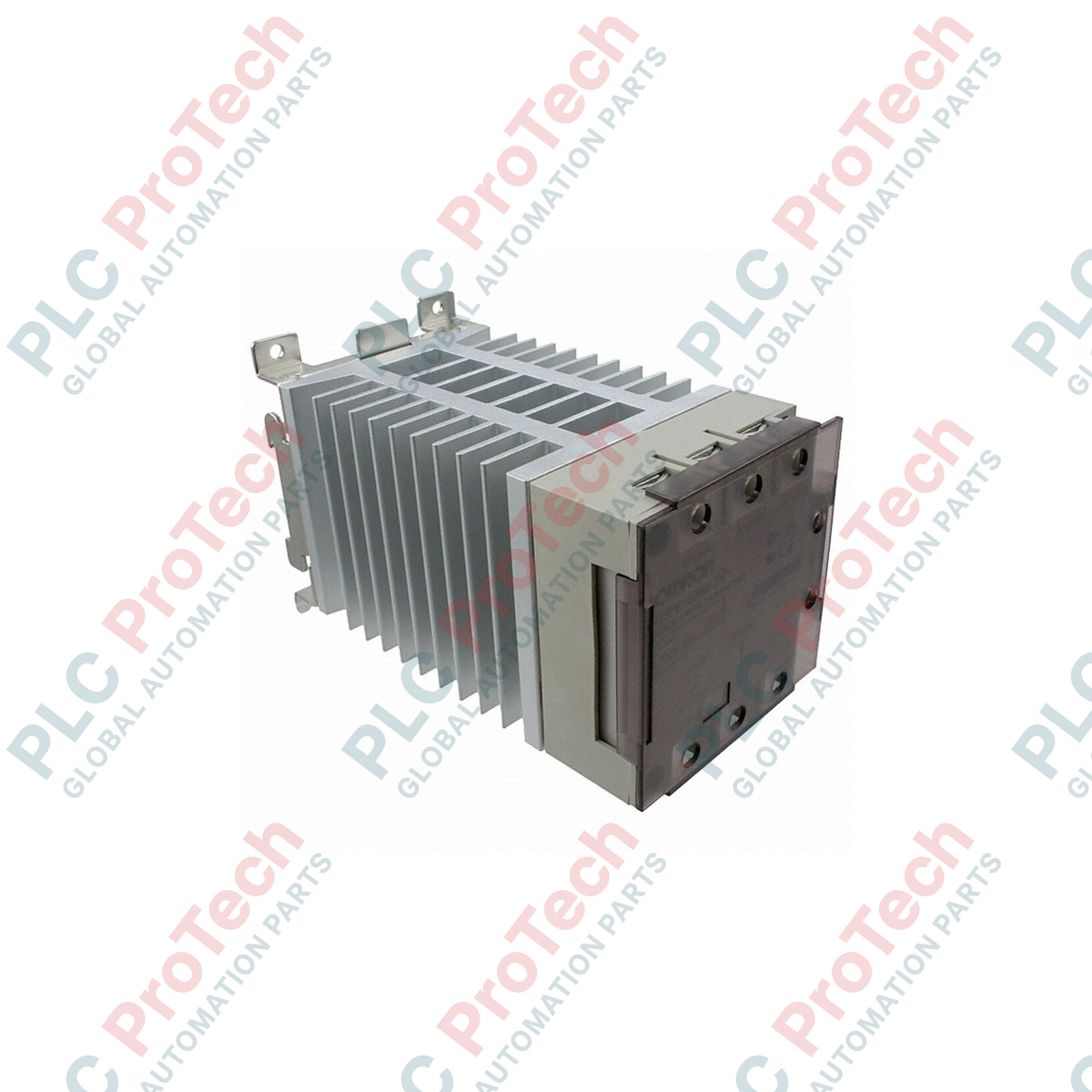

Engineered for precise industrial thermal regulation, the Omron G3PE-235B-2N facilitates highly efficient switching of three-phase heating loads up to 35 A. Utilizing a 2-phase switching topology, this device simplifies wiring in three-phase delta or star configurations without a neutral wire, providing a compact footprint inside electrical control panels. The integrated zero-cross function minimizes electromagnetic interference and electrical noise generation, safeguarding surrounding analog automation instrumentation during high-frequency cycling.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Model Code | G3PE-235B-2N |
| Rated Input Control Voltage | 12 to 24 VDC |
| Operating Input Voltage Range | 9.6 to 30 VDC |
| Input Current | 10 mA maximum (at 24 VDC) |
| Rated Load Voltage | 100 to 240 VAC |
| Load Voltage Range | 75 to 264 VAC |
| Continuous Load Current | 35 A (at an ambient temperature of 40 degC) |
| Minimum Load Current | 0.5 A |
| Inrush Current Resistivity | 440 A (60 Hz, 1 cycle) |
| Permissible I2t Value | 1260 A2s |
| Load Capacity | 12.1 kW (at 200 VAC) |
| Isolation Method | Phototriac |
| Terminal Type | Screw terminals (with integrated terminal cover) |
| Mounting Style | DIN-rail and panel surface mounting |
| Shipping Weight (Calculated) | 3.0 kg |
| Terminal Designation | Function / Circuit Assignment |
|---|---|
| A1 / A2 (Input) | Control DC voltage input (positive/negative terminals) |
| L1 / T1 (Output) | Phase 1 AC power line input and load connection (Switched) |
| L2 / T2 (Output) | Phase 2 AC power line input and load connection (Switched) |
| L3 / T3 (Output) | Phase 3 direct bypass connection (Not switched internally, used for 2-phase control conduction path) |
The "2N" designation specifies a 2-element (2-phase switching) module. If your application relies on a 3-element switching topology (e.g., systems containing grounded neutral star connections that require isolation on all lines), you must utilize the "3N" series variant instead. The physical mounting footprint and input terminal configurations remain identical between the two series, facilitating an easy mechanical upgrade path.
Thermal management is the most critical factor for reliable SSR operation. When operating continuously at 35 A, the module must have unrestricted vertical convection airflow. If mounting multiple G3PE controllers side-by-side within an unventilated control panel, apply a derating factor of 10% to 20% to prevent thermal runaway. Ensure the heat sink fins remain clear of dust build-up.
Always use ring crimp terminals matching the screw terminal specs to ensure robust surface contact under thermal cycling. Under-tightened screw terminals will generate localized resistance-induced heat, leading to terminal housing degradation. To prevent damage from short-circuits on the load side, install fast-acting semiconductor fuses upstream of the SSR, sized to blow well below the internal 1260 A2s limit.
De-energize all primary load supply lines and auxiliary DC control supplies before undertaking installation, terminal adjustments, or inspection. Treat all heat sink structures as potentially hot during and directly following operation.
Mount the module vertically to a standard 35mm DIN rail or directly to a flat metal backplate using the mounting screws to optimize heat sink chimney-effect convection.
Ensure a minimum of 80mm free clearance directly above and below the device to allow proper airflow dissipation.
Apply the correct DC input control polarity (12 to 24 VDC) to terminals A1 (+) and A2 (-). Check polarity before energizing control circuits.
Secure load wiring to the output terminal blocks, ensuring torque meets Omron standard specifications for M4/M5 terminal screws to avoid high-contact-resistance hotspots.
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: G3PE-235B-2N
Country of origin:Japan
Product Type: Solid State Relays
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
