Description

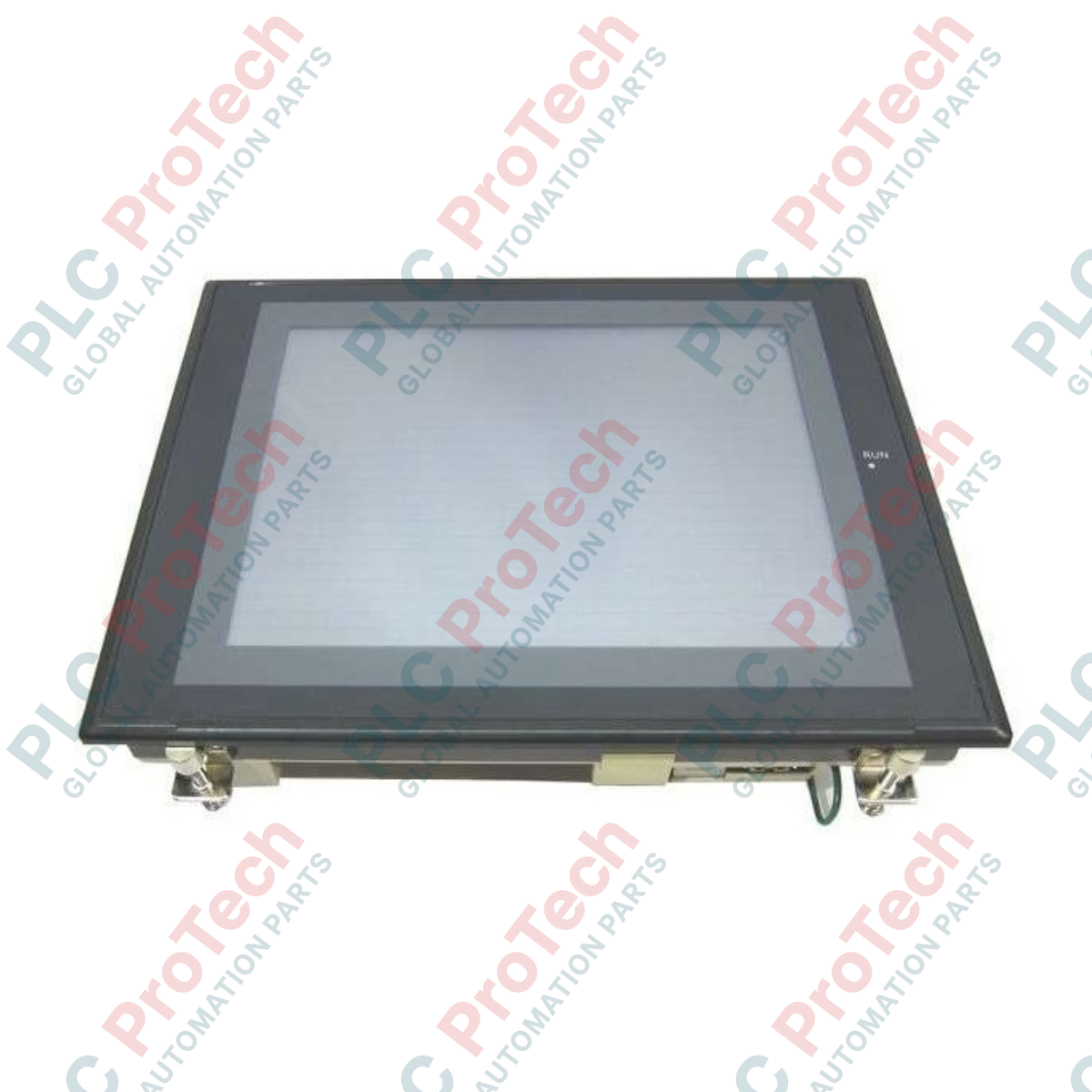

Designed for robust machine visualization and system integration, the NS8-TV00B-V1 serves as a highly reliable human-machine interface (HMI) within the Omron NS Series family. This 8.4-inch touch panel terminal provides an efficient graphical interface that allows operators to monitor and manage industrial automation systems seamlessly. Engineered with a vivid TFT color display, it offers sharp graphics and quick screen transitions to maximize operational clarity on the factory floor.

The NS8-TV00B-V1 programmable terminal features dual serial ports and a USB interface, enabling flexible connections to programmable logic controllers (PLCs), temperature controllers, and other automation peripherals. Its physical expansion slot supports optional fieldbus modules such as Controller Link or Ethernet, ensuring compatibility with evolving network architectures. Built to withstand demanding factory environments, this unit features a protective front panel rated for IP65F environmental resistance when panel-mounted.

Features

• High-contrast 8.4-inch TFT active matrix color display for excellent visual clarity.
• Integrated analog resistive touchscreen allowing highly flexible button layouts.
• Dual RS-232C ports for concurrent connections to host PLCs and peripheral devices.
• Dedicated USB slave port for fast application program transfers from a PC.
• Expansion slot supporting network communication boards and video input modules.
• Support for multi-language display configurations, simplifying global deployment.
• Robust front-panel protection rating of IP65F against water spray and dust ingress.

Applications

• Automotive assembly line monitoring and control.
• Packaging machinery control stations.
• Water treatment and chemical dosing system visualization.
• Material handling and conveyor management systems.
• Food and beverage processing equipment interfaces.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Panel Cutout: Prepare a precise panel cutout of 220.5 mm (W) x 165.5 mm (H) with a panel thickness range between 1.6 mm and 4.8 mm.
• Environmental Clearance: Ensure at least 100 mm of clearance space around the rear and sides of the unit to facilitate adequate natural convection and heat dissipation.
• Grounding: Connect the functional ground (GR) terminal using a dedicated ground wire of 2 mm squared or thicker to prevent electrical noise interference.
• Tightening Torque: Secure the mounting brackets to a torque of 0.5 to 0.6 N-m to maintain the front panel IP65F protective seal. Do not overtighten.
• Wiring Isolation: Keep power supply lines and communication cables isolated from high-voltage electrical lines and motor drive cables to minimize electromagnetic interference.

Compliance and Certifications

• CE Mark
• UL Listed (Class I, Division 2 hazardous locations compliance)
• cULus Certification
